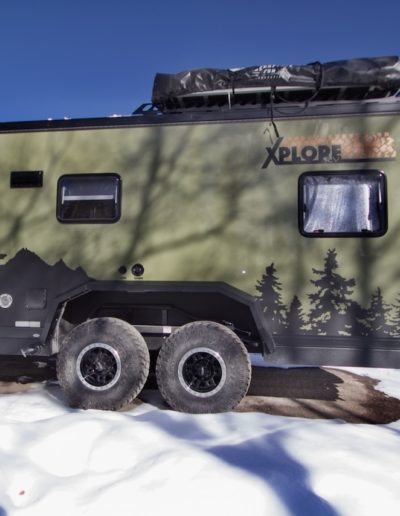

Imperial Outdoors Xplore X22


Meet Xplore X-22

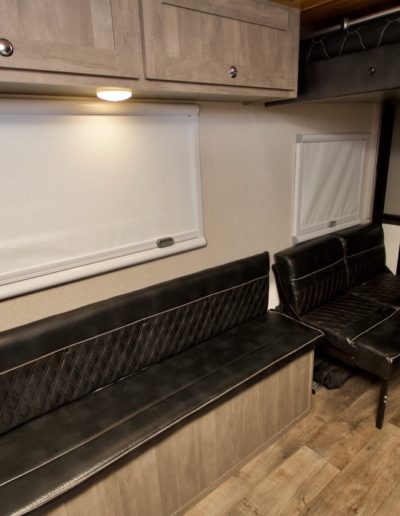

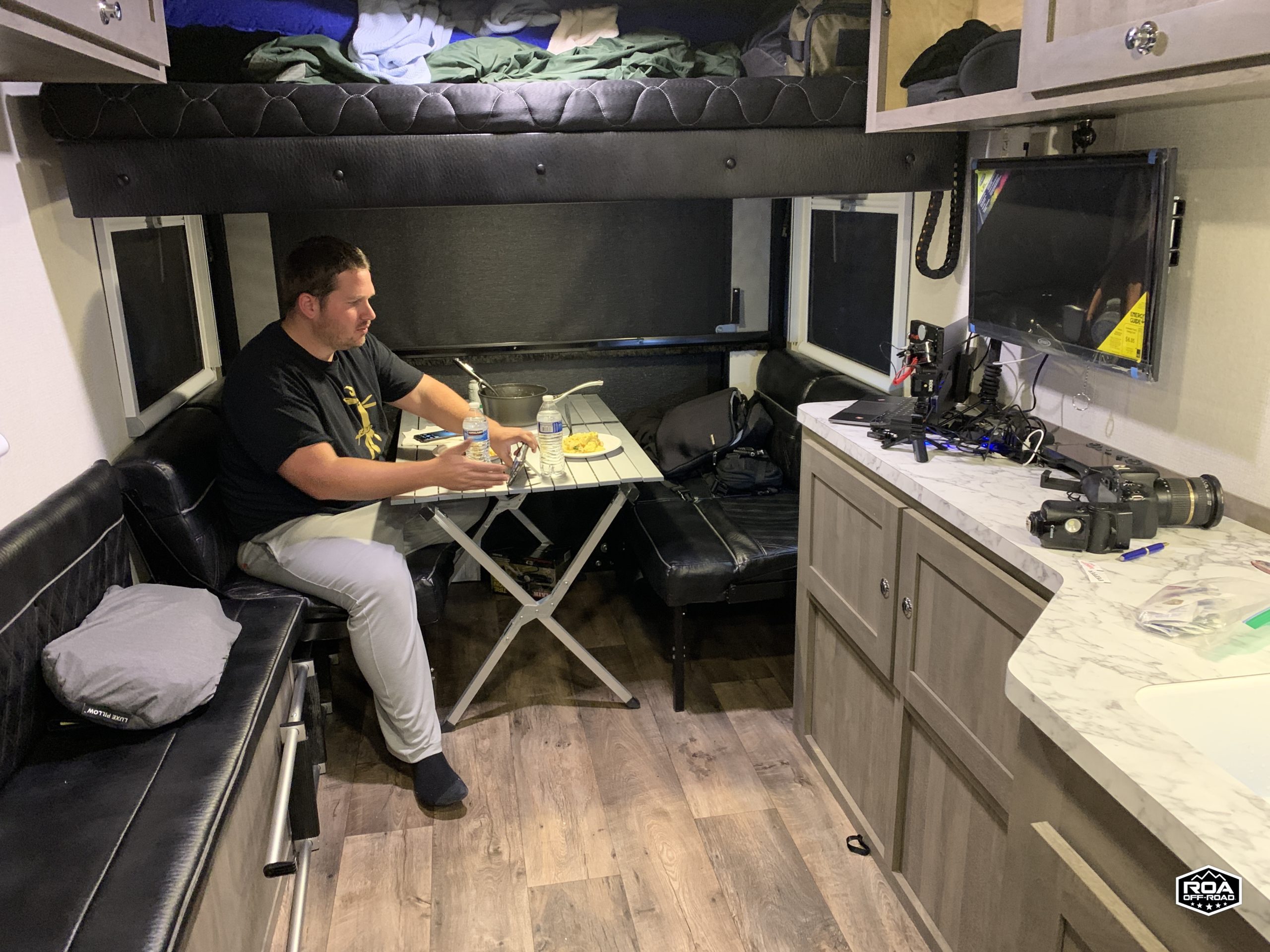

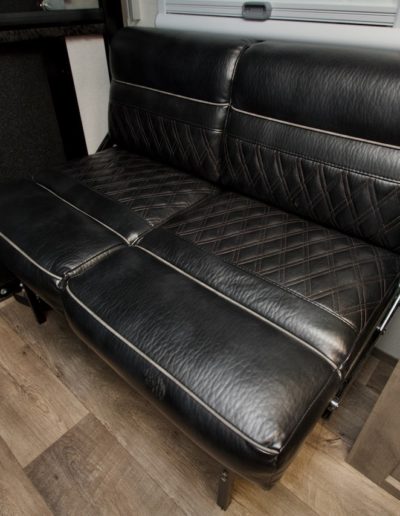

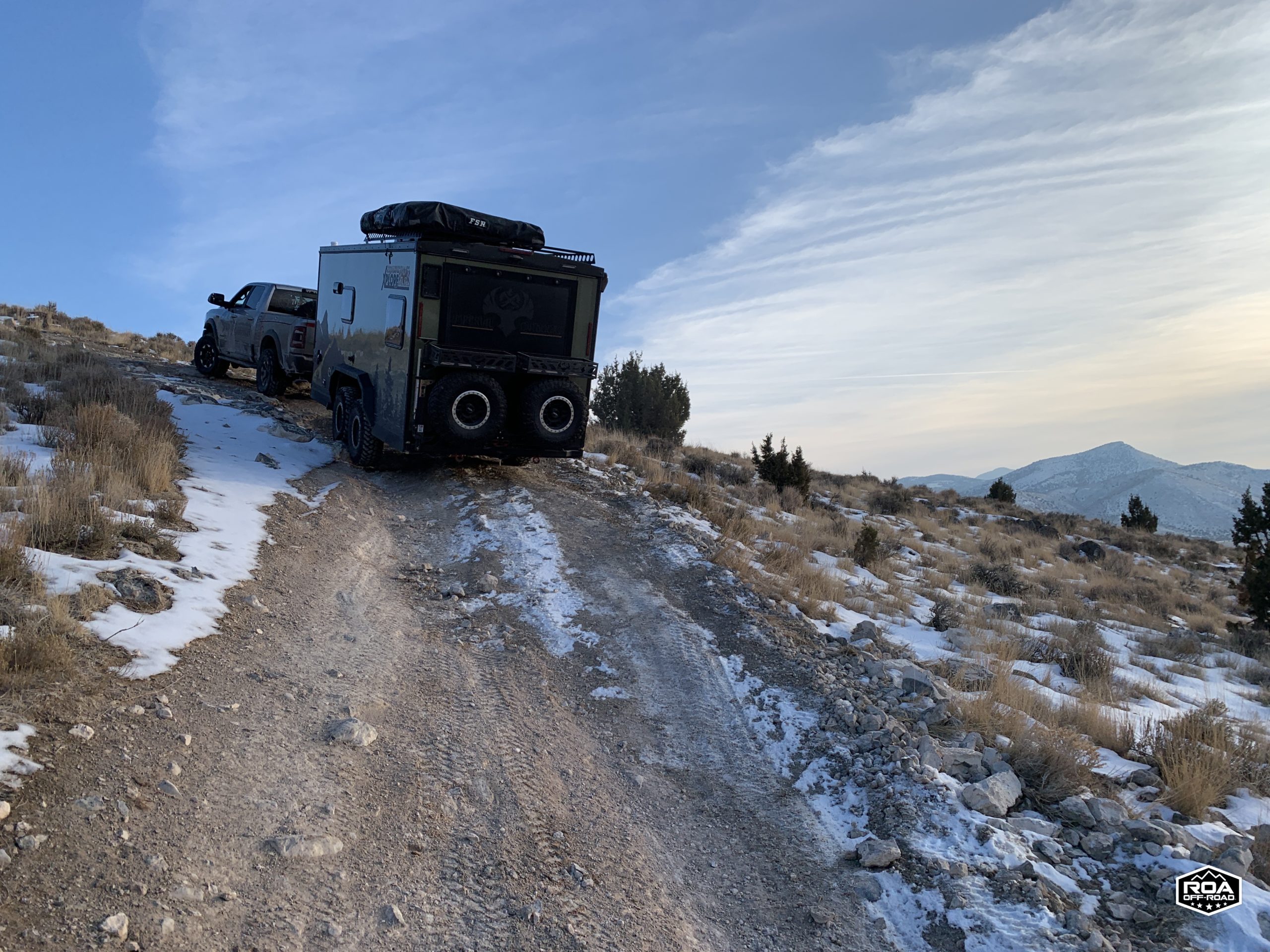

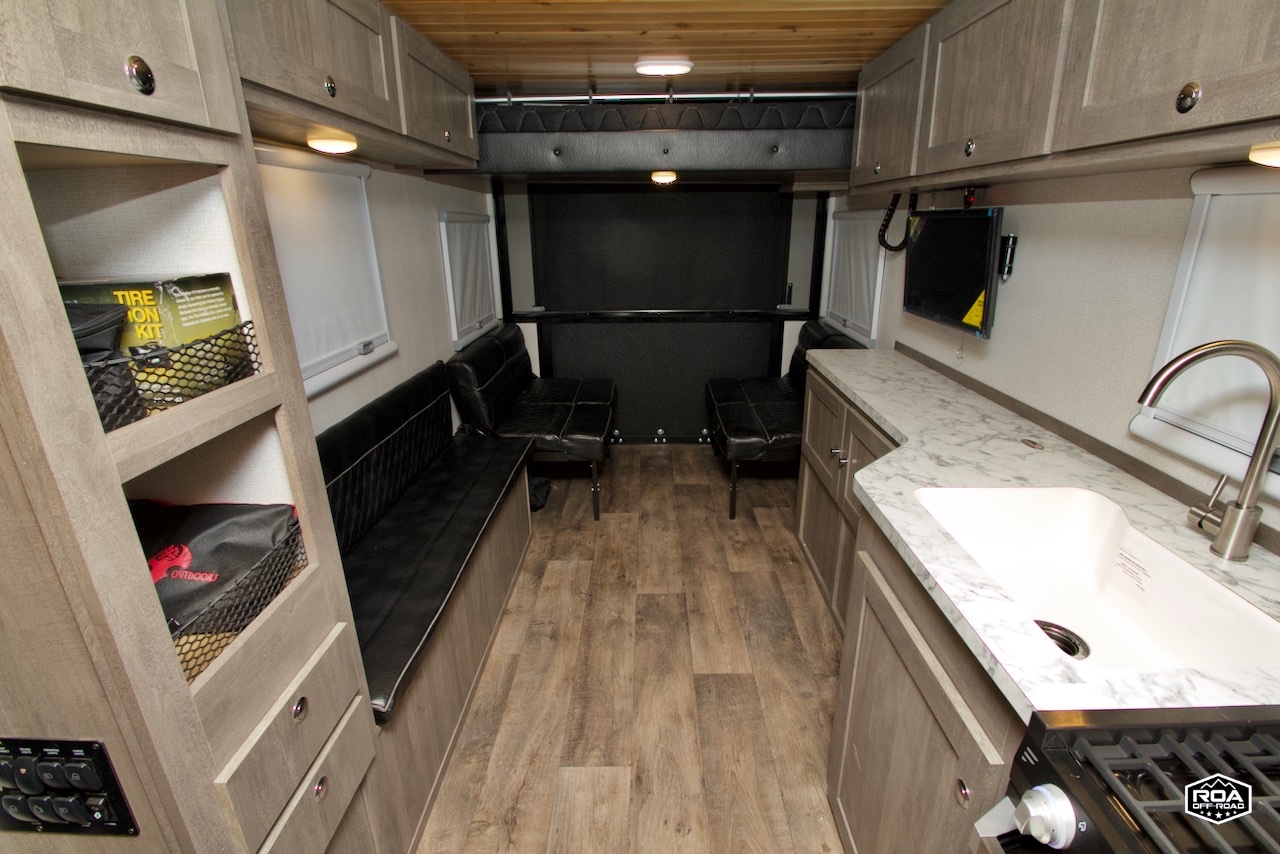

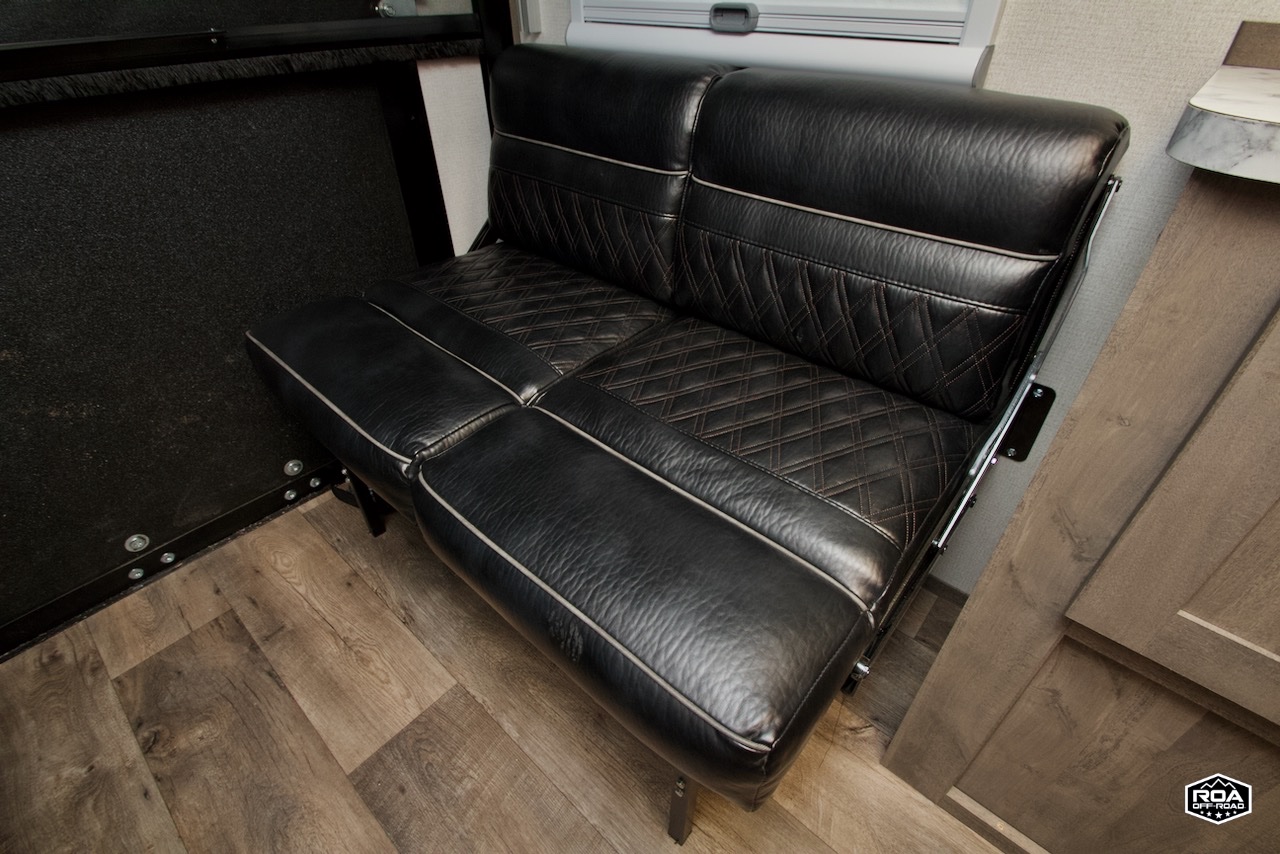

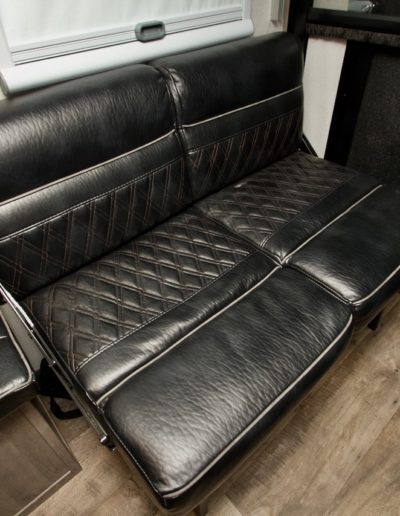

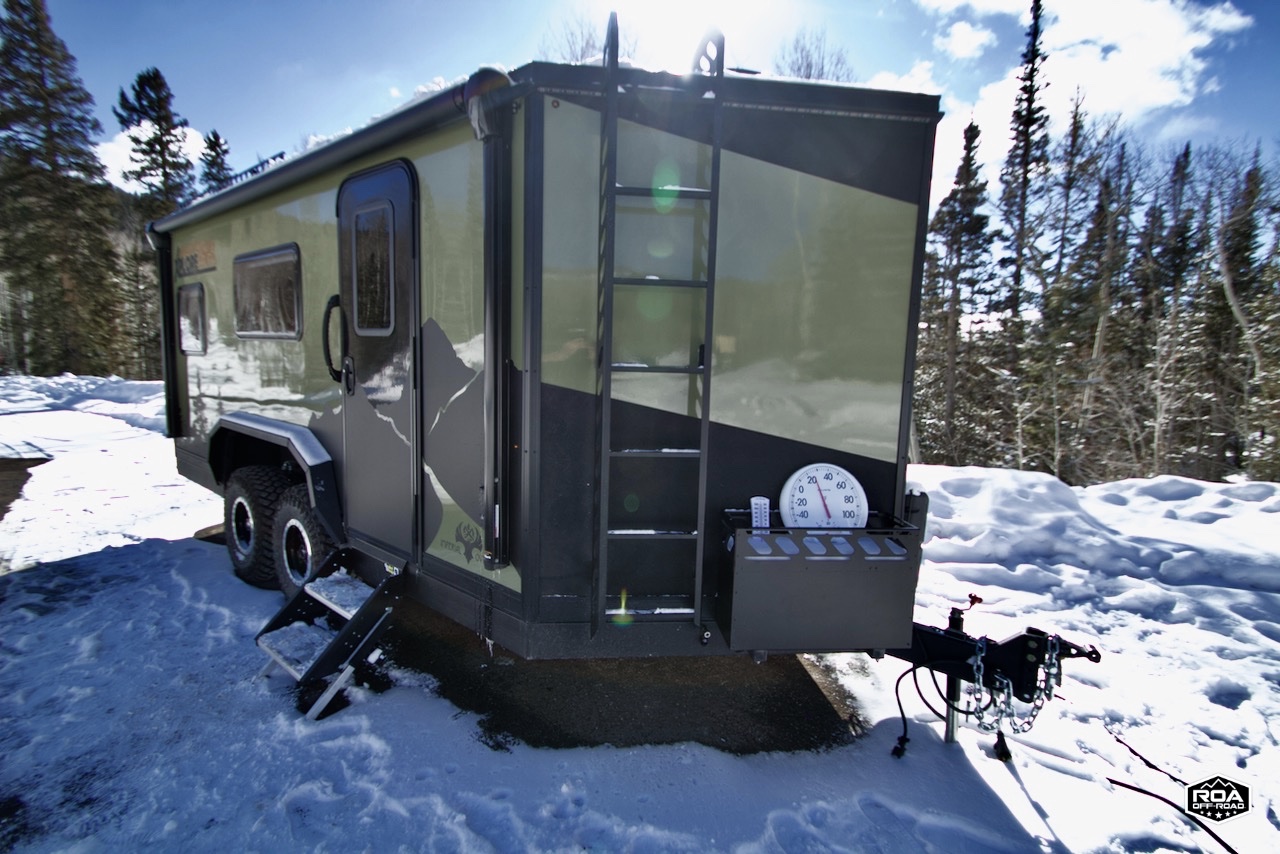

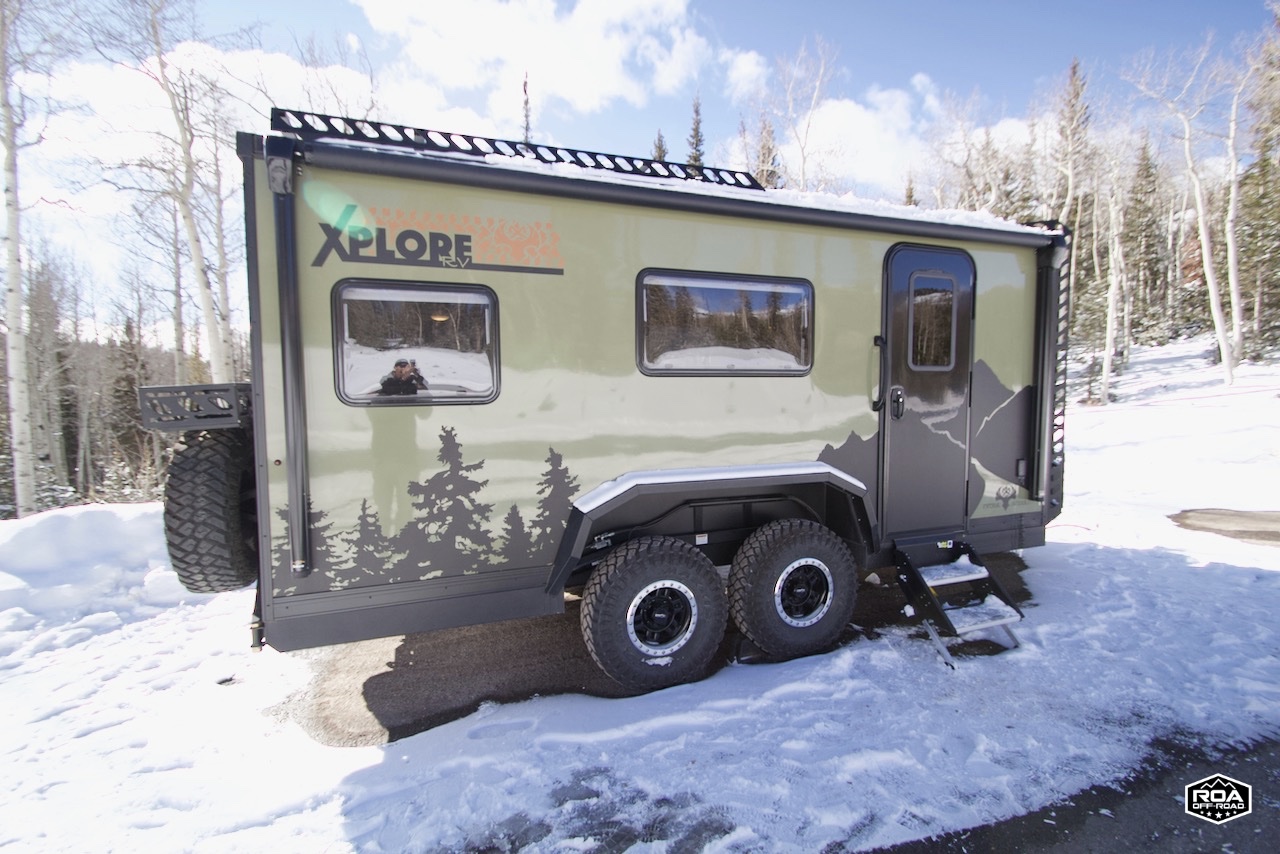

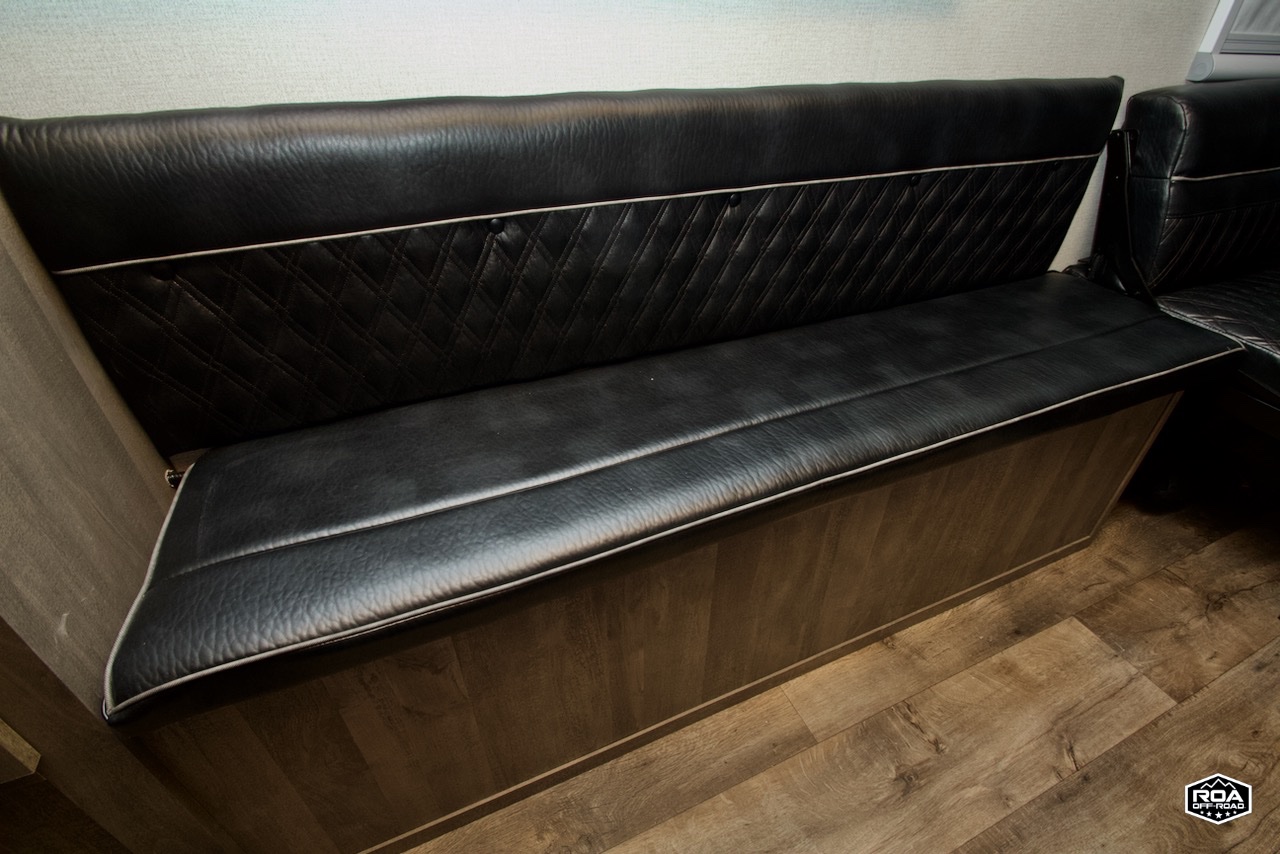

The Xplore X22 is the ultimate off-road camping trailer for couples looking to travel without limitation by cold or hot climates. With the dinnette bed conversion and the optional rooftop tent, you can increase sleeping capacity to 5 or 6. We have tested and proven the Imperial Outdoors Xplore X22 in every terrain and every climate. Get ready to Xplore! Built to order, call or text for details.
Lots of people ask about upgrades for their Xplore XR22. We have developed several upgrades to make owning one easier, safer and more off-grid capable.

Common Upgrades:

Extra 30 gal water tank

Extra solar

Sway control system

McHitch articulating hitch

Backup Camera

We love customizing and making the caravan suit your needs. Call or text with any questions. 801-860-0035

We have done several awesome videos about these trailers on Youtube. If you search Xplore X22 into youtube you can learn a lot about these from our walkthroughs and off road test.
We've spent several night camping in this unit so we know them very well. ( including trips into the freezing mountains & to Baja Mexico!)

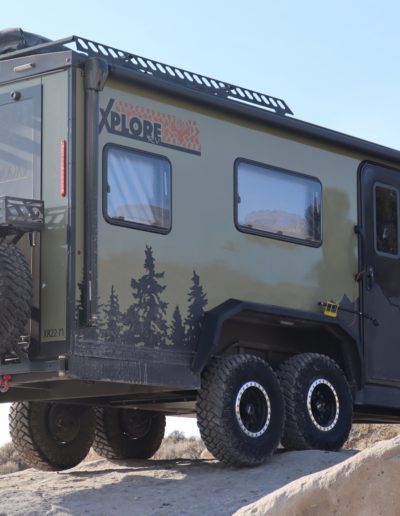

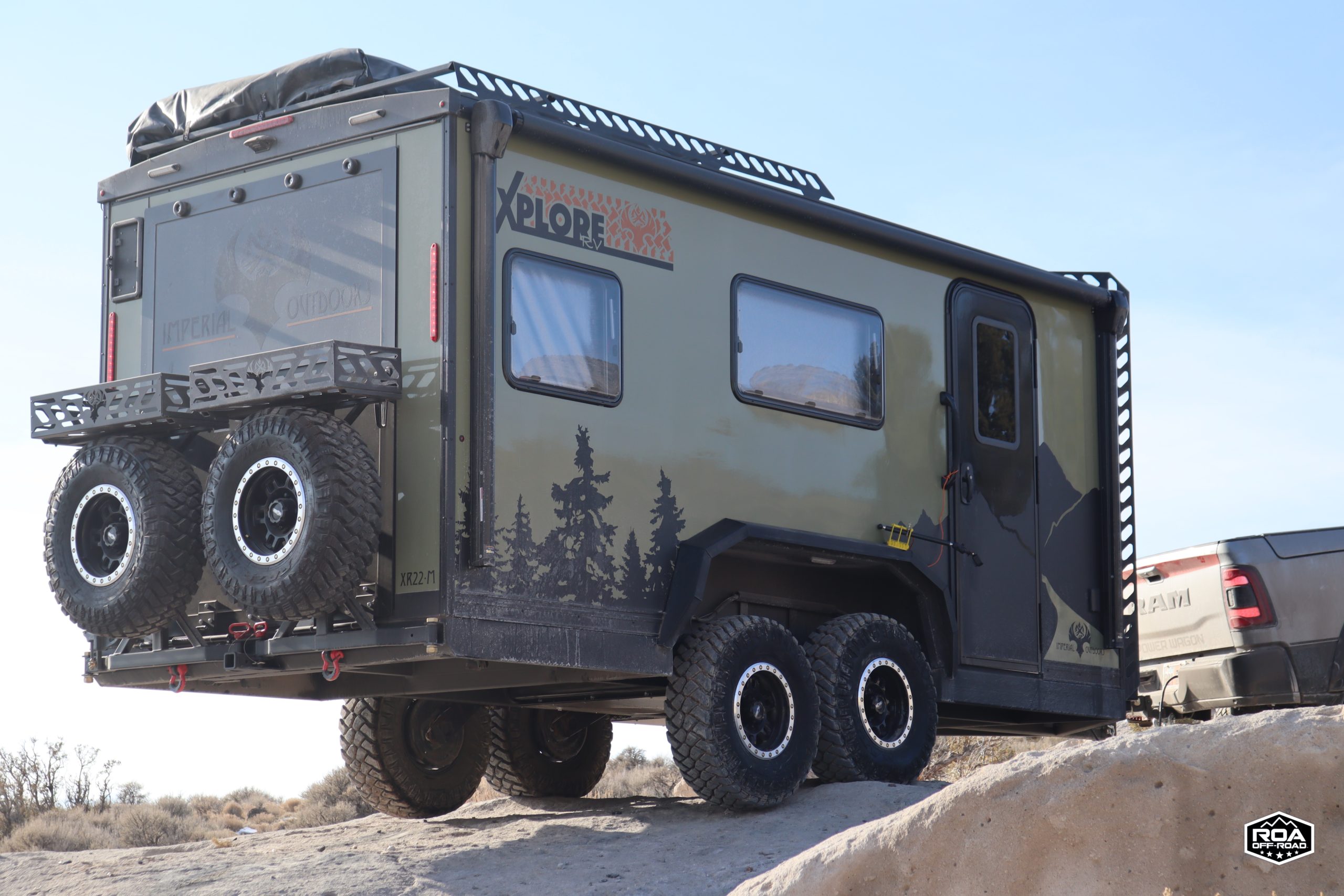

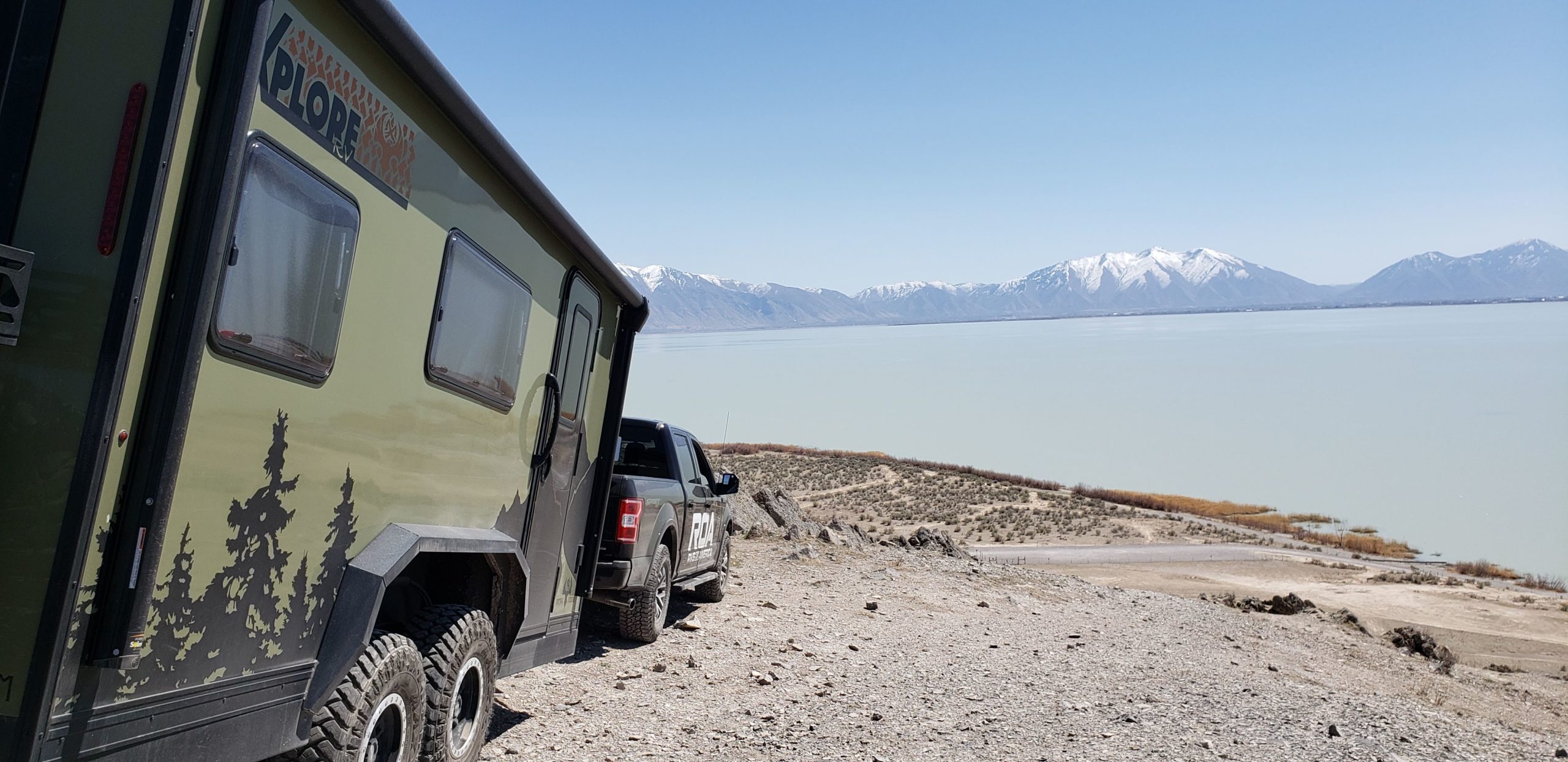

Imperial Outdoors Xplore Off Road Travel Trailer

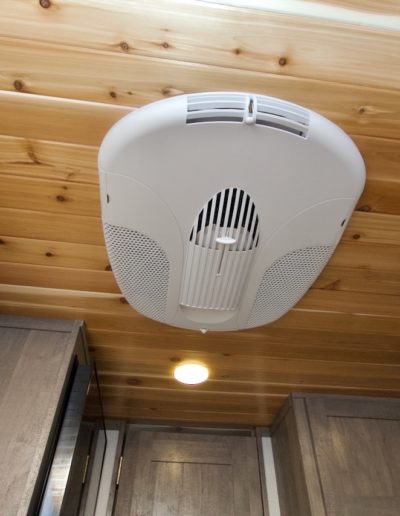

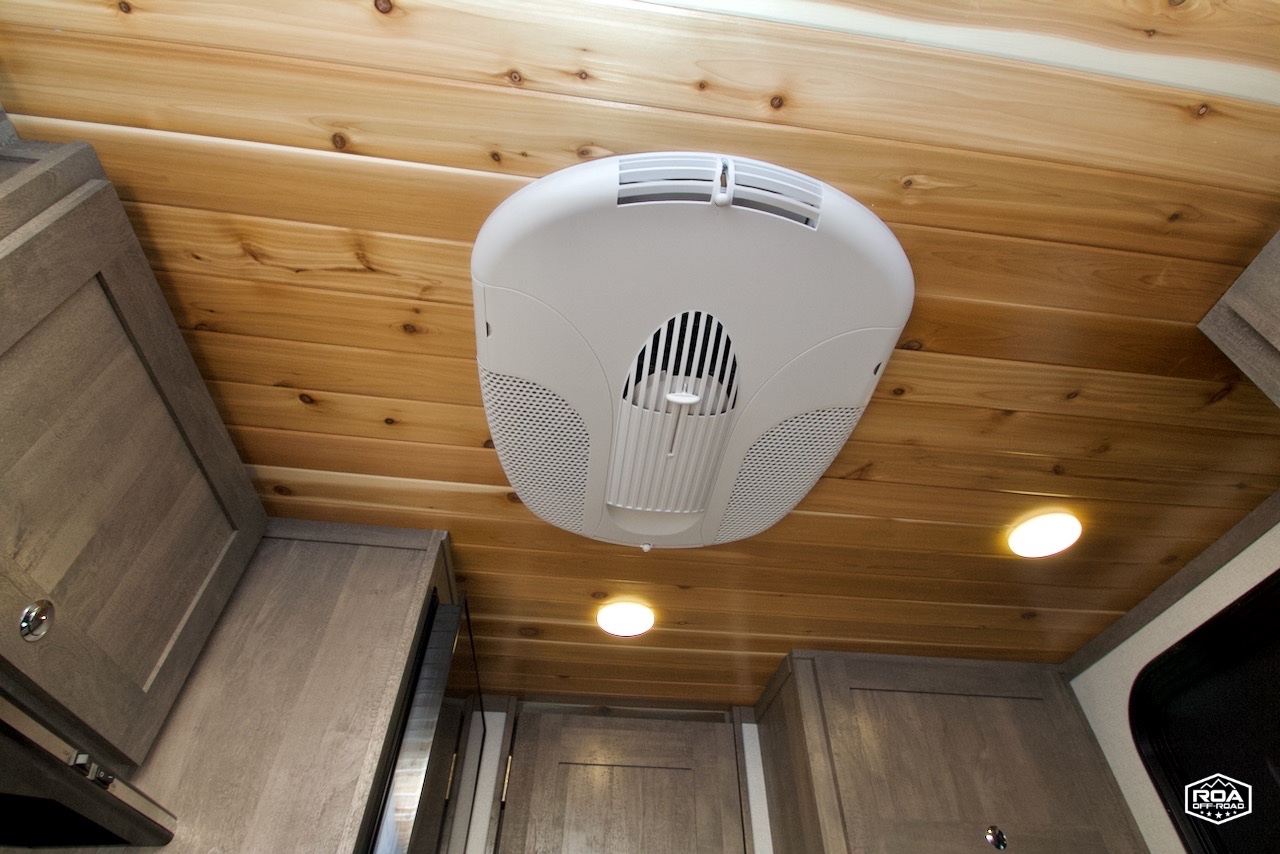

Off-Grid Air Conditioning

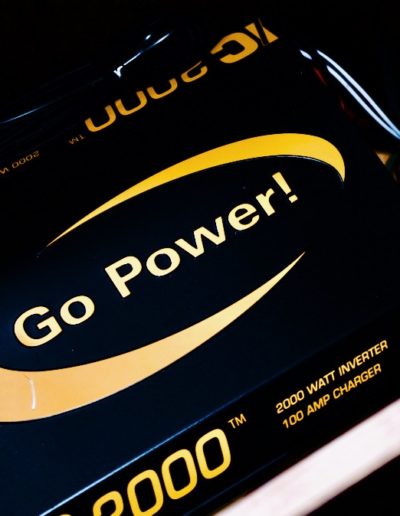

This is the ultimate requirement for an off-grid trailer. Now possible with the optional Off-Grid package, you can run the A/C off battery power through the 2000 watt continuous pure sine inverter.

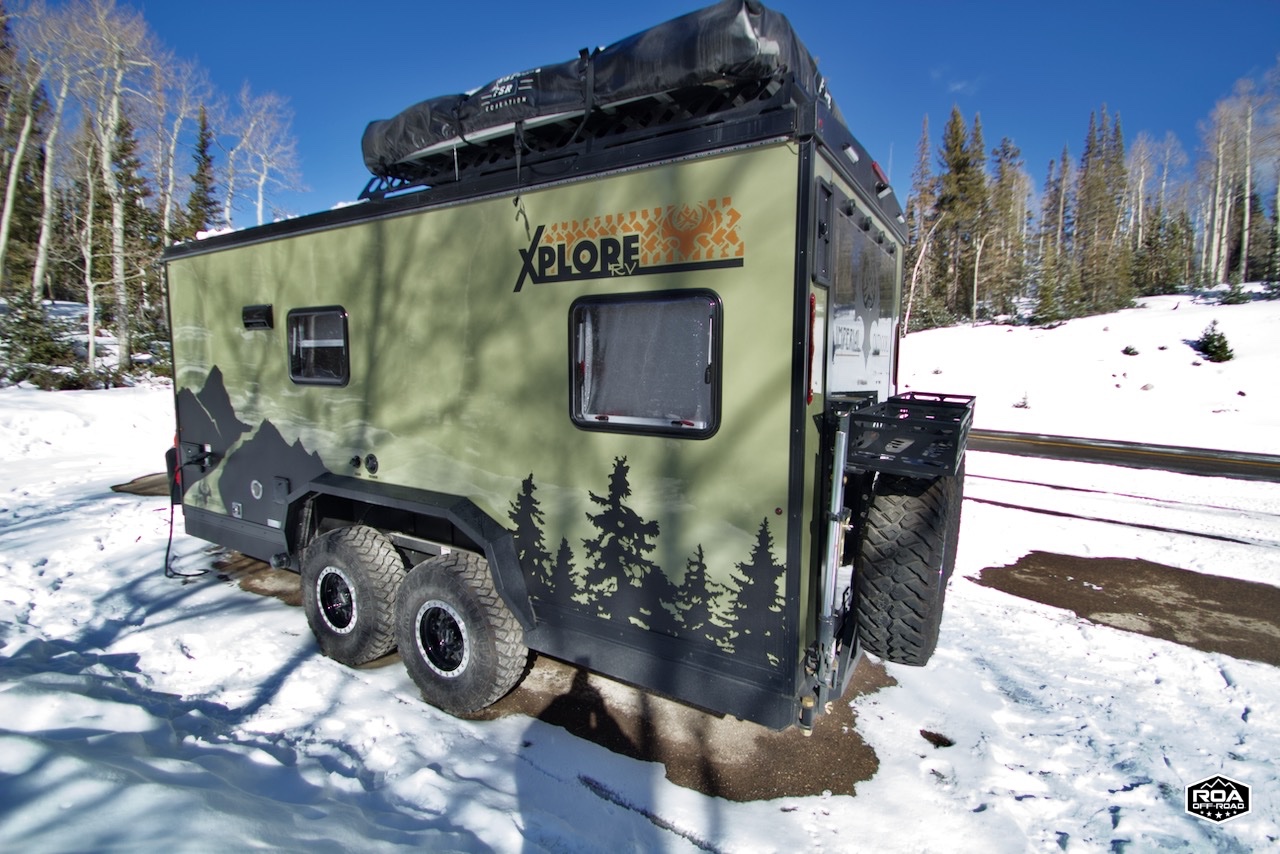

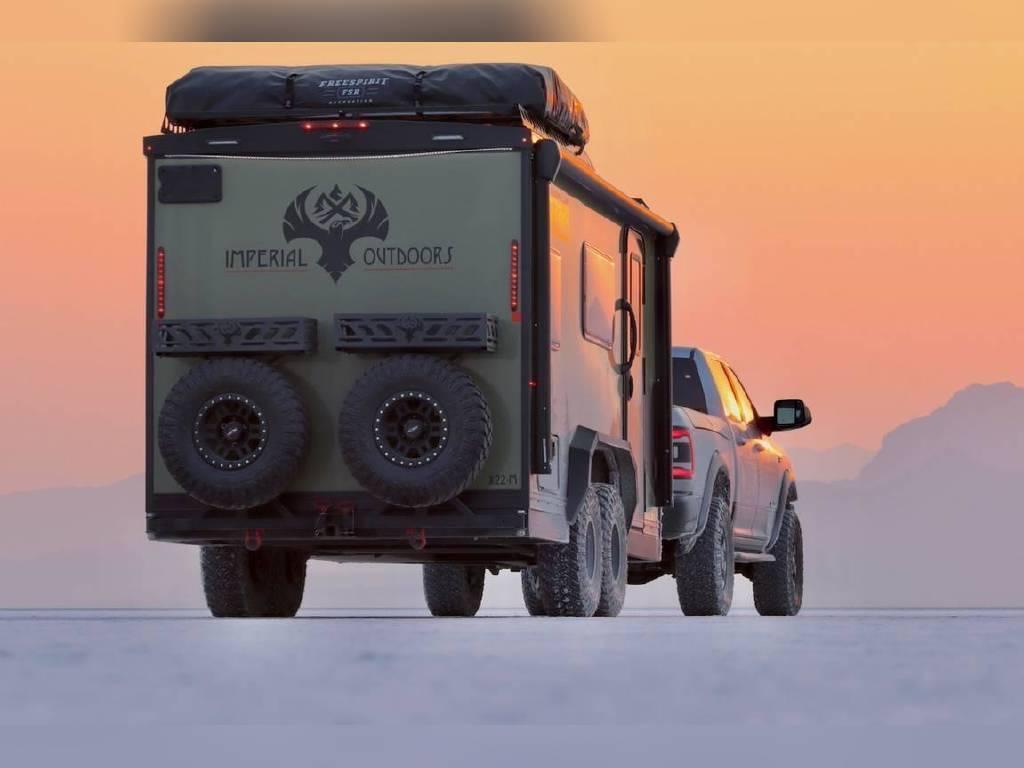

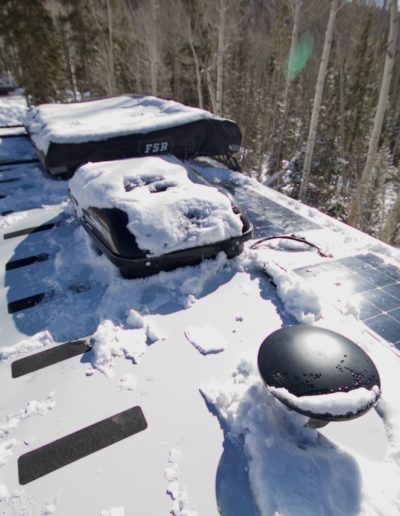

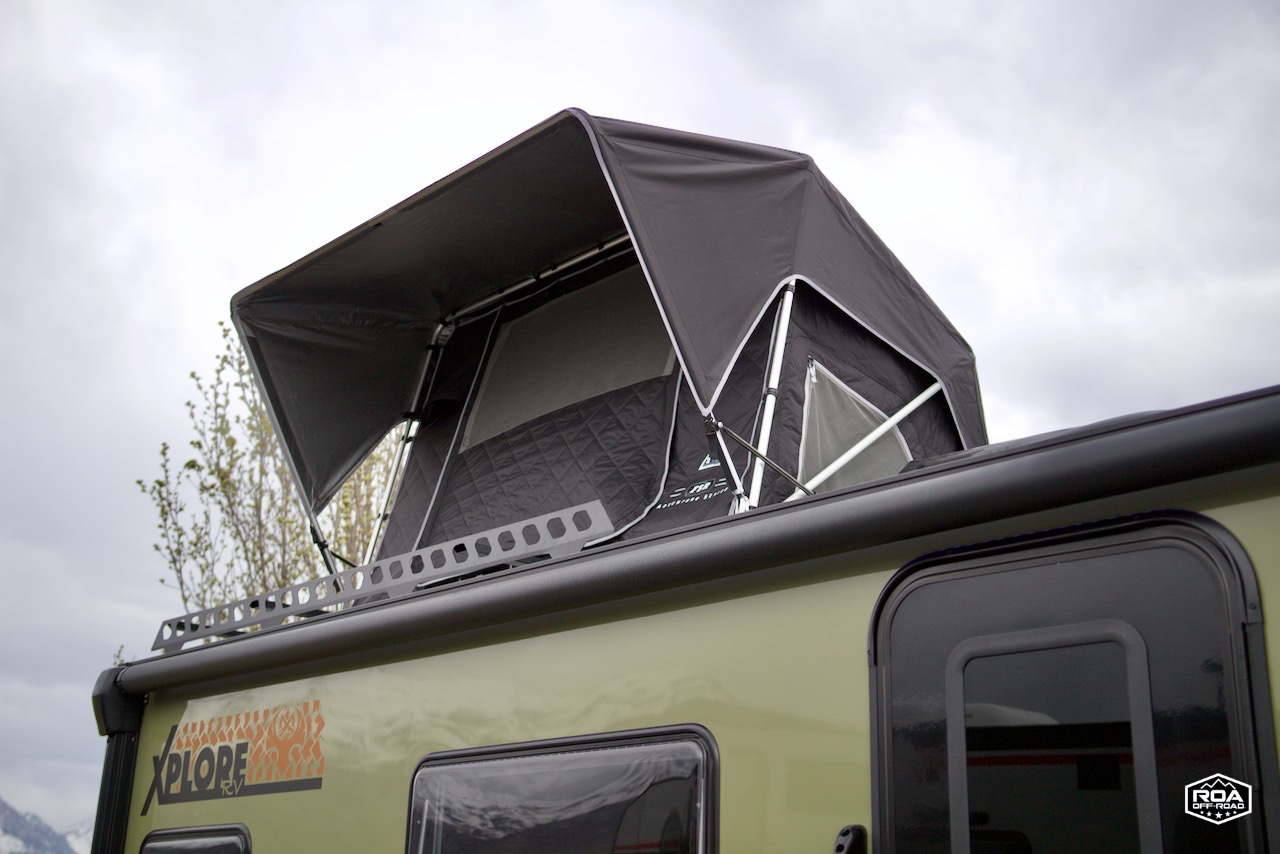

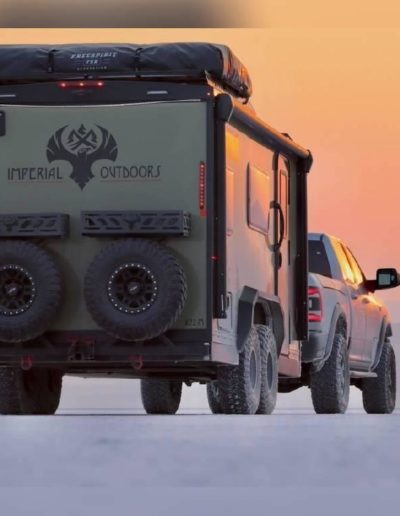

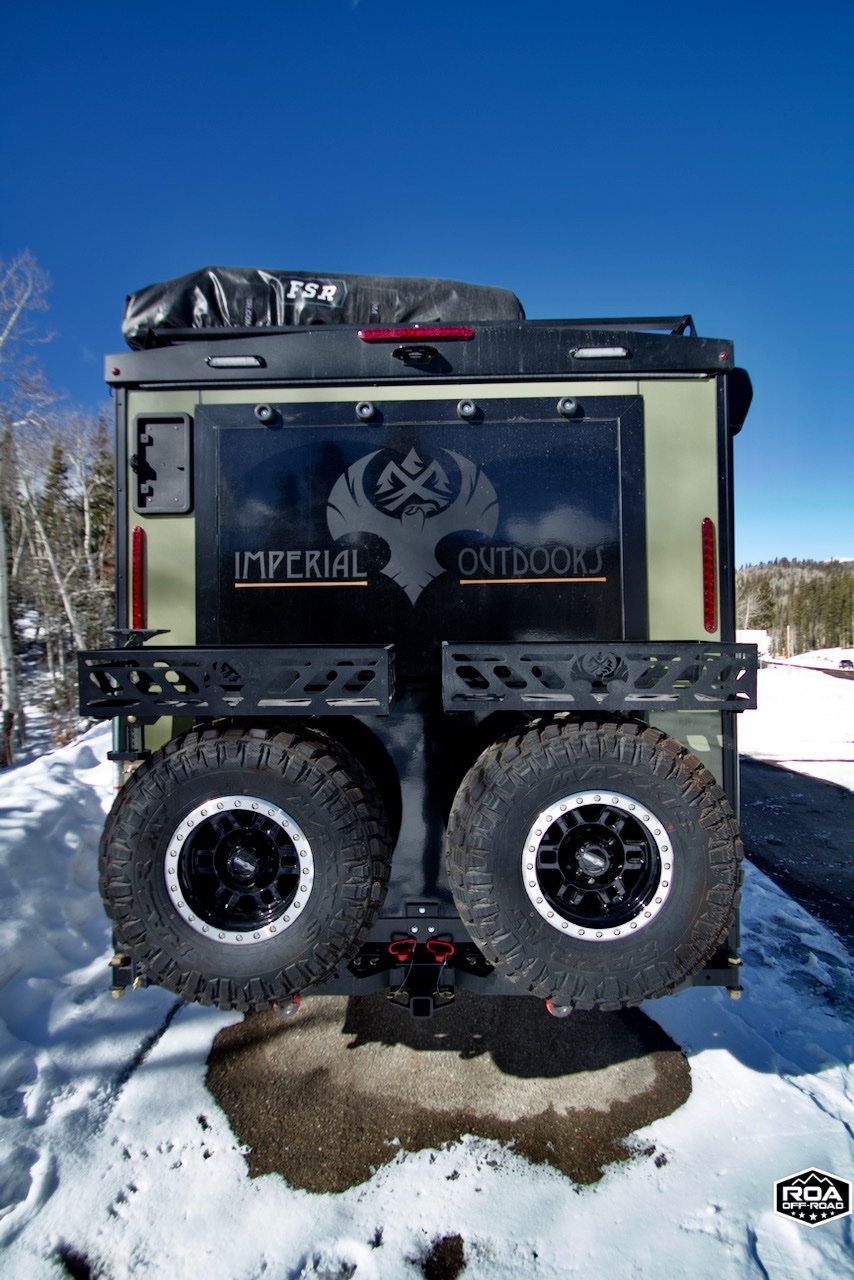

Optional Rooftop Tent

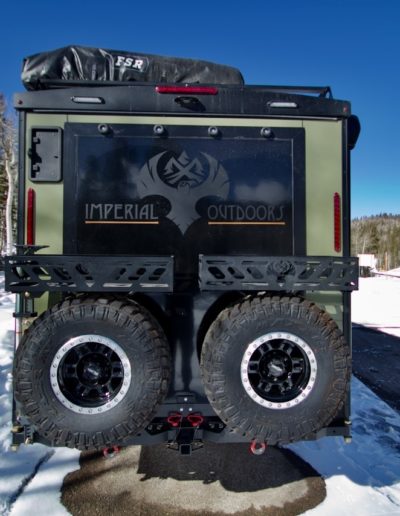

With a 6.5 inch thick roof, don't worry about someone falling though the ceiling! Expand your sleeping capacity with the optional FSR 4 season rooftop tent.

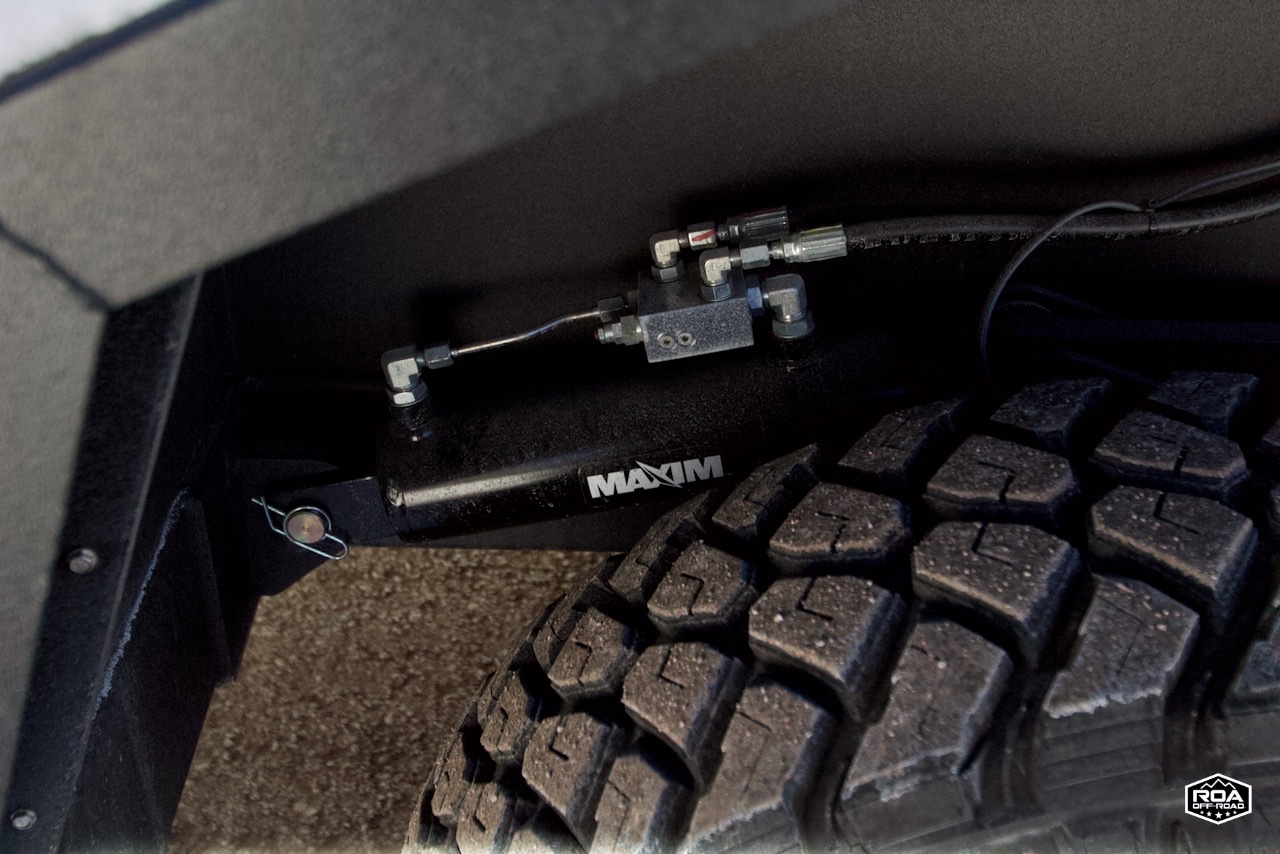

Hydraulic Height Adjustment

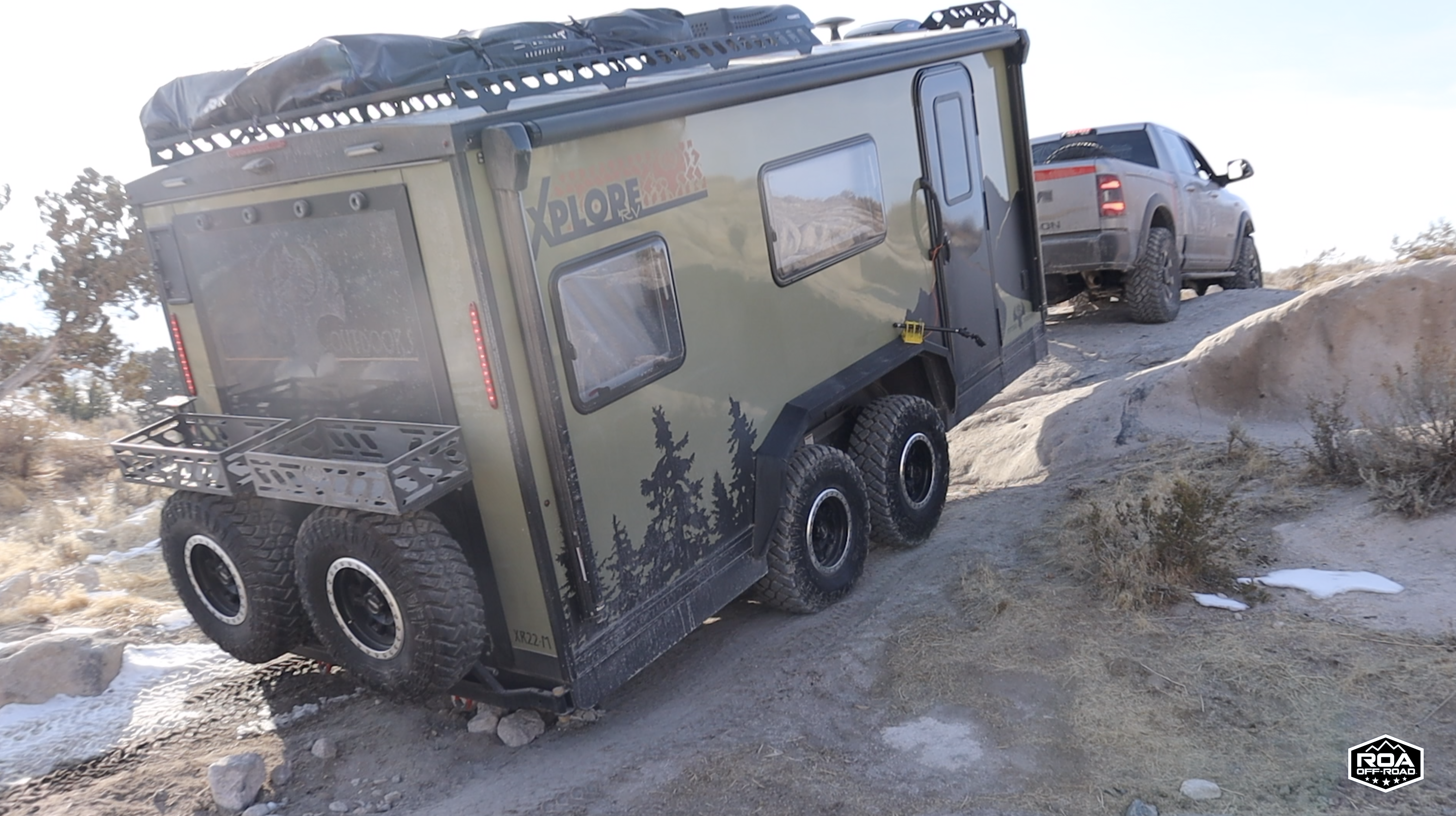

With the push of a button, control the ride height of your Xplore X22. For on road travel, keep a low profile in the lowest setting. From the comfort of your tow rig, use the remote control to raise the height for additional clearance as soon as you get off-road.

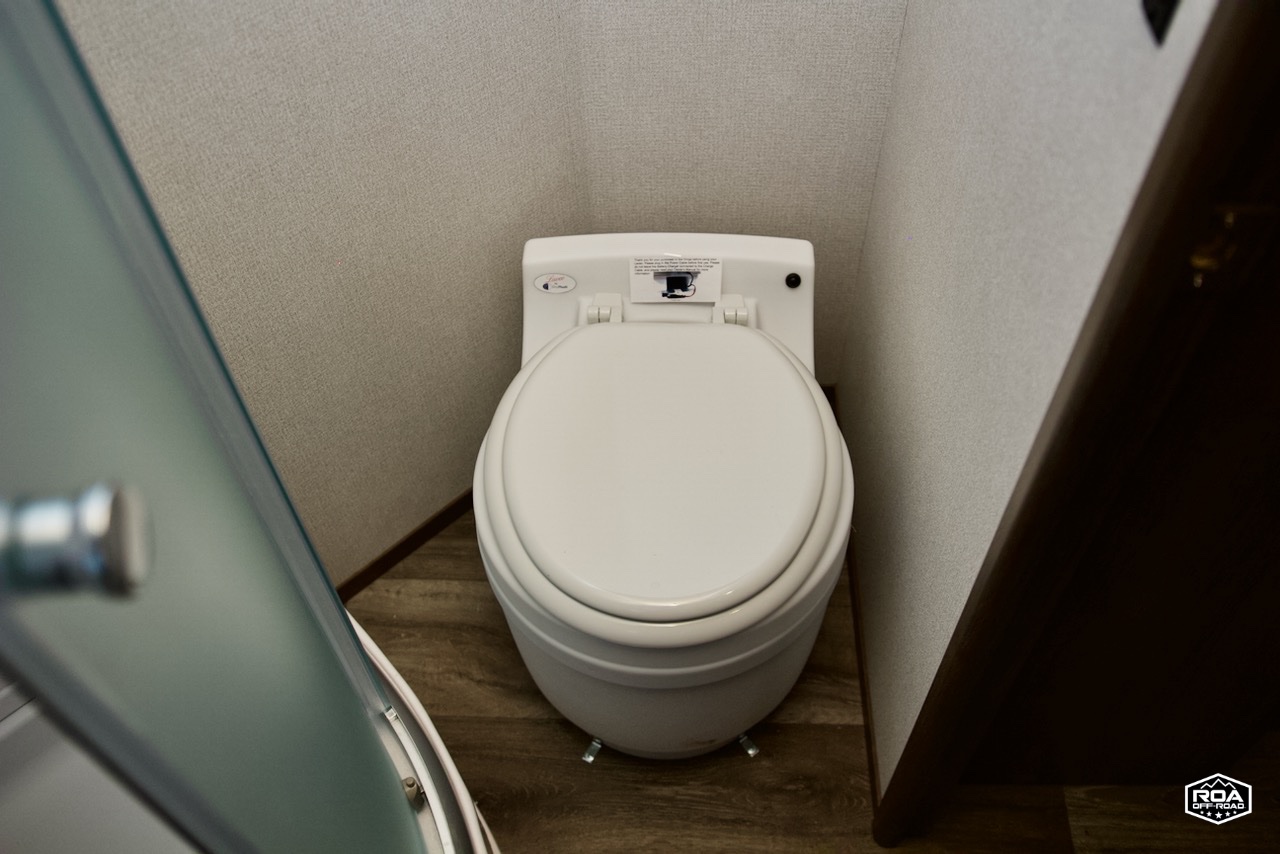

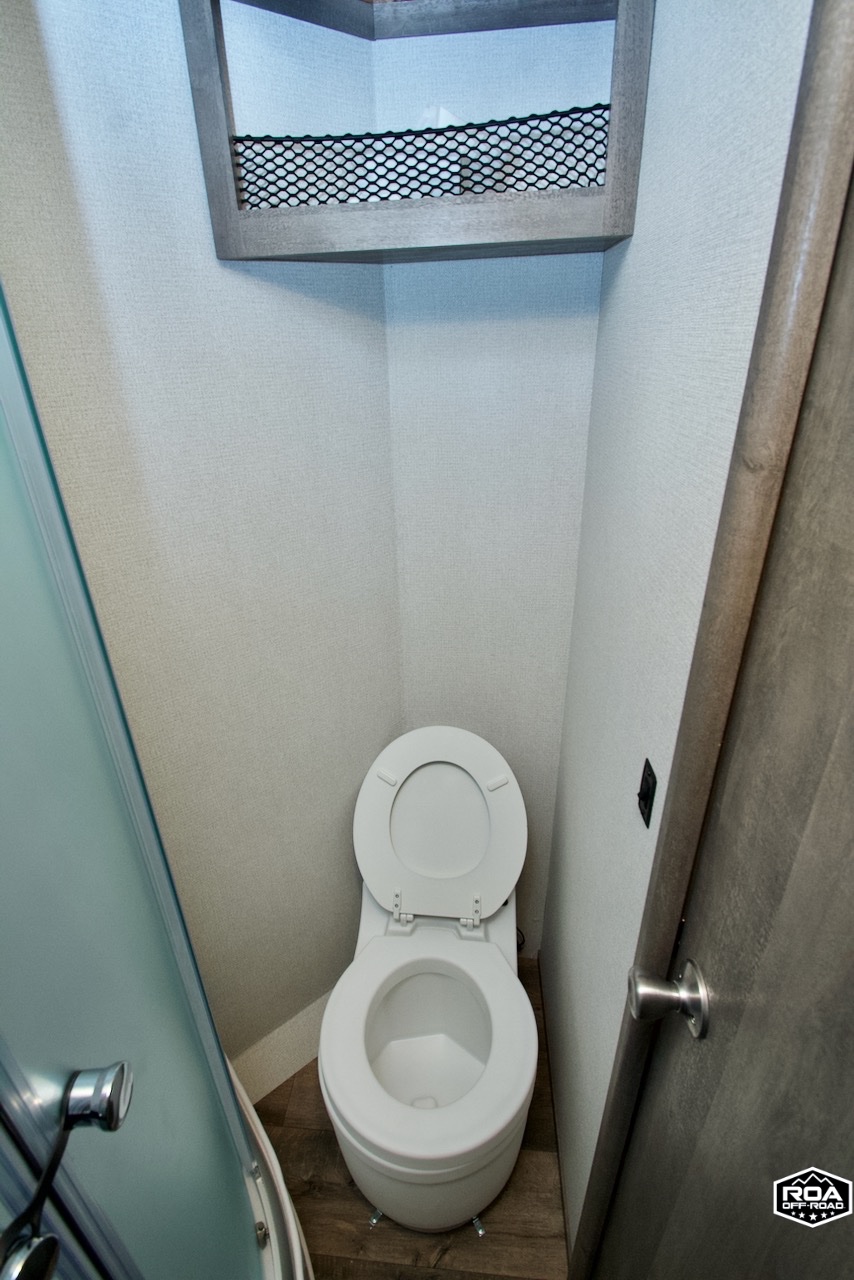

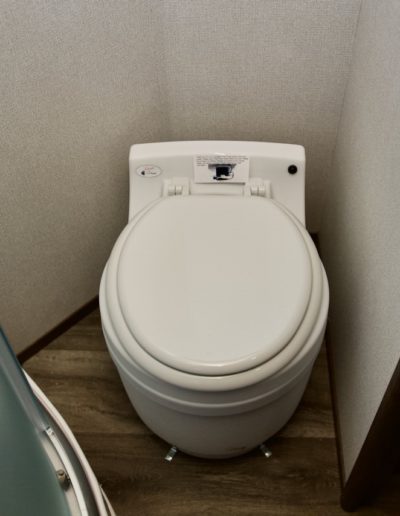

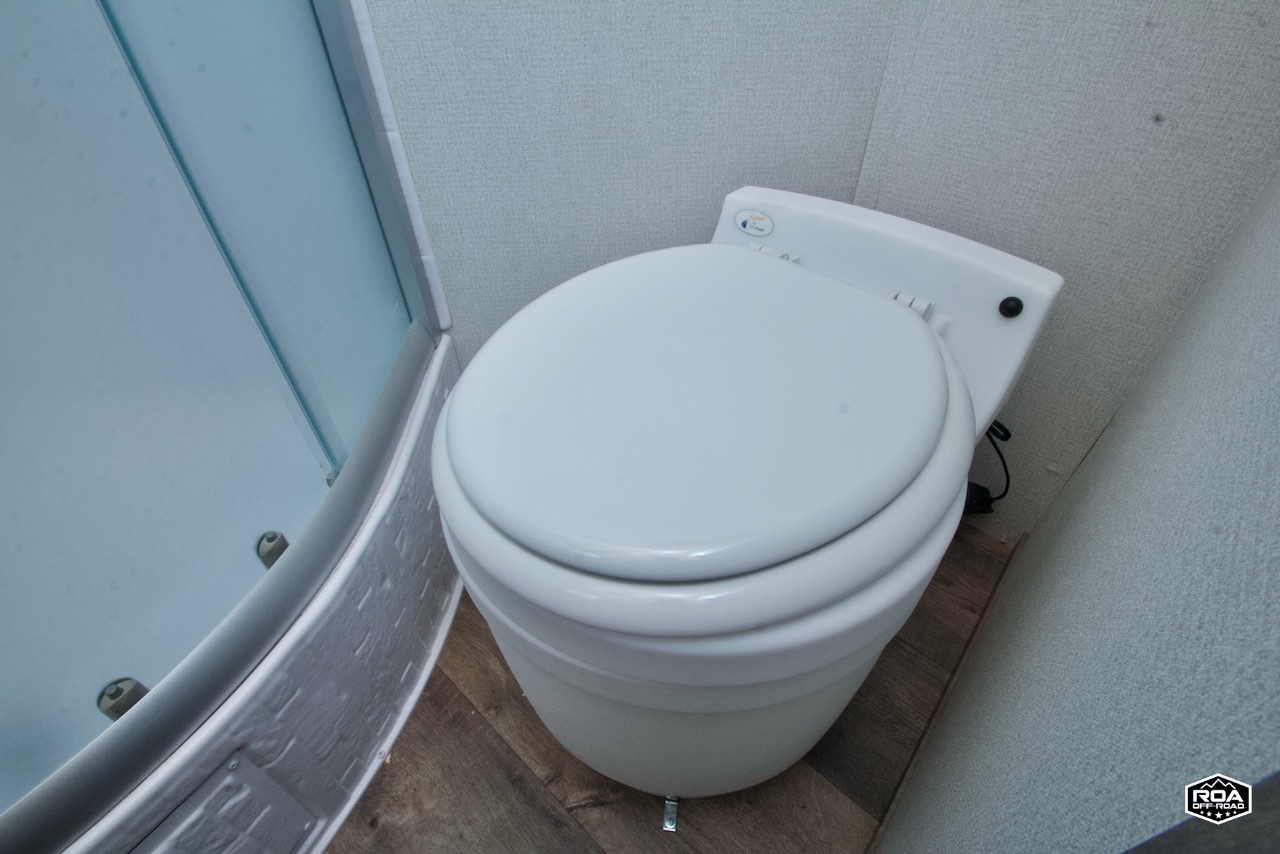

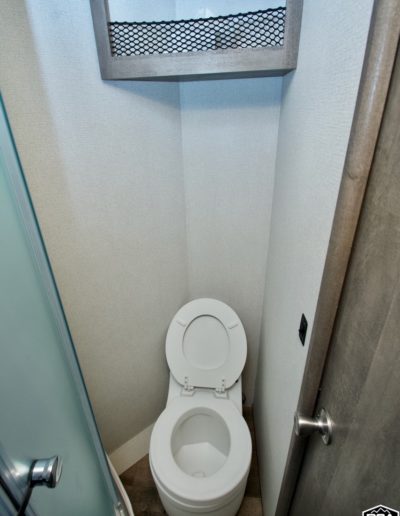

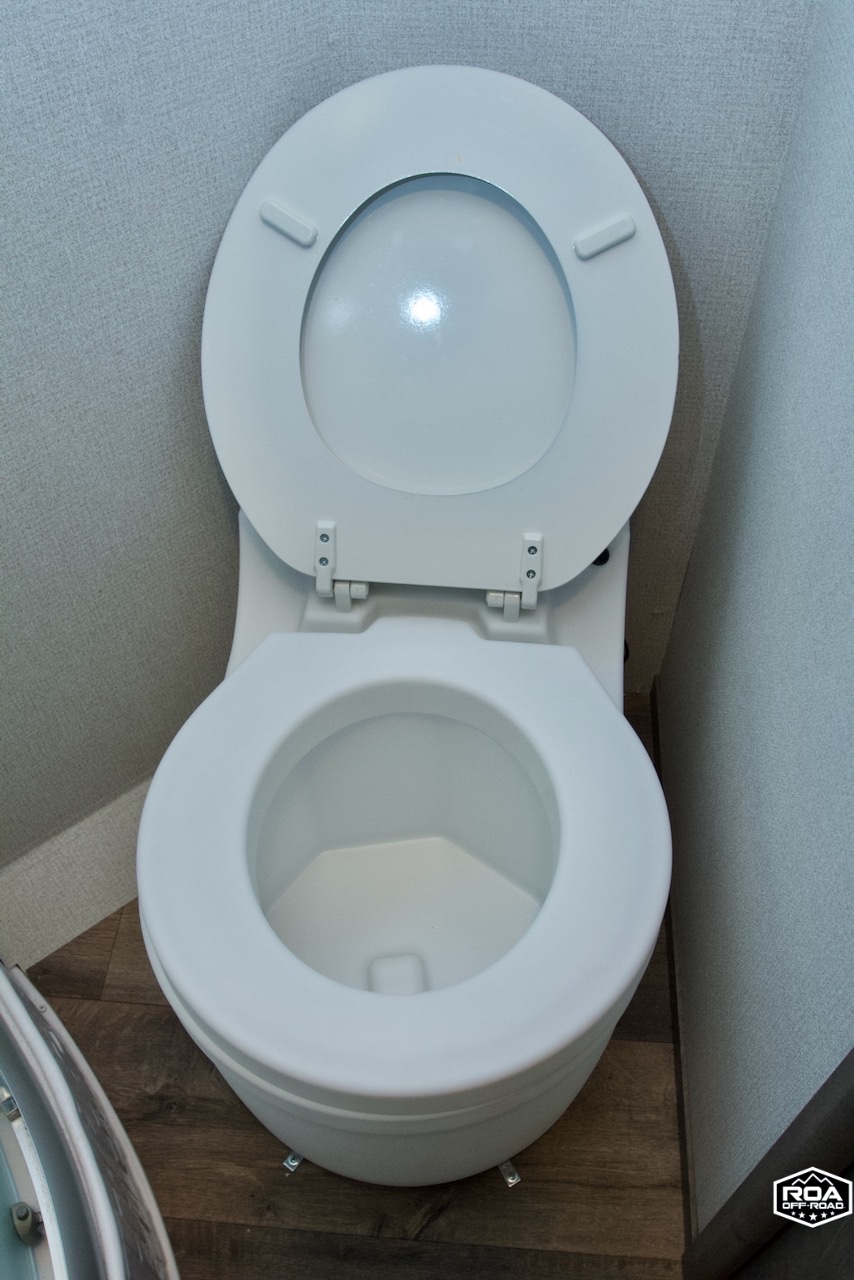

Off-Grid Toilet

The Xplore X22 comes standard with the Laveo Dry Flush toilet. This eliminates the dreaded black tank and enables you to stay off-grid longer. No more stinky flushing the black tank! Simply remove the sealed bag and throw it away. We can also install a compost toilet if desired.


Overall Length (including spare tires) 23 ft 4 in
Overall Width (including fenders) 93in
Overall Height (on-road height / off-road height) 112 in / 120 in
Unit Weight 5370 lbs
Max Trailer Capacity (GVWR) 8820 lbs
Tongue Weight 425 lbs
Cargo Capacity 3450 lbs
Axle Weight Rating 5000 lbs

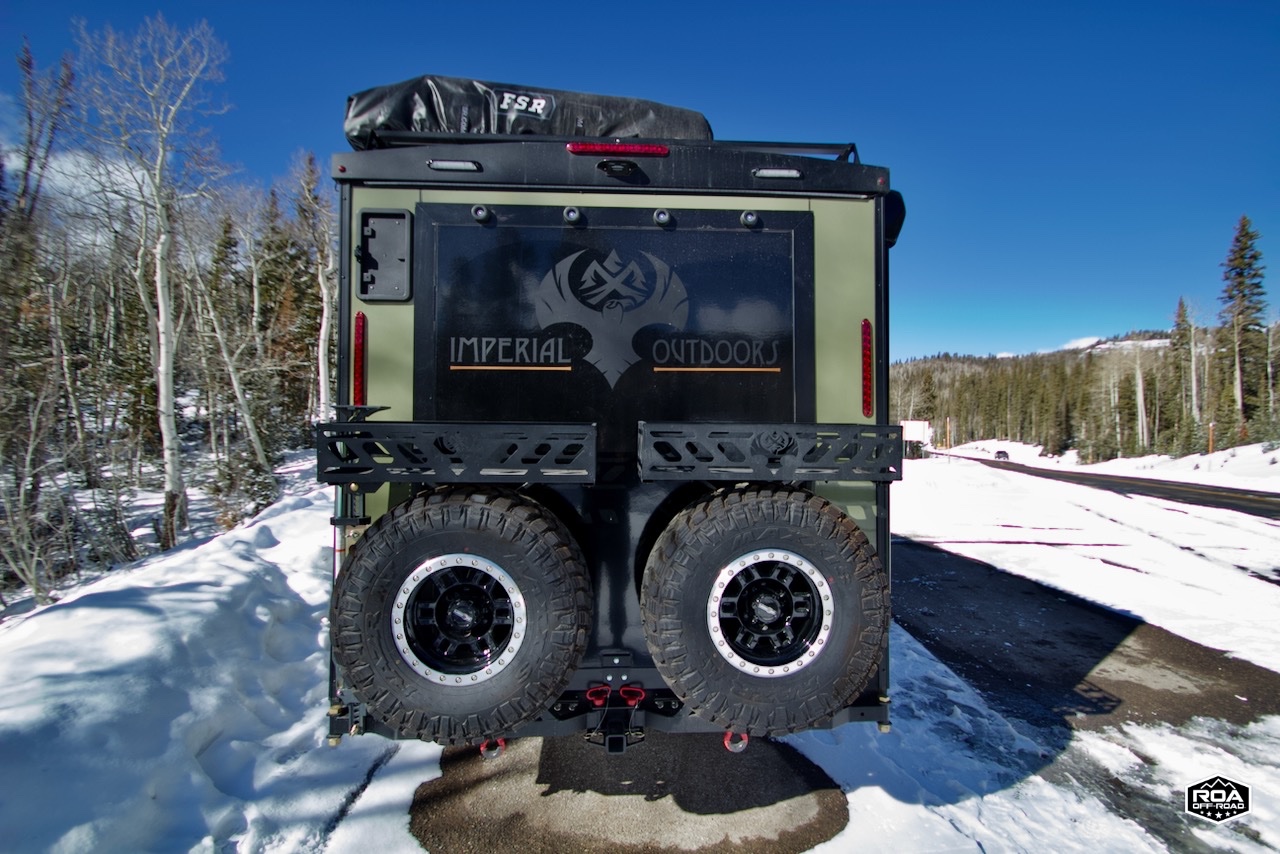

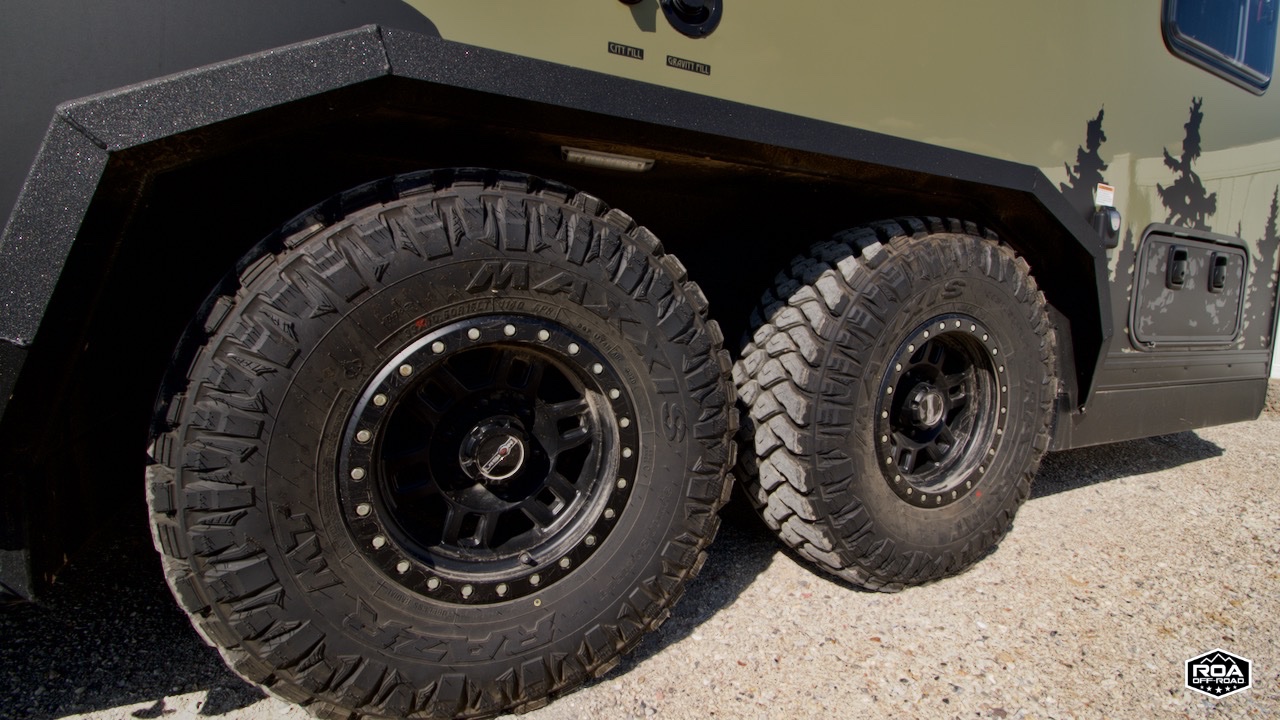

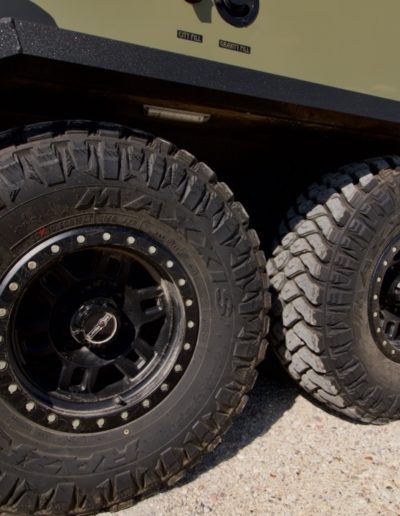

Tire Size 33×10.5 R15
Interior Height (floor-to-ceiling) 76 in
Interior Width (wall-to-wall) 78 in
Fresh Tank Capacity 30 Gal
Grey Tank Capacity 30 Gal

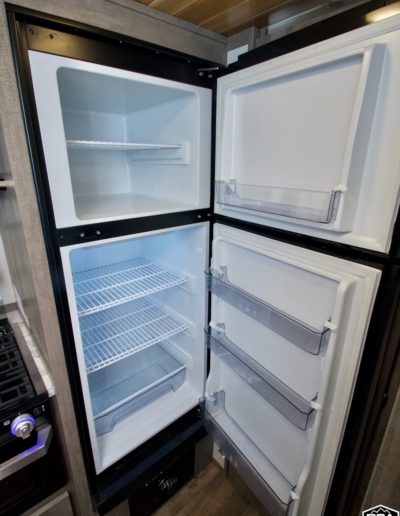

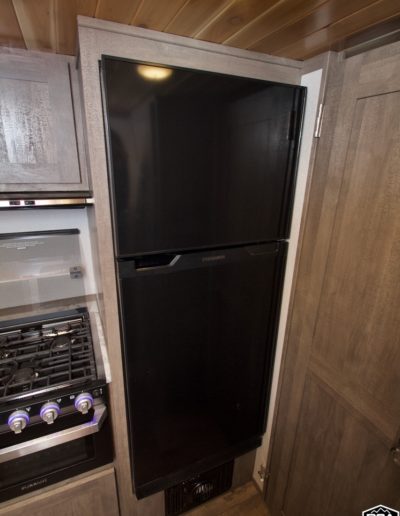

Refrigerator Capacity 10 cu ft
LP Tank Capacity (2x) 20 lb

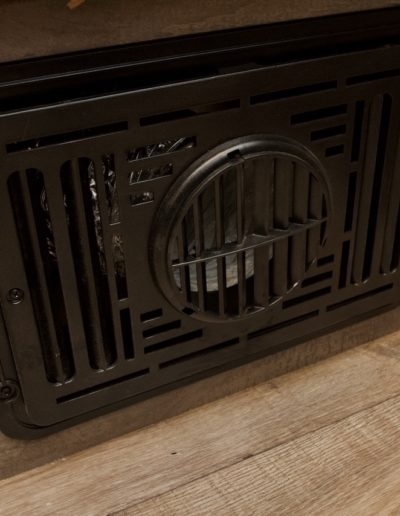

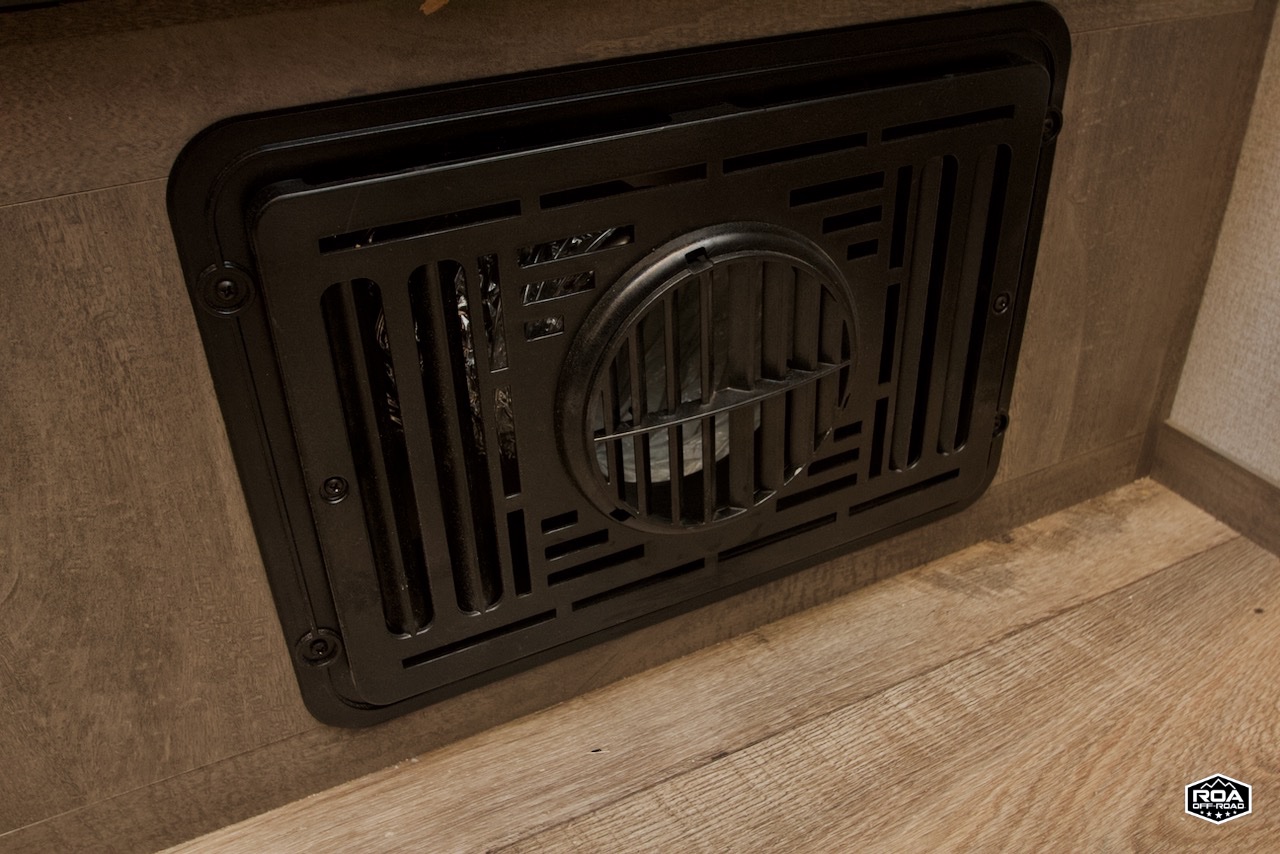

Furnace 18,000 BTU
Air Conditioner 13,500 BTU
Battery Capacity 100 Ah Lithium (x2)
Solar Output 200 W
Ground Clearance (on-road) 12 in
Ground Clearance (off-road) 20 in
Sleeping Capacity 3-4
Rooftop Tent 85x60x9 (closed) 118 lbs
Frame Material 1/4” Closed Tube Steel
Frame Coating Powder Coat w/e-coat Primer

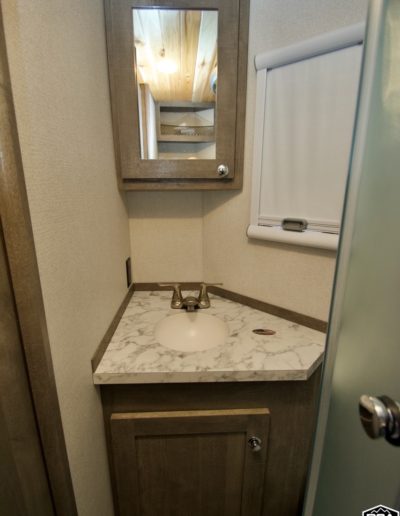

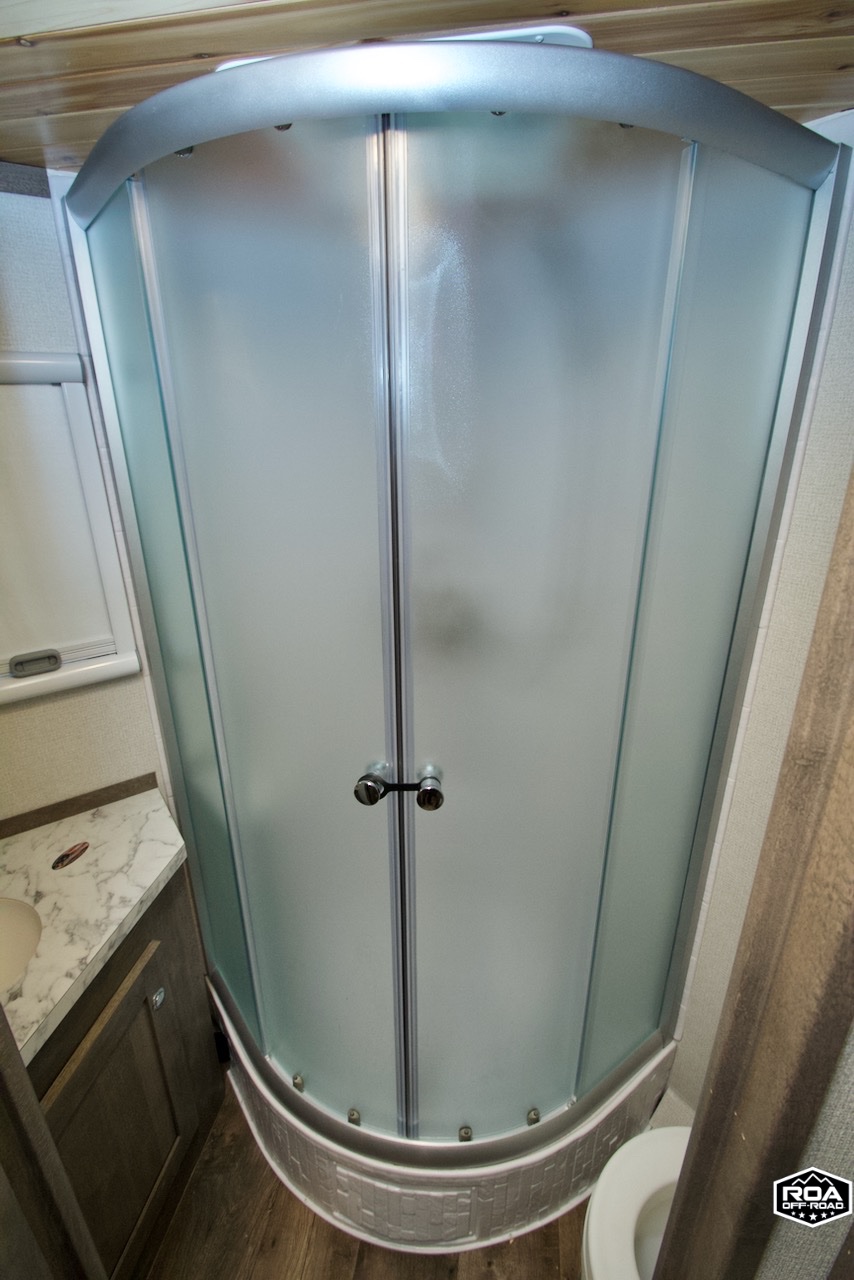

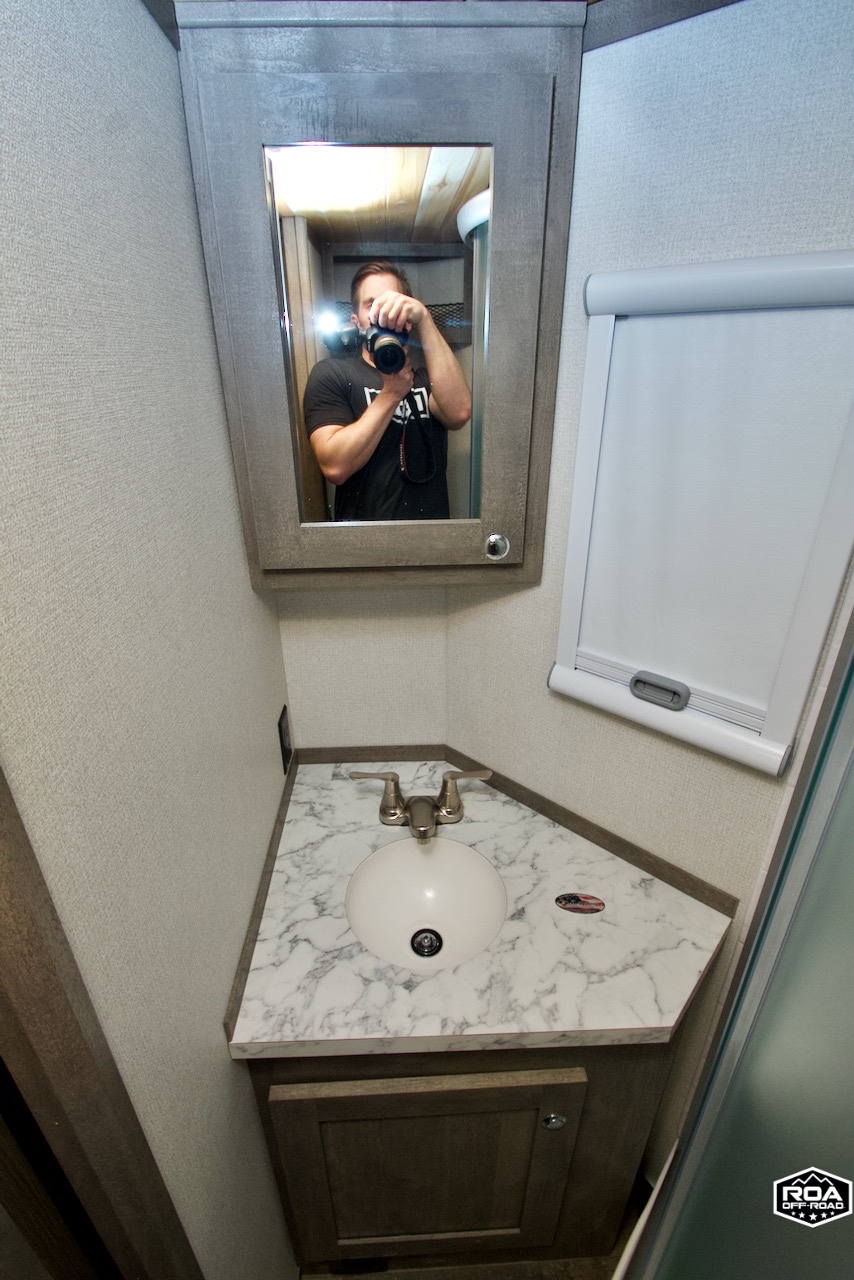

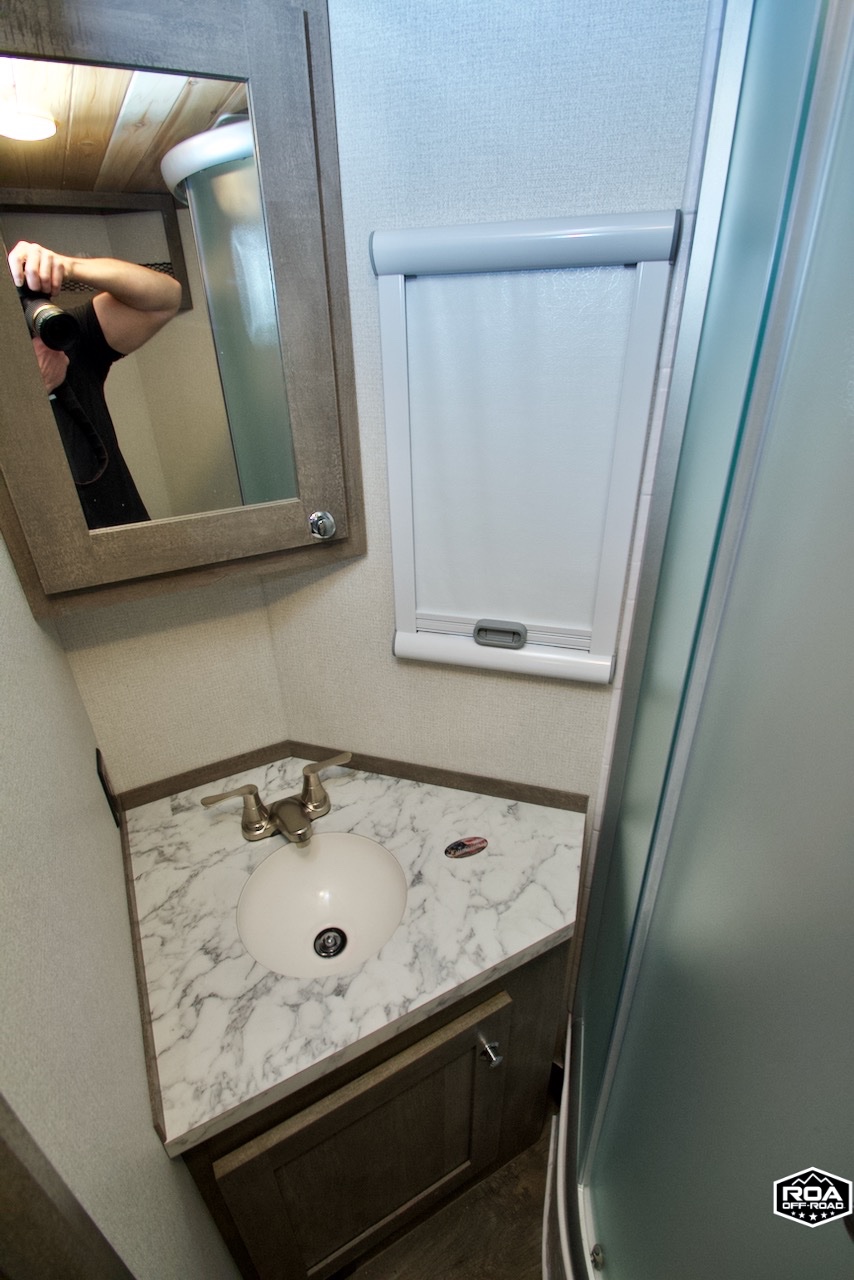

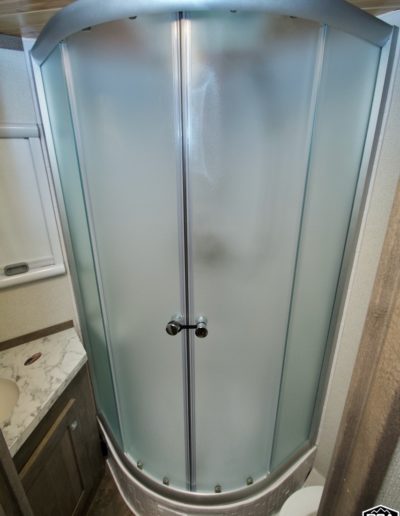

Bathrooms: 1

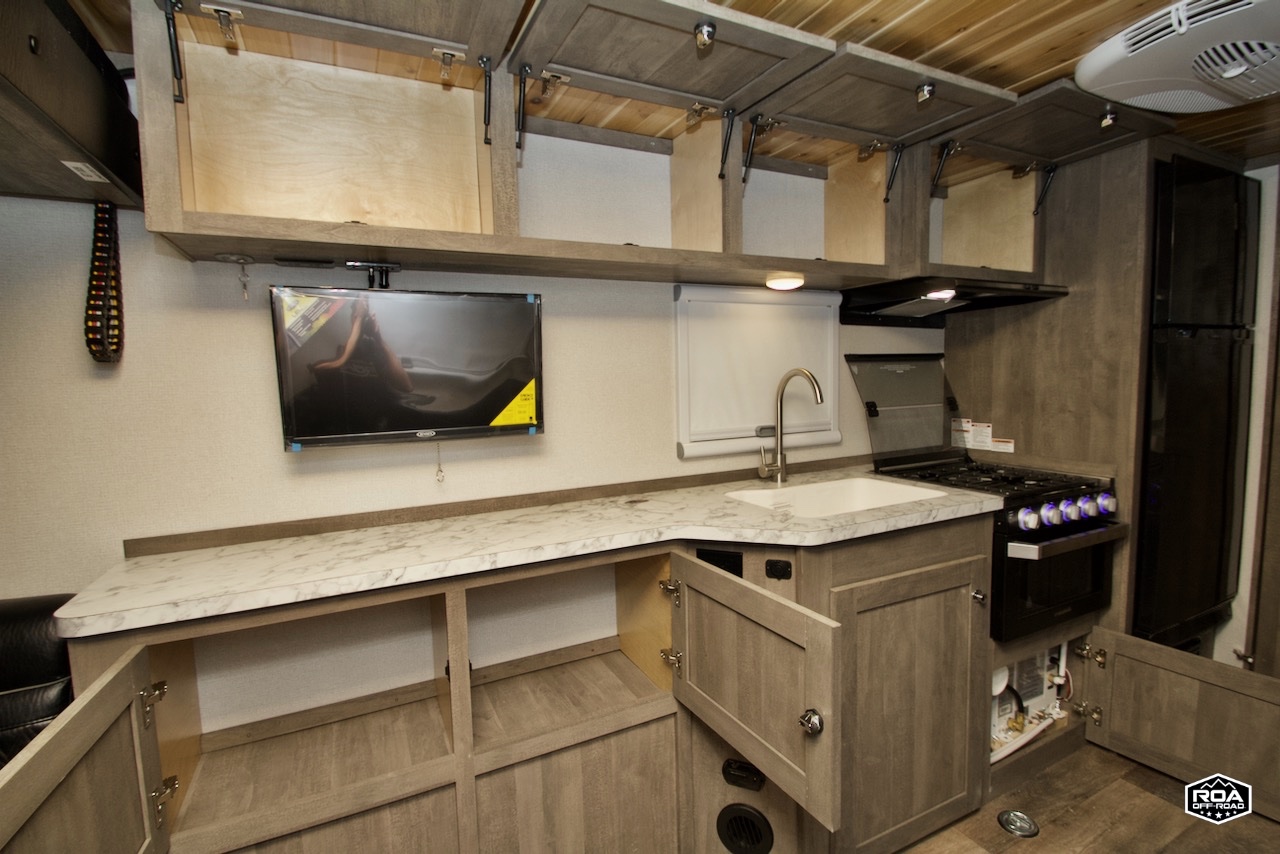

Counter tops: Solid Surface/Corian
Flooring: Vinyl
Awnings: 1
Leveling Jacks: yes
Self Contained: yes
Sleeps: 3

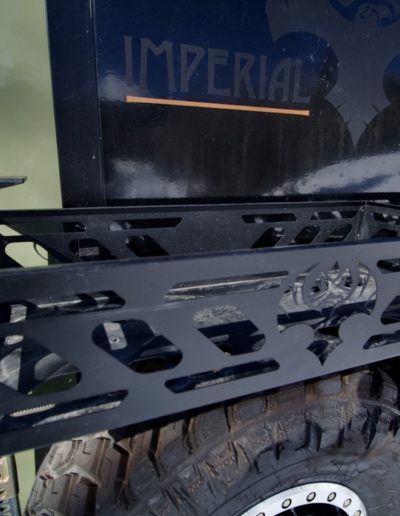

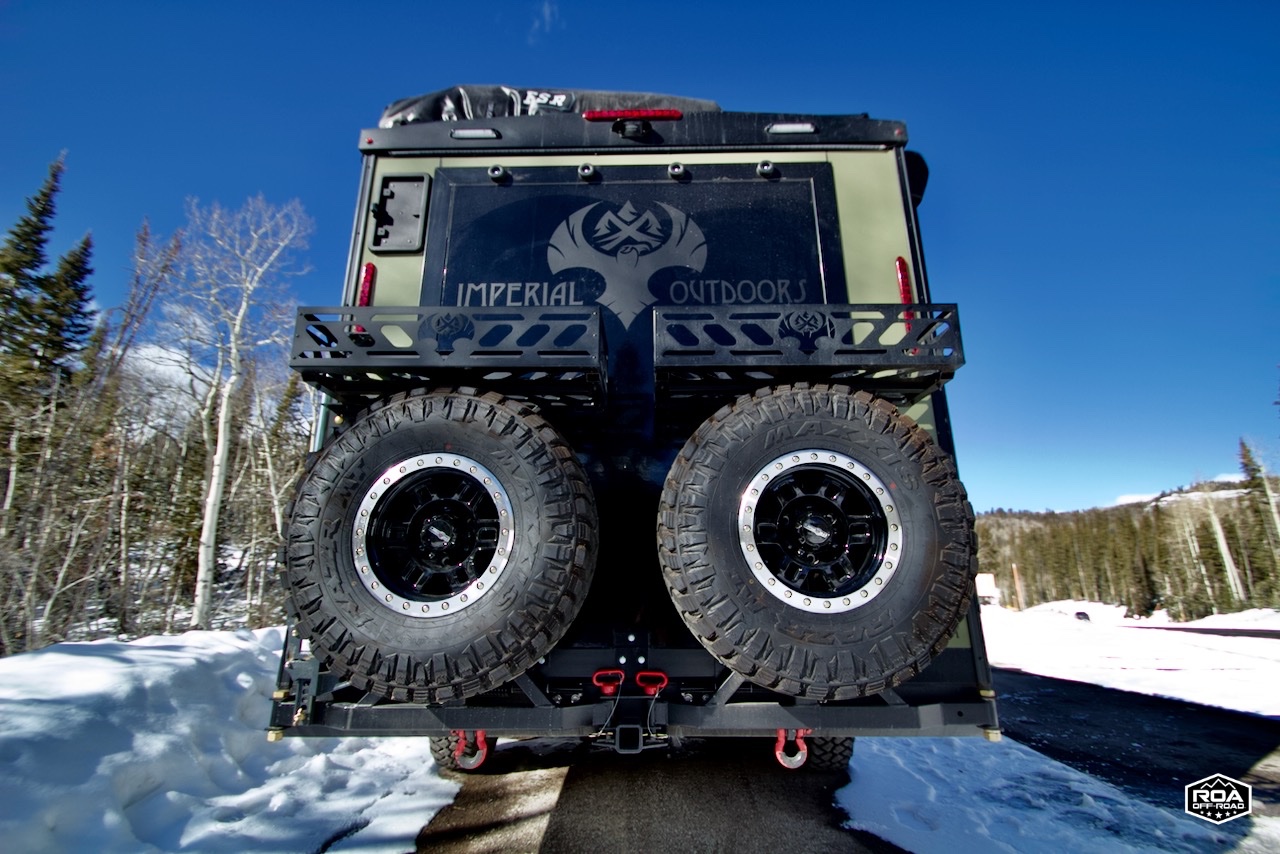

Spare Tire: yes
Tow Receiver: yes
