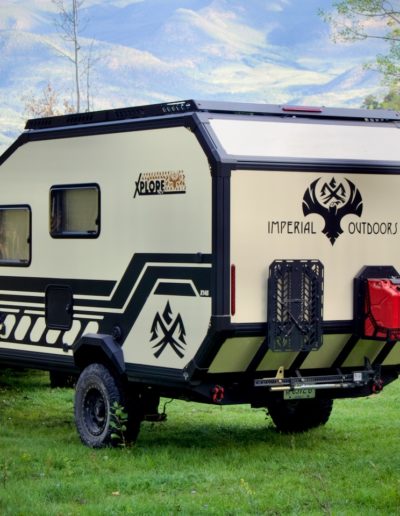

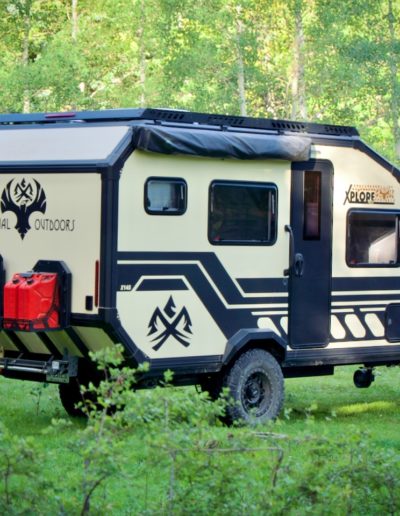

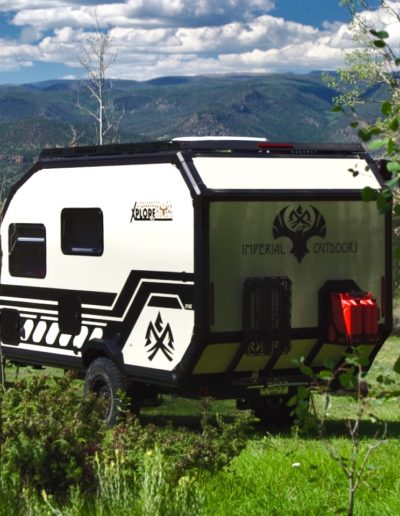

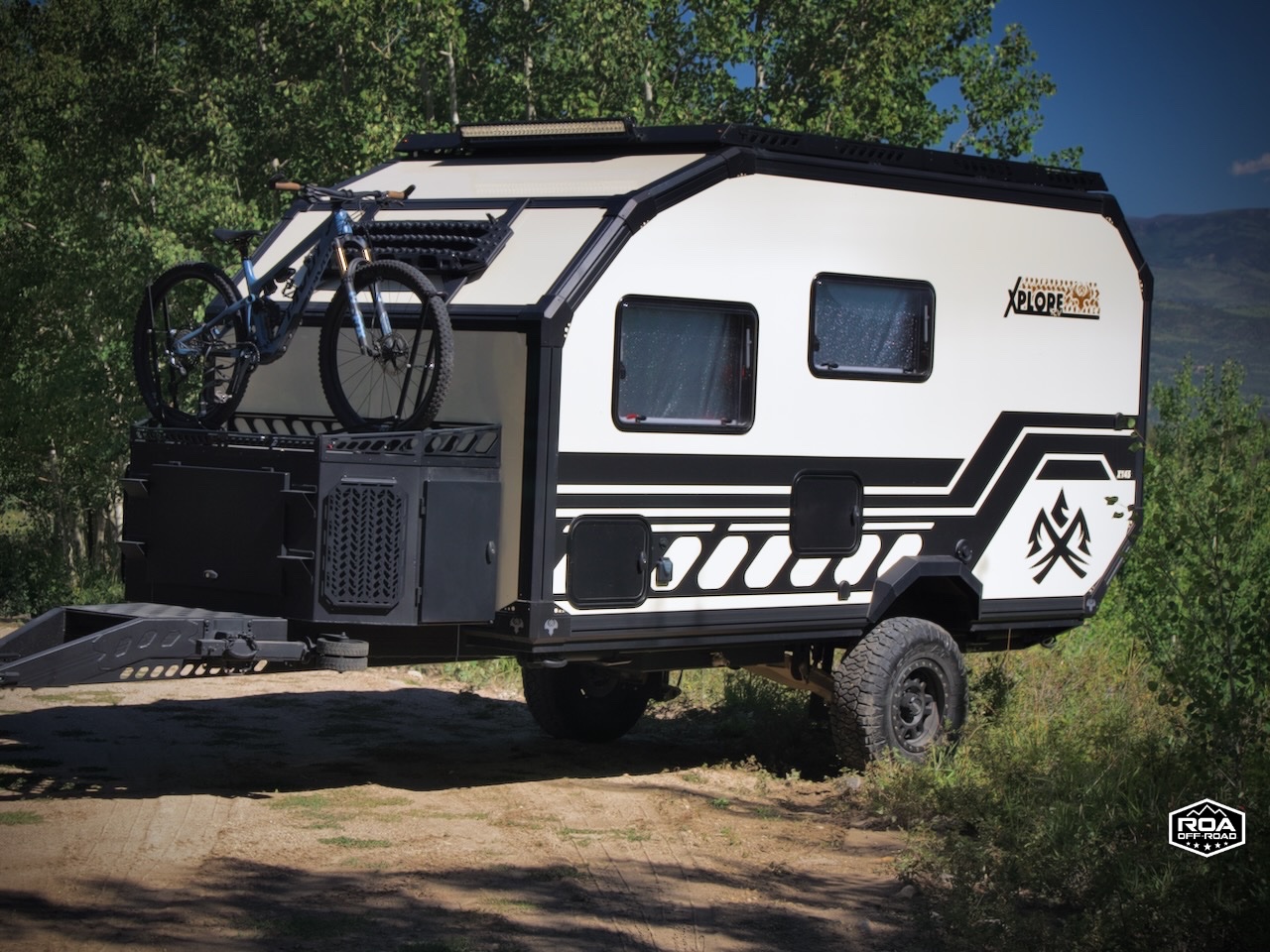

Imperial Outdoors XploreRV X145

$110,000.00

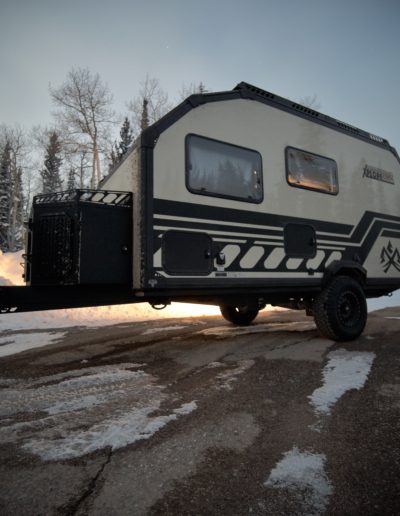

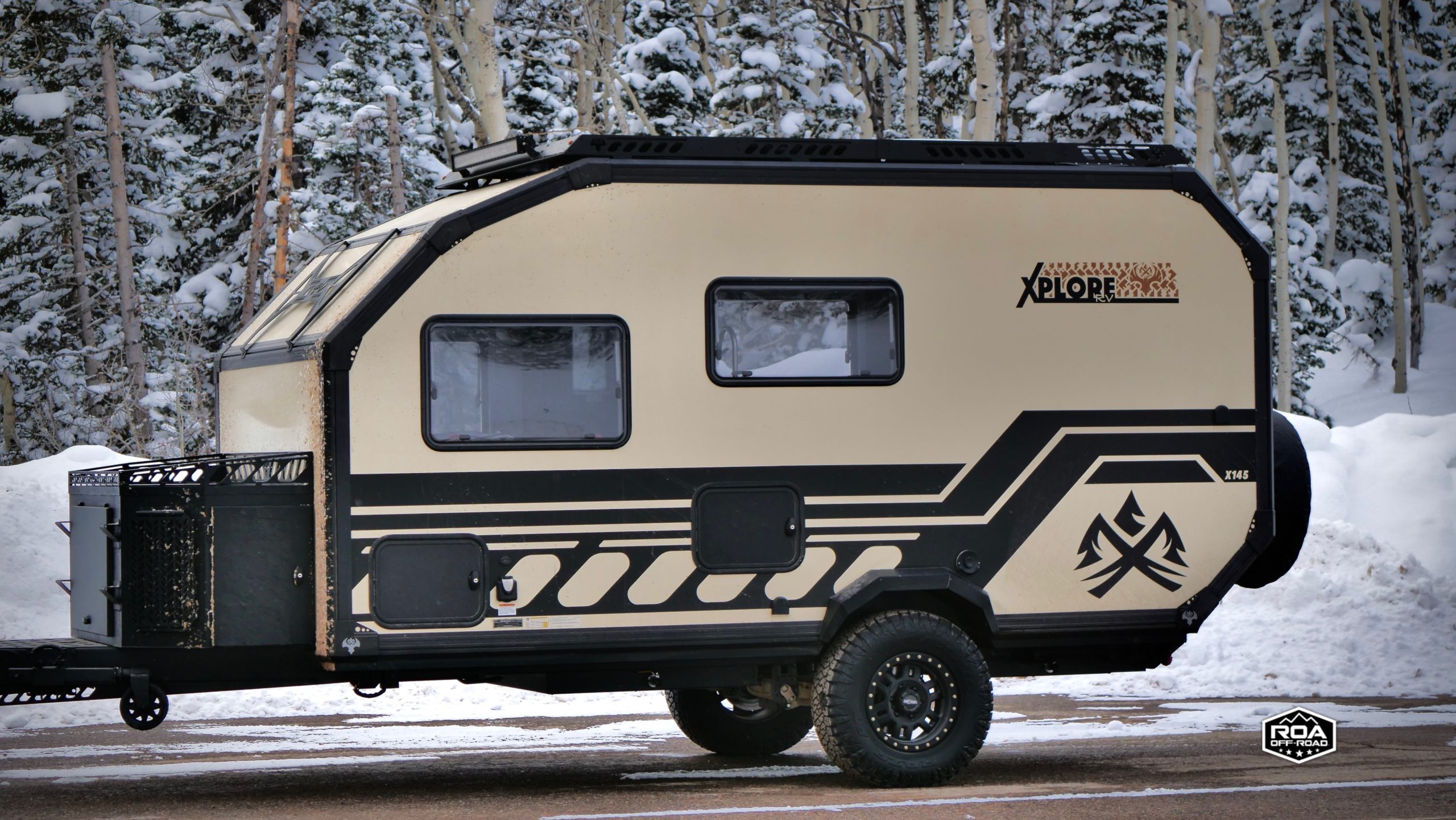

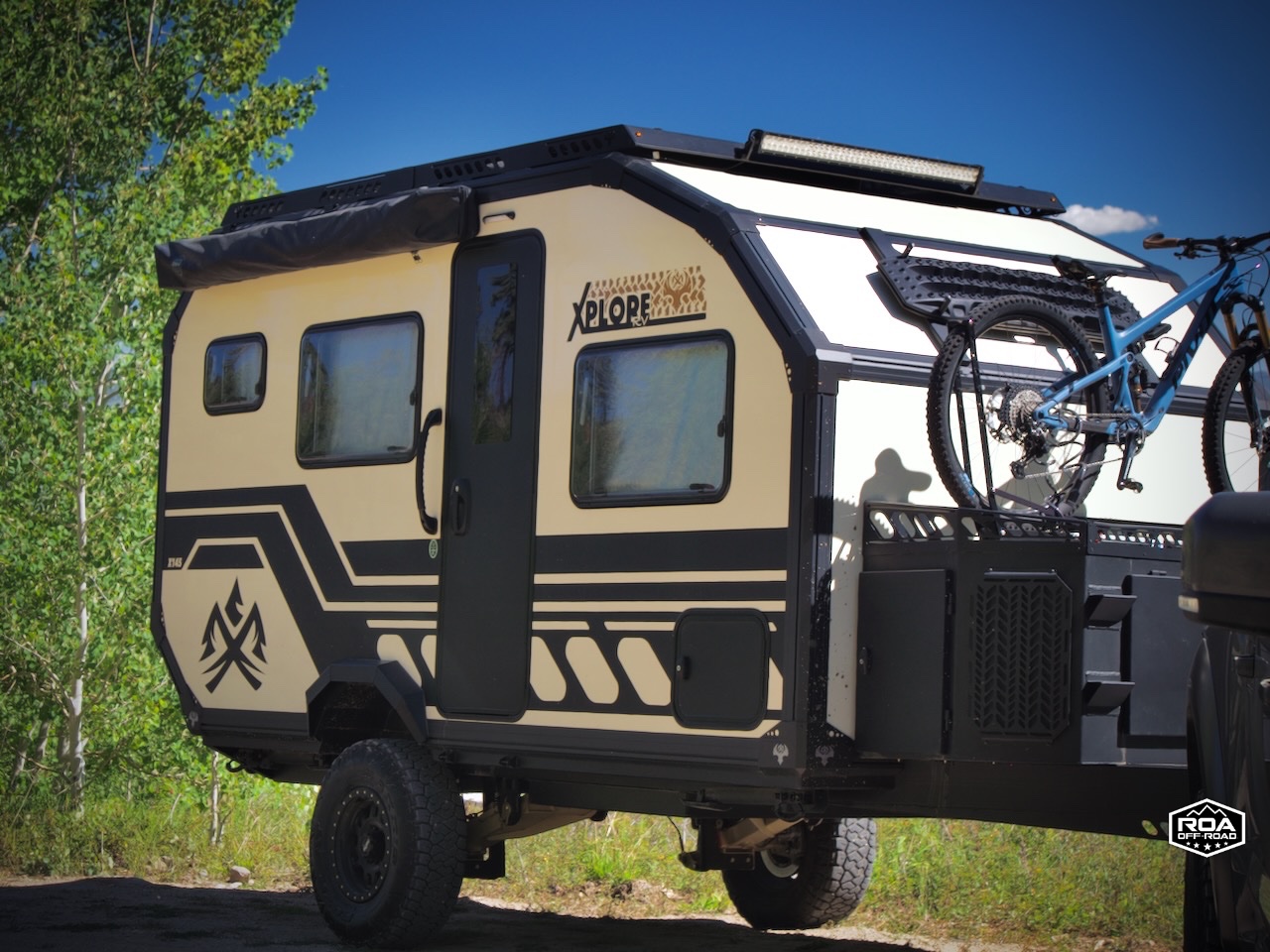

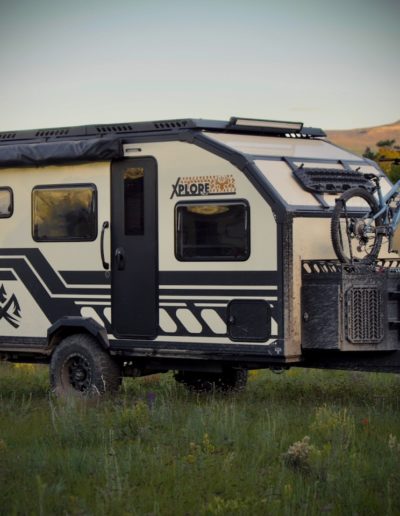

Meet Xplore X145

Now available for custom order! New 2023 Imperial Outdoors Xplore X145 Off-Road, Off-Grid Trailer. Please reach out for more details. Call, text, or use the chat button in the corner. Thanks! 801-860-0035

Overall Length (not including rear accessories) 21 ft 7 in
Overall Width (including fenders) 91 in
Overall Height 9 ft 9 in
Unit Weight ~4000 lbs
Max Trailer Capacity (GVWR) 6172 lbs
Tongue Weight TBD lbs
Cargo Capacity TBD lbs
Axle Weight Rating 6172 lbs
Tire Size 265/75 R16
Interior Height (floor-to-ceiling) 75.5 in
Interior Width (wall-to-wall) 78 in
Fresh Tank Capacity 60 Gal
Grey Tank Capacity 60 Gal
Refrigerator Capacity 3 cu ft
LP Tank Capacity (2x) 20 lb
Furnace 14,300 BTU
Air Conditioner (12V) 6,824 BTU
Battery Capacity 360 Ah Lithium (x1)
Solar Output 240 W
Ground Clearance (+/- 5” for Air Adj) (to skid plate) 21 in
Ground Clearance (+/- 5” for Air Adj) (to frame) 24 in
Sleeping Capacity 2+
Frame Material 1/4” Closed Tube Steel
Frame Coating Powder Coat w/e-coat Primer

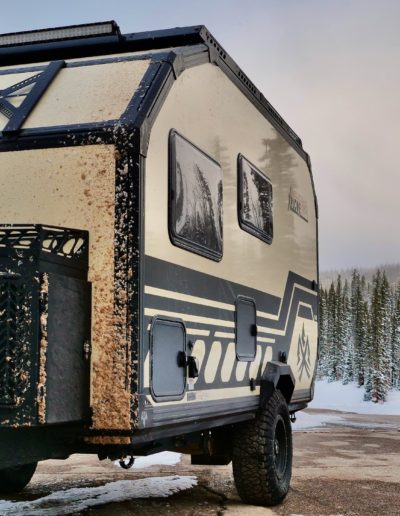

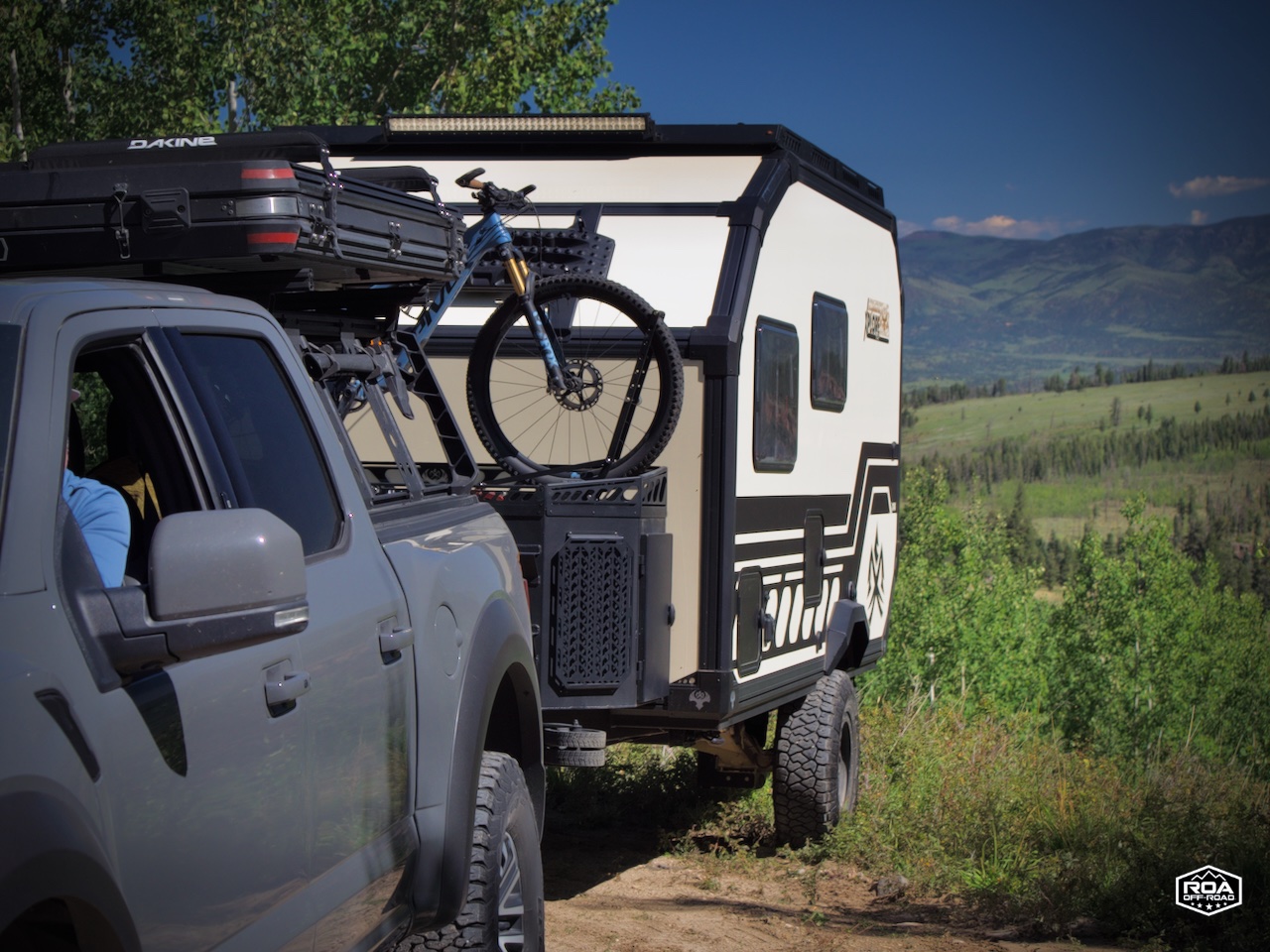

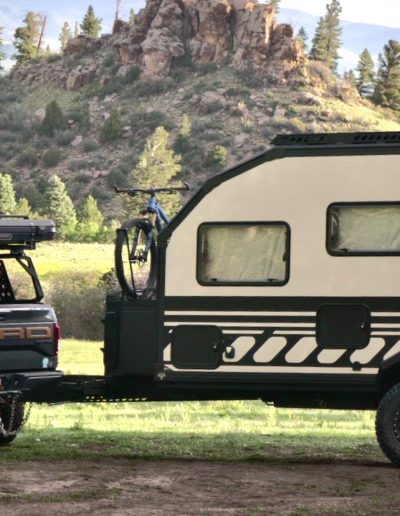

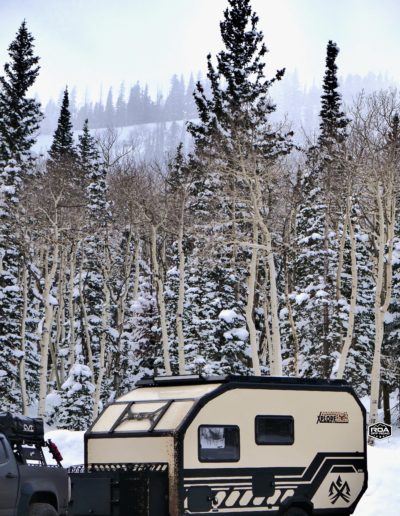

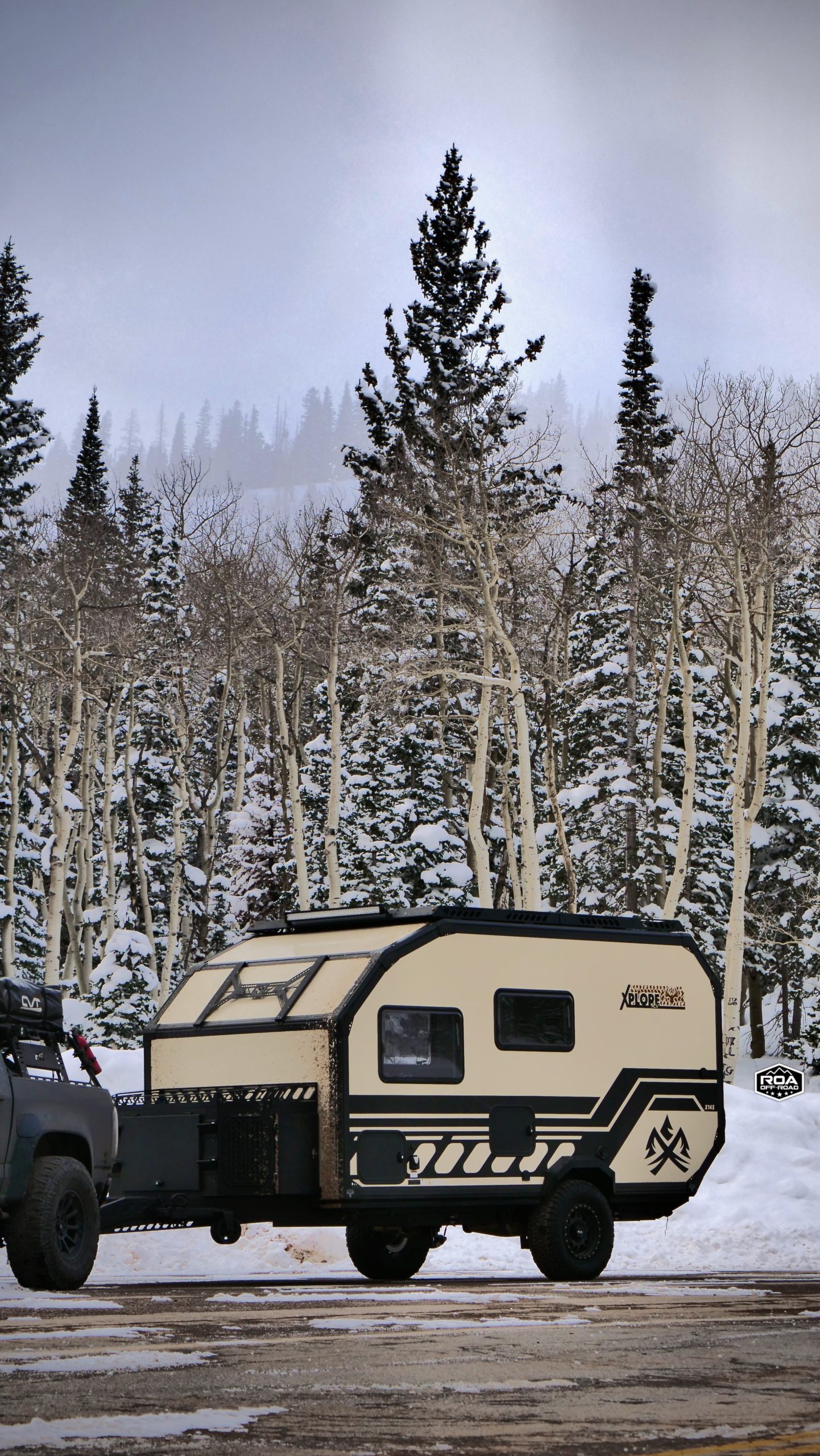

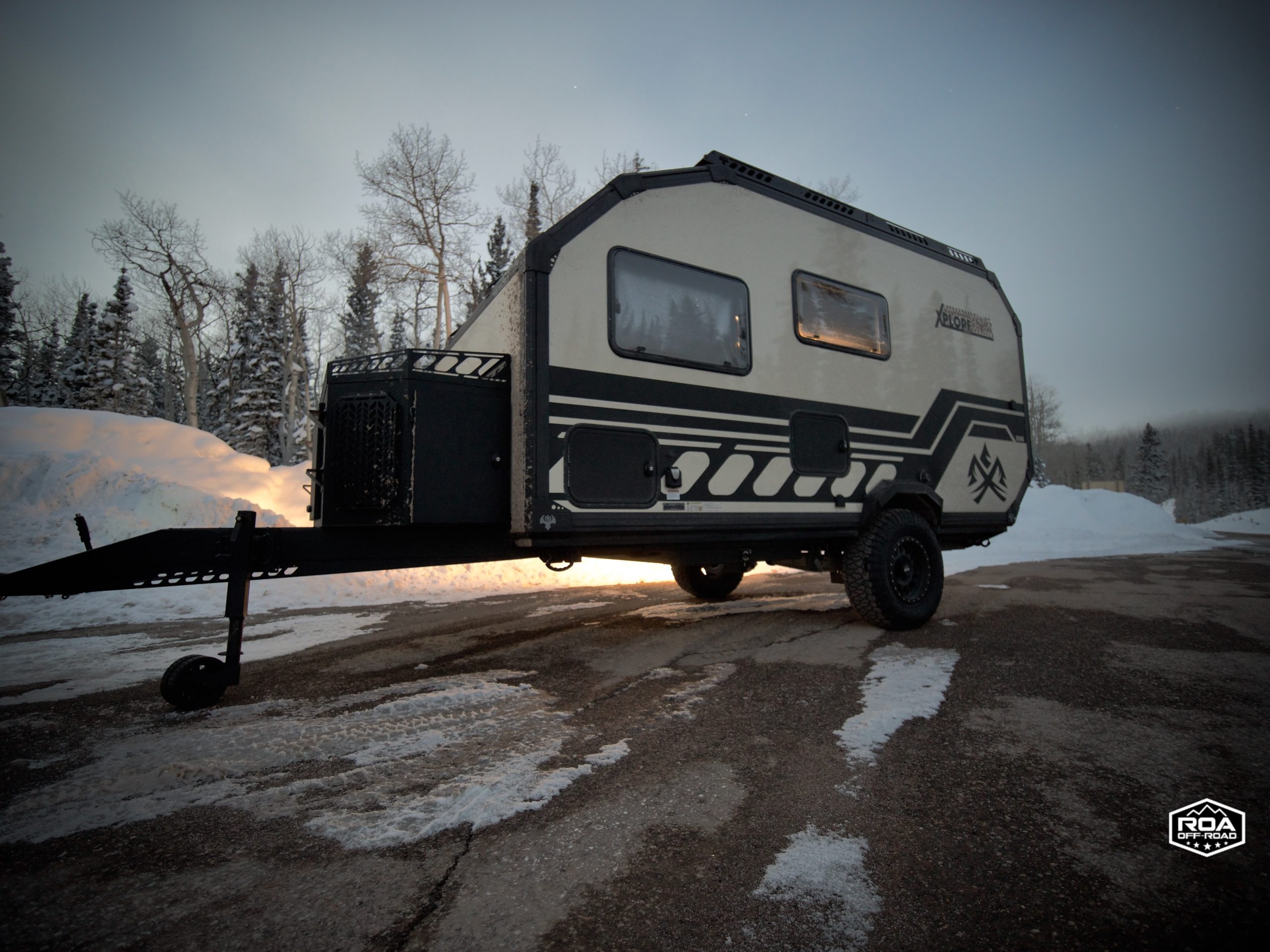

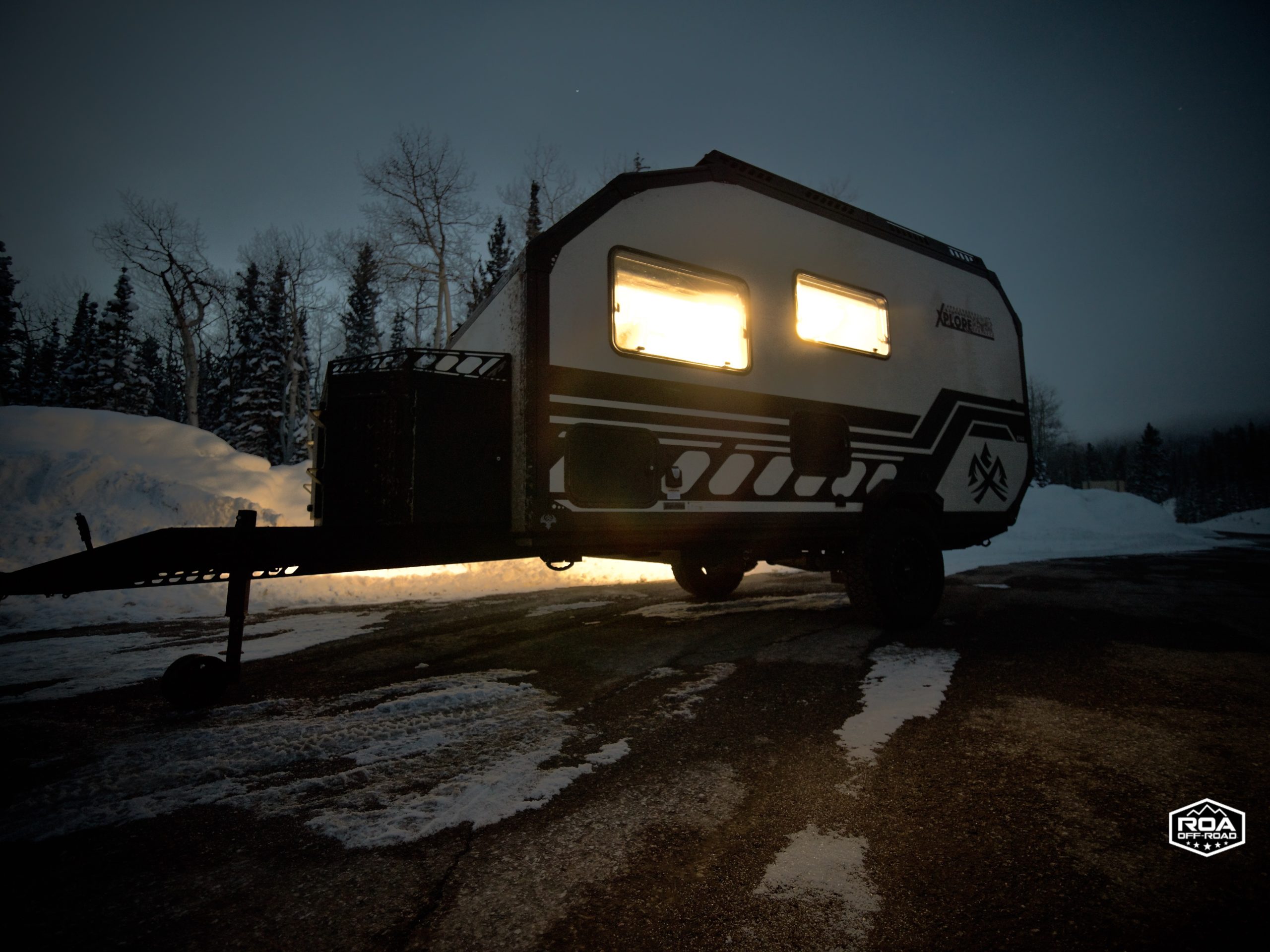

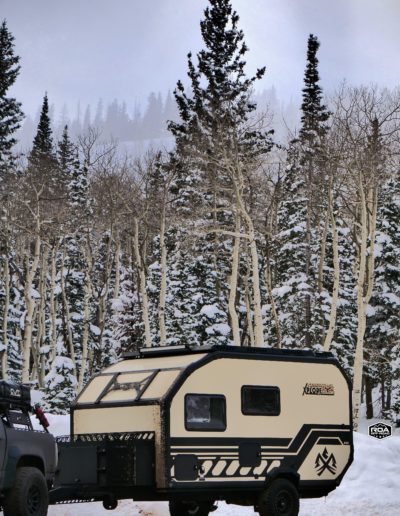

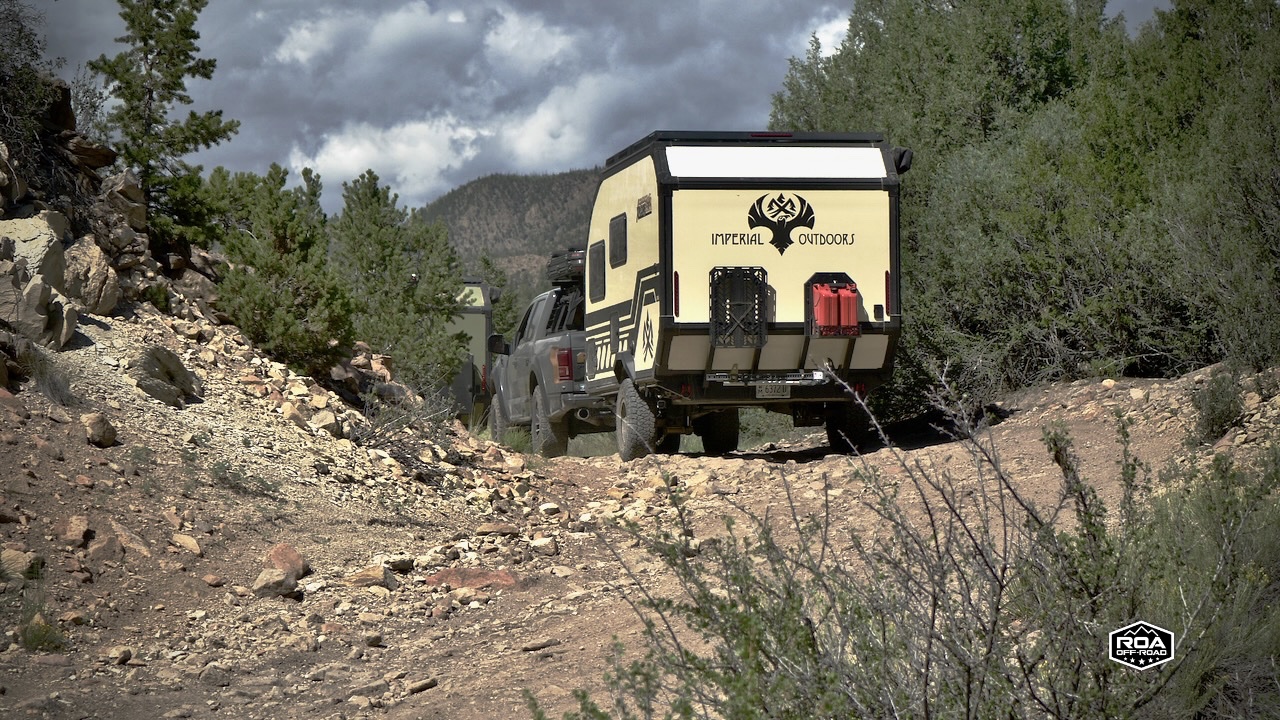

XploreRv is taking off-grid RVing to another level… now with a facelift! Imperial continues to encompass the cold weather versatility we’ve become known for with the rugged capability of a true, off-road, off-grid camper. Keeping true to our roots, the X145 is capable in extreme cold as well as the summer heat. This single axle unit is smaller and easier to maneuver through the back country.

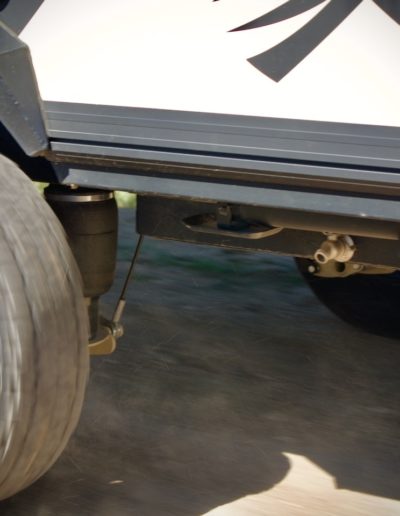

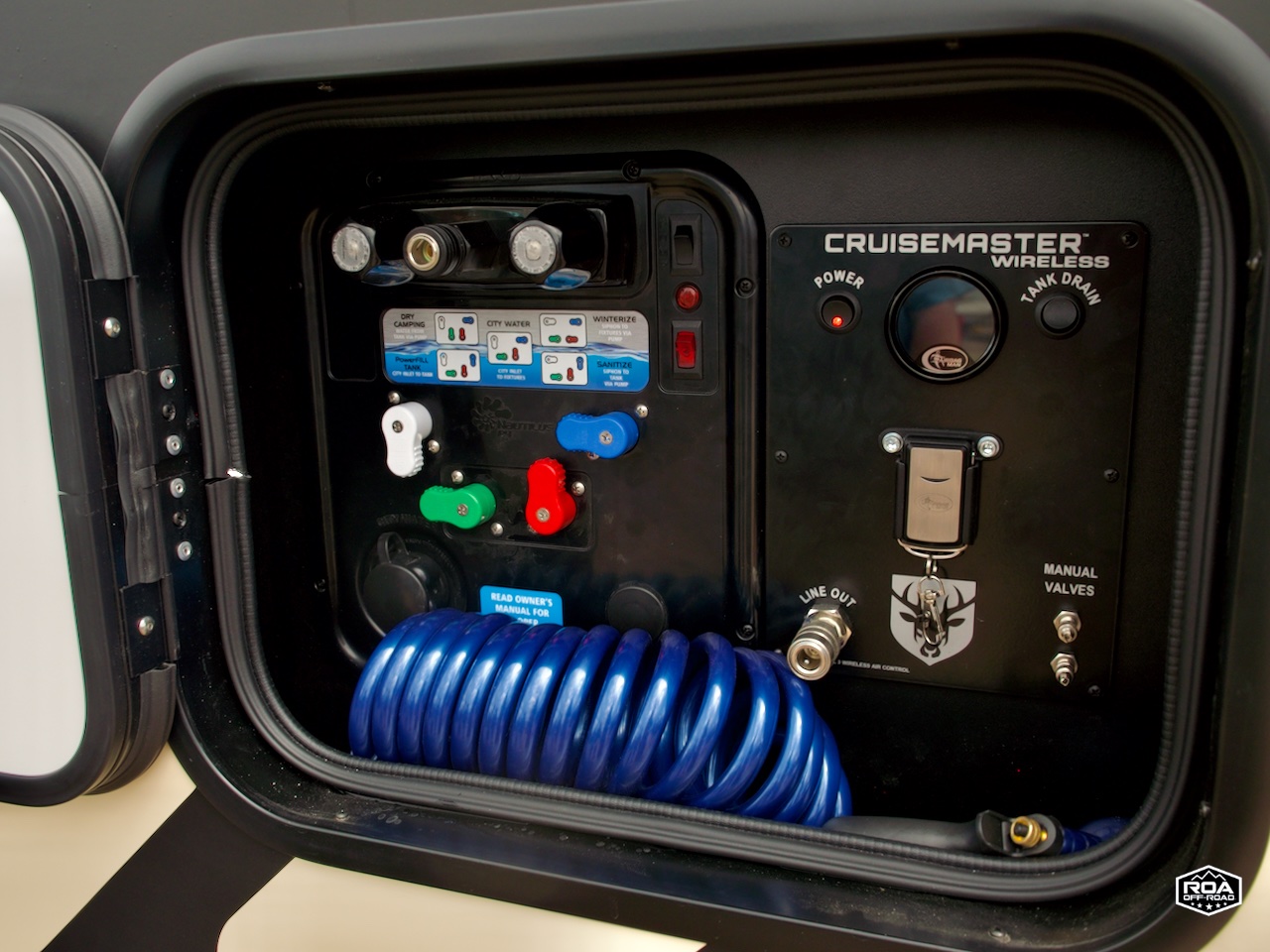

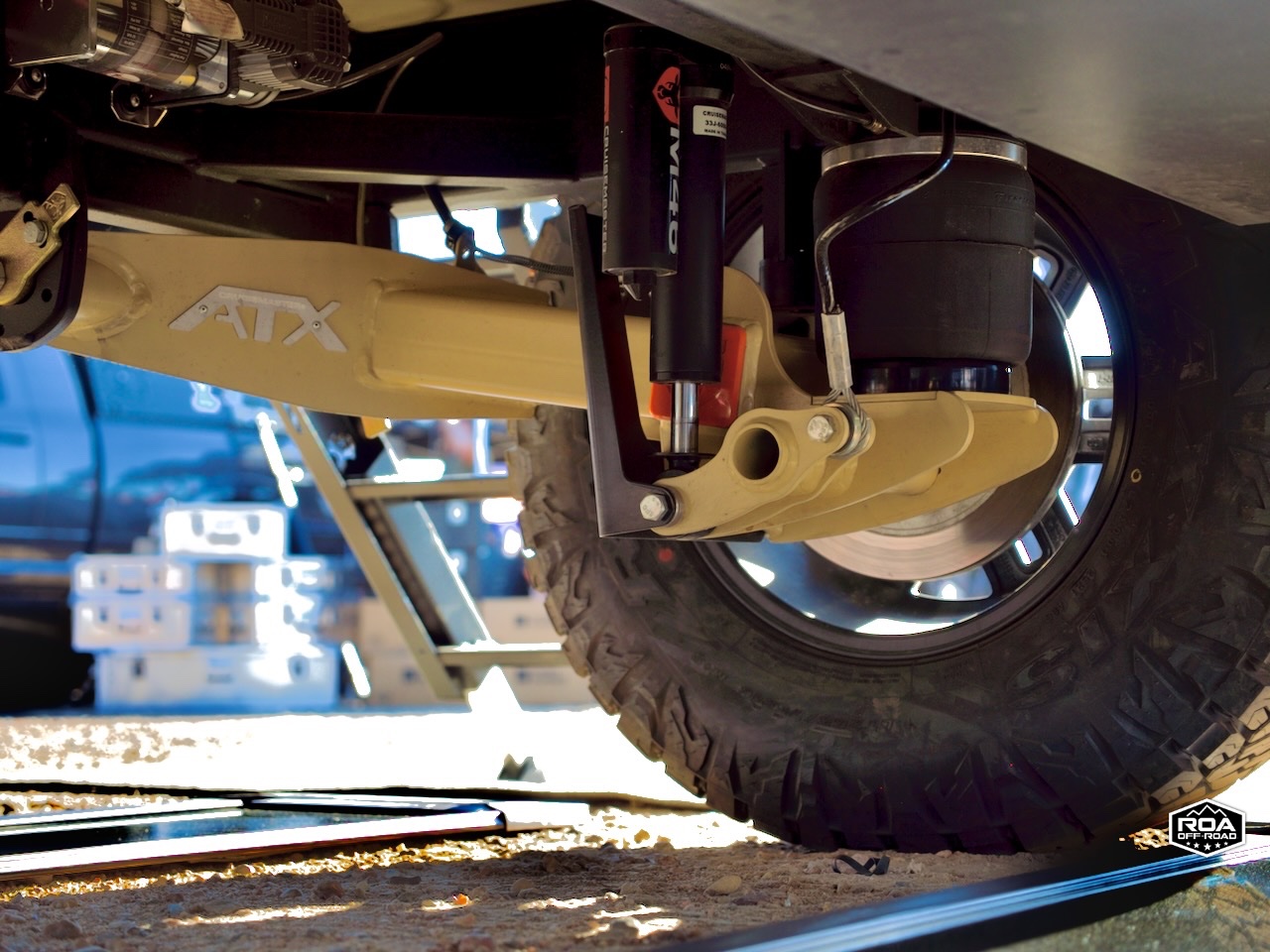

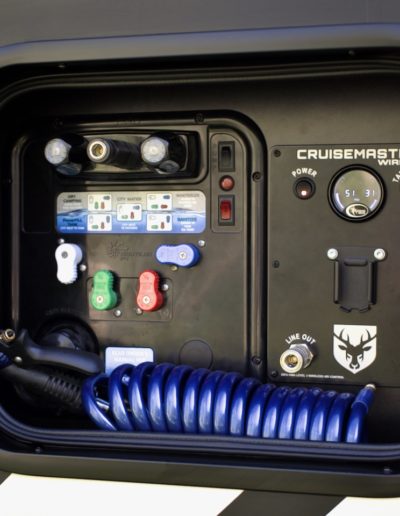

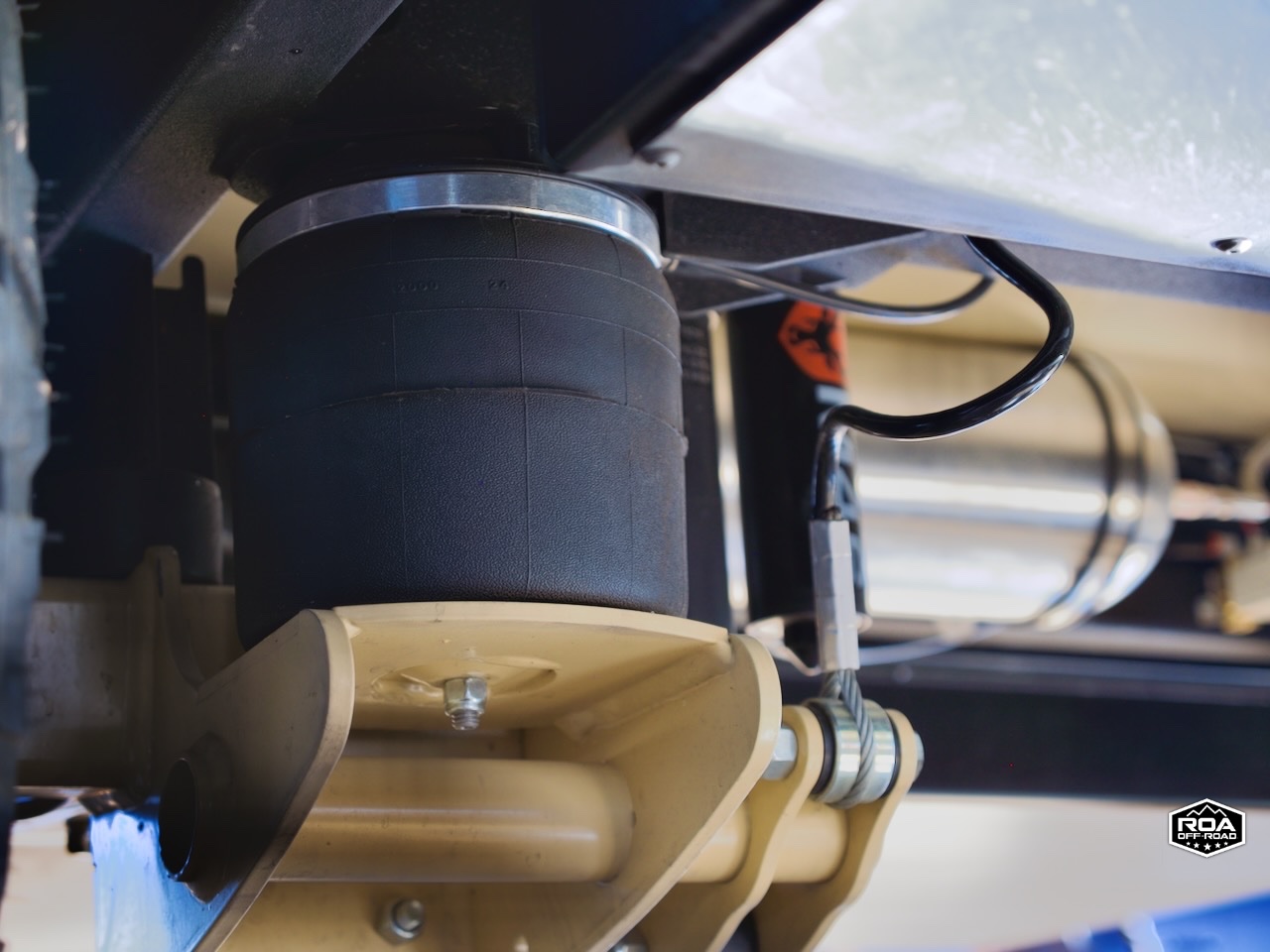

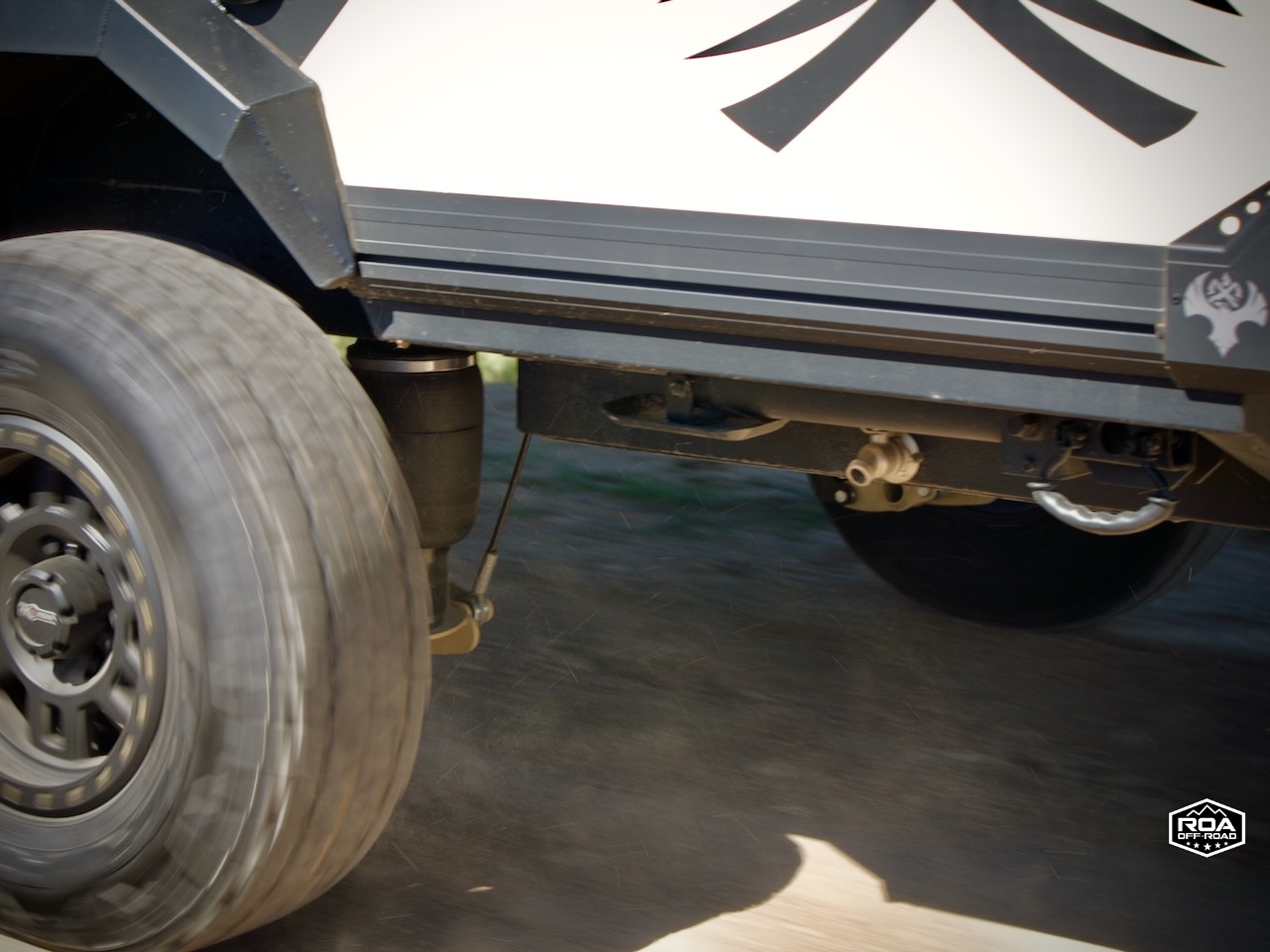

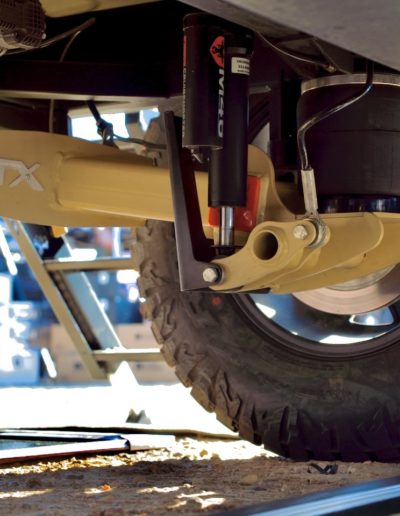

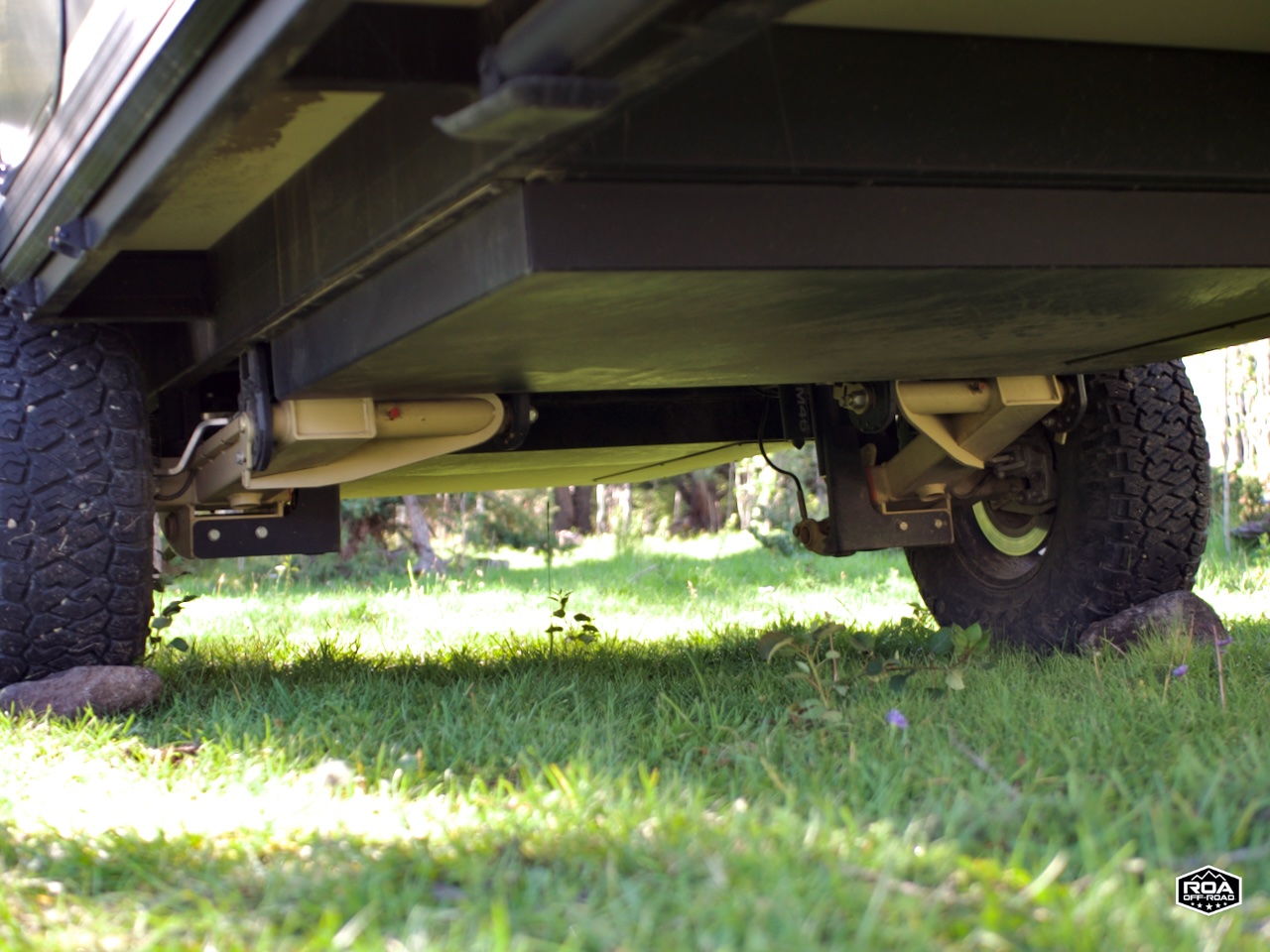

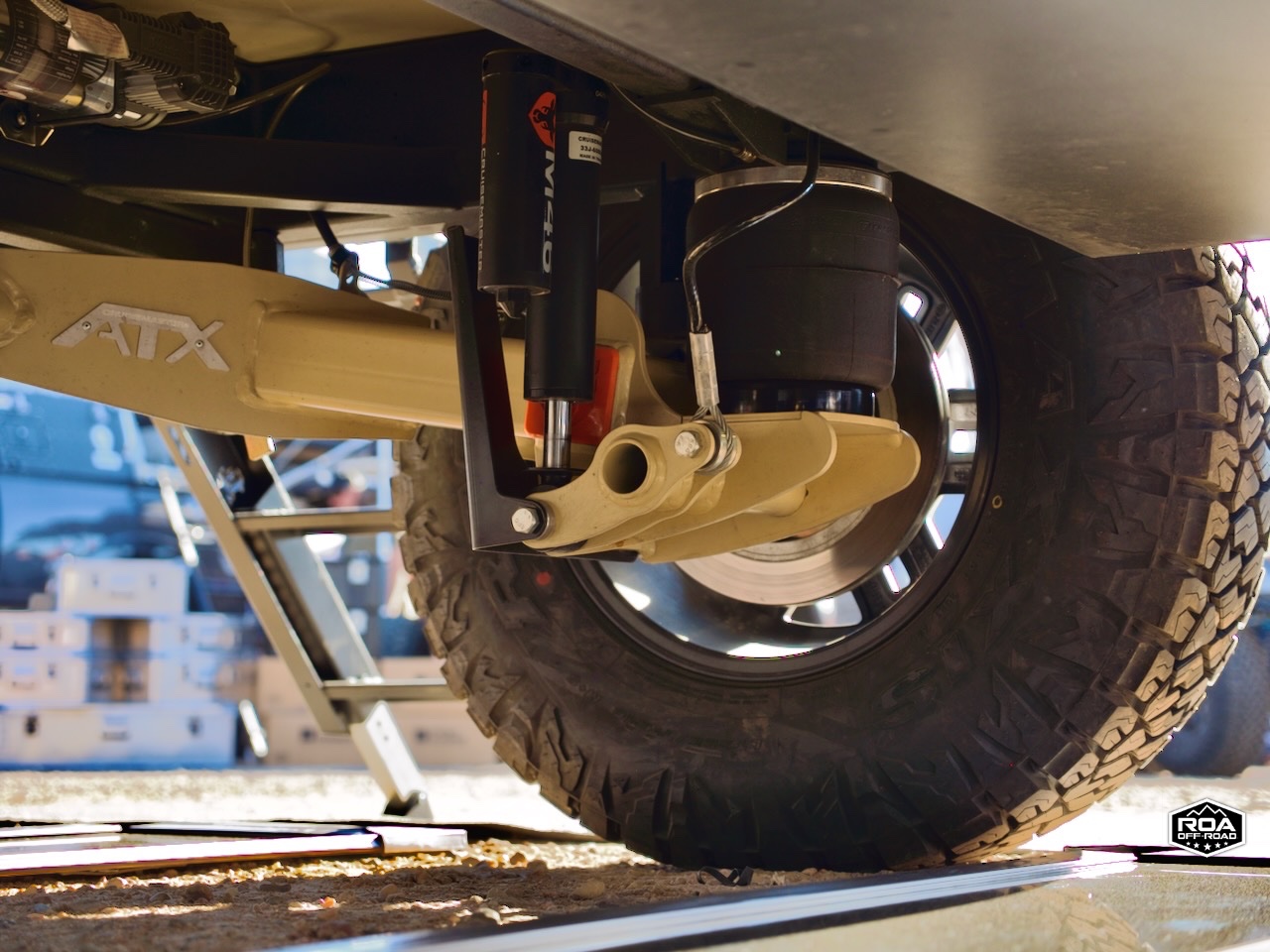

CruiseMaster ATX Airbag Suspension
Best suspension in the world. First production trailer in the USA to use this suspension. Not only does it glide over obstacles, but allows for easy side to side leveling once at camp.
Off Grid For Real

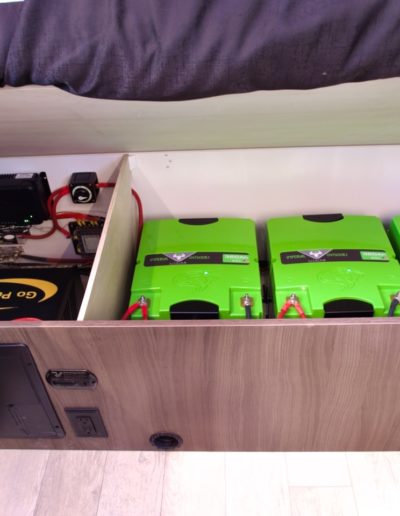

Many trailers and campers claim to be off grid capable. The Imperial Outdoors XploreRV X145 takes it to a new level. With the stage 3 electrical package you get 1080 amps of Lithium power.

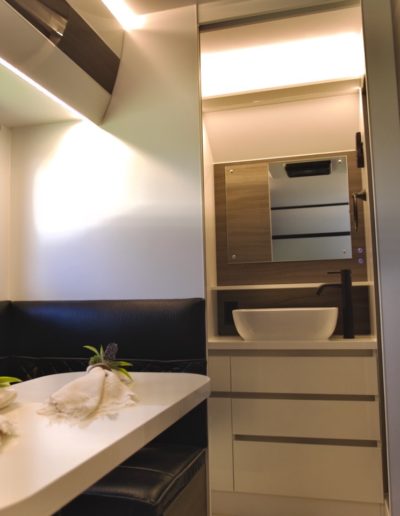

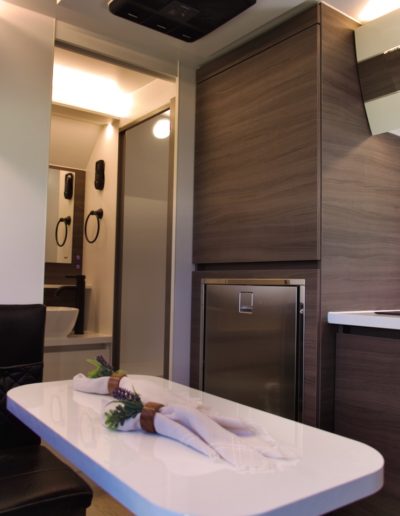

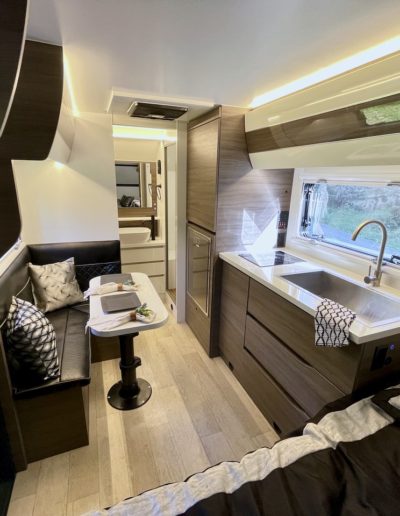

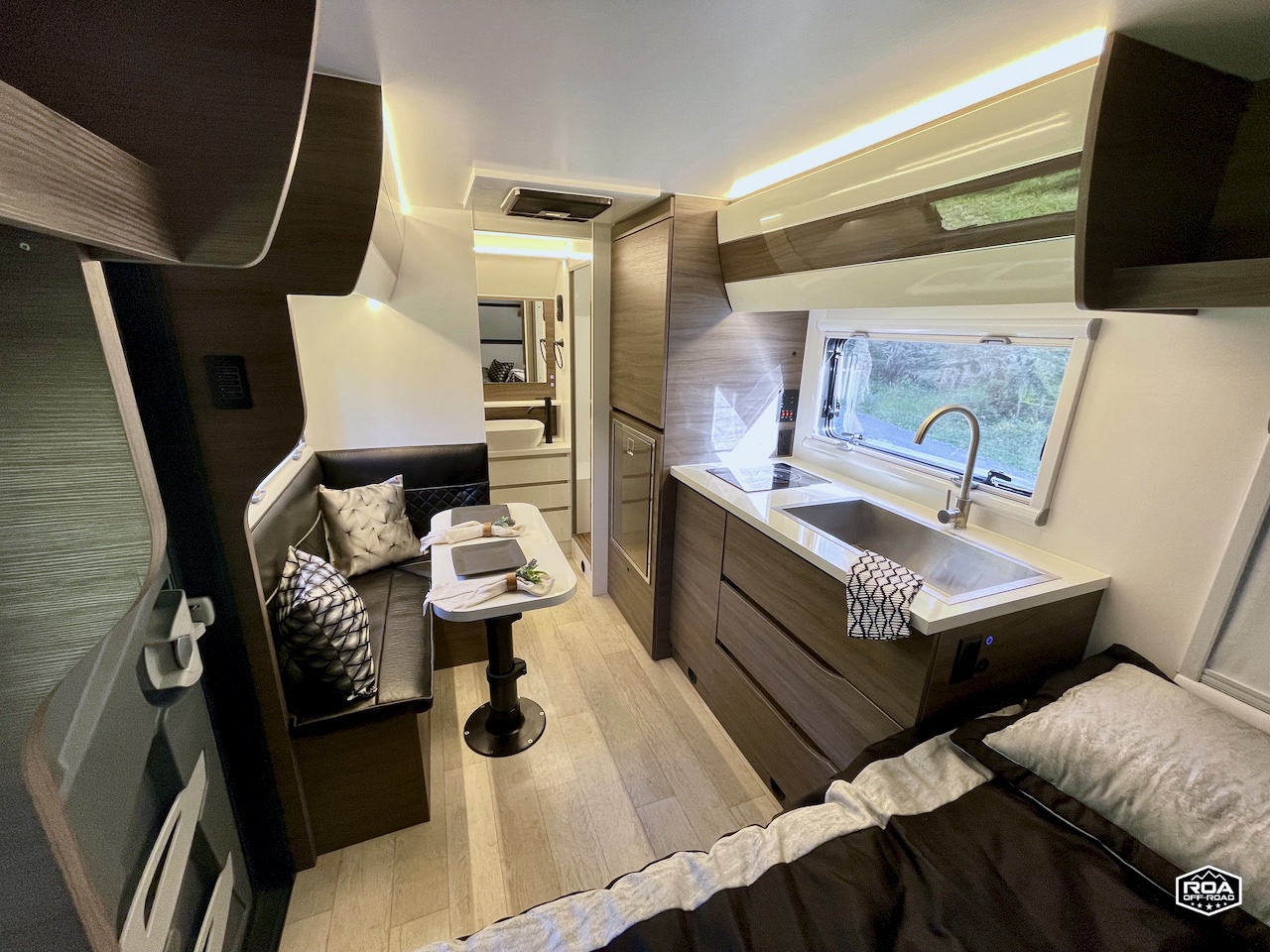

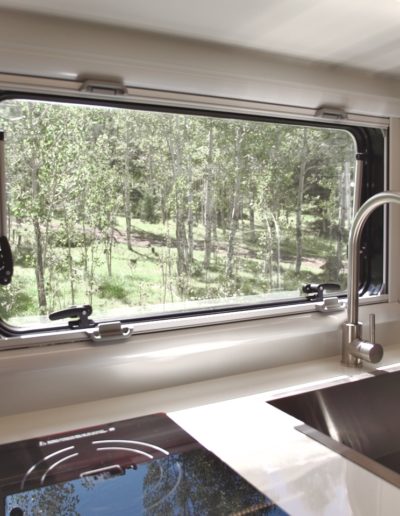

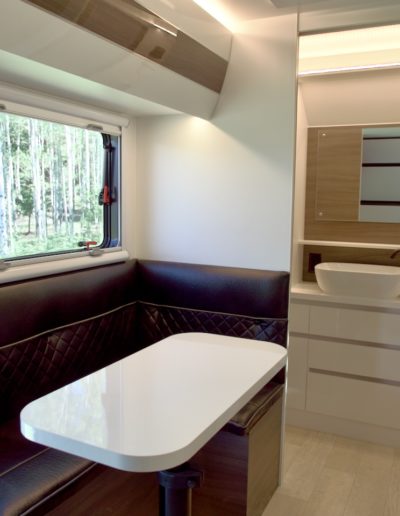

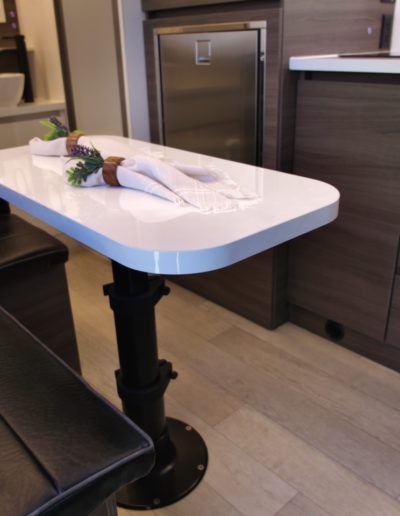

Refined Interior
Being an Off-Road beast doesn't mean you have to sacrifice comfort. The interior of the X145 offers the luxury and comfort of home.

Features

CruiseMaster ATX Airbag Suspension

Best suspension in the world. First production trailer in the USA to use this suspension. Not only does it glide over obstacles, but allows for easy side to side leveling once at camp.

Off Grid For Real

Many trailers and campers claim to be off grid capable. The Imperial Outdoors XploreRV X145 takes it to a new level. With the stage 3 electrical package you get 1080 amps of Lithium power.

Refined Interior

Being an Off-Road beast doesn't mean you have to sacrifice comfort. The interior of the X145 offers the luxury and comfort of home.

Feature Description

Specifications

Measurements

Overall Length (not including rear accessories) 21 ft 7 in
Overall Width (including fenders) 91 in
Overall Height 9 ft 9 in
Unit Weight TBD lbs
Max Trailer Capacity (GVWR) 6172 lbs
Tongue Weight TBD lbs
Cargo Capacity TBD lbs
Axle Weight Rating 6172 lbs
Tire Size 265/75 R16
Interior Height (floor-to-ceiling) 75.5 in
Interior Width (wall-to-wall) 78 in

Layout

Appliances

FEATURES & CHASSIS

Standard Features (Model Specific)
Off-road reinforced, coated steel frame
Full Skid Plates

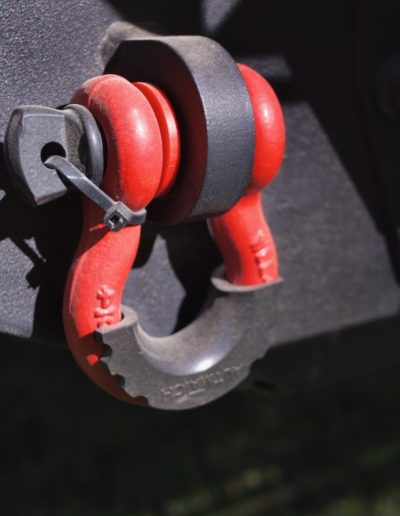

D-Ring recovery points

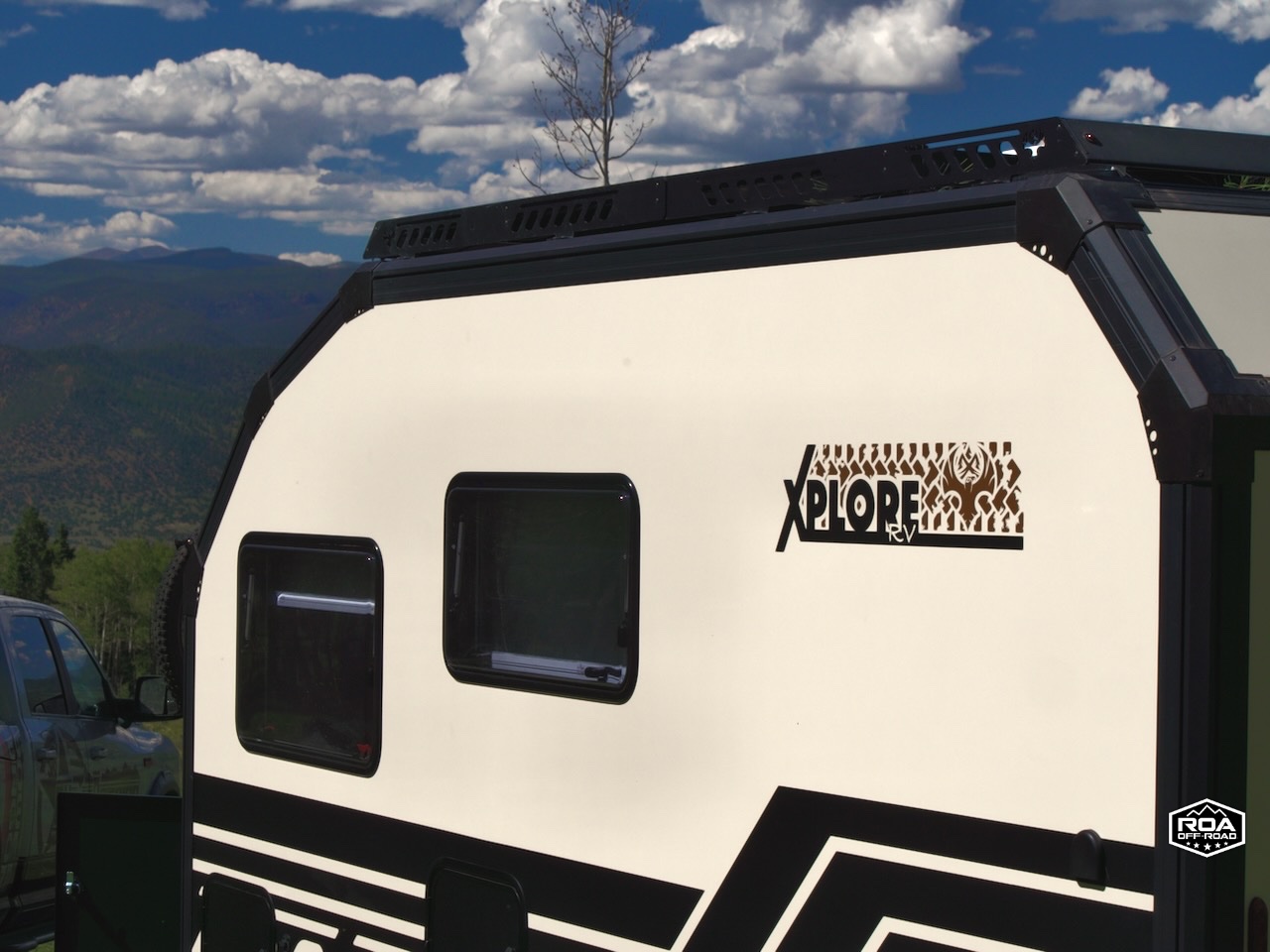

Fully insulated composite exterior walls with gelcoat surface
1pc, fully insulated composite floor and fully walkable composite roof

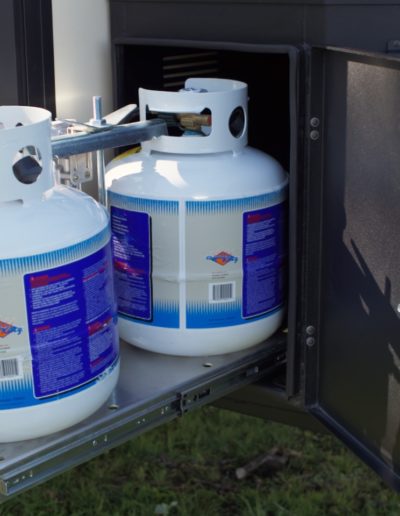

Twin 20lb LP Fuel Tanks
Cold Weather LP Furnace
Low-profile, high efficiency 12V(DC) Roof-Mounted A/C

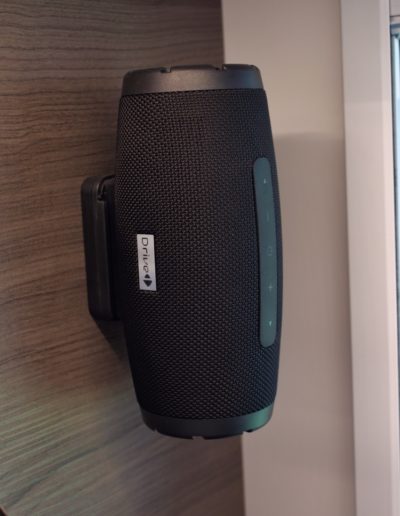

Bluetooth Speaker

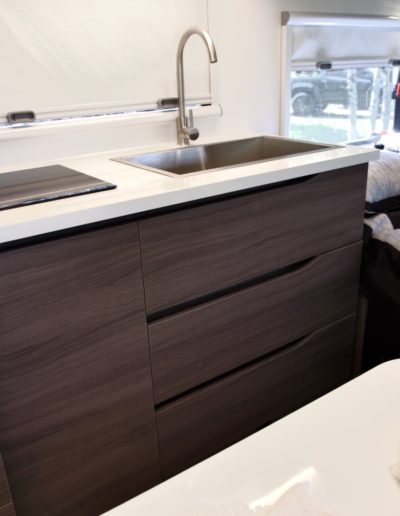

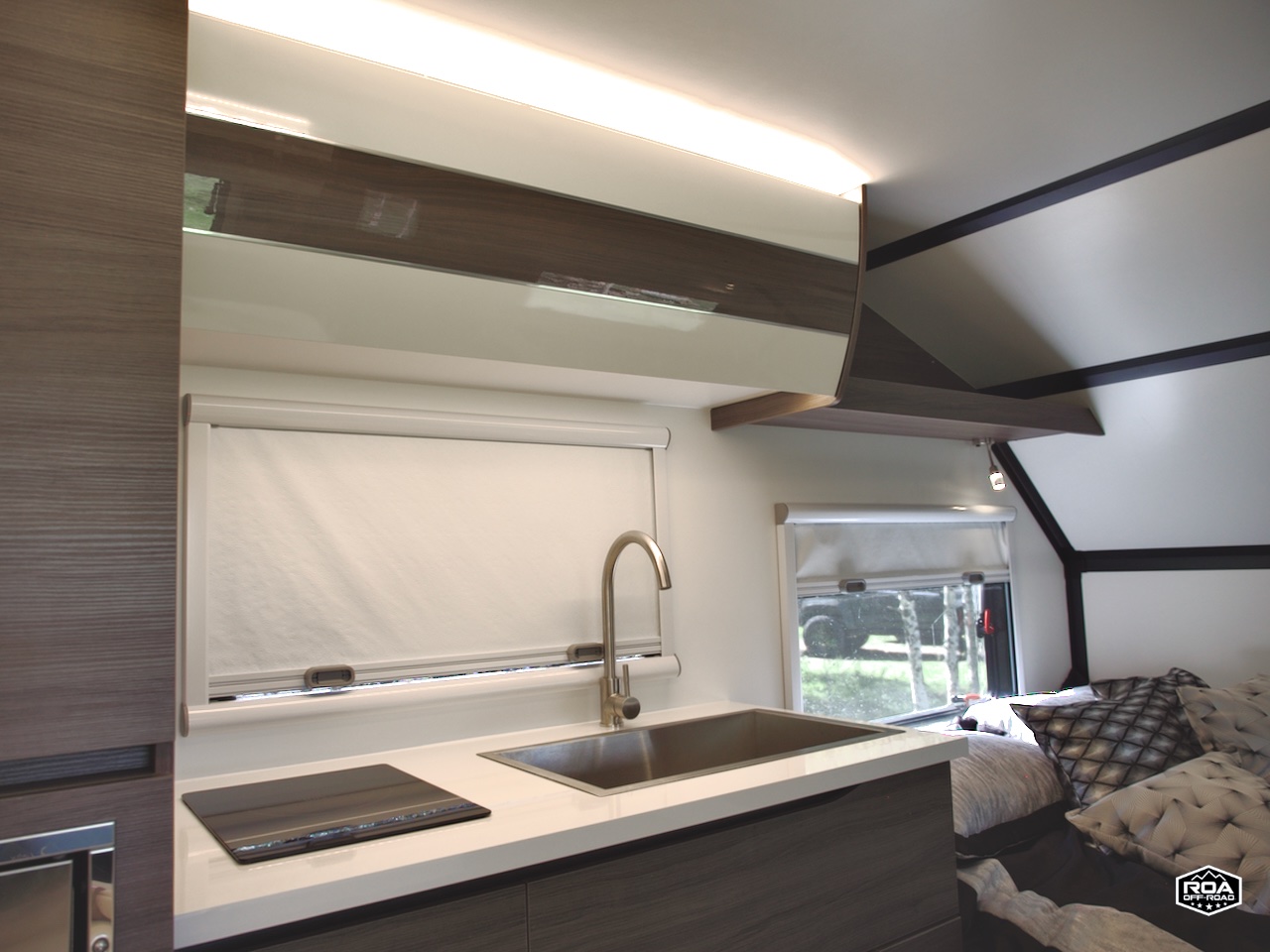

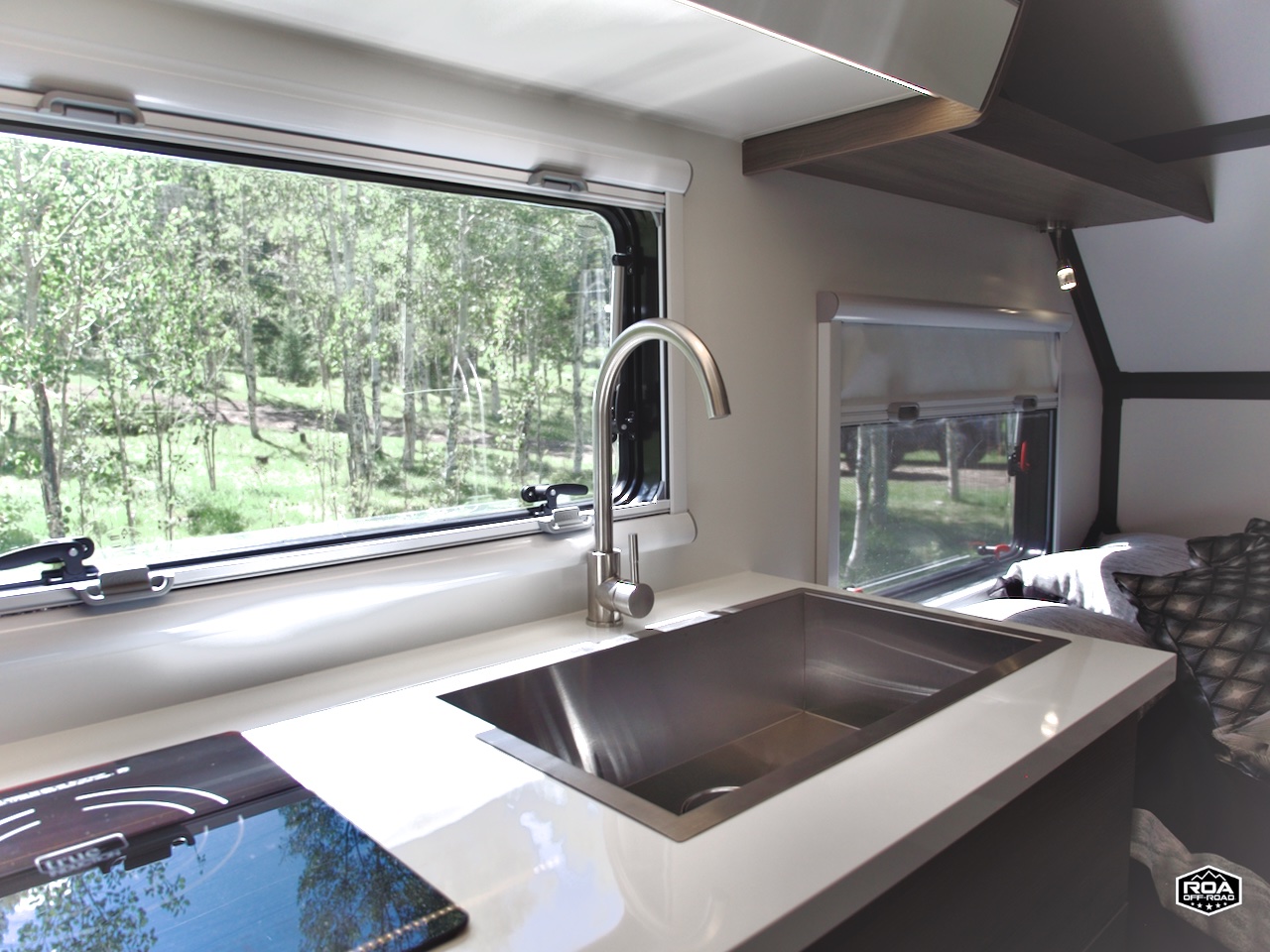

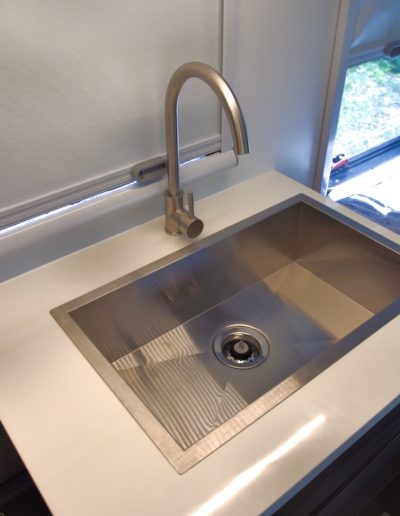

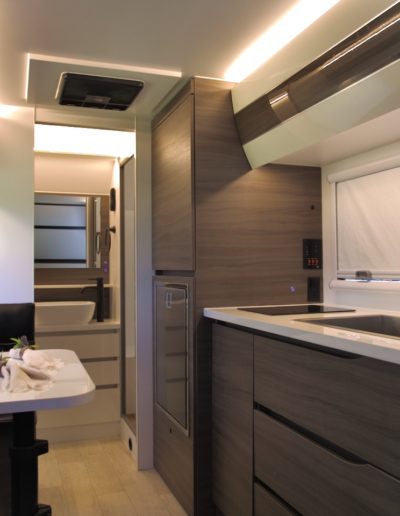

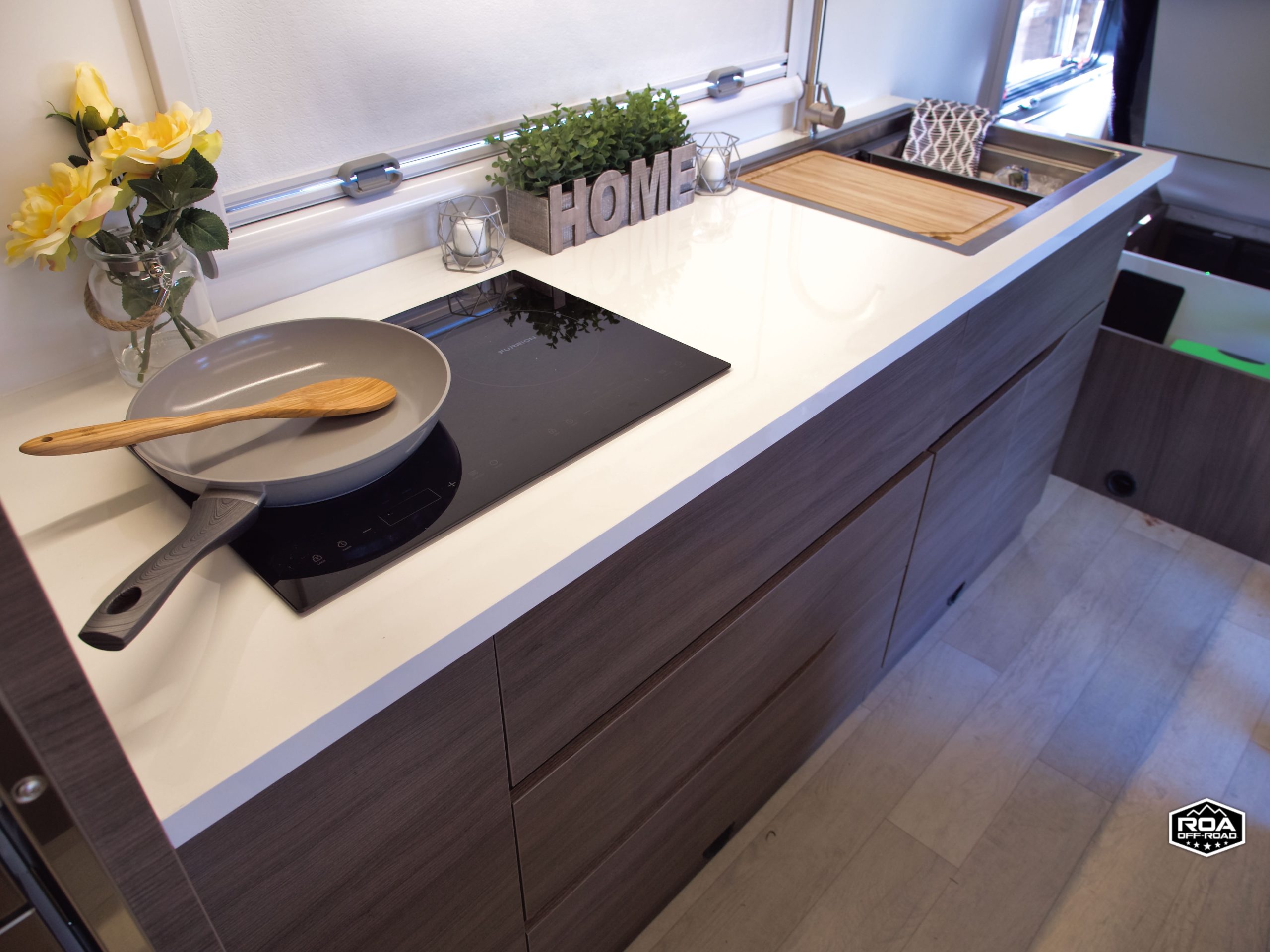

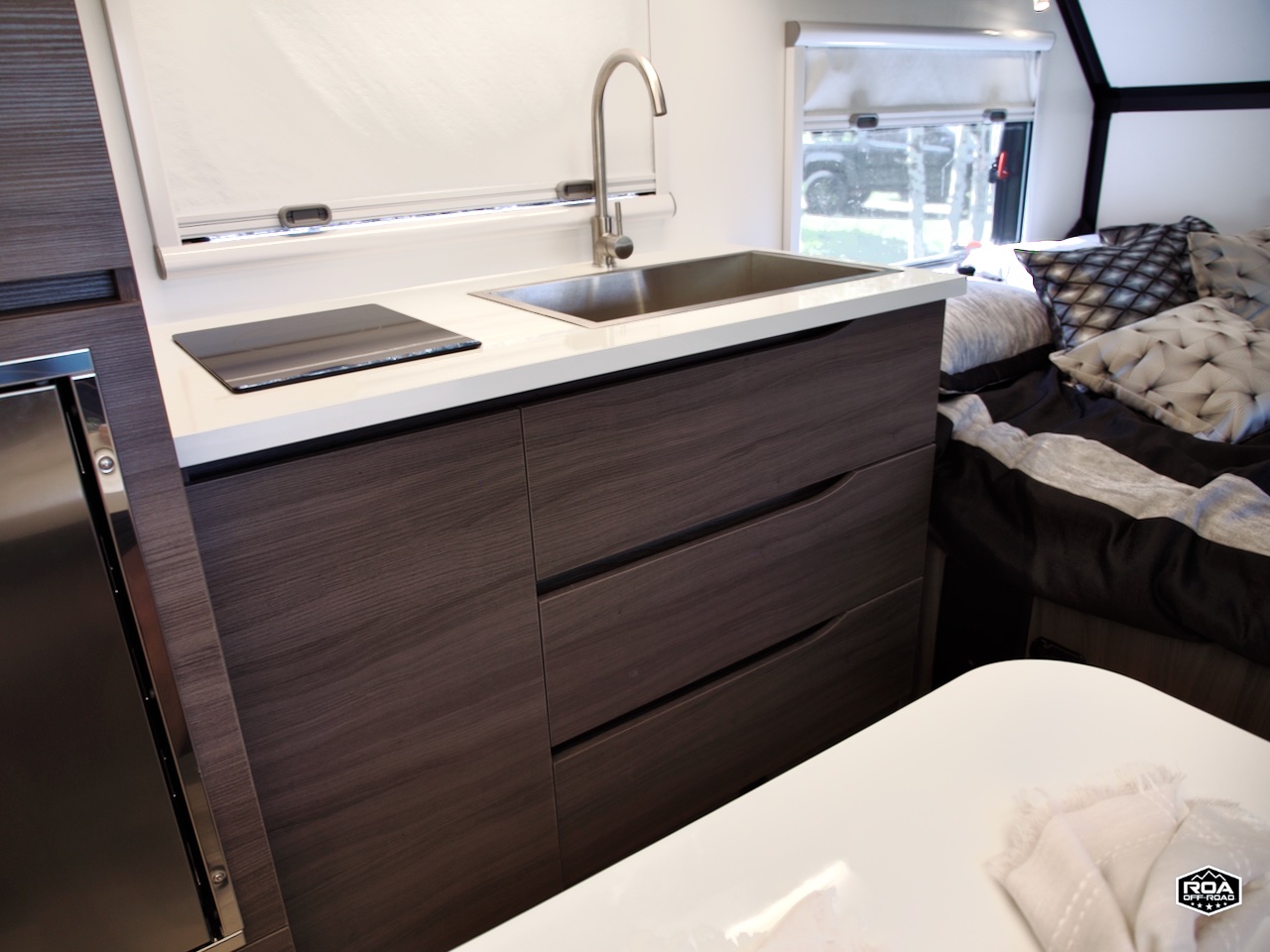

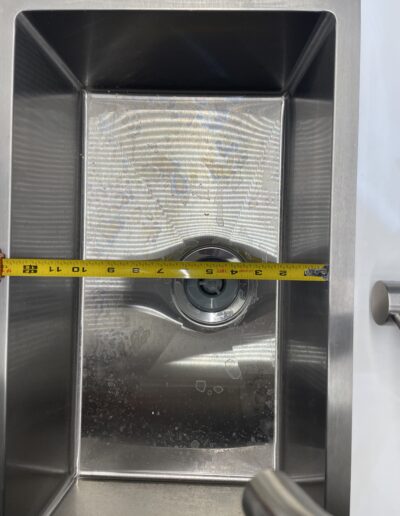

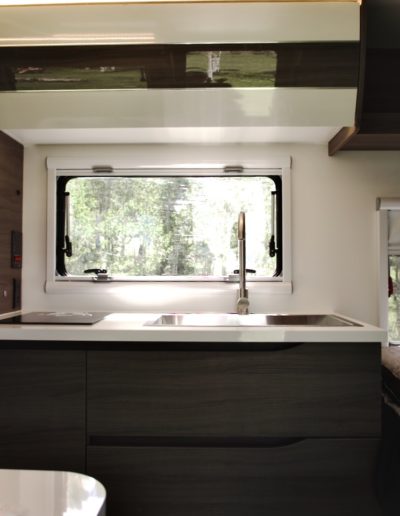

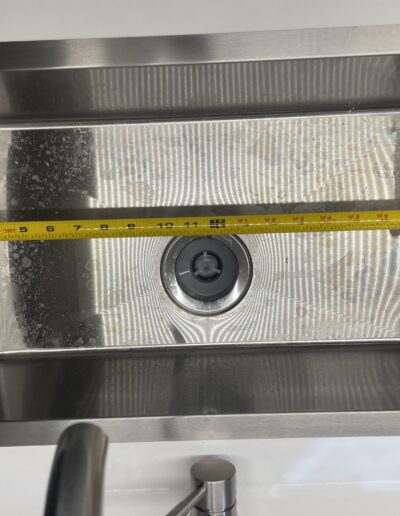

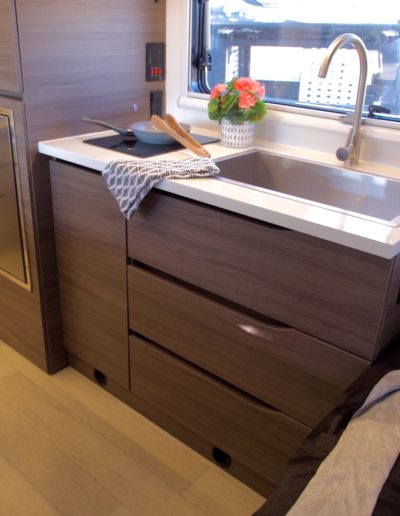

Full Kitchen w/cooktop, refrigerator and kitchen sink

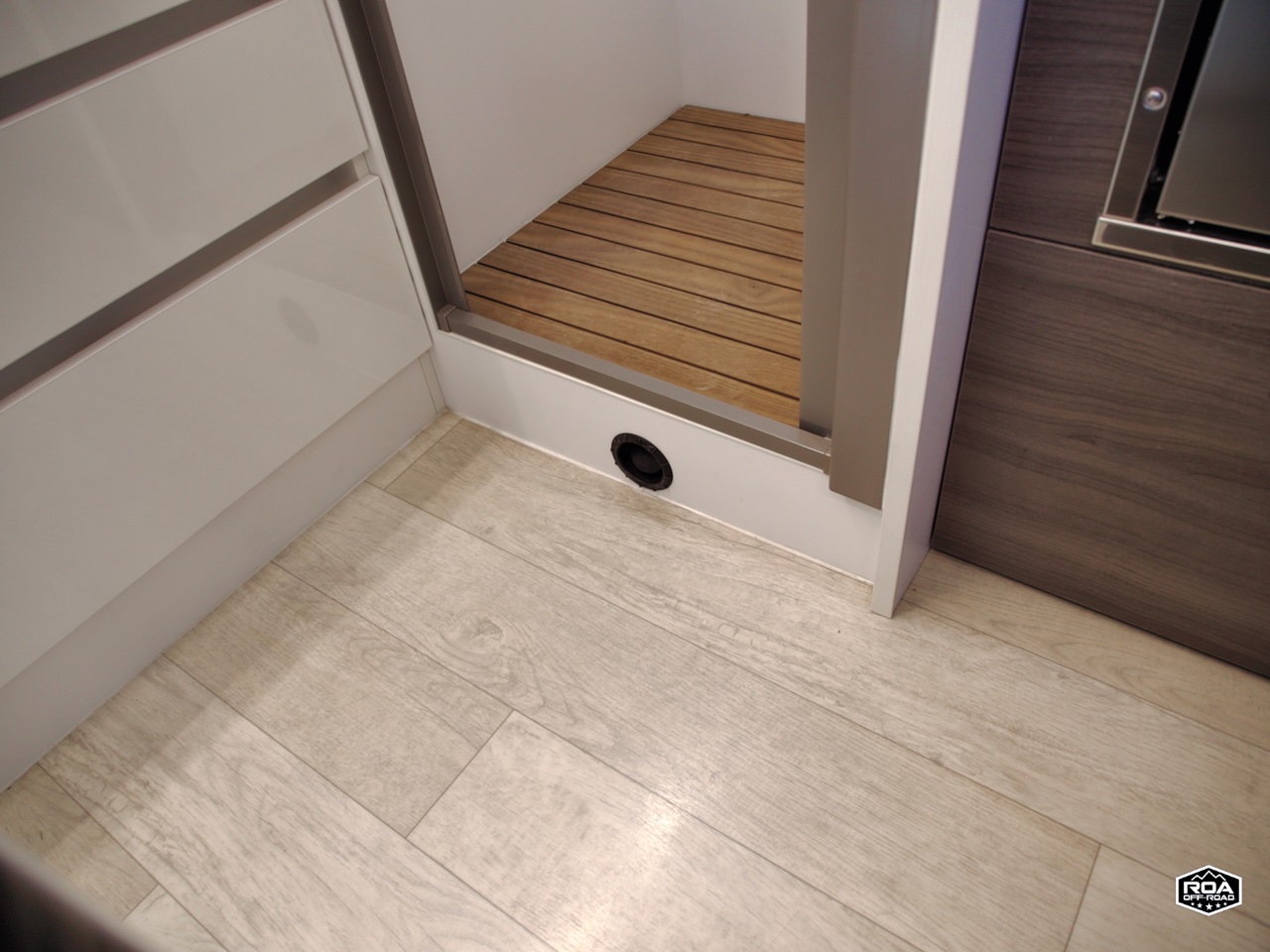

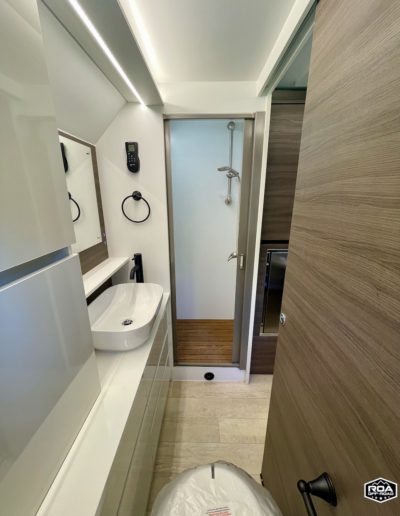

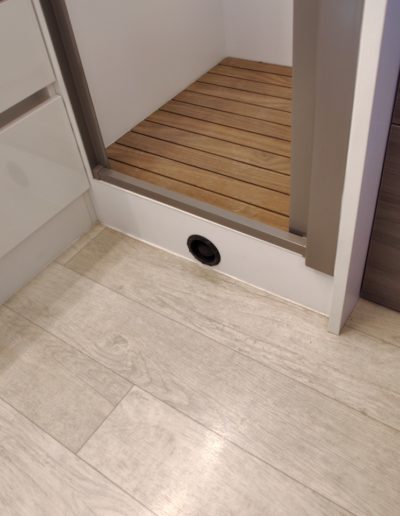

Full Bathroom w/shower and dry flush toilet
(no black water tank to deal with in the back-country)
Upgraded 60 gallon fresh & 60 gallon grey water tanks

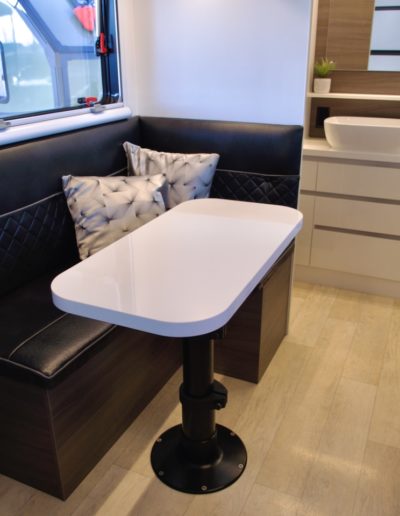

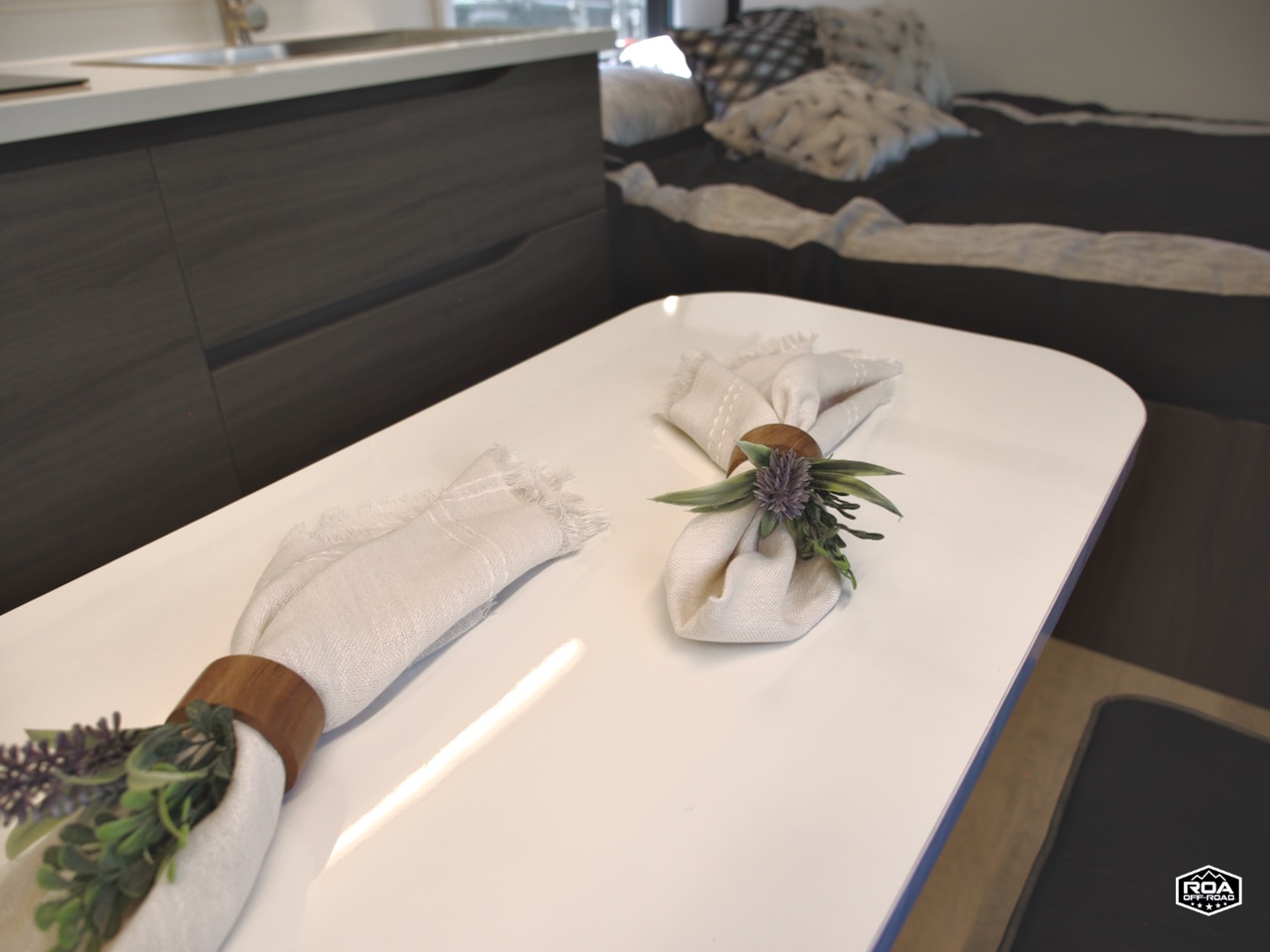

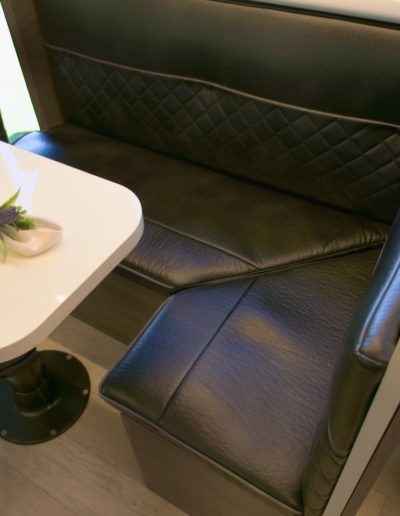

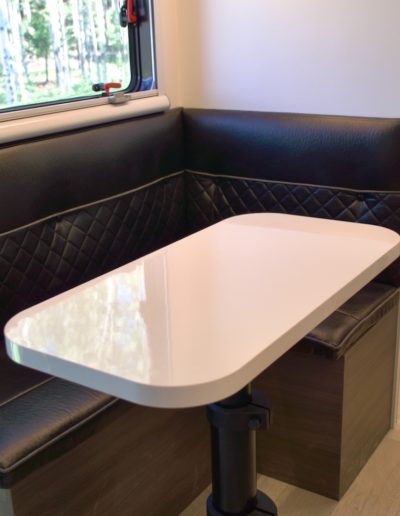

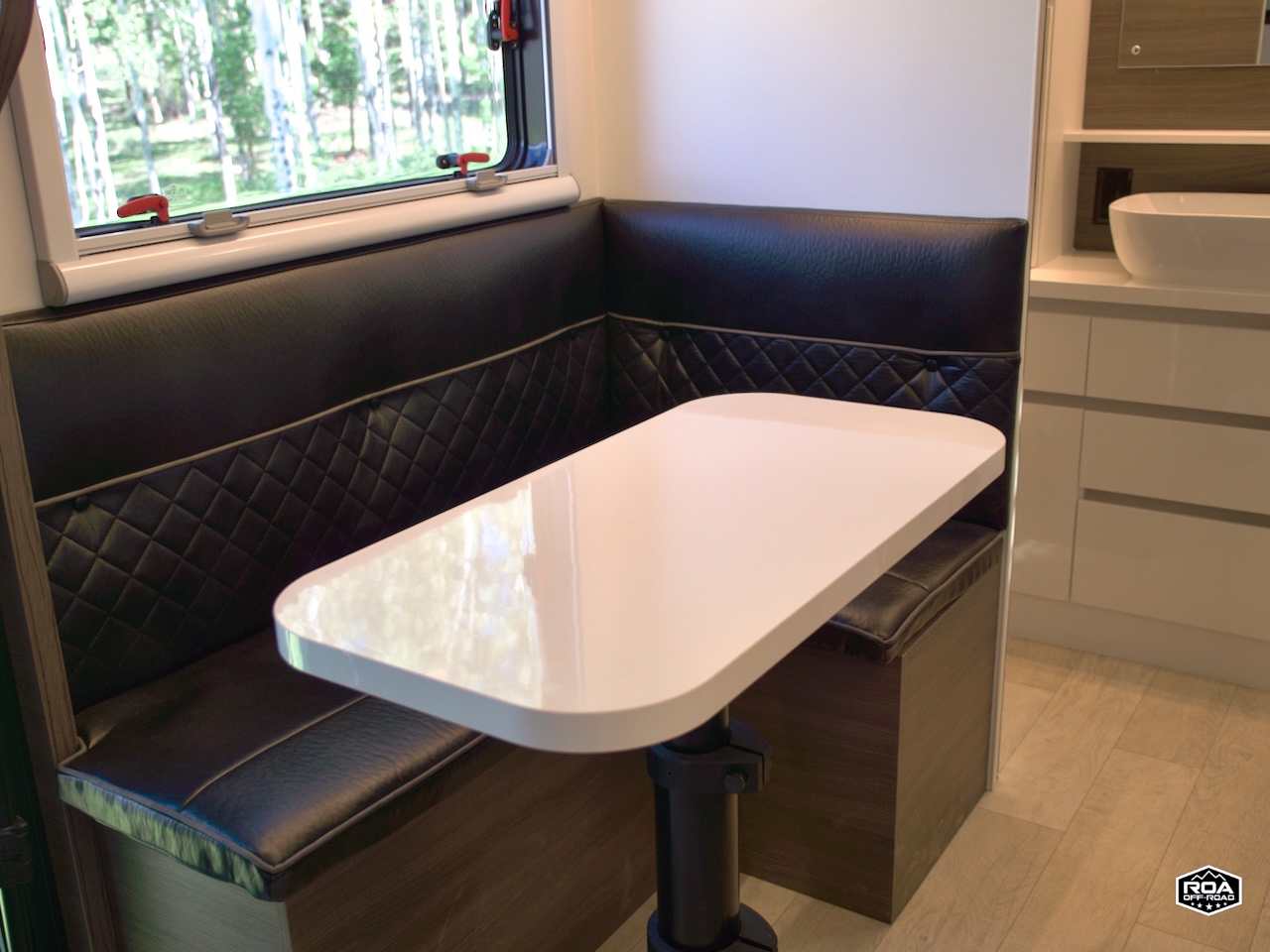

Convertible Dinette

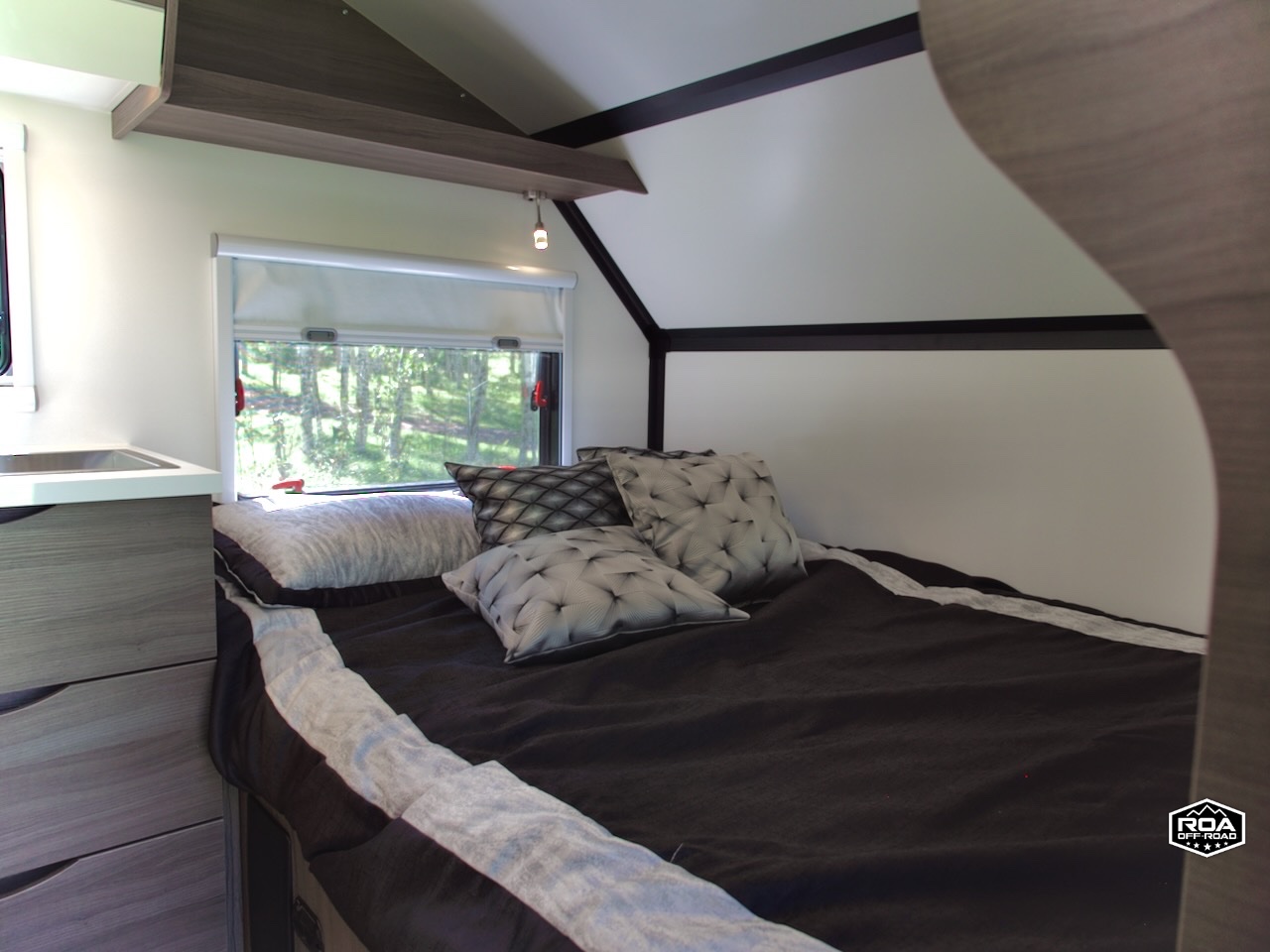

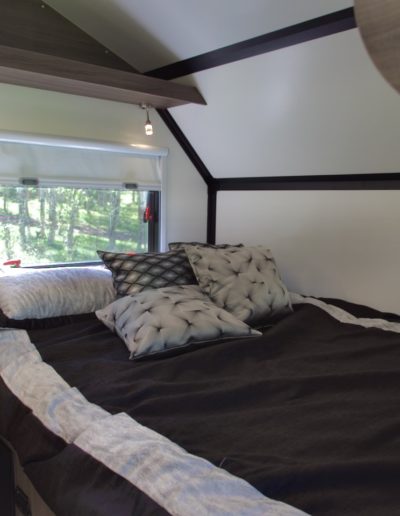

Full Size Bed (RV Full) w/bedding

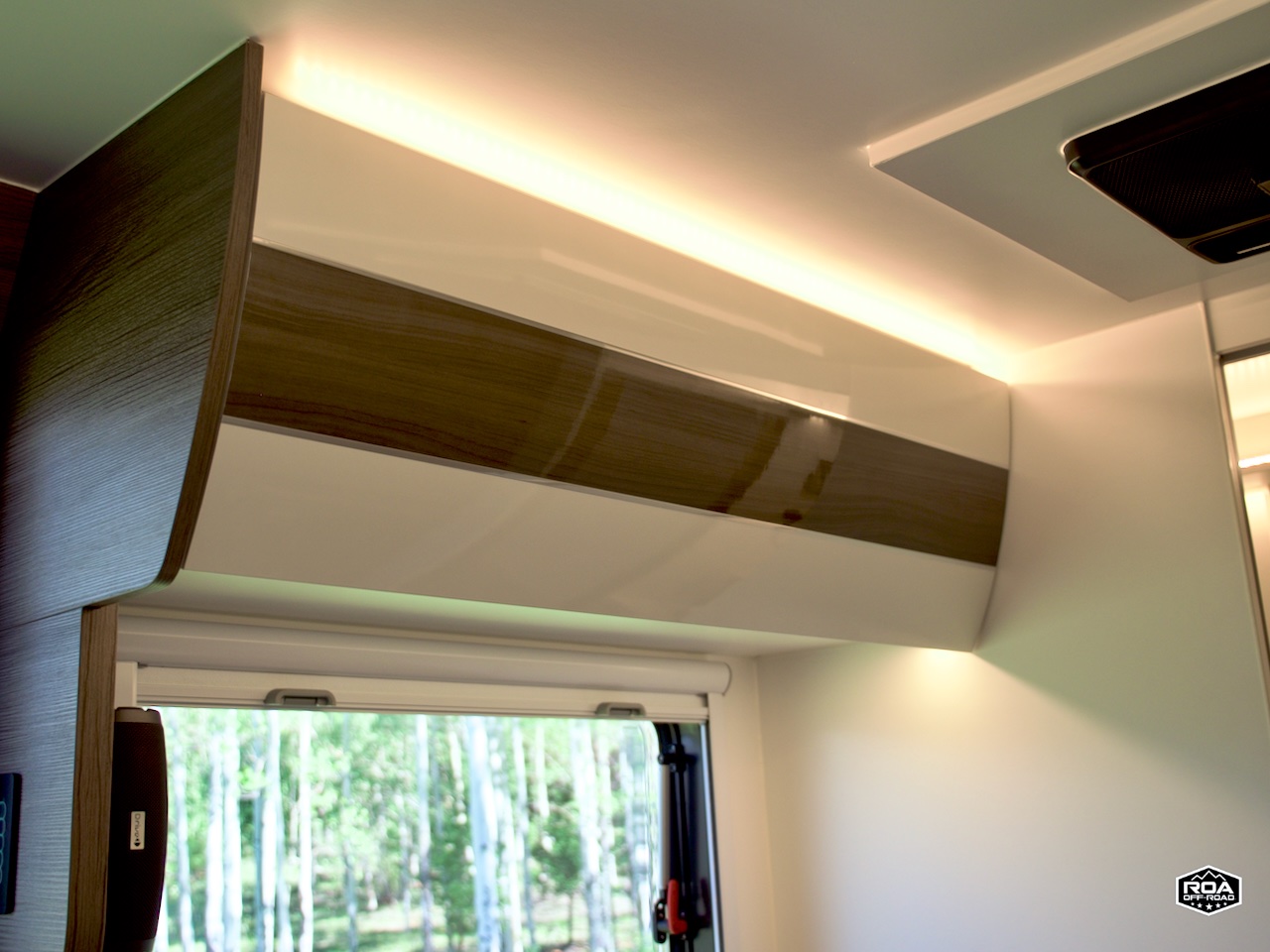

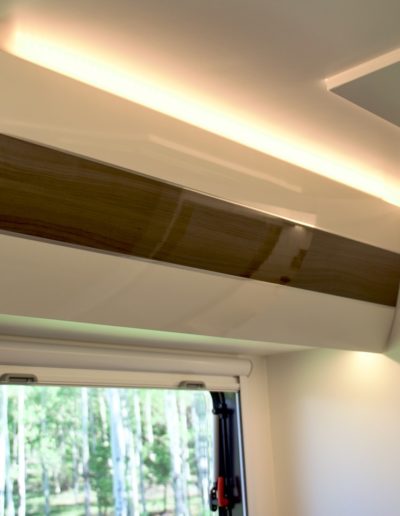

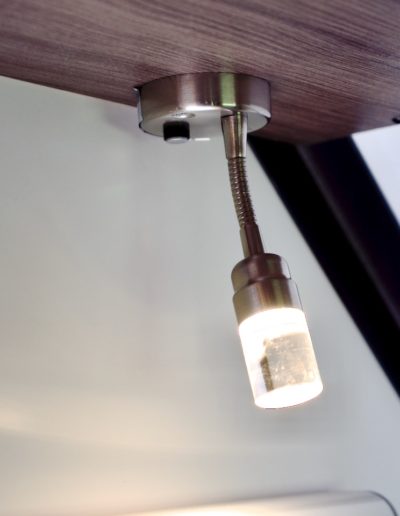

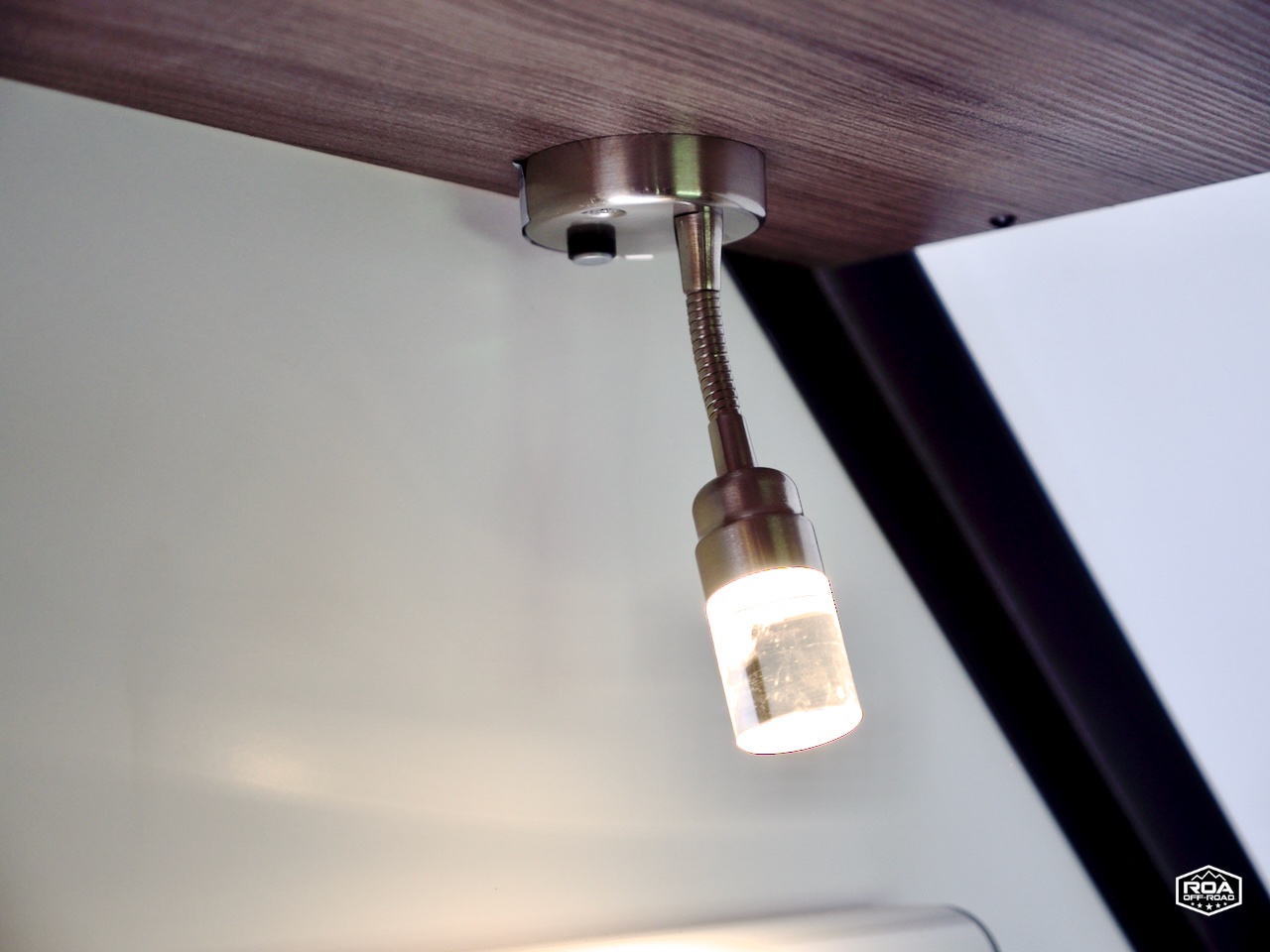

LED interior & exterior lighting

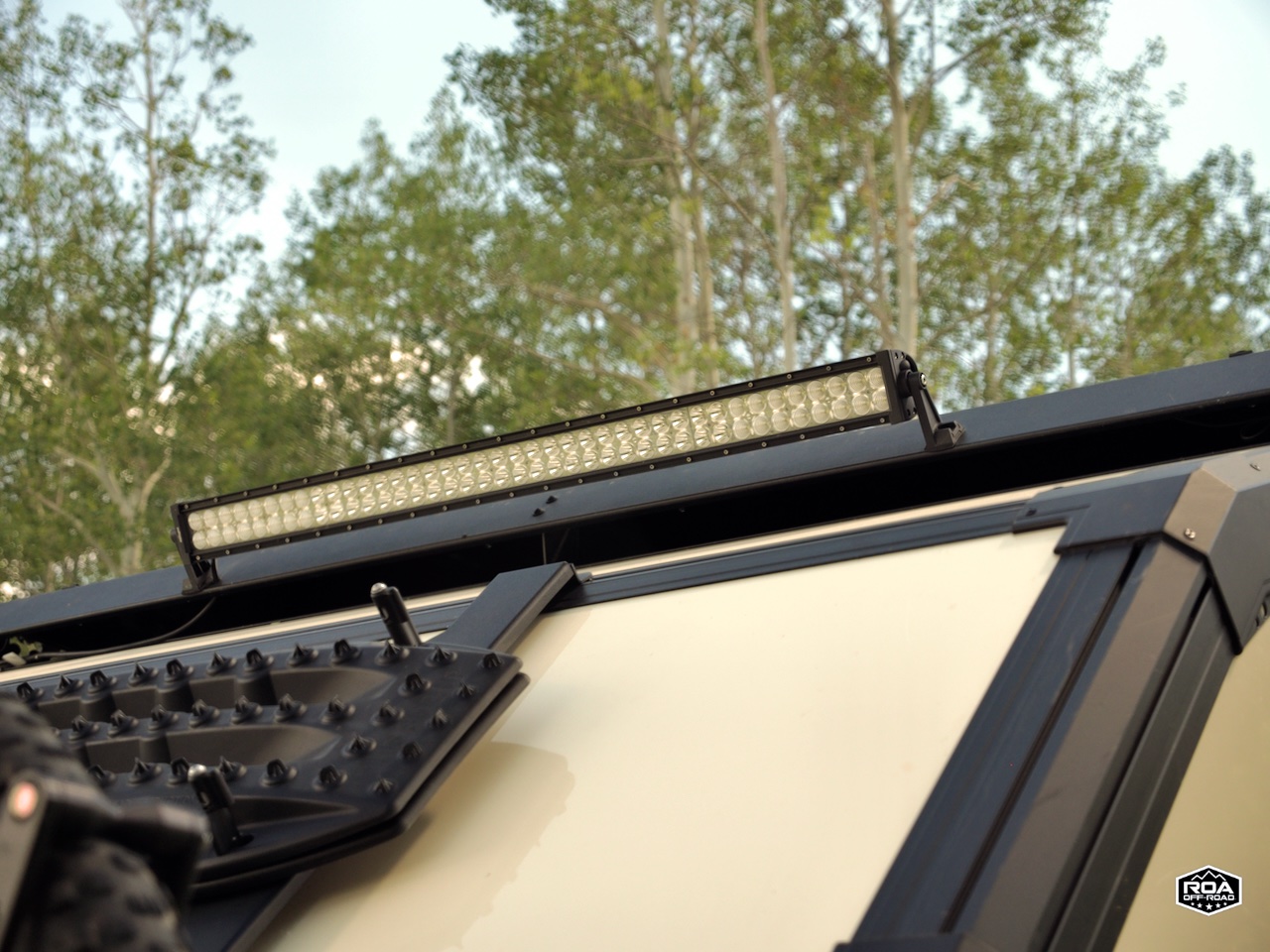

Exterior LED Perimeter Lighting
Off-Road Rock Lighting
Conveniently placed 120V outlets & USB charging ports
Roof-mounted MaxxAir ventilation system

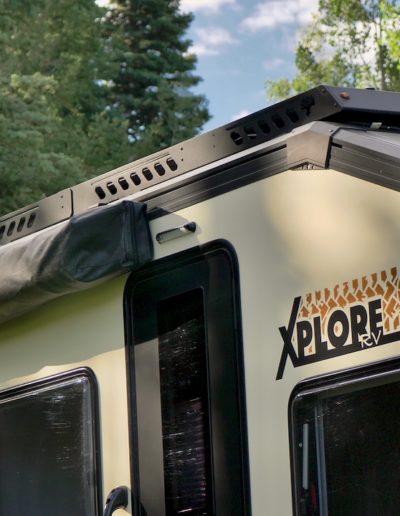

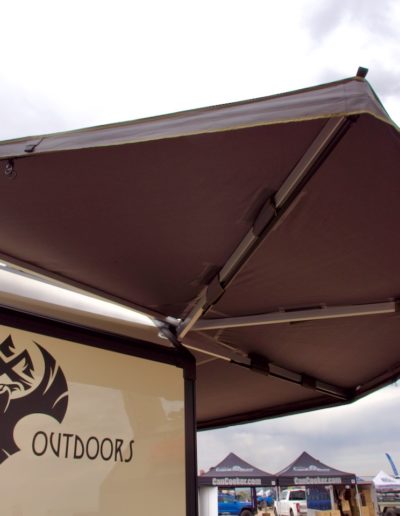

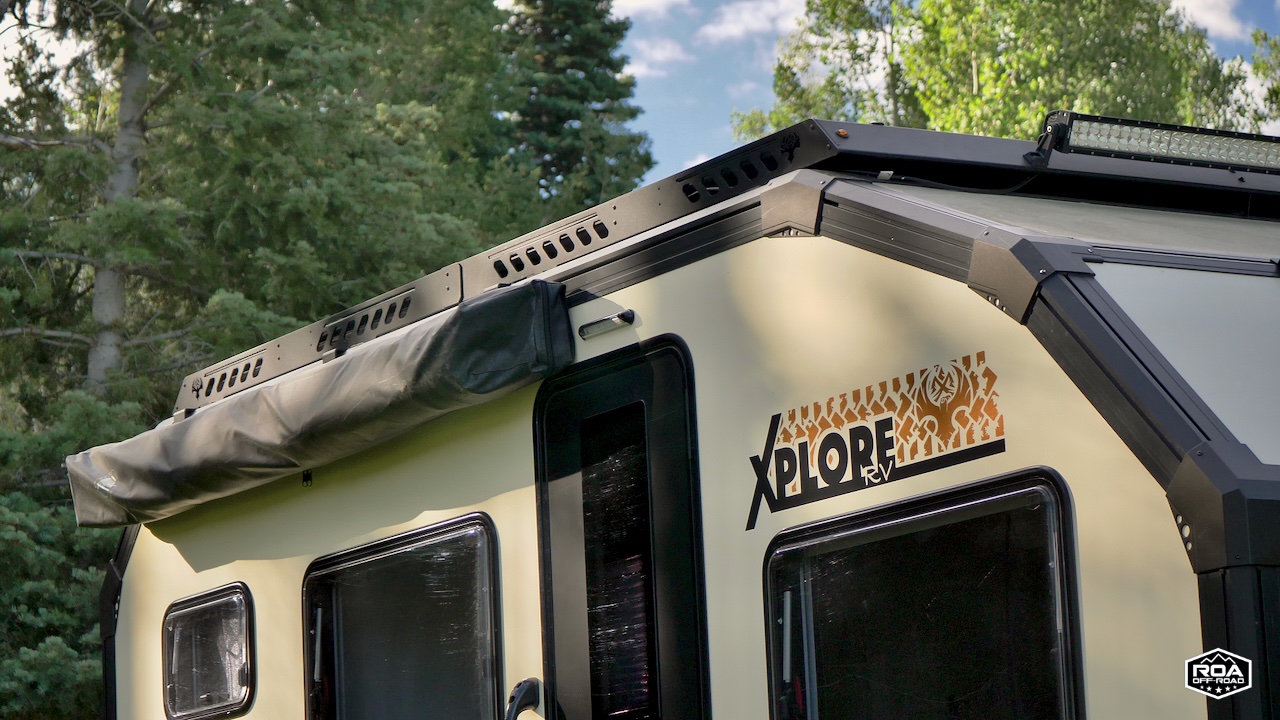

Batwing Awning

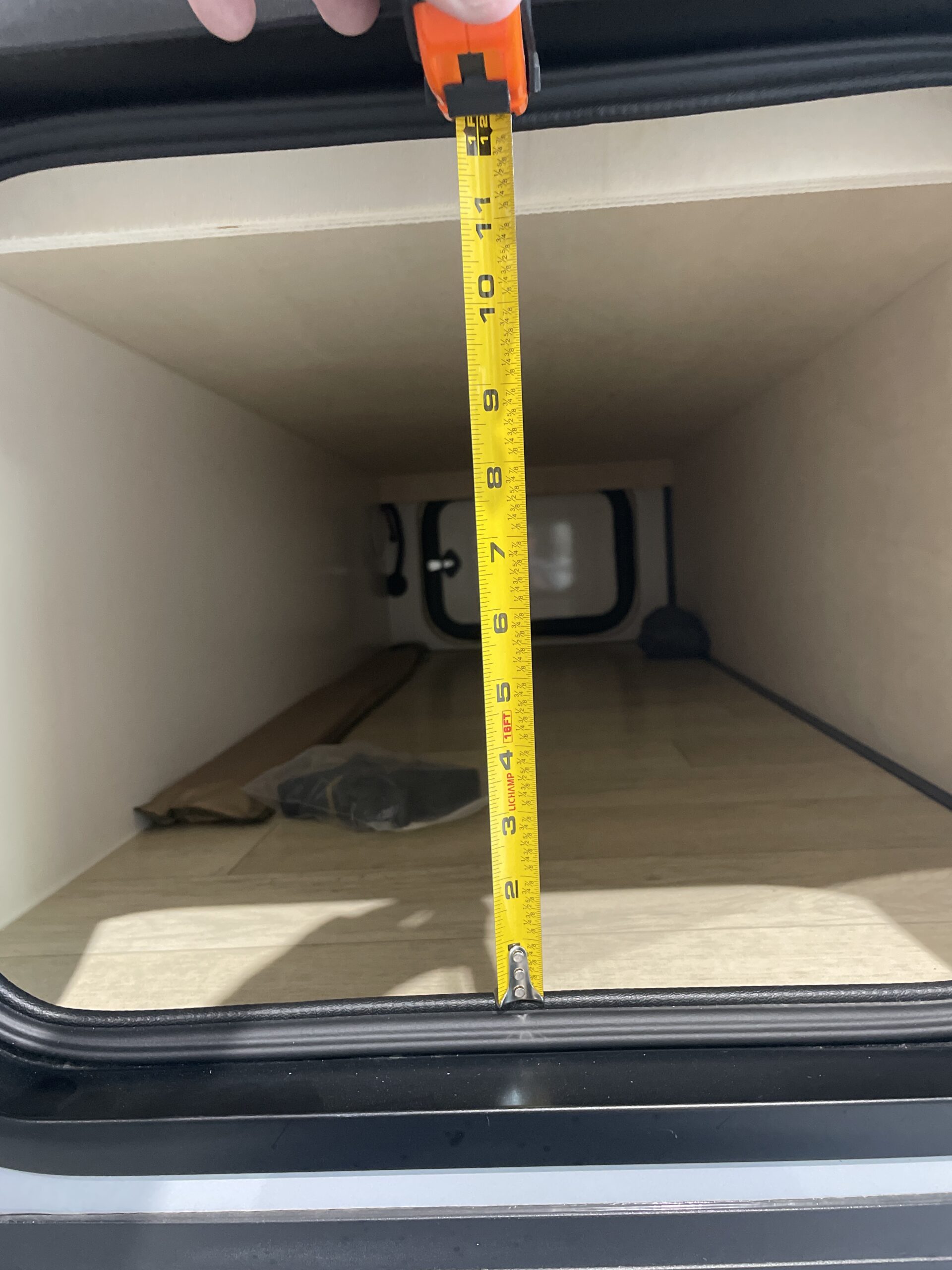

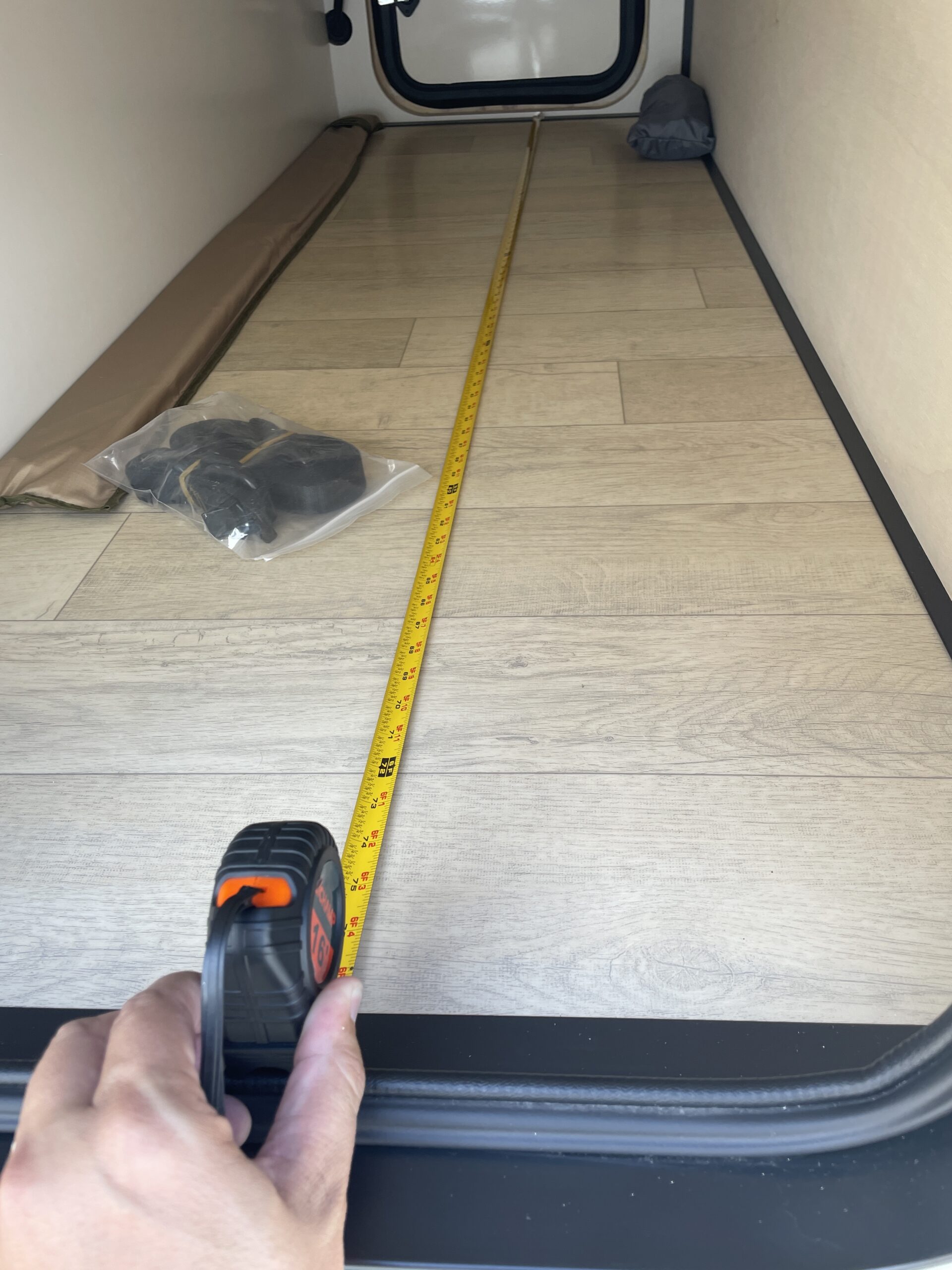

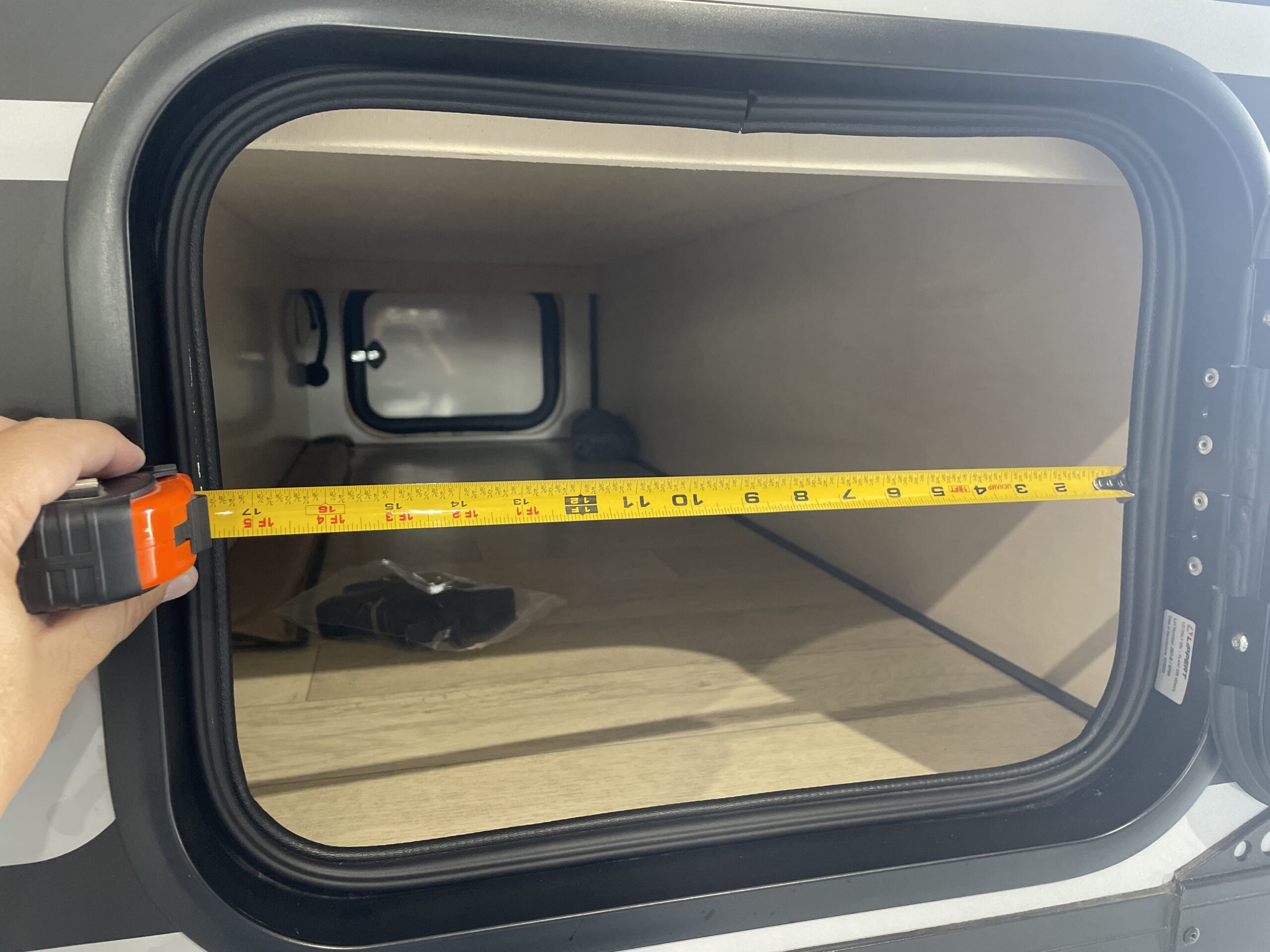

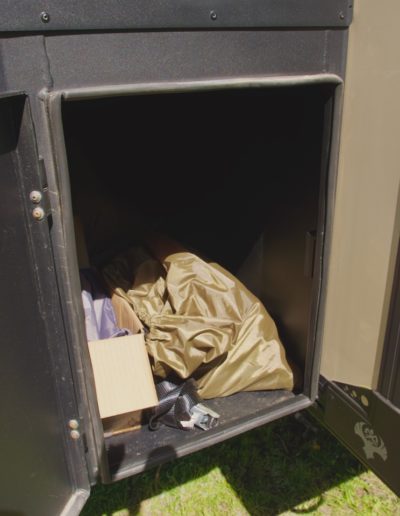

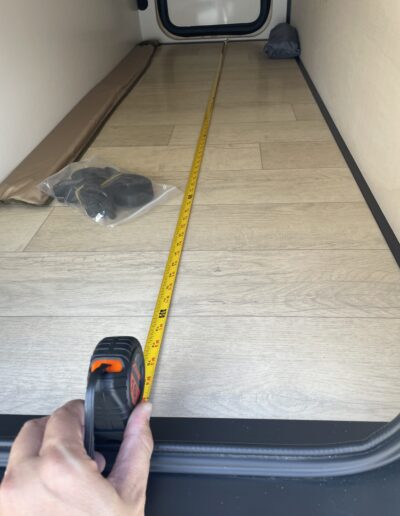

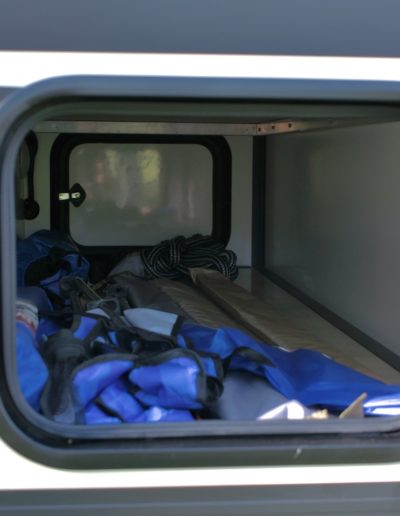

Exterior Pass-Through Storage

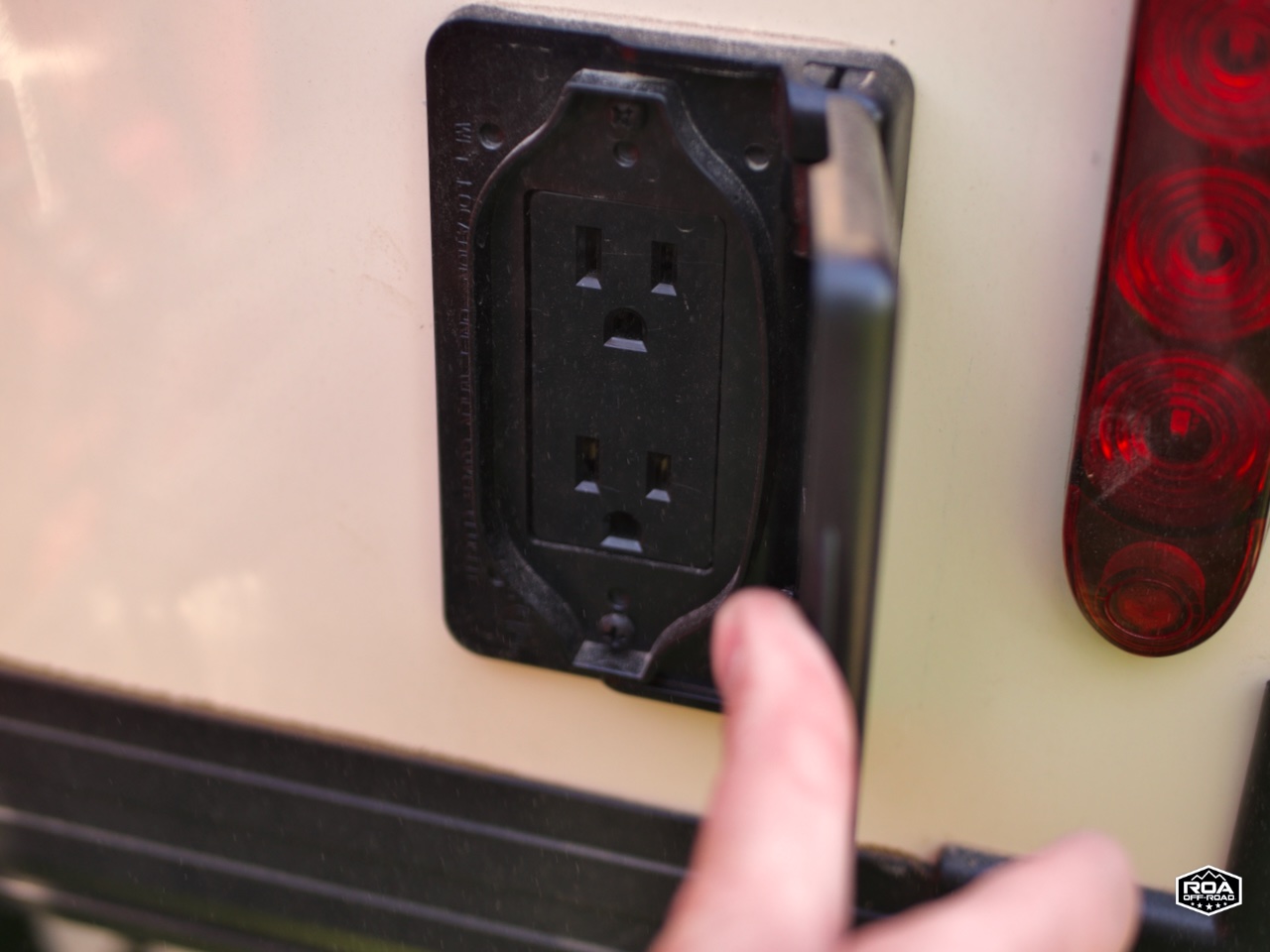

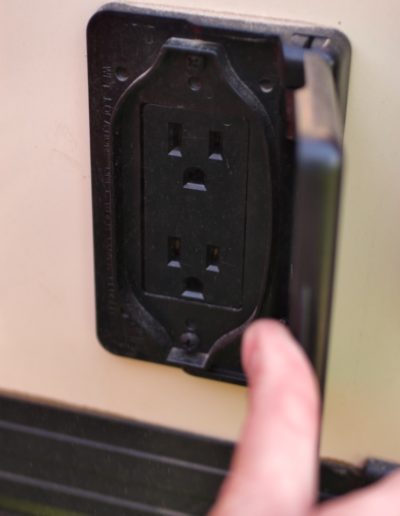

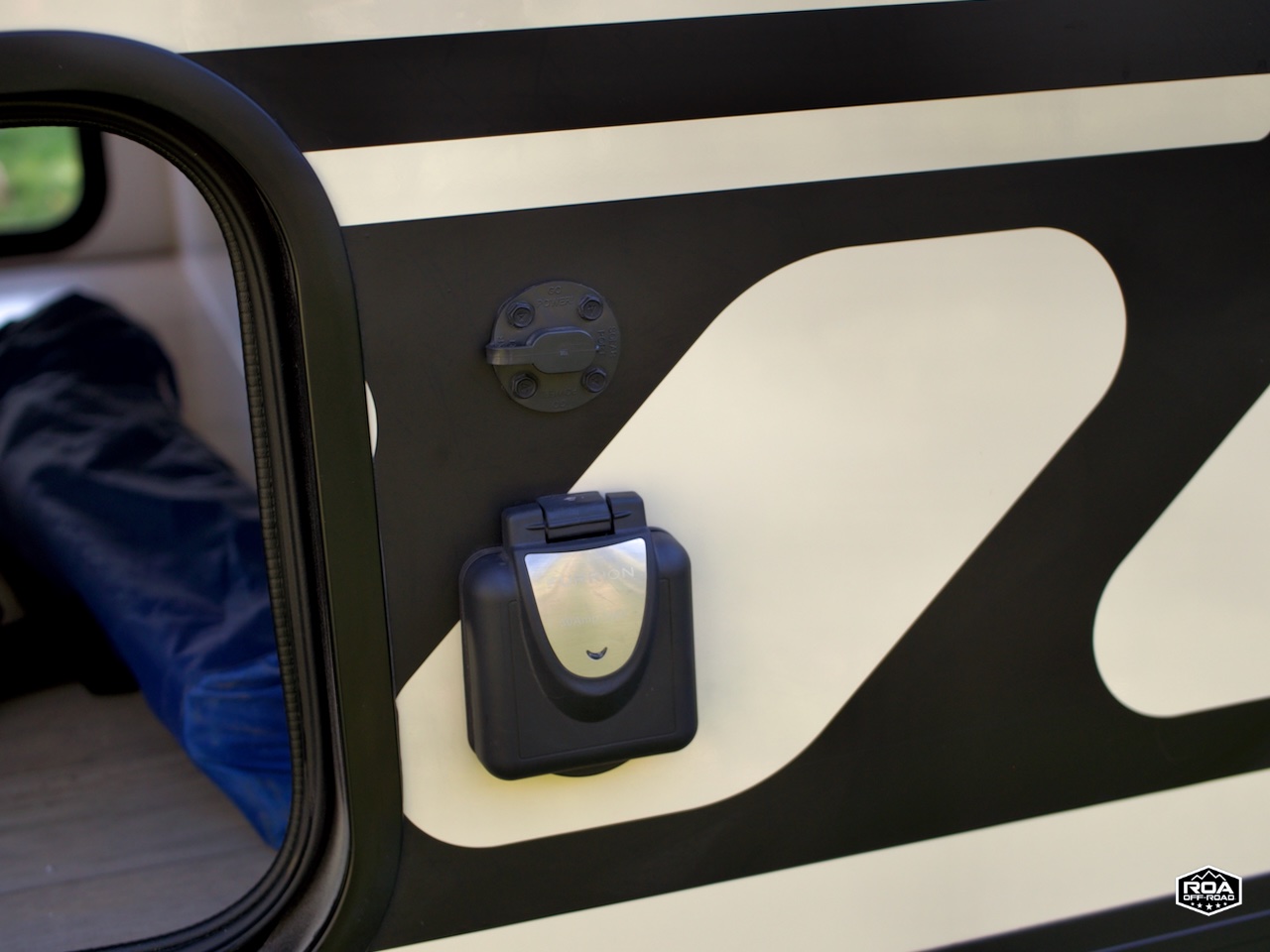

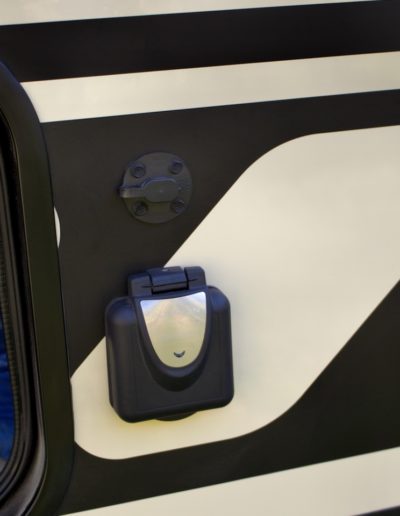

Exterior 120V Power Outlet
RVIA Certified
Xtreme Package (Standard Upgrades)

Cruisemaster® ATX independent suspension
(w/air bags, disc brakes, & parking brake)

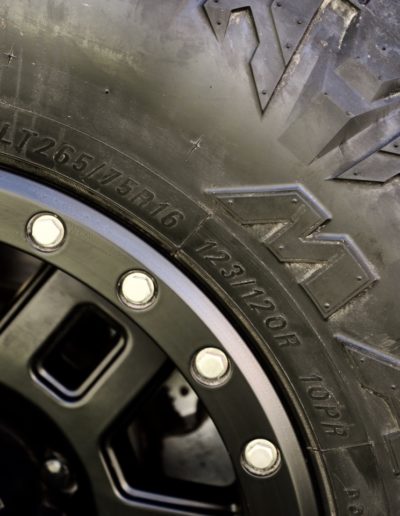

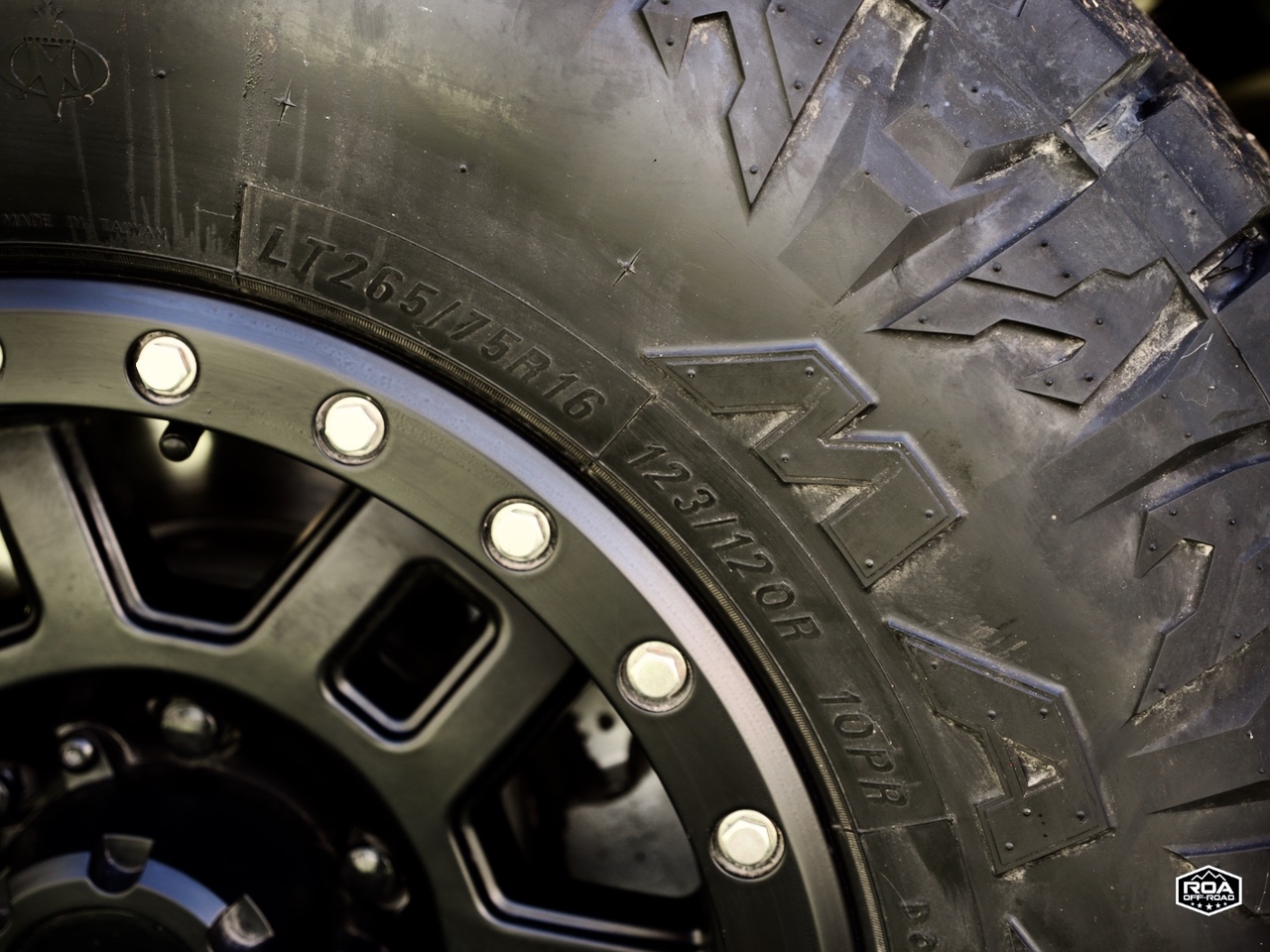

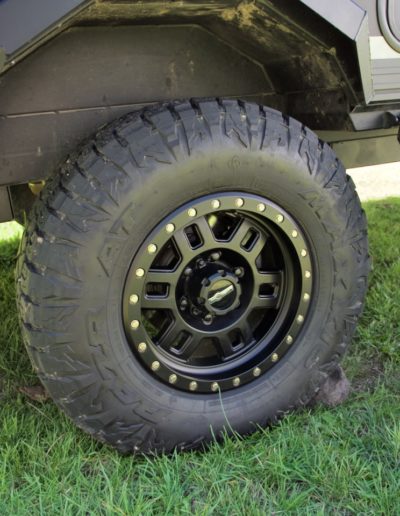

265/75 R16 Off Road Tires

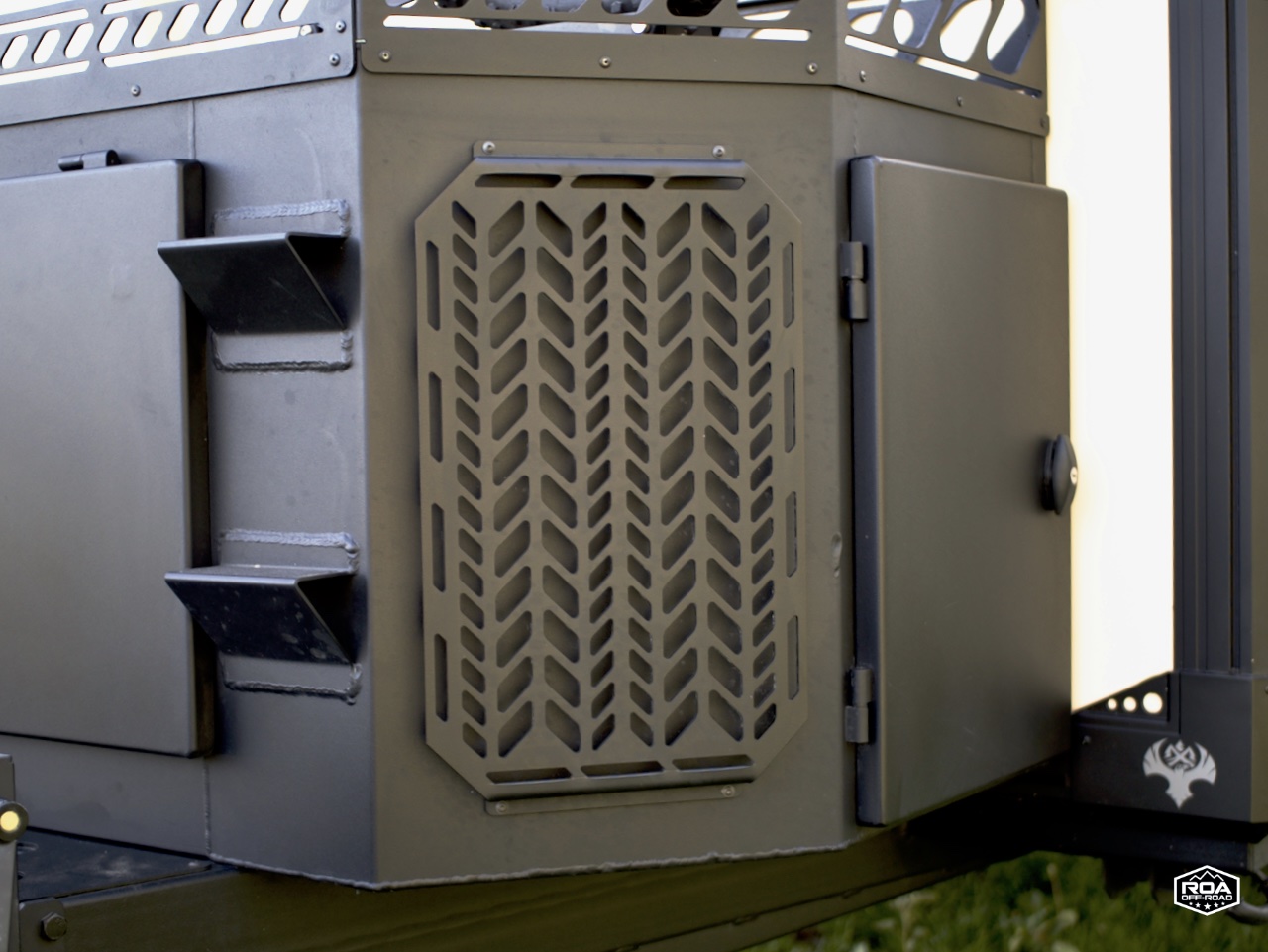

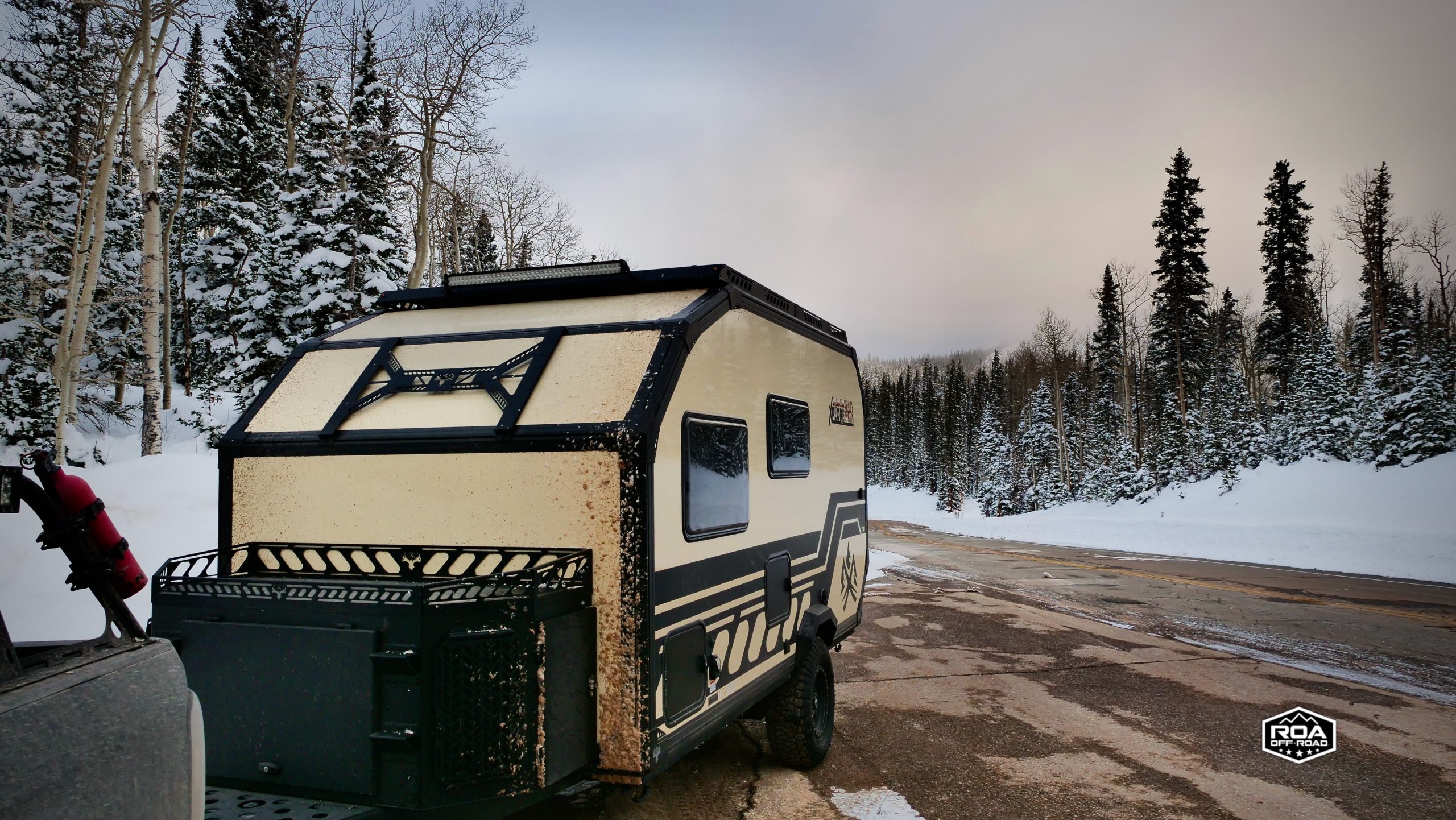

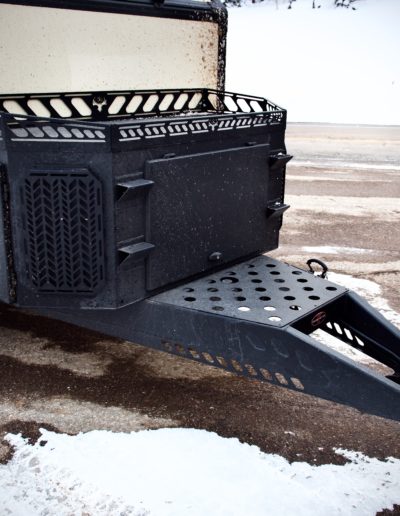

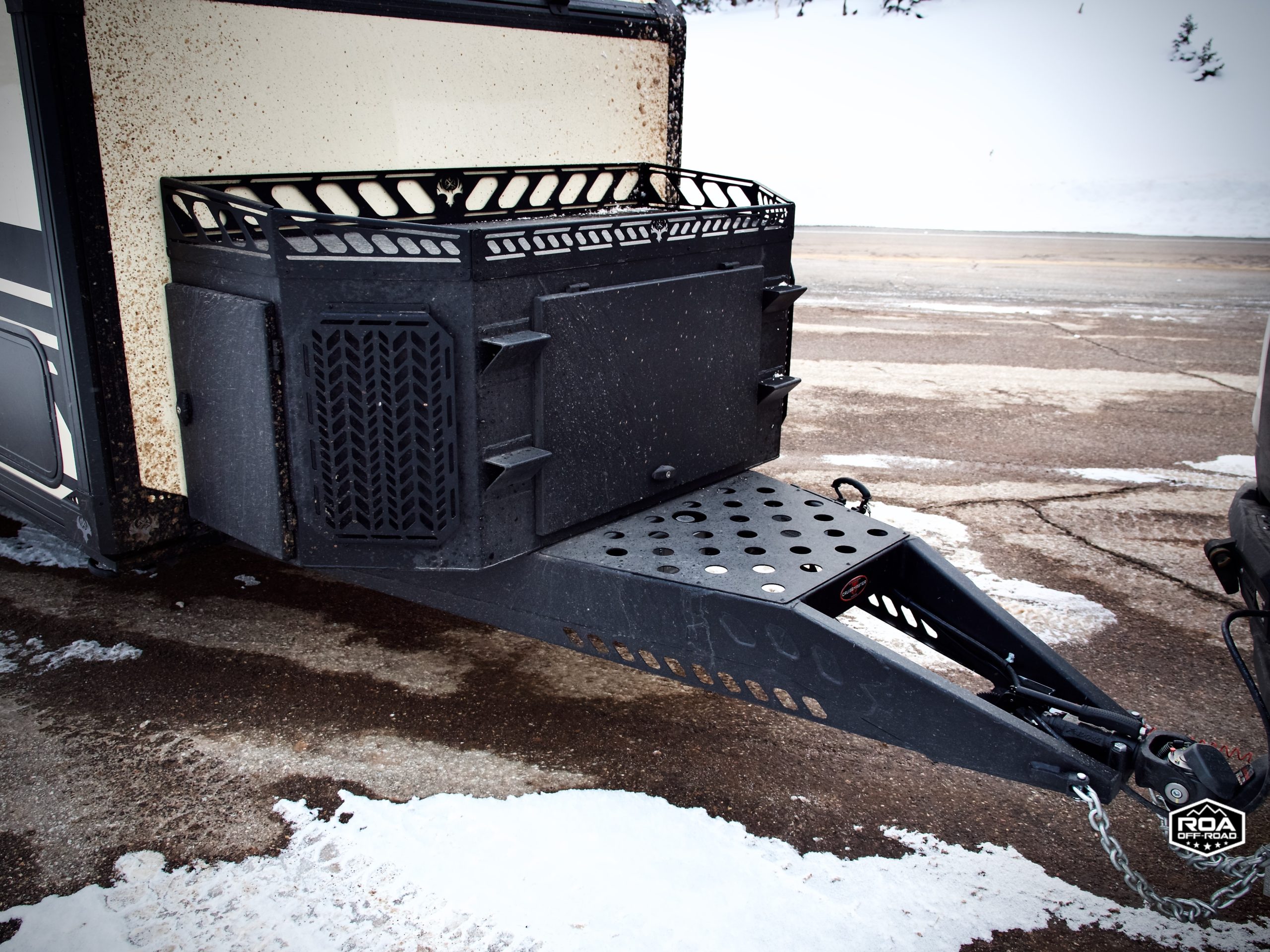

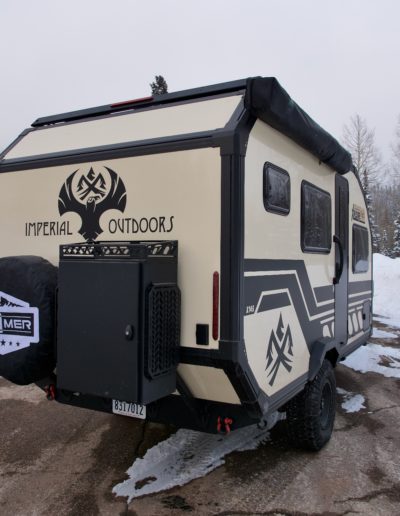

Front Mounted Utility Box with LP & Generator Storage (generator not included)
On-board Air Compressor

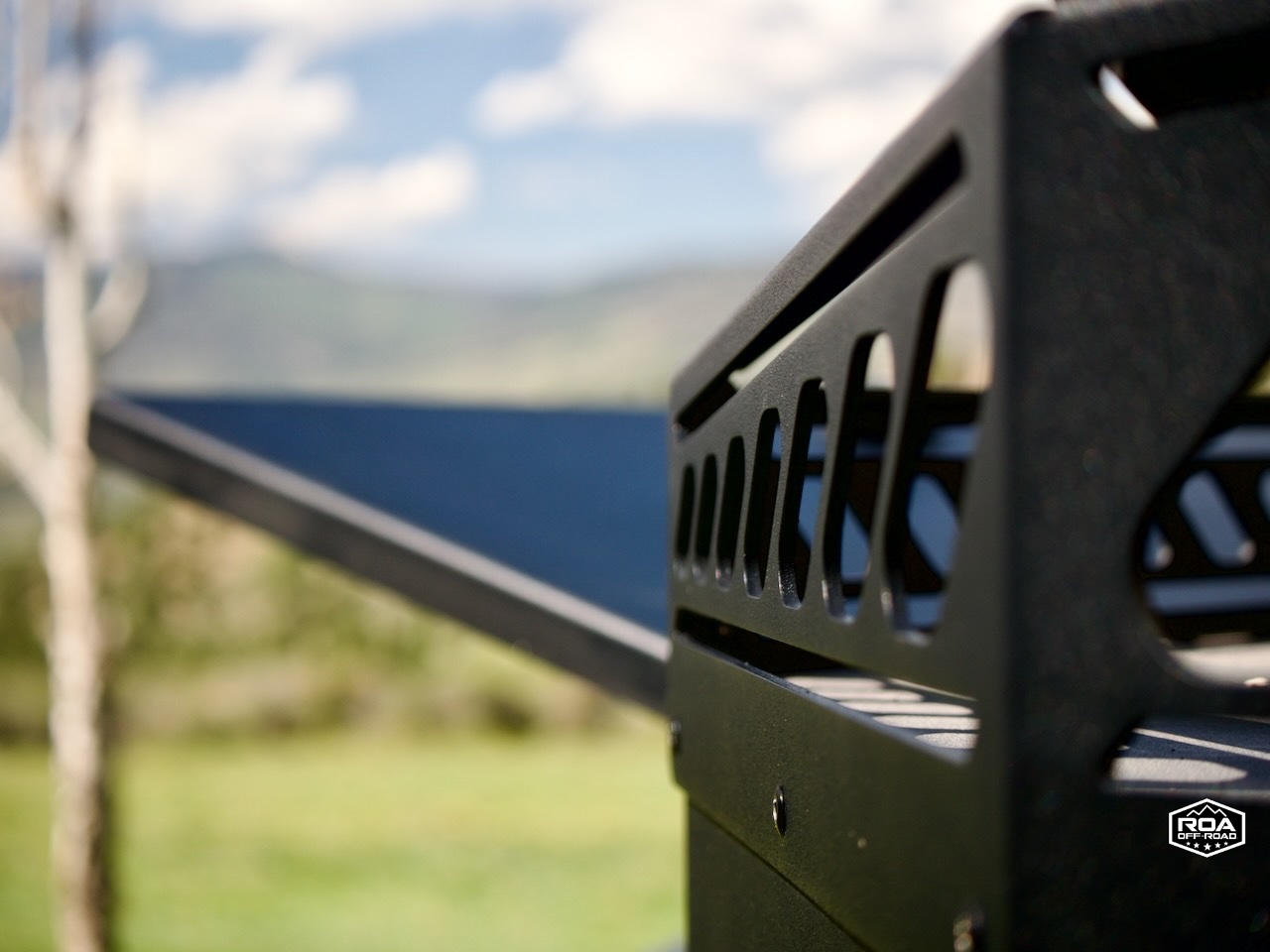

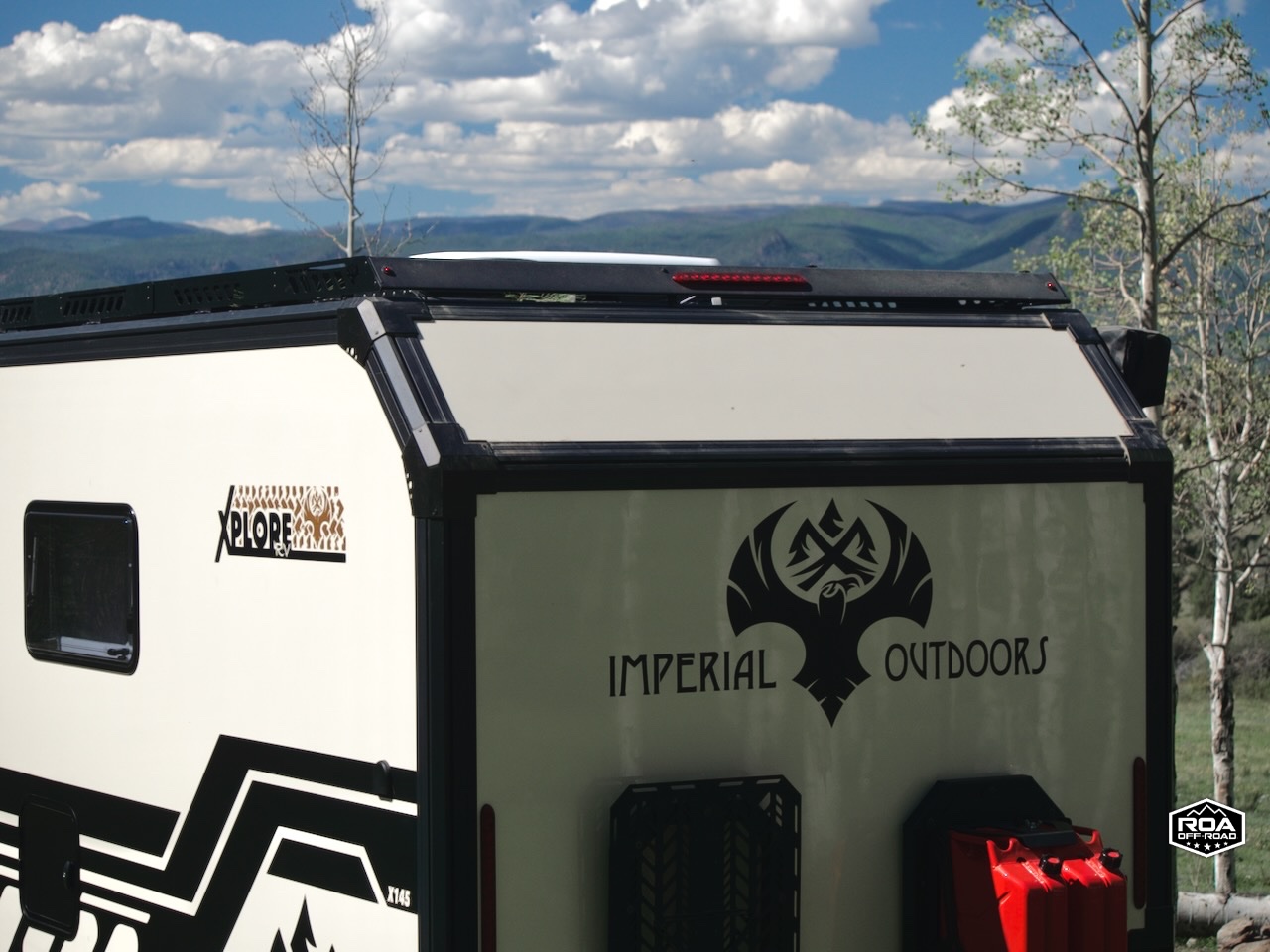

Custom Roof rack

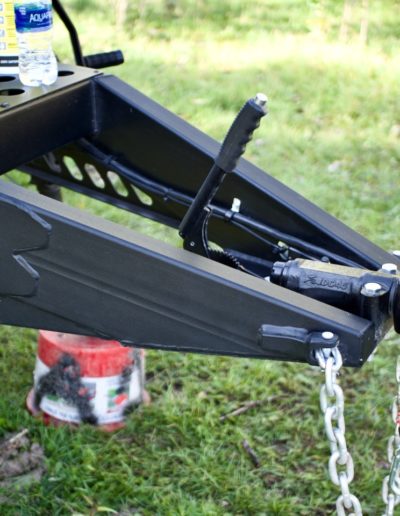

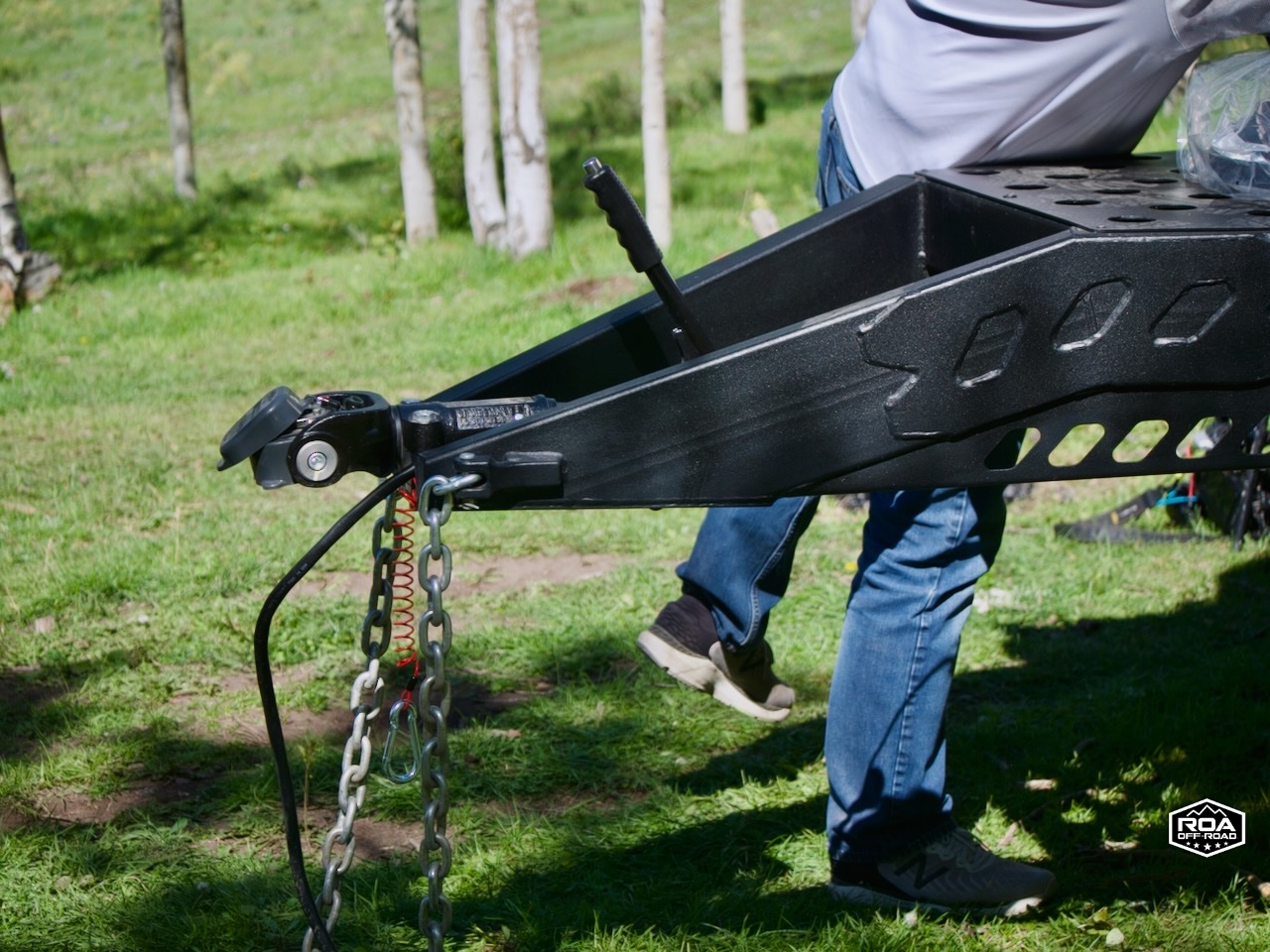

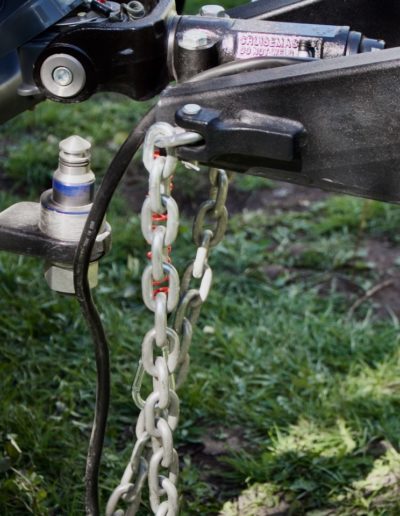

Cruisemaster® Articulating Hitch

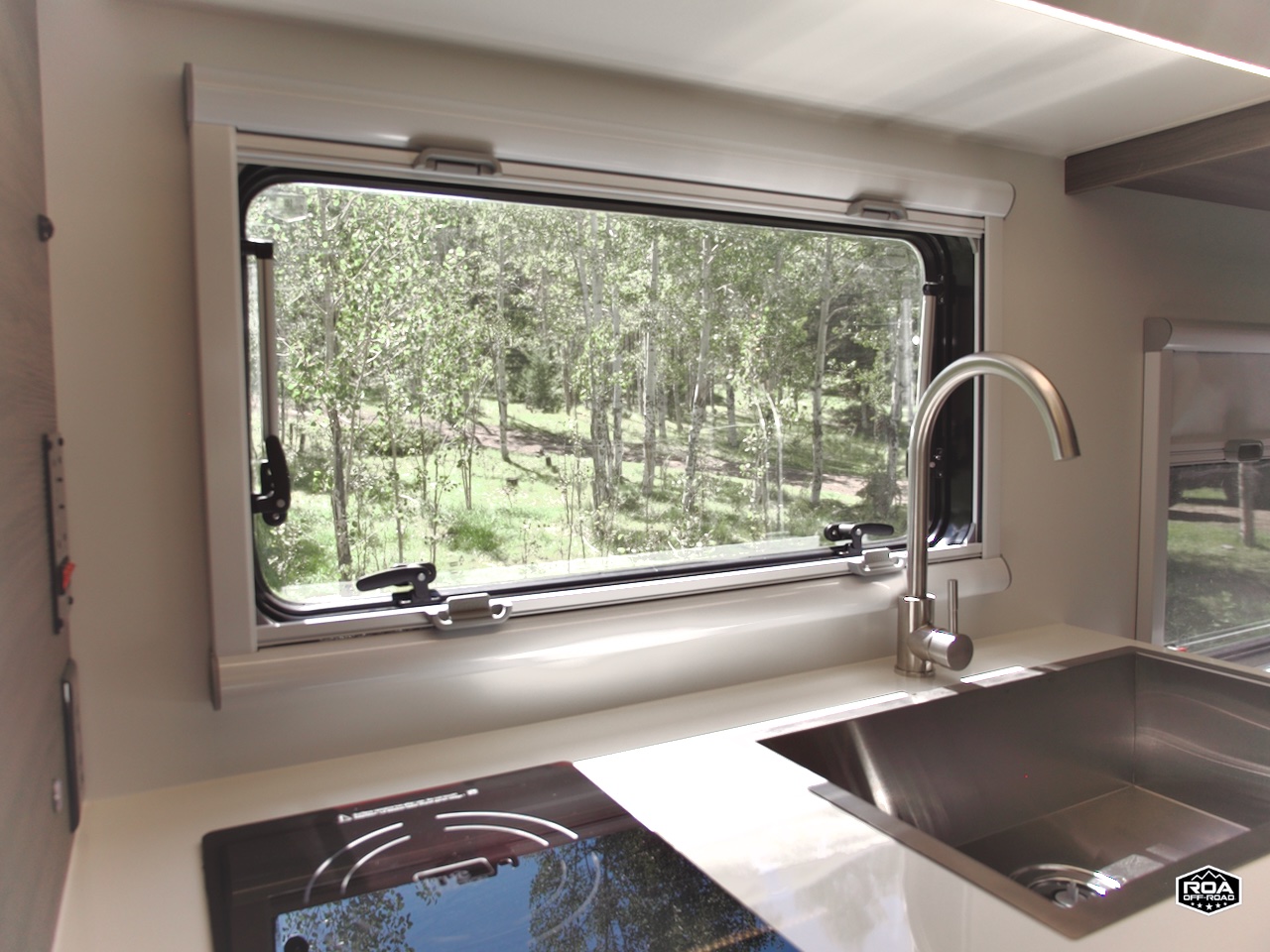

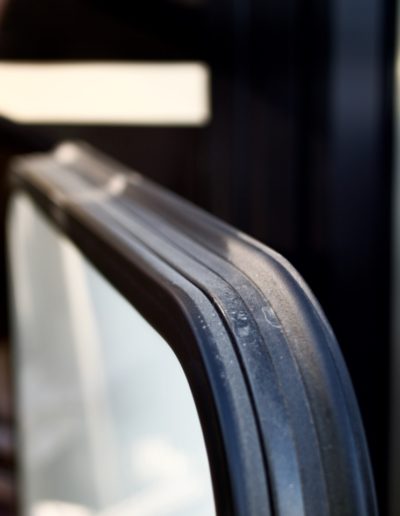

Thermal Acrylic Windows
360ah Lithium Battery (STAGE 1)
240W Roof Mounted Solar System (STAGE 1)

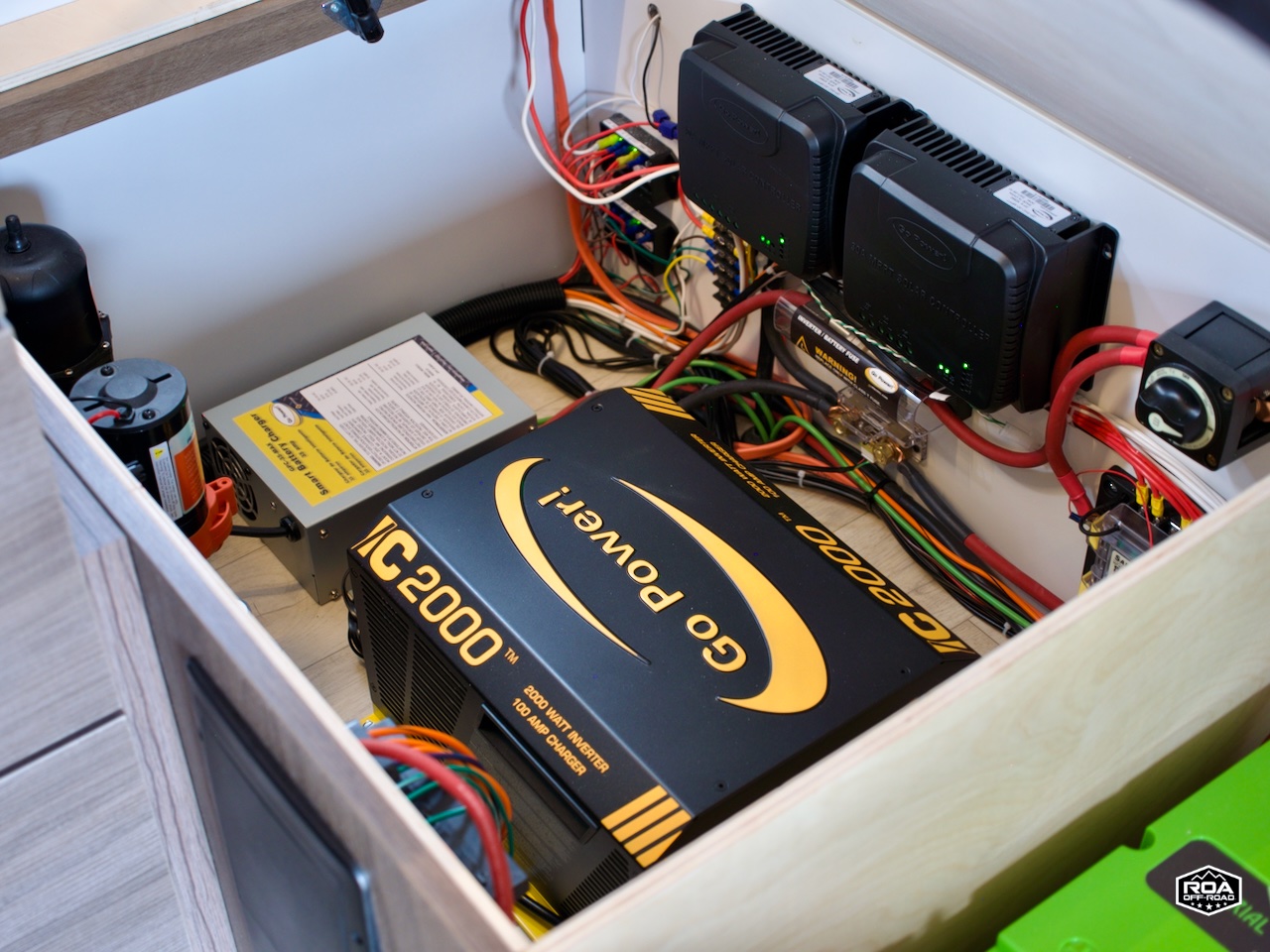

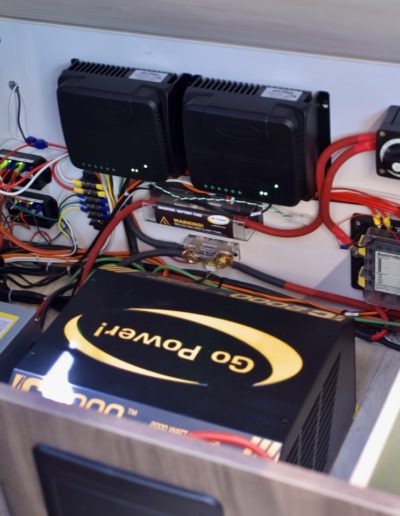

2000W Inverter & Monitor Panel
MPPT Solar Control & Battery Monitor
Heated/Insulated Water Storage Tanks
Outdoor Shower hookup
ARK® Heavy Duty Rolling Tongue Jack & Leveling Jacks

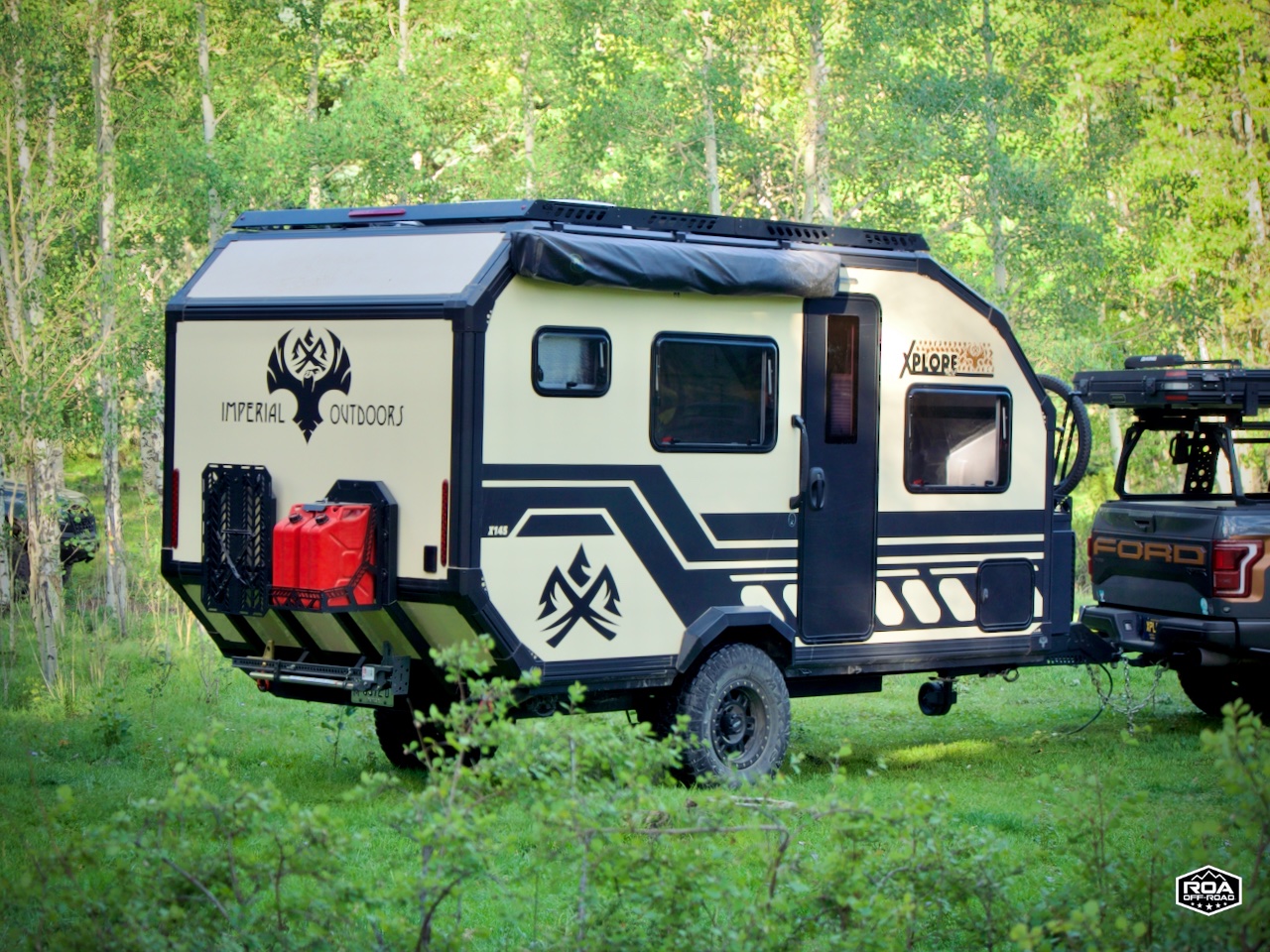

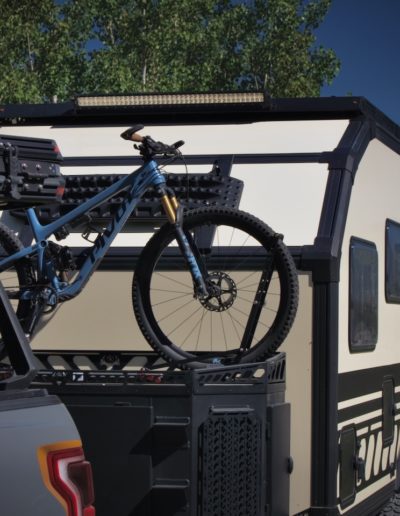

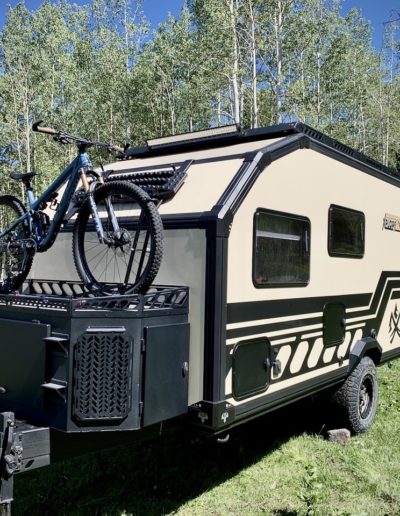

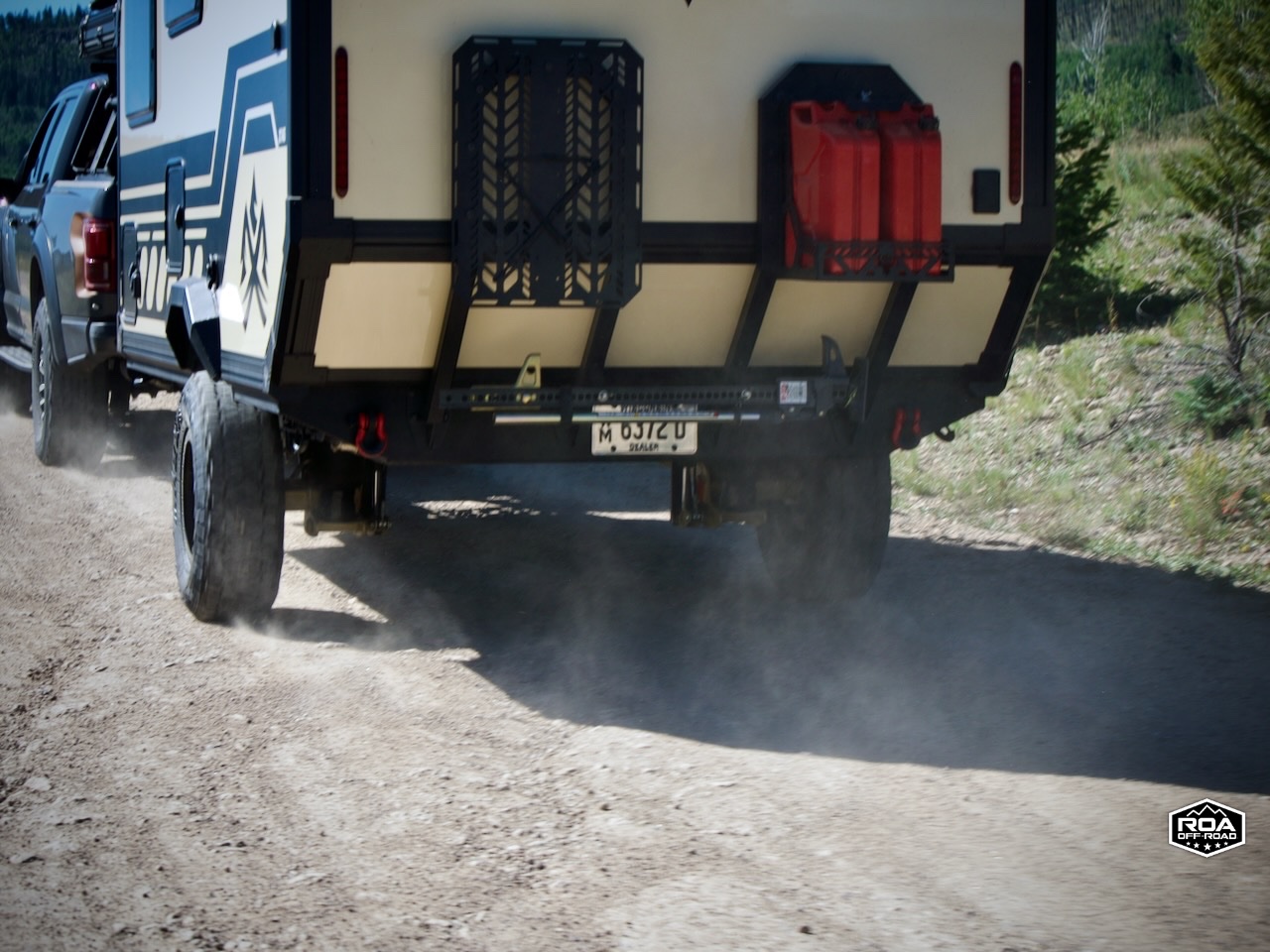

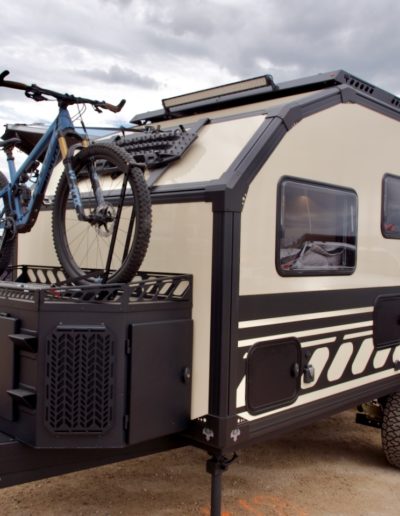

Customizable Rear Accessory Options

Accessory Options

Rear
(unit accomodates 2 rear accessory mounting locations + hi-lift jack mounts)

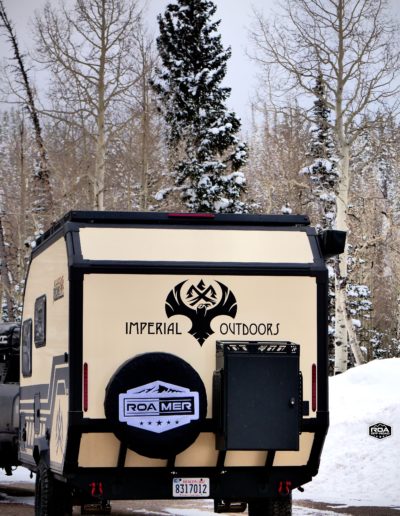

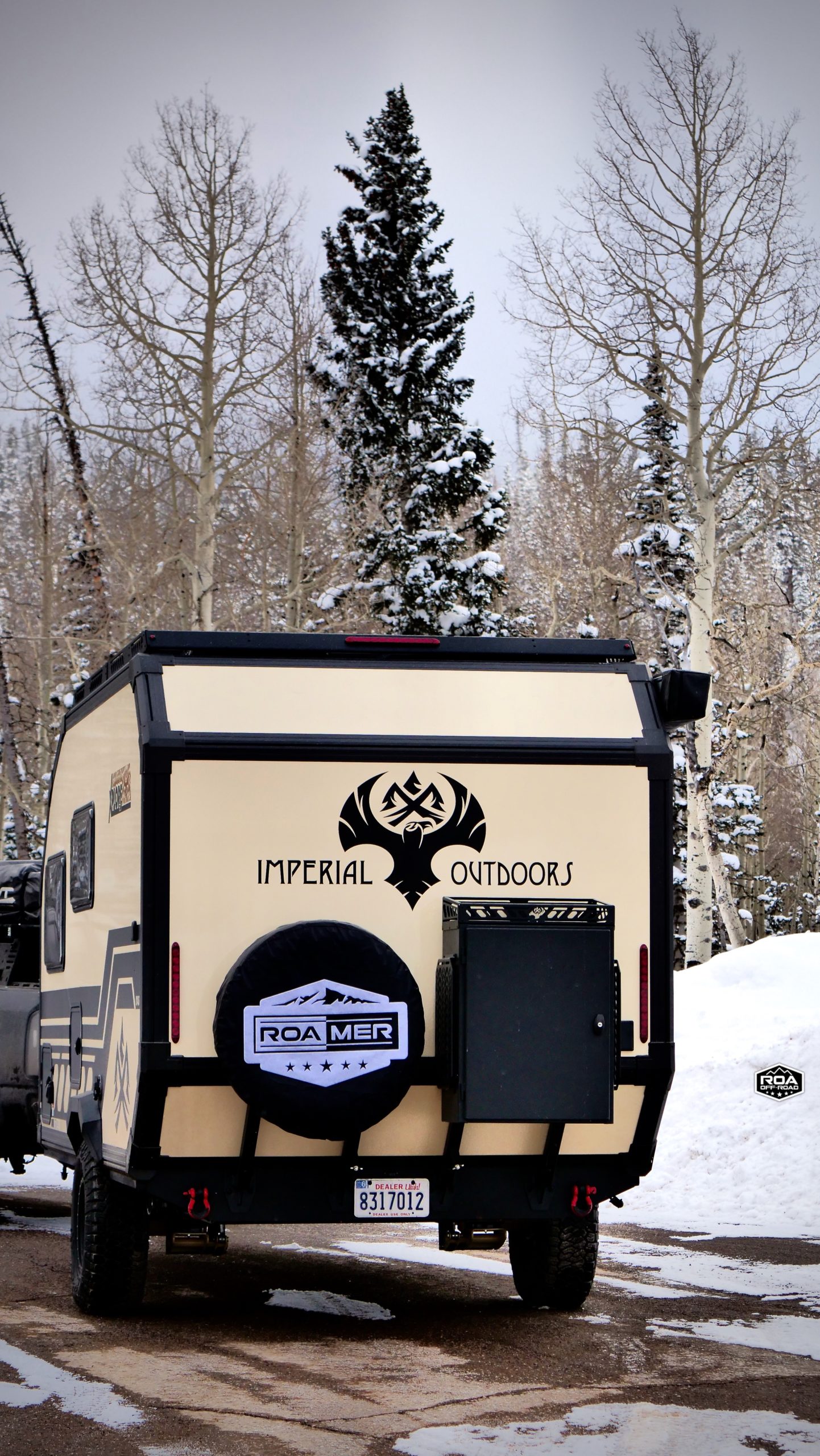

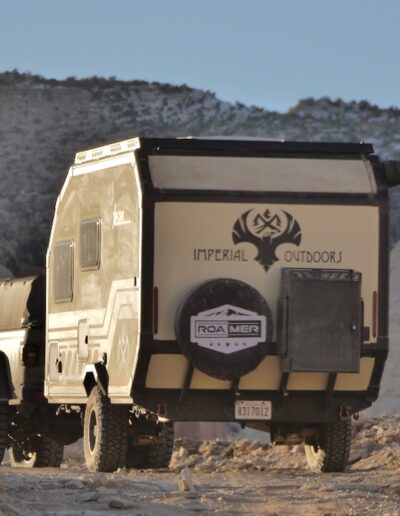

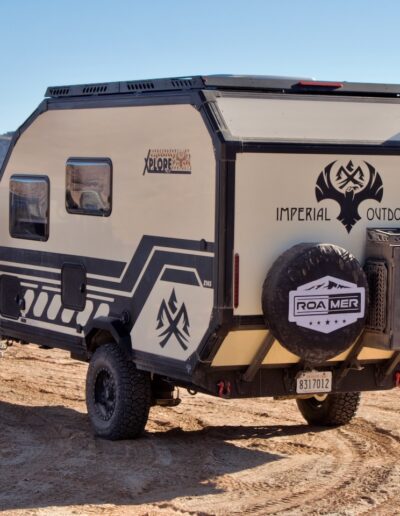

Spare Tire Mount w/Full Size Spare

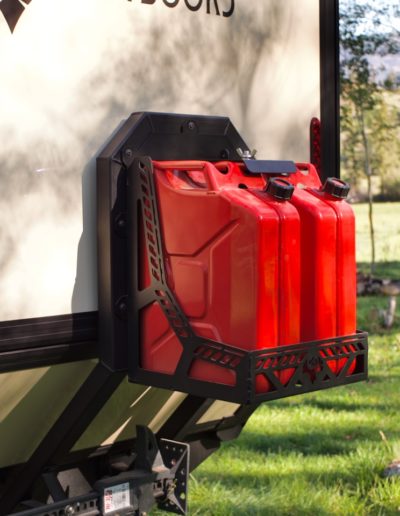

Jerry Can Mount (fits standard NATO Jerry Cans – not included)

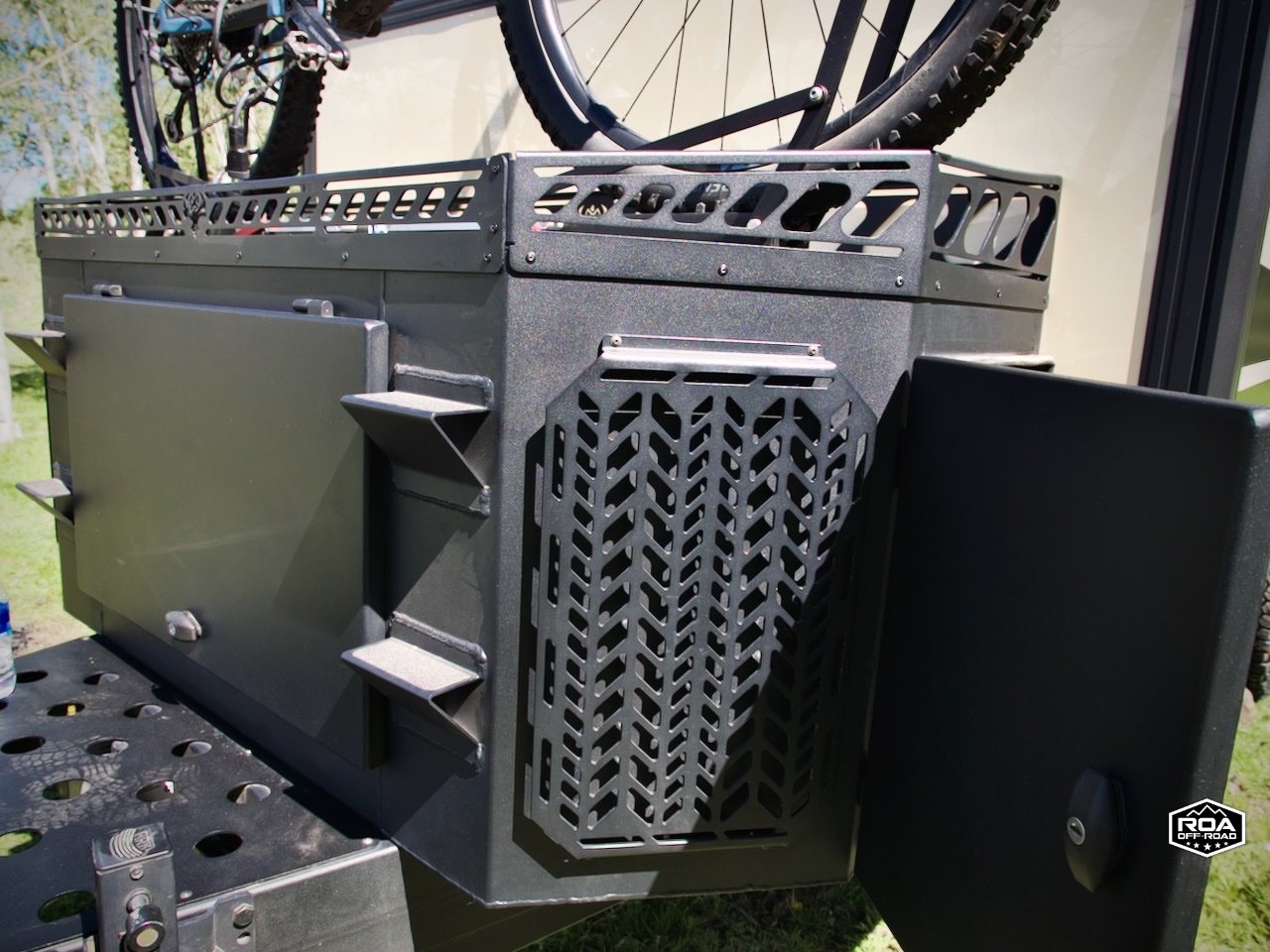

Rear Utility Box

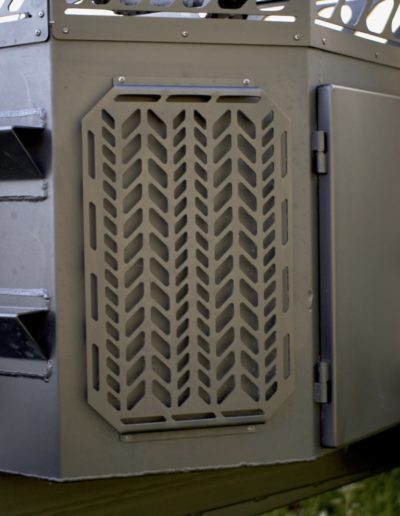

Auxillary Grid Panels (mounts to Front or Rear Utility Box)
Accessory Grid Panel (mounts to rear accessory bracket)

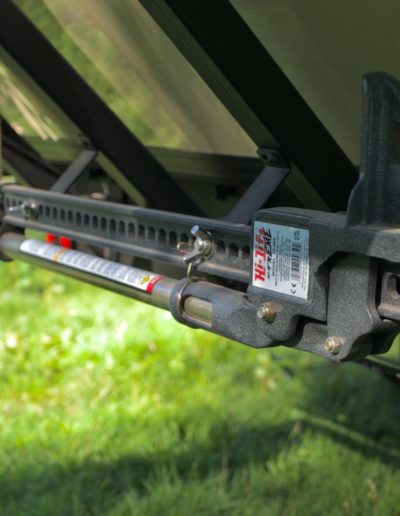

Hi-Lift Jack Mount (Hi-Lift Jack not included)
Front

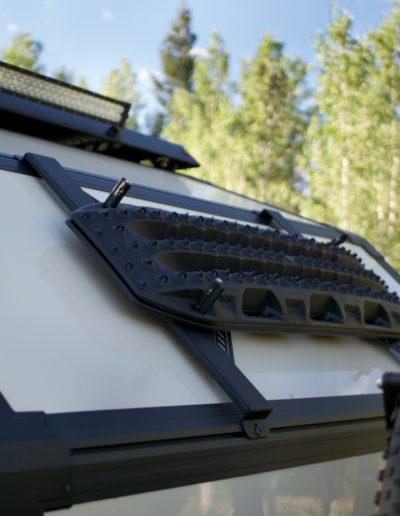

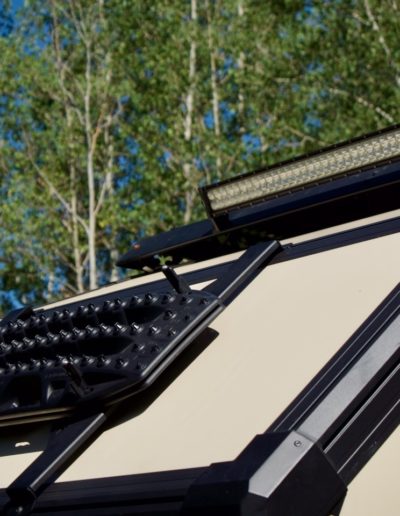

Traction Board Mount
Auxillary Grid Panels (mounts to Front or Rear Utility Box)

Power Storage

STAGE 2 – 720Ah: (2) 360Ah Lithium Batteries
Solar Output

STAGE 2 – 740W: (7) Glass Solar Panels

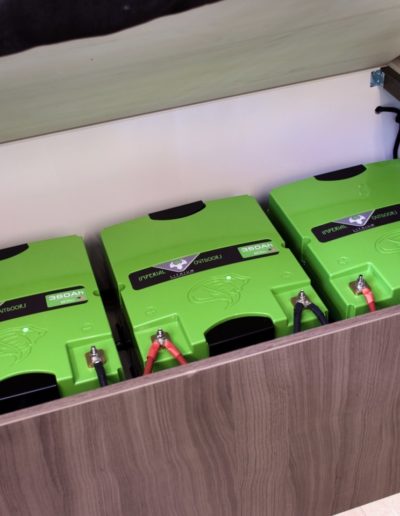

STAGE 3- 1080Ah: (3) 360 Lithium Batteries
