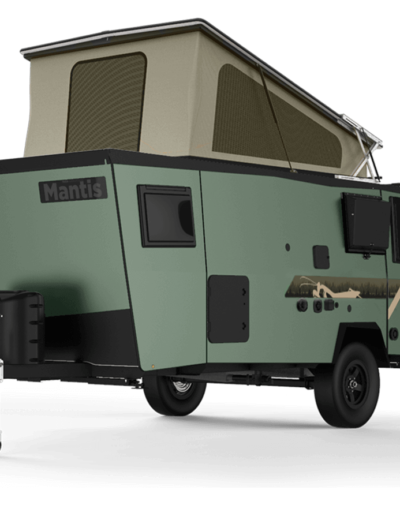

Mantis Overland

$48,802.00

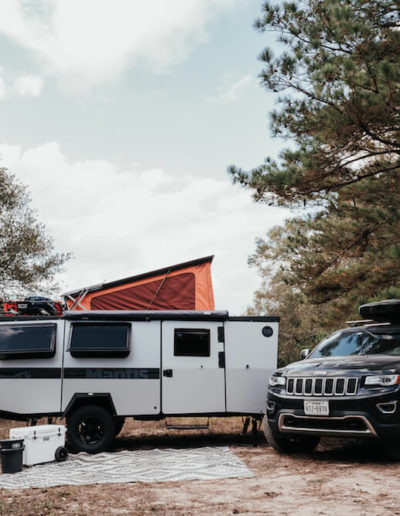

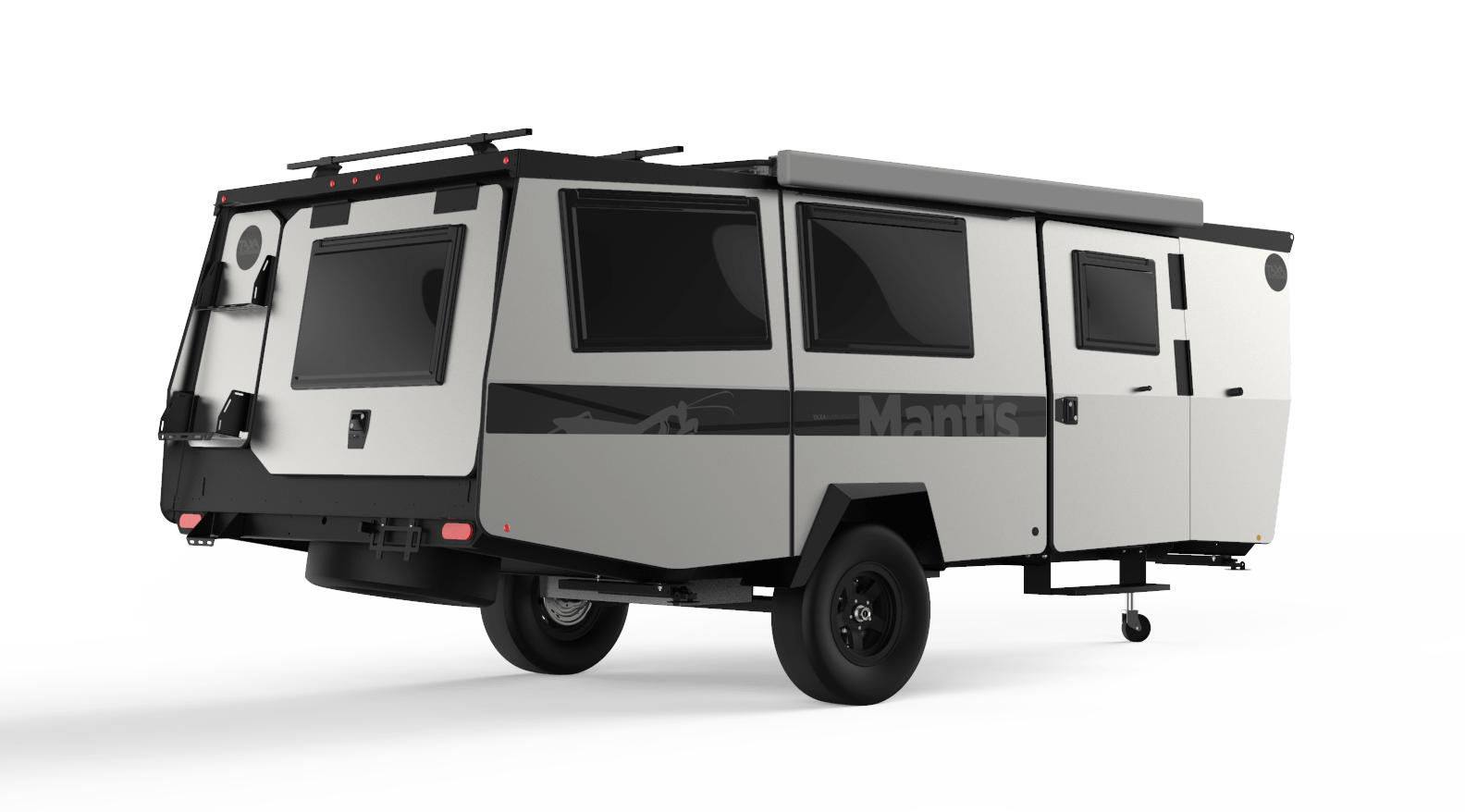

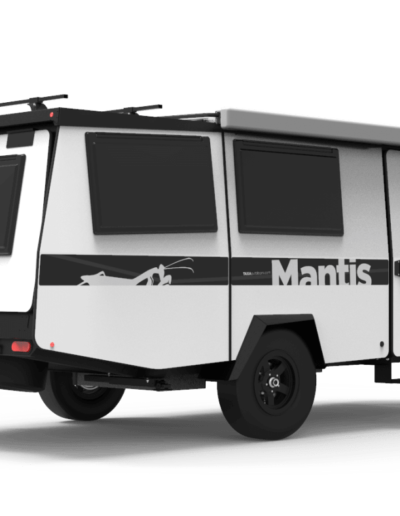

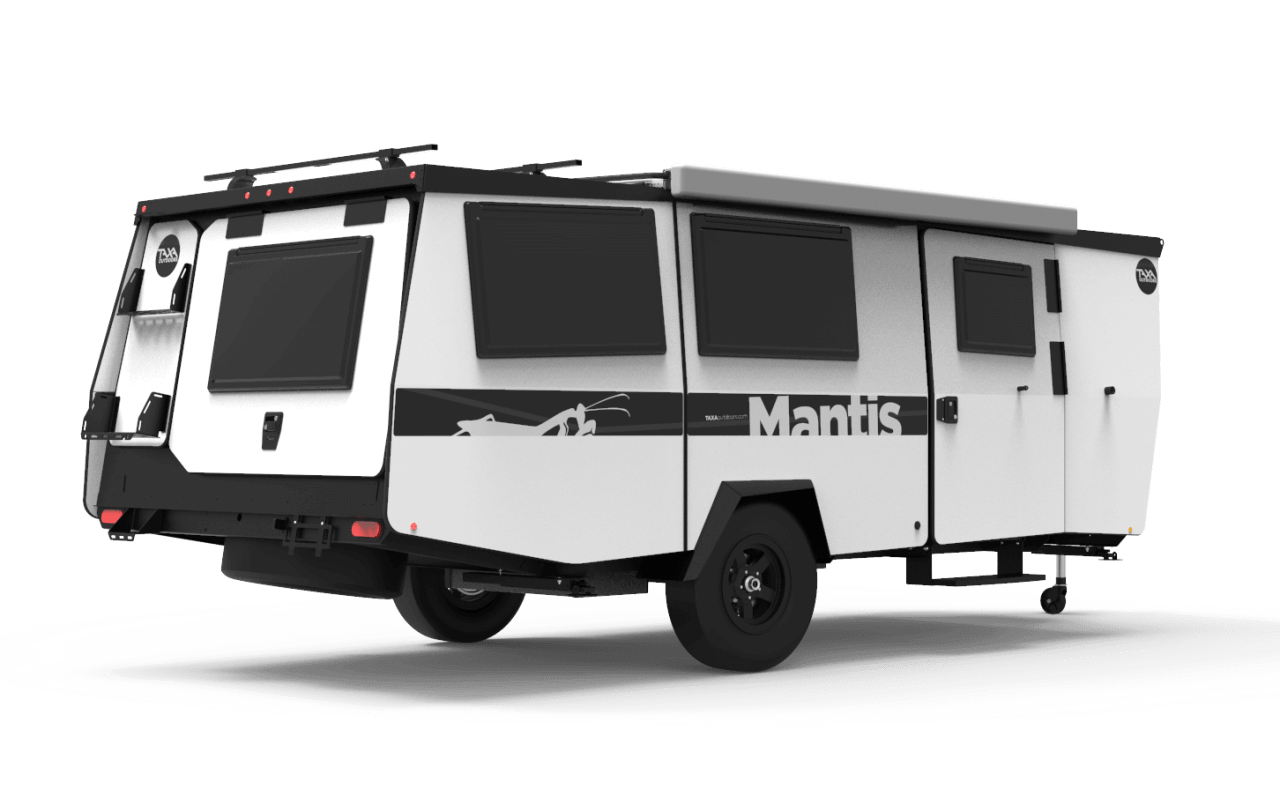

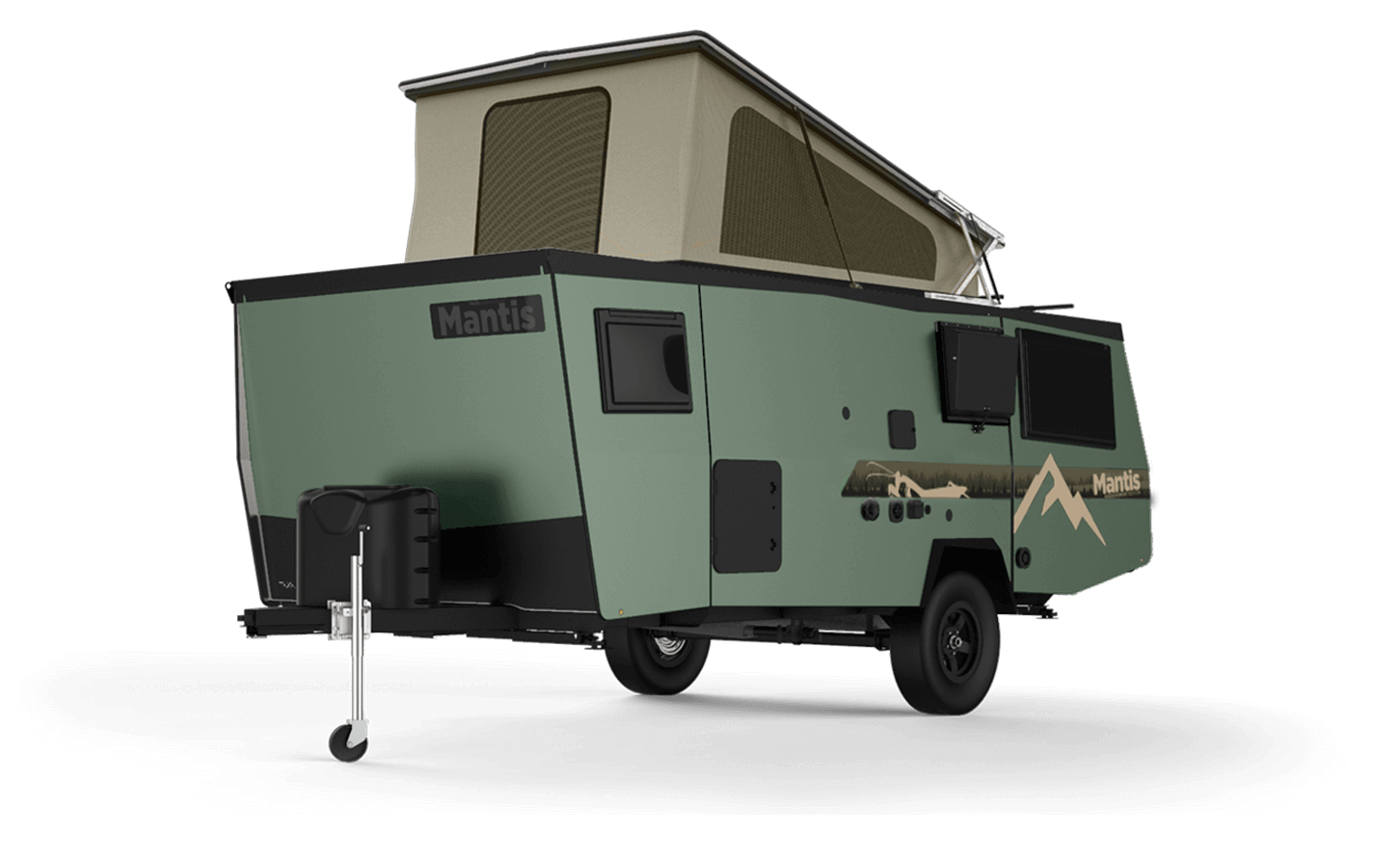

Meet Mantis Overland

Everything Mantis, with a few cool upgrades! Lock n Roll articulating hitch, 2" additional clearance, off-road tires, Timbren independent suspension, and special decals are what you get with the Overland package.

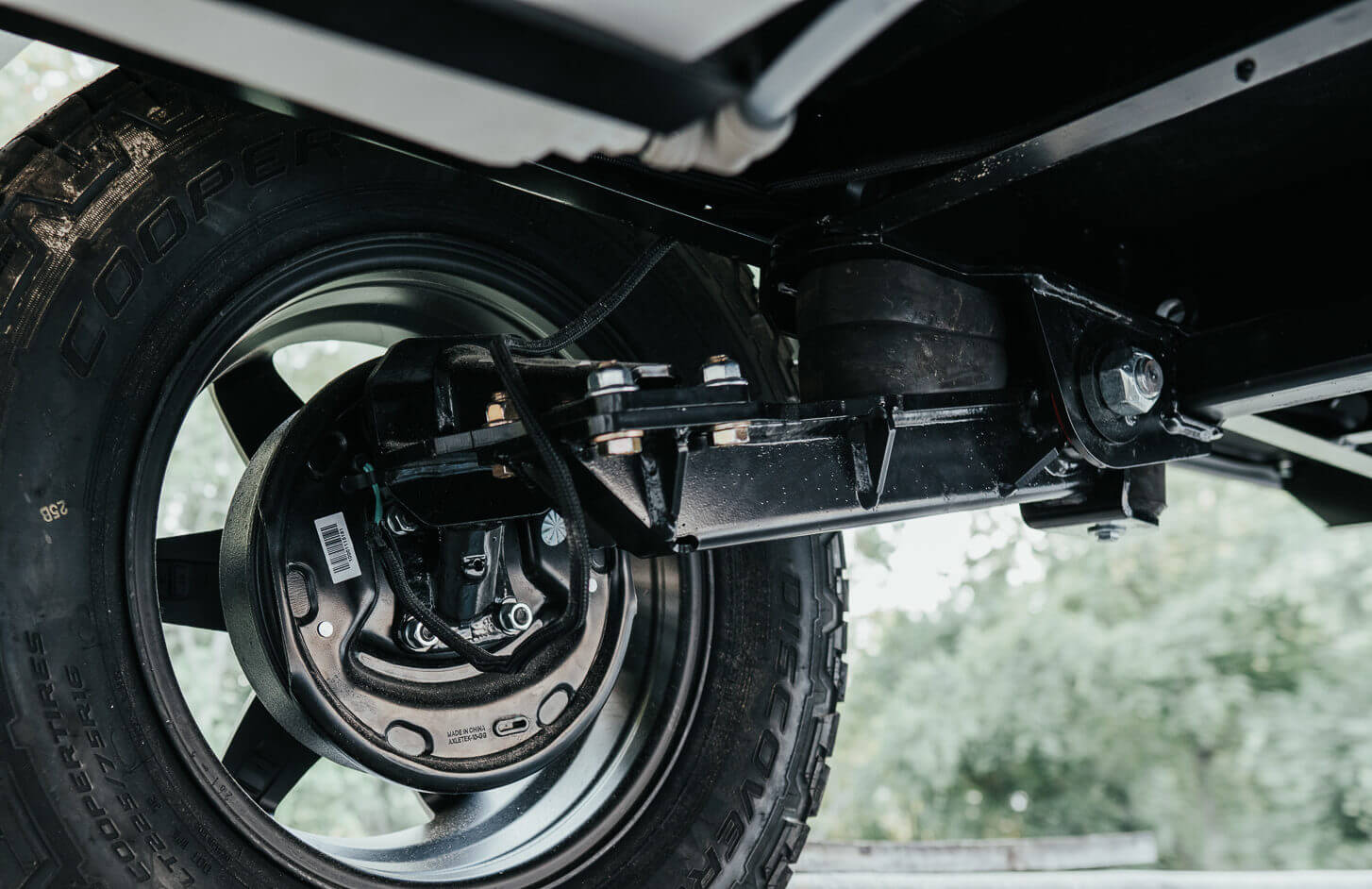

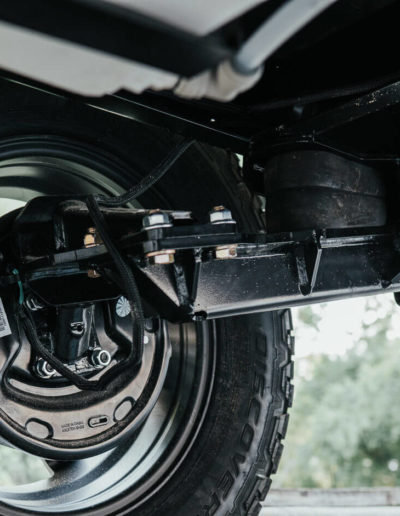

Axle-Less Design
Progressive rubber springs and urethane bushings give the Overland Edition a ride that is quiet and smooth. Featuring a Timbren 5,200 lb Axle-Less trailer suspension with a 4″ lift allows you to go off road without the usual limitations associated with a thru-axle.

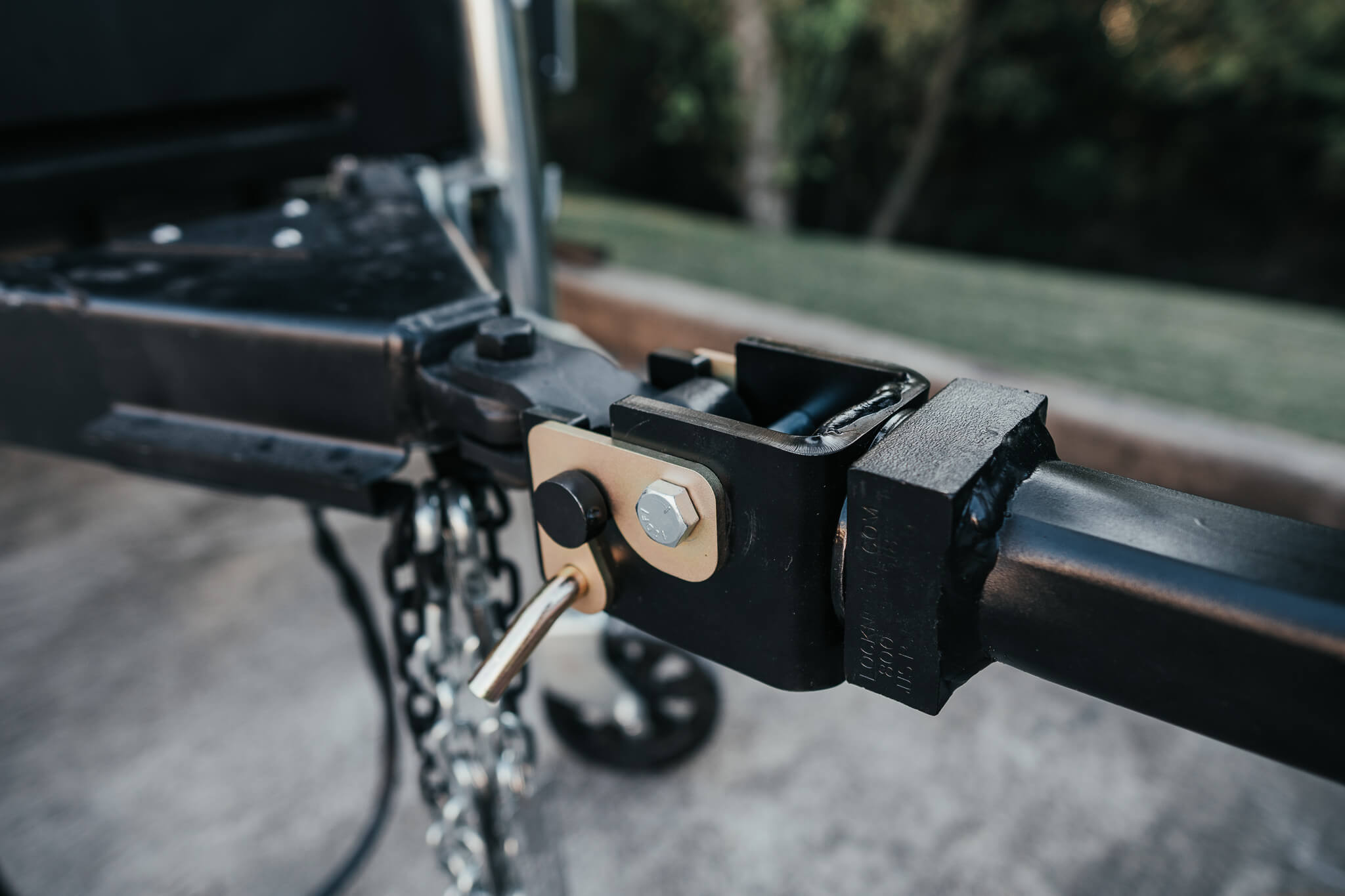

Lock N Roll Hitch
The articulating Lock ‘N’ Roll hitch utilizes 360 degrees of rotation and 3 axis movement. This on-road, off-road hitch gives you freedom that you can’t get with a ball hitch.

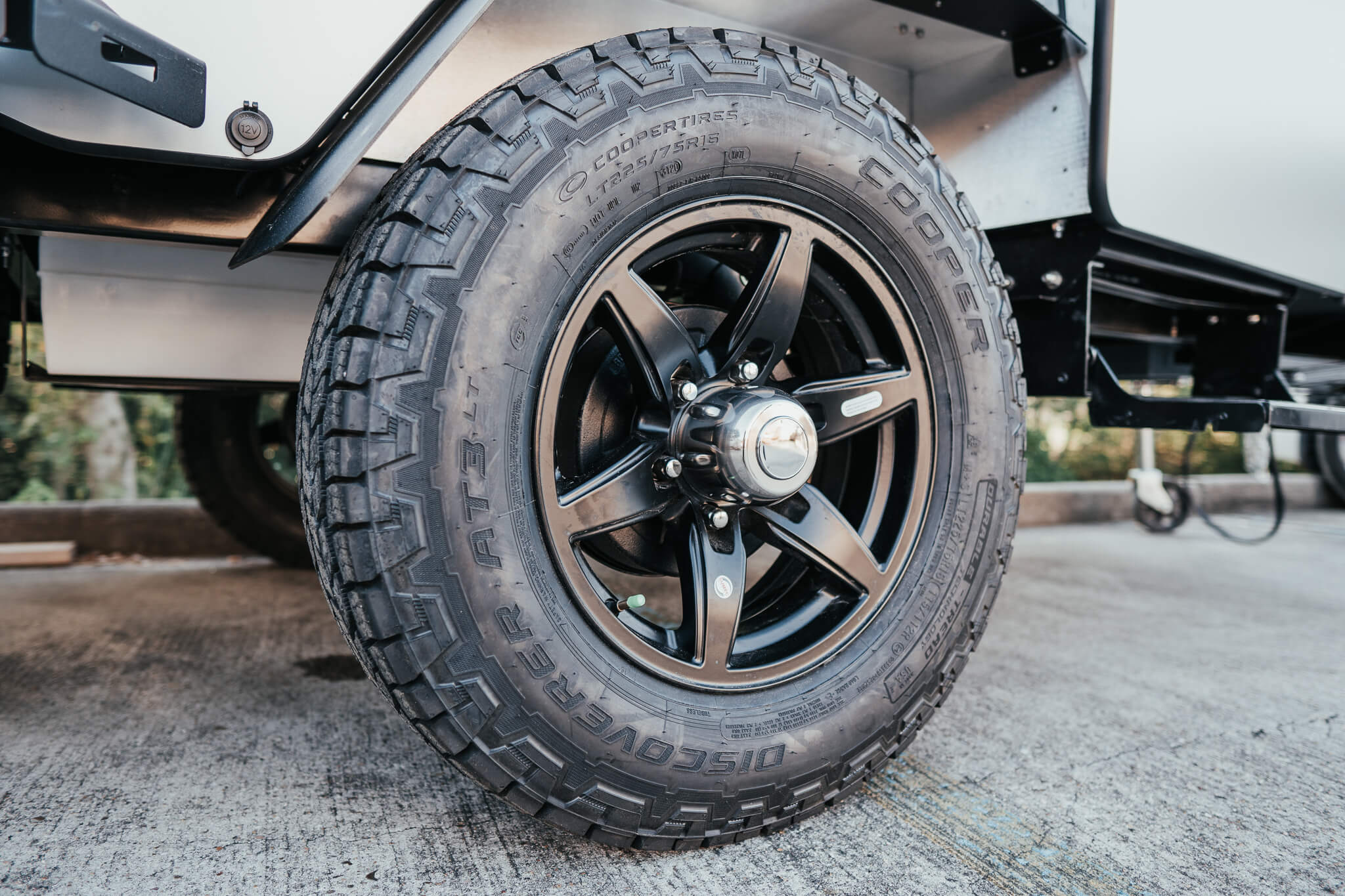

All Terrain LT 225/75R16
The LT 225/75R16 tire is designed for those who need a tire that provides the rugged durability required to keep up with their active lifestyles. Engineered to tackle dirt, gravel, mud, and the urban jungle, this all terrain tire combines off-road prowess with agreeable on-road comfort and year-round traction, including in light snow.

Features

Axle-Less Design

Progressive rubber springs and urethane bushings give the Overland Edition a ride that is quiet and smooth. Featuring a Timbren 5,200 lb Axle-Less trailer suspension with a 4″ lift allows you to go off road without the usual limitations associated with a thru-axle.

Lock N Roll Hitch

The articulating Lock ‘N’ Roll hitch utilizes 360 degrees of rotation and 3 axis movement. This on-road, off-road hitch gives you freedom that you can’t get with a ball hitch.

All Terrain LT 225/75R16

The LT 225/75R16 tire is designed for those who need a tire that provides the rugged durability required to keep up with their active lifestyles. Engineered to tackle dirt, gravel, mud, and the urban jungle, this all terrain tire combines off-road prowess with agreeable on-road comfort and year-round traction, including in light snow.

Mantis

Specifications

Exterior Length 19'
Exterior Width 7'6"
Exterior Height (closed) 7'
Exterior Height (open) 10'1"
Interior Width (max) 6'10"
Interior Height (closed) 4'7"
Interior Height (open) 5'11" to 7'10"
Bed Dimensions (max width) 80"x54"
Bunk Bed (top) 76"x22"
Bunk Bed (bottom) 77"x26"
Fresh Water Tank 20 gal
Grey Water Tank 22 gal
Tires 225/75R16
Ground Clearance 14"
Tongue Height 22"
Tongue Length 45"
Tongue Weight (depends on loading) 510 lbs
Dry Weight 3,486 lbs
GVWR 5,000 lbs
GAWR 5,200 lbs
Cargo Capacity 1,614 lbs
Habitat Capacity 4+ Adults
Aluminum Panels Aluminum Alloy ASTM B 209
Square Footage 105 sq ft
