MDC Forte 9+ 2024
$45,500.00
Contact Us For Current Price & Availibility

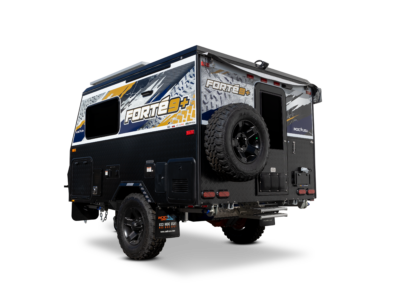

Exterior

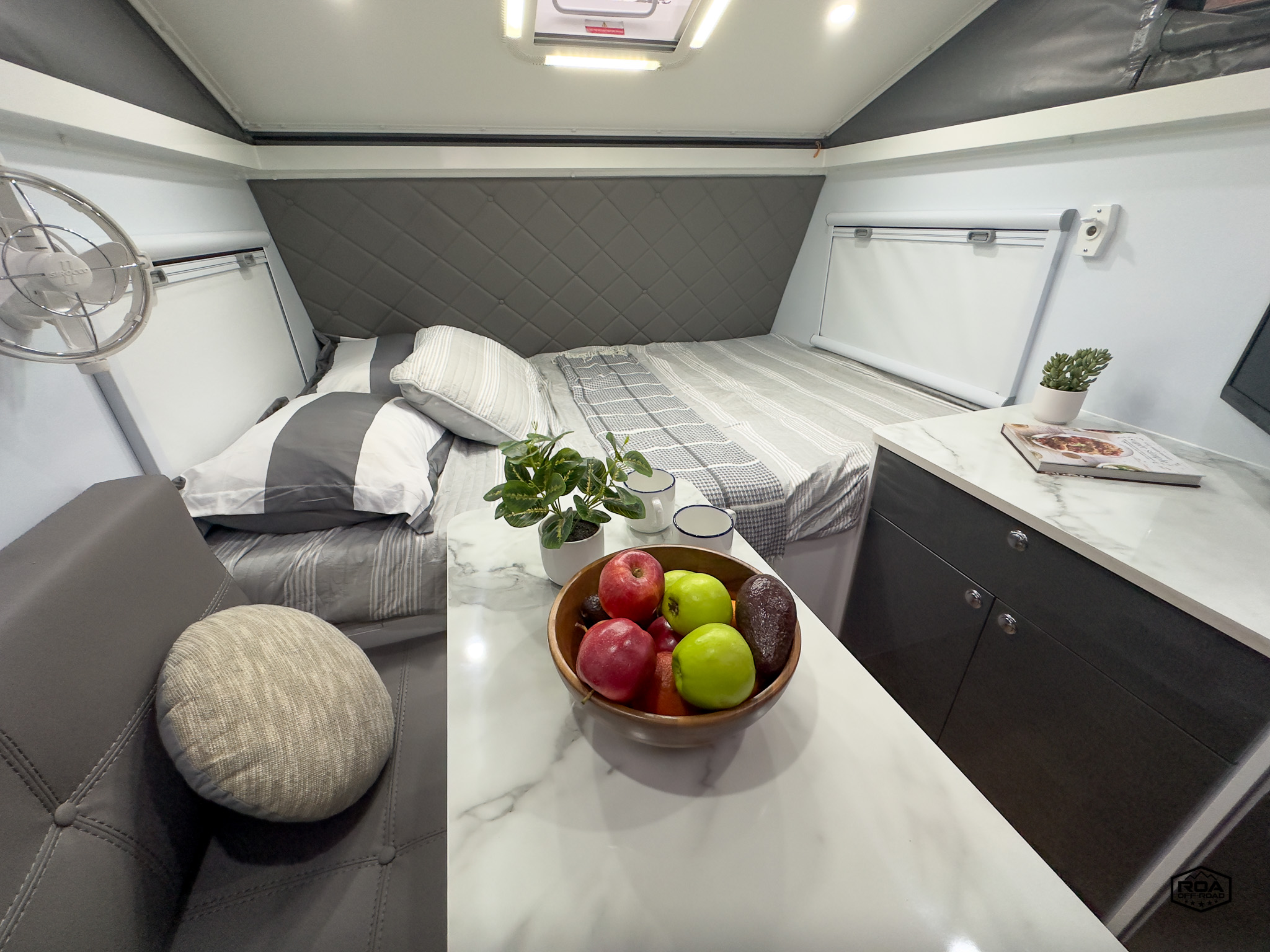

Interior
Exterior
Interior
Features
Gallery
Specifications
Measurements
DIMENSIONS

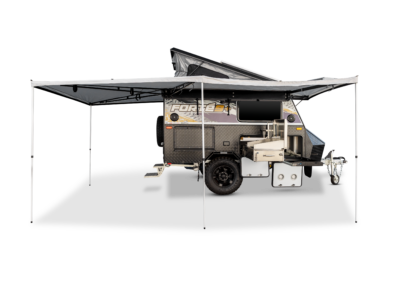

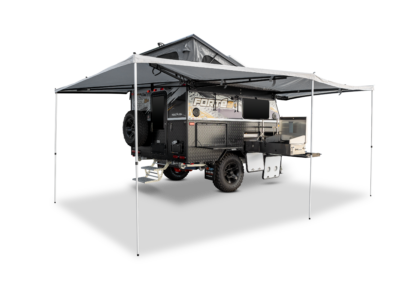

♦ Open – 22’4″ L x 18′ W x 10’1” H
♦ Closed – 15’1” L x 7’7” W x 7’9” H
♦ Dry Weight - 3,090 lbs
♦ Tongue Weight - 317 lbs
♦ GVWR - 4,409 lbs

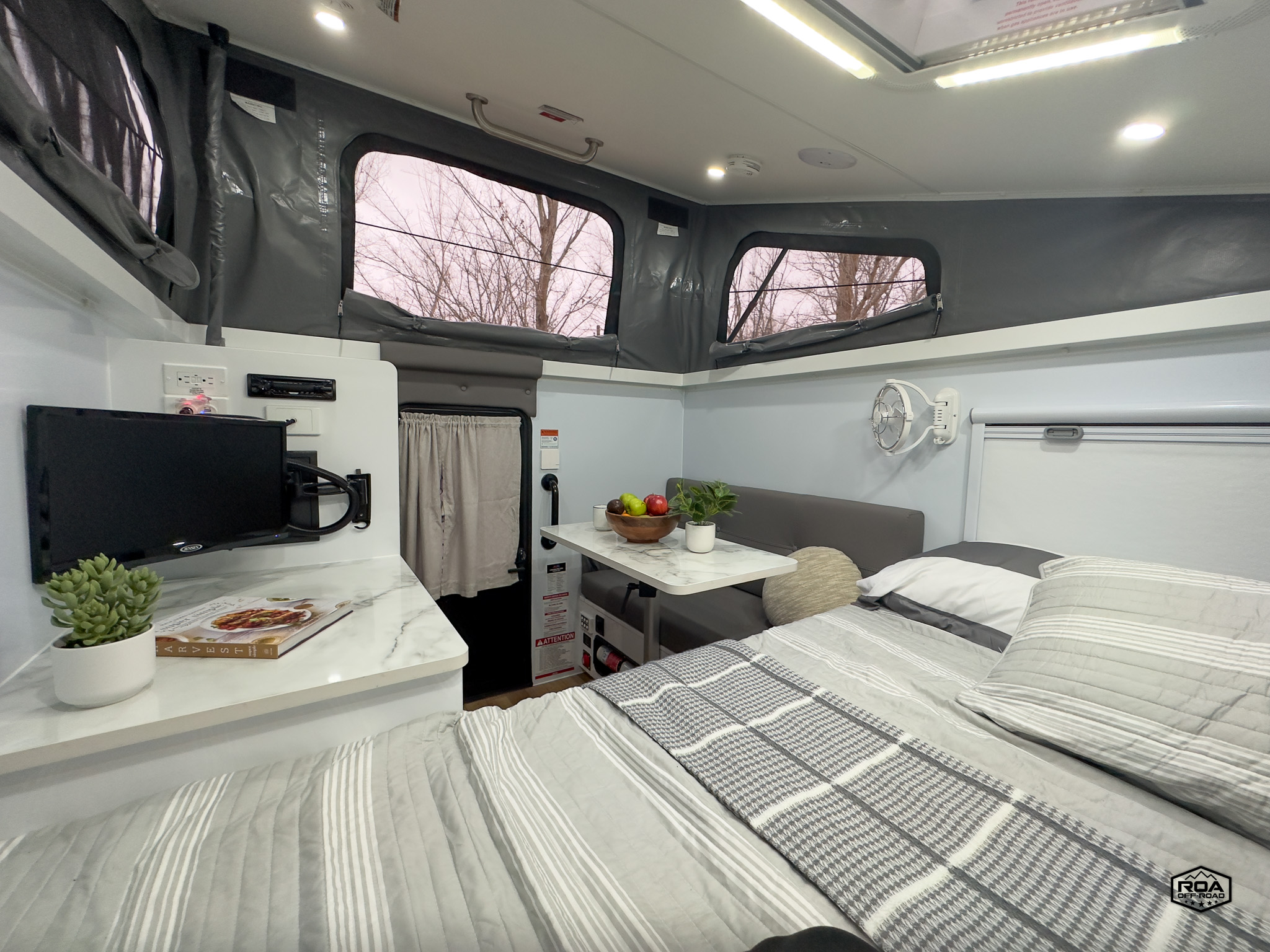

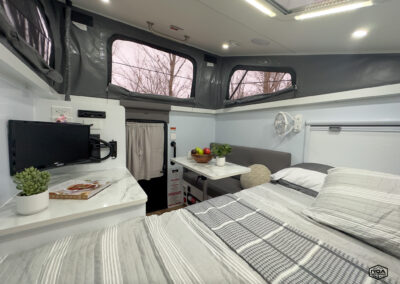

Layout
Layout
♦ Sleeps 2
♦ 1 x custom pillow-top queen size high-density foam mattress
♦ Mattress – 80” L x 56” W x 6” H
♦ Combination of welded aluminum 2” x 1” hot rolled rectangle tube and 1” x 1” hot rolled square tube aluminum alloy body construction
♦ 1 x 12V accessory sockets
♦ 1 x 5V dual USB charging port (1A & 2A split)
♦ 1 x F-type TV outlet
♦ 1 x 110V double pole outlets
Appliances
MAJOR APPLIANCES
♦ Optional portable RV air conditioner
♦ Truma Aquago Comfort Plus instant hot water system (propane-operated)
♦ Dometic DFSD 12111 Furnace (propane operated)
FEATURES & CHASSIS
CHASSIS
♦ 5″ x 2″ – Q345 galvanized steel hot rolled rectangle tube frame
♦ Cruisemaster™ DO35 hitch
♦ 10″ swing up and lockable jockey wheel
♦ 16 x 7.5 6/139.7 Aluminum alloy wheels fitted with 265/75R16 Goodride MT tires & 1 x spare wheels
♦ X-TRACK Independent coil spring suspension with 2x TOUGH TRAX Shock absorbers on each side
♦ 12″ electromagnetic brakes with handbrake and drawbar mounted emergency breakaway system
♦ 4 x heavy duty lockable and adjustable drop down stabilizer legs
