TigerMoth Overland

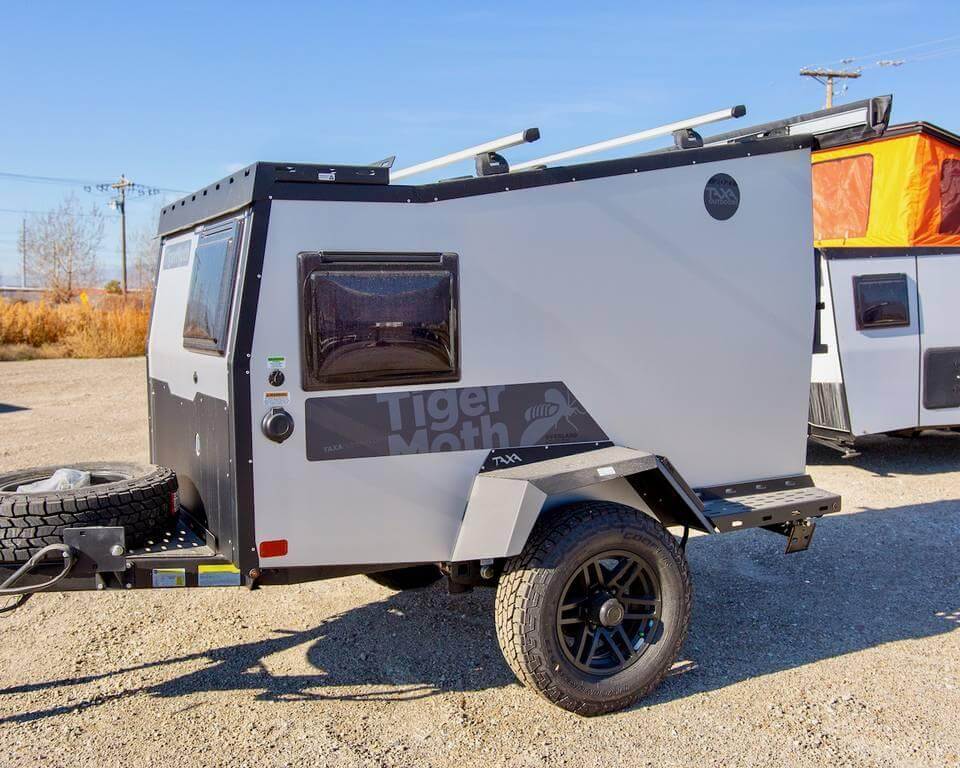

Meet TigerMoth Overland

A habitat built for adventuring, the TigerMoth Overland Edition features increased ground clearance with the Timbren axles-less suspension, and includes a number of premium accessories. Perfect for those who venture to the further reaches of nature.

TigerMoth | Taxa Outdoors


Axle-Less Design

Progressive rubber springs and urethane bushings give the Overland Edition a ride that is quiet and smooth. Featuring a Timbren 5,200 lb Axle-Less trailer suspension with a 4″ lift allows you to go off road without the usual limitations associated with a thru-axle.

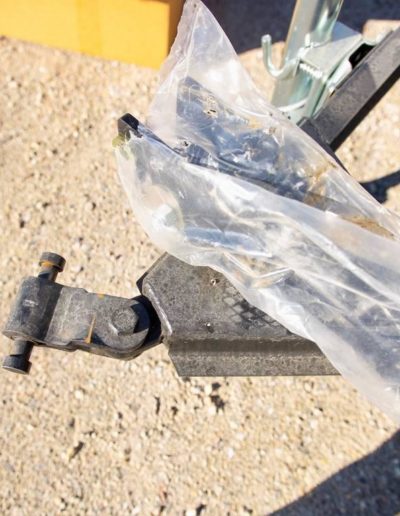

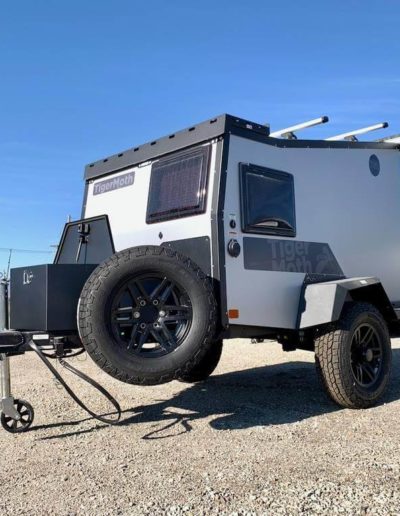

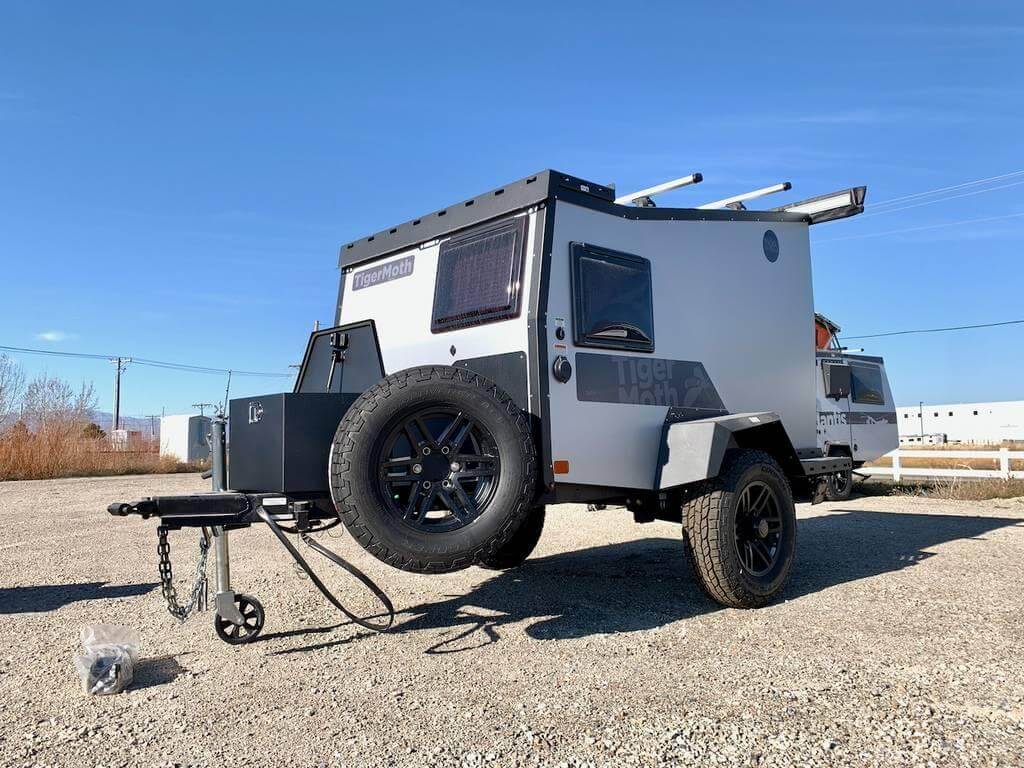

Lock N Roll Hitch

The articulating Lock ‘N’ Roll hitch utilizes 360 degrees of rotation and 3 axis movement. This on-road, off-road hitch gives you freedom that you can’t get with a ball hitch.

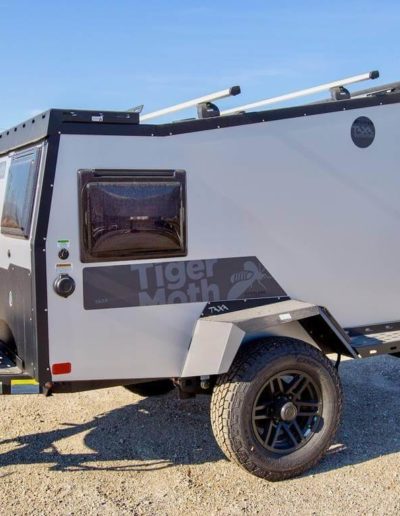

All Terrain LT 225/75R16

The LT 225/75R16 tire is designed for those who need a tire that provides the rugged durability required to keep up with their active lifestyles. Engineered to tackle dirt, gravel, mud, and the urban jungle, this all terrain tire combines off-road prowess with agreeable on-road comfort and year-round traction, including in light snow.



Exterior Length 12'9"
Exterior Width 6'7"
Exterior Height 7'
Interior Width 4'9"
Interior Height 4'7" to 3'9"

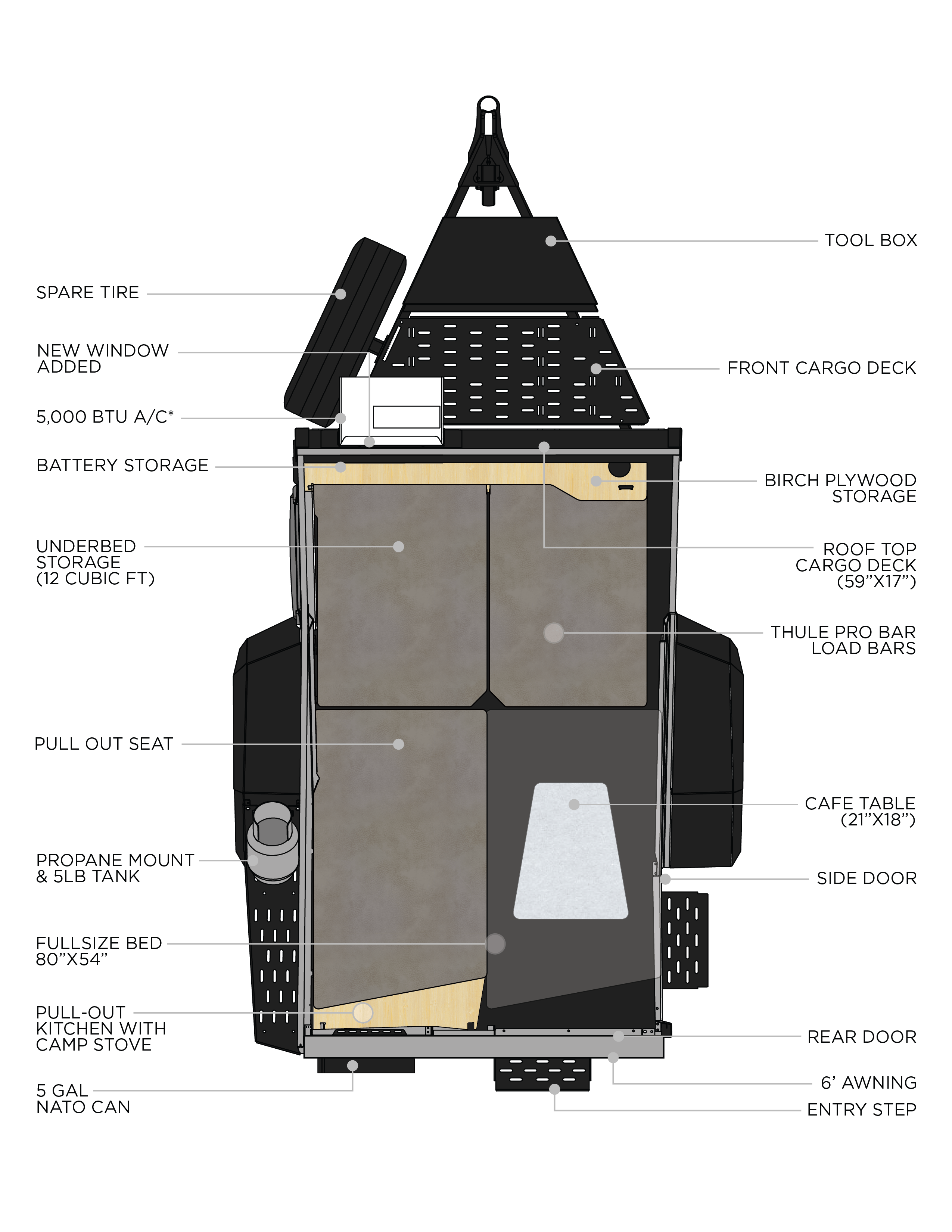

Bed Dimensions (max width) 80"x54"
Fresh Water NATO Can 5 gallon
Tires 225/75R16
Ground Clearance 18"
Tongue Height 25"
Tongue Weight (depends on loading) 195 lbs
Dry Weight (includes standard features only) 1,458 lbs
GVWR 2,400 lbs
GAWR 2,200 lbs
Cargo Capacity 942 lbs
Habitat Capacity 2 Adults (+RTT)
Aluminum Panels Aluminum Alloy ASTM B 209
Square Footage 40 sq ft

TigerMoth Overland | Specifications
