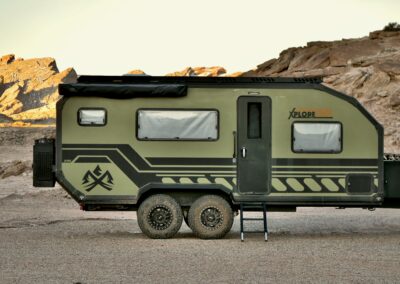

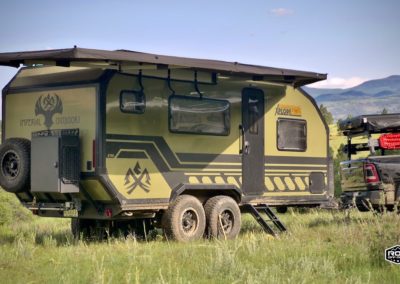

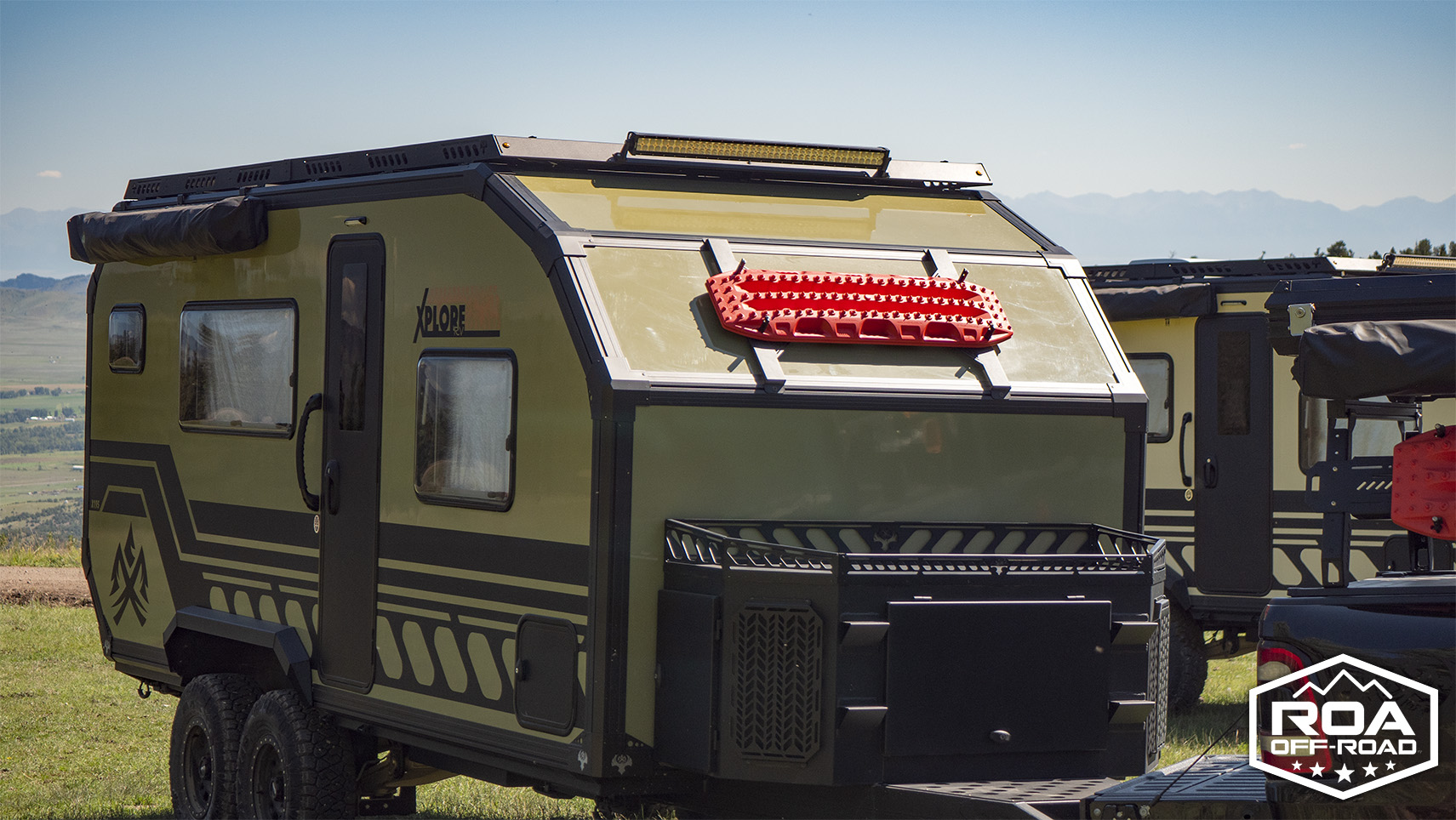

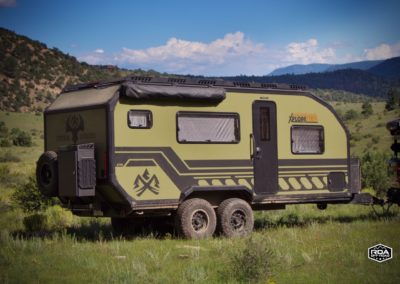

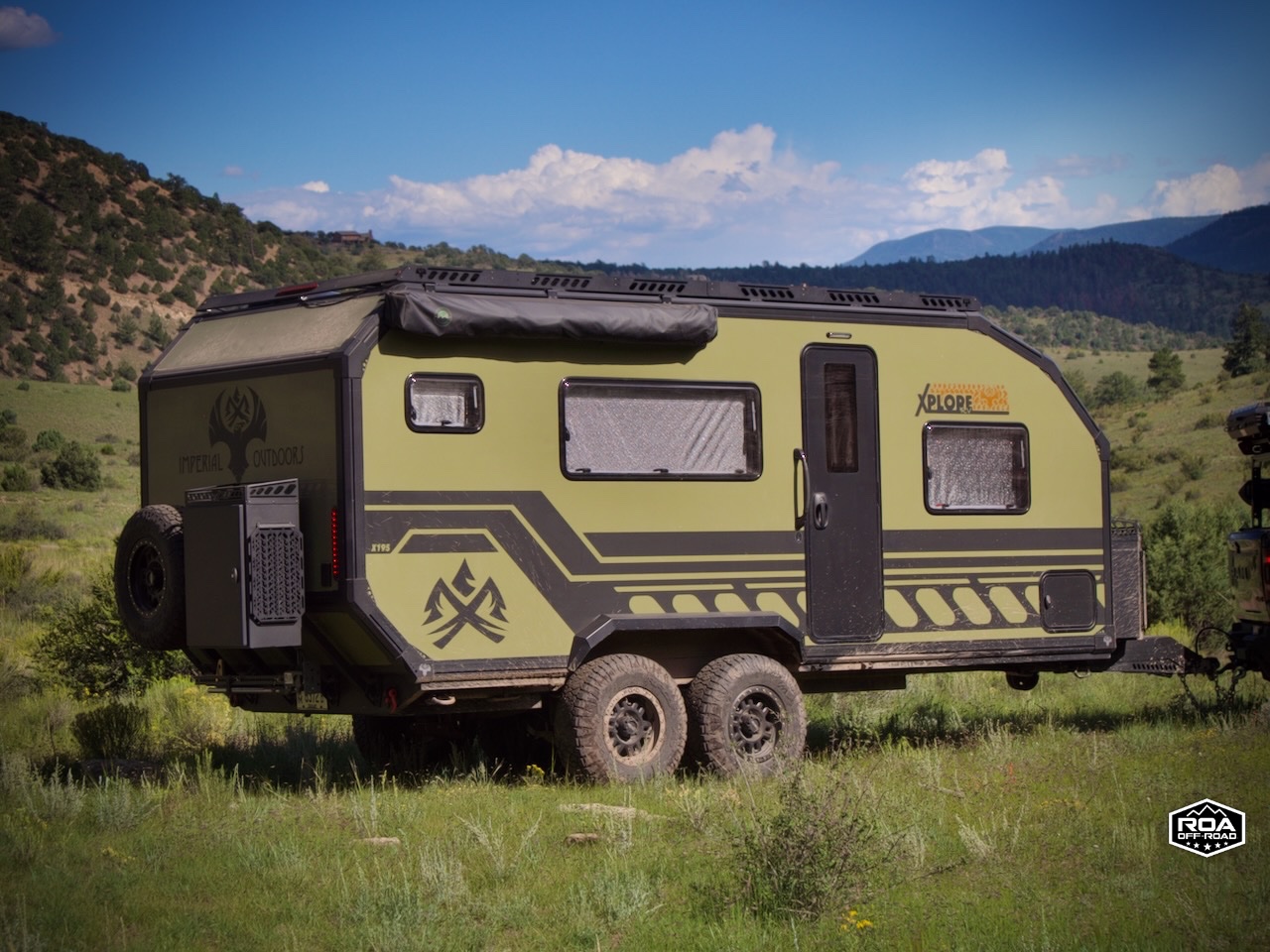

Imperial Outdoors Xplore X195
$142,500.00
Contact Us For Current Price & Availibility
Exterior
Interior
Exterior
Interior
Features
Gallery
Specifications
Measurements
Overall Length (not including rear accessories) 26 ft
Overall Width (including fenders) 7 ft 7 in
Overall Height 9 ft 9 in
Unit Weight 5900 lbs (6200 lbs with Stage 3 power)
Max Trailer Capacity (GVWR) 9920 lbs
Tongue Weight ~750 lbs (880 lbs with Stage 3 power)
Cargo Capacity ~3500 lbs
Axle Weight Rating 9920 lbs
Layout

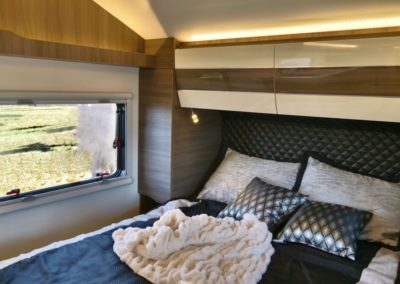

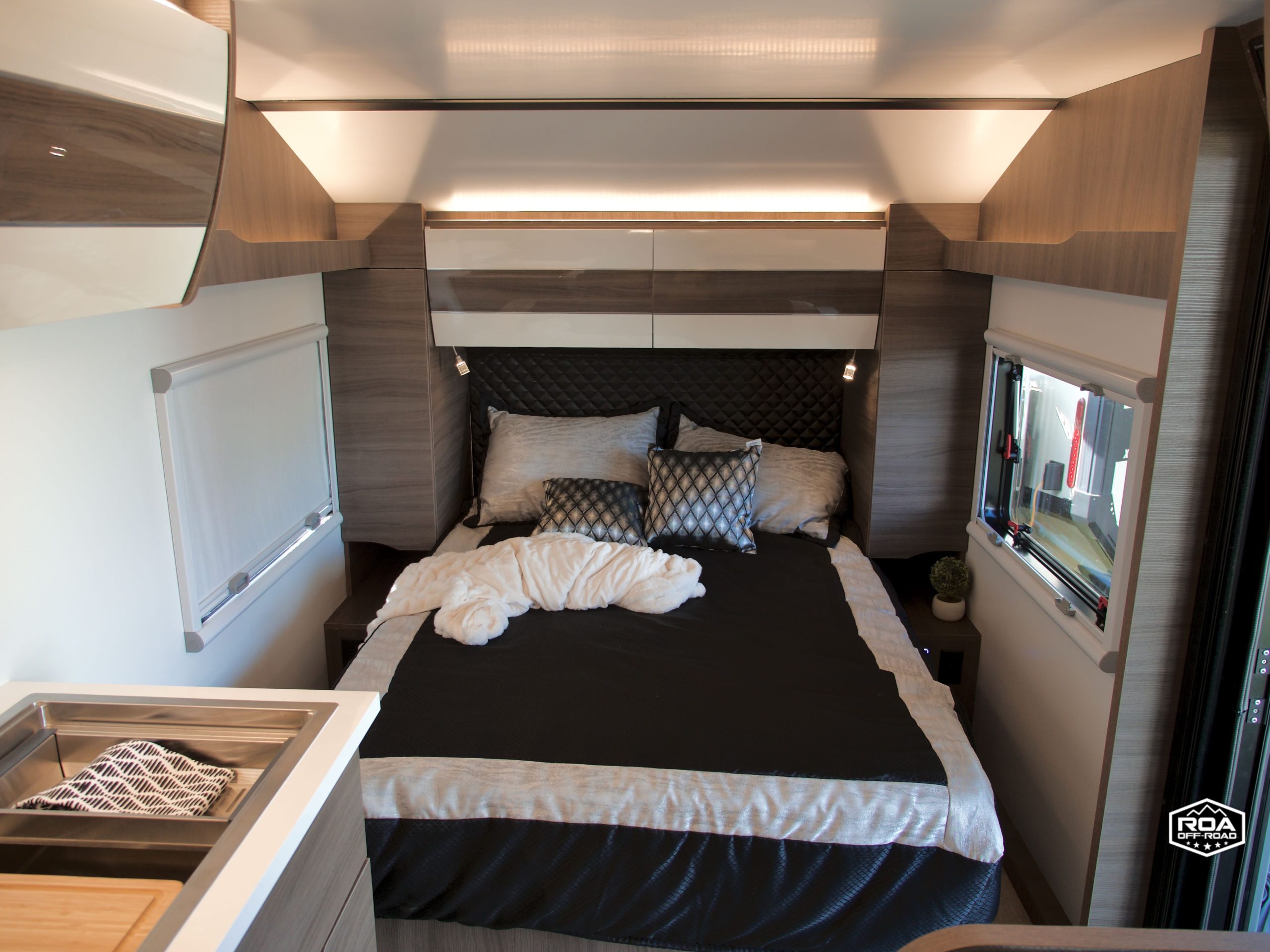

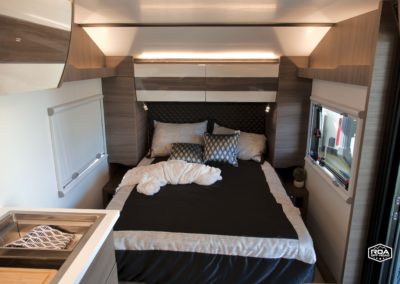

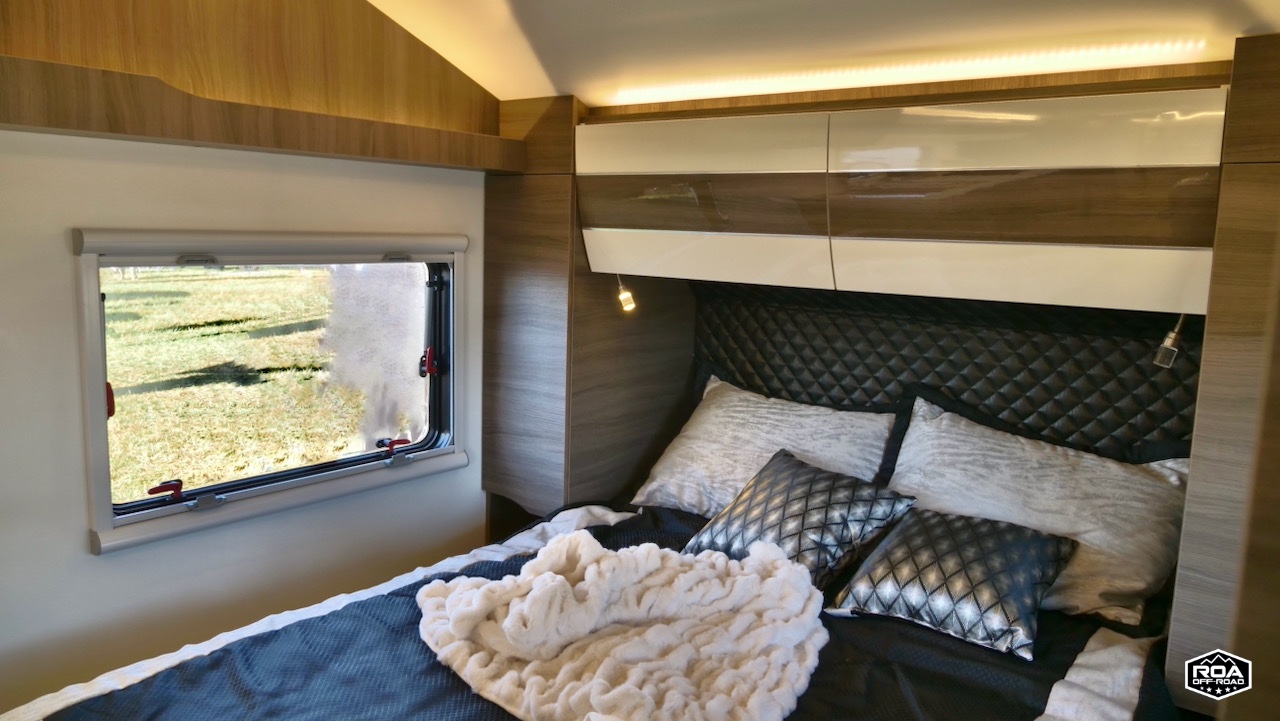

North/South Queen bed at the front of the trailer sleeps 2 adults.

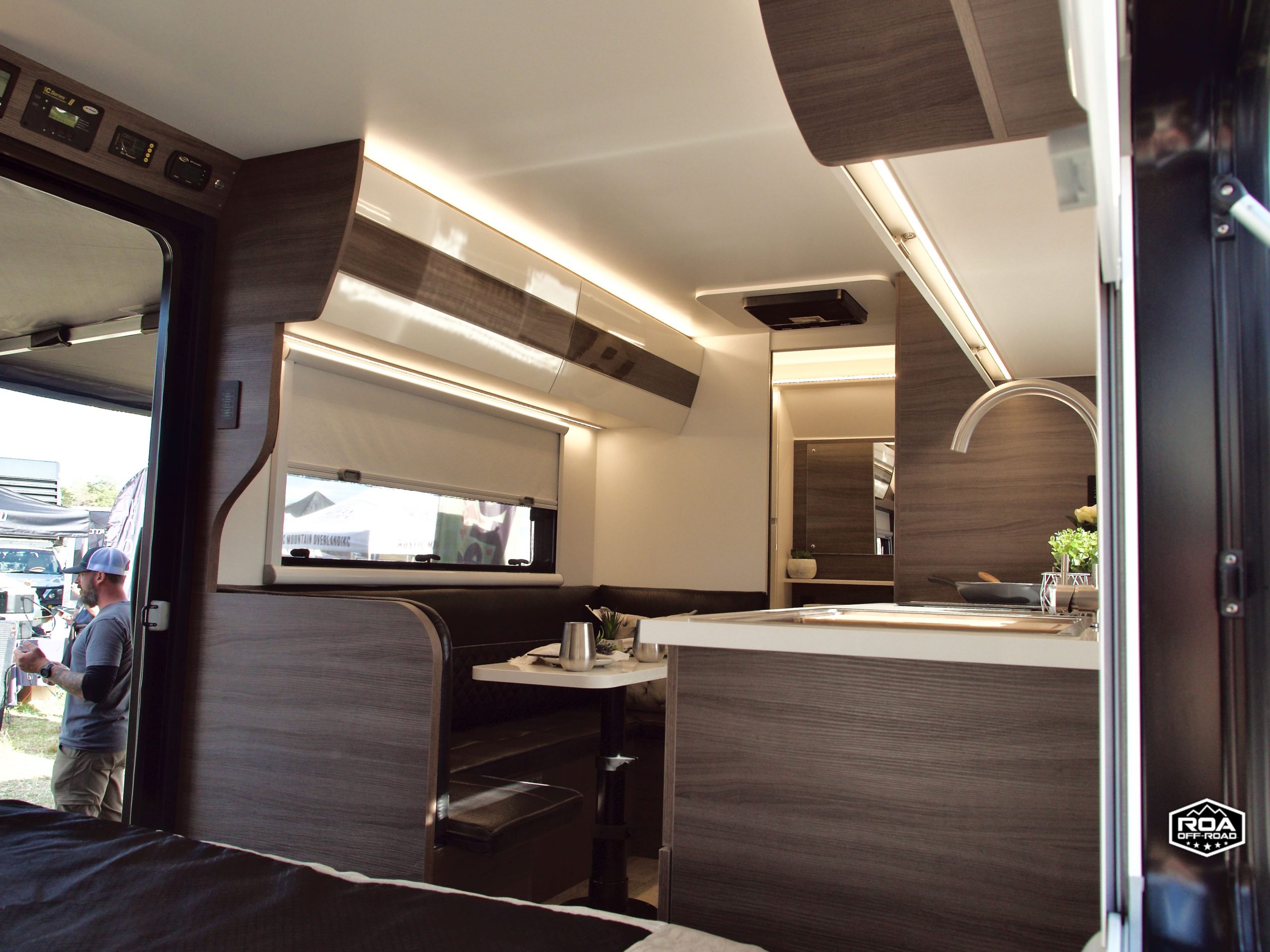

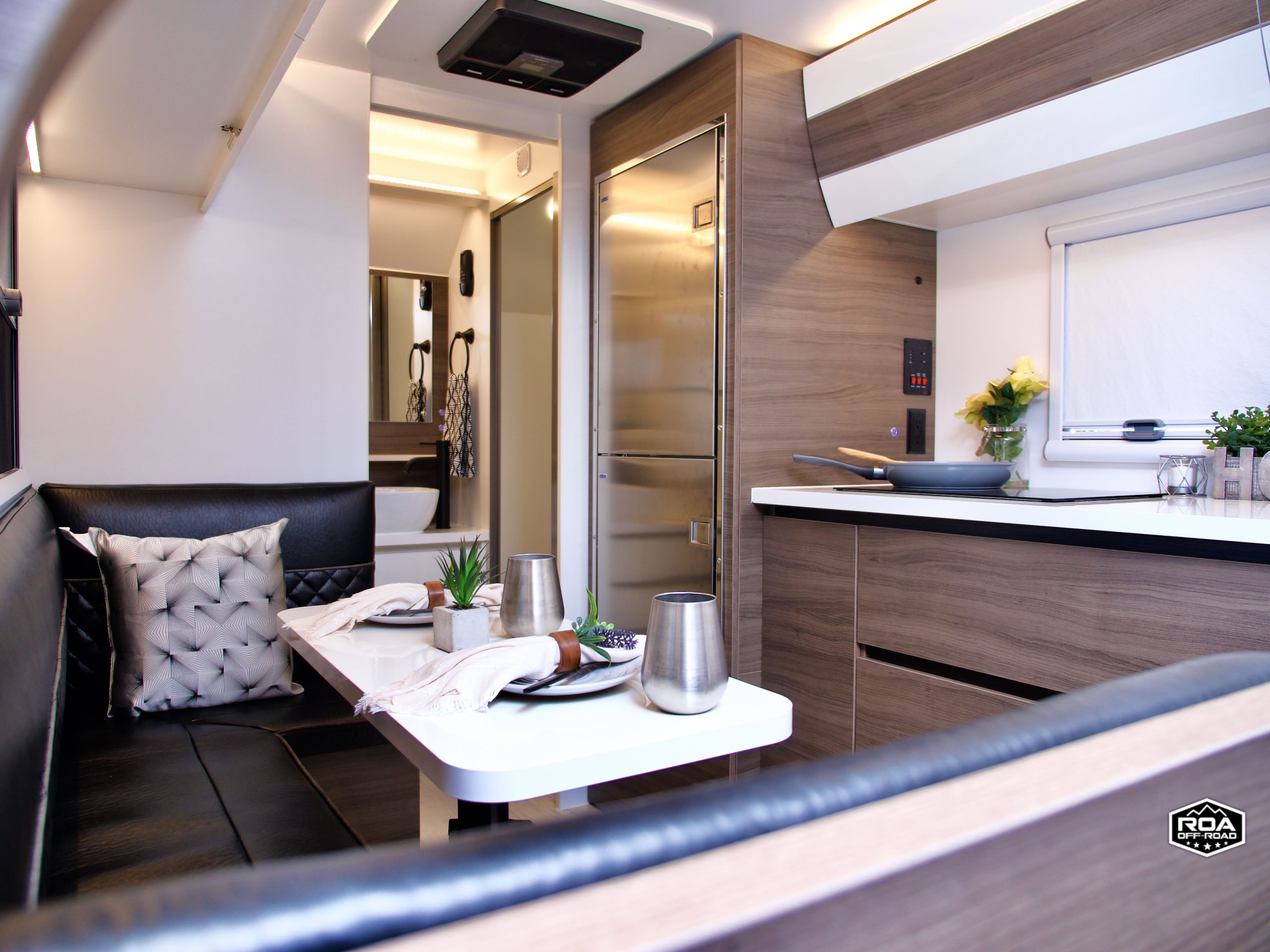

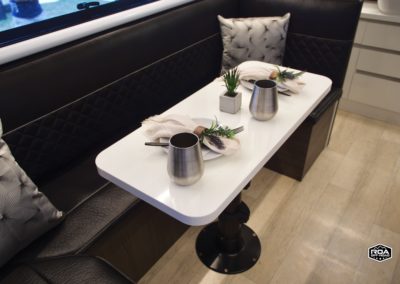

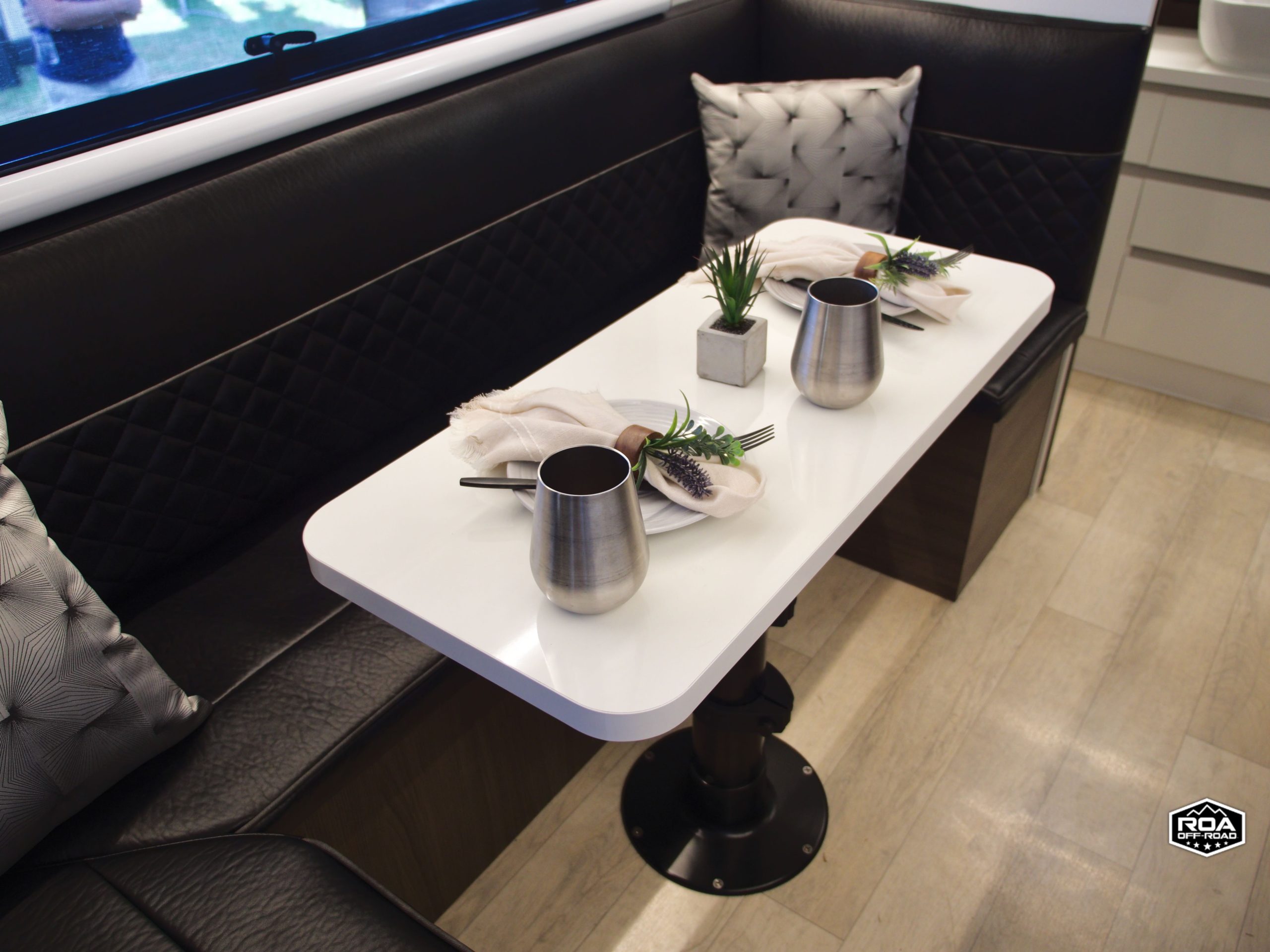

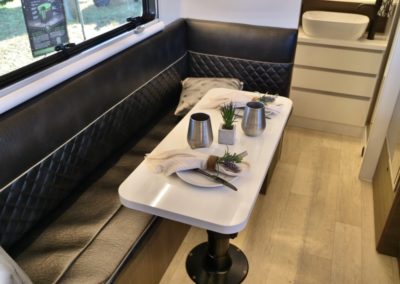

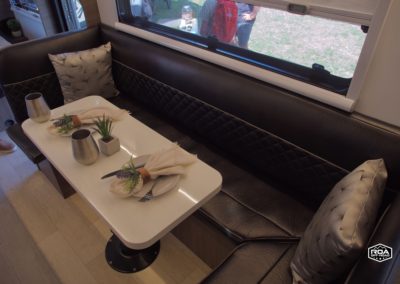

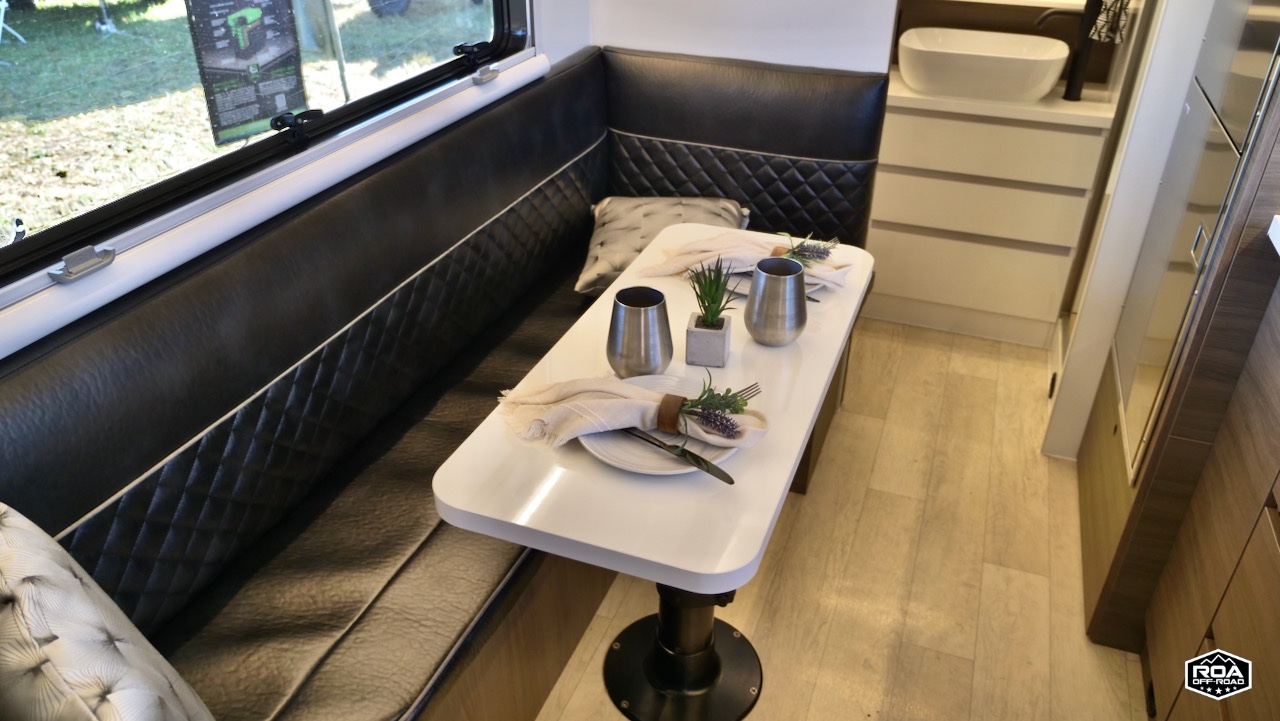

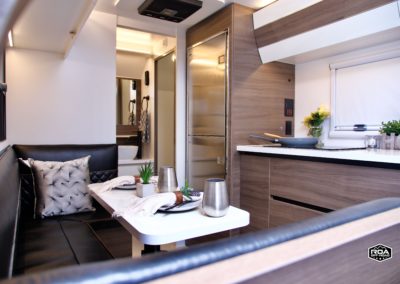

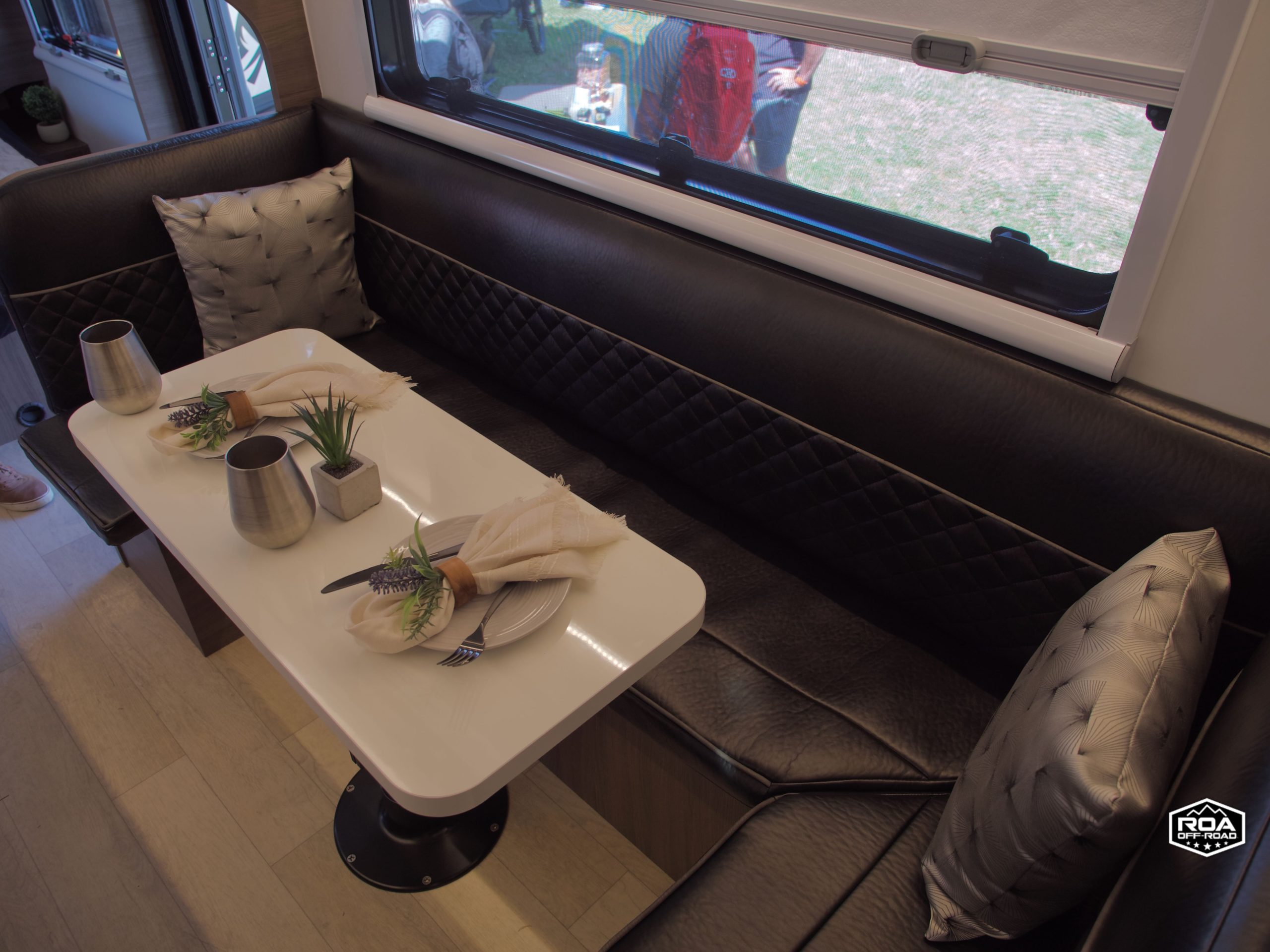

Large Dinette converts to bed for additional guest.
Sleeps 3 comfortably
Appliances

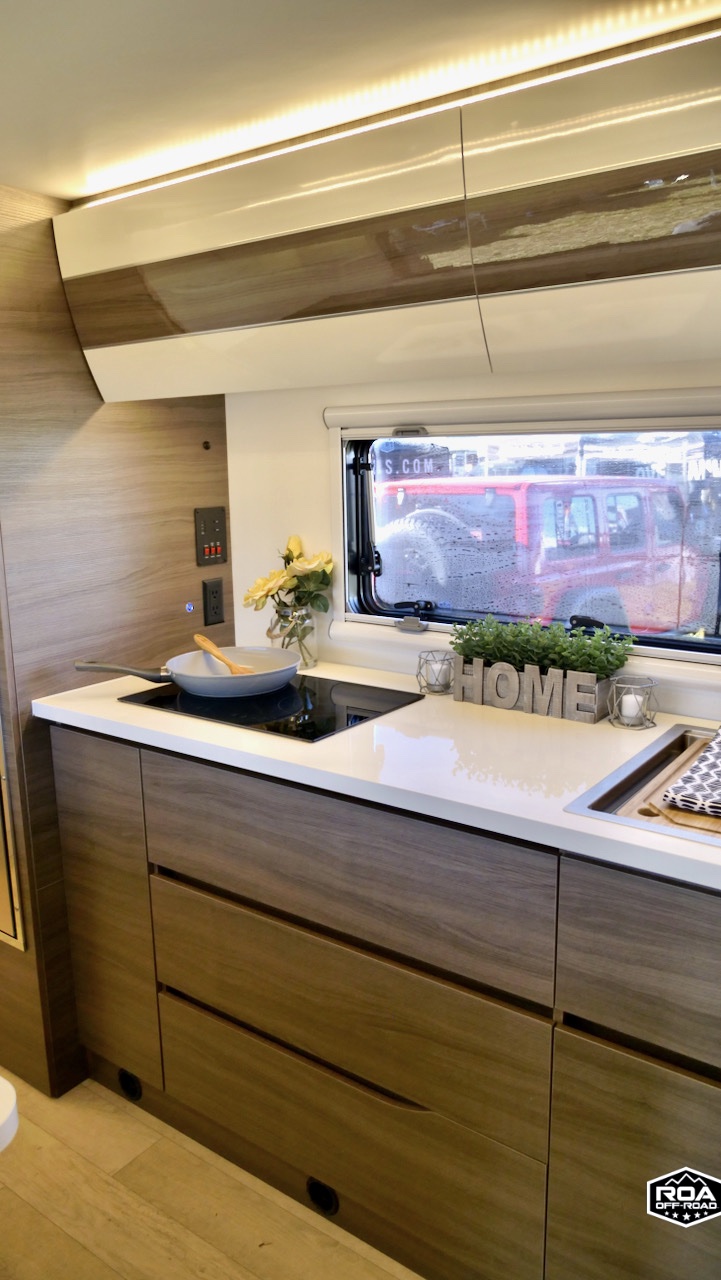

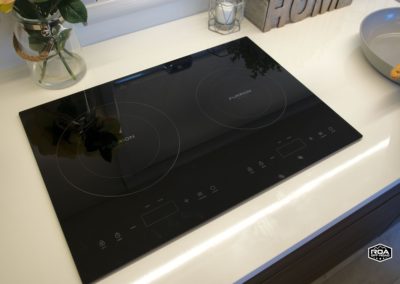

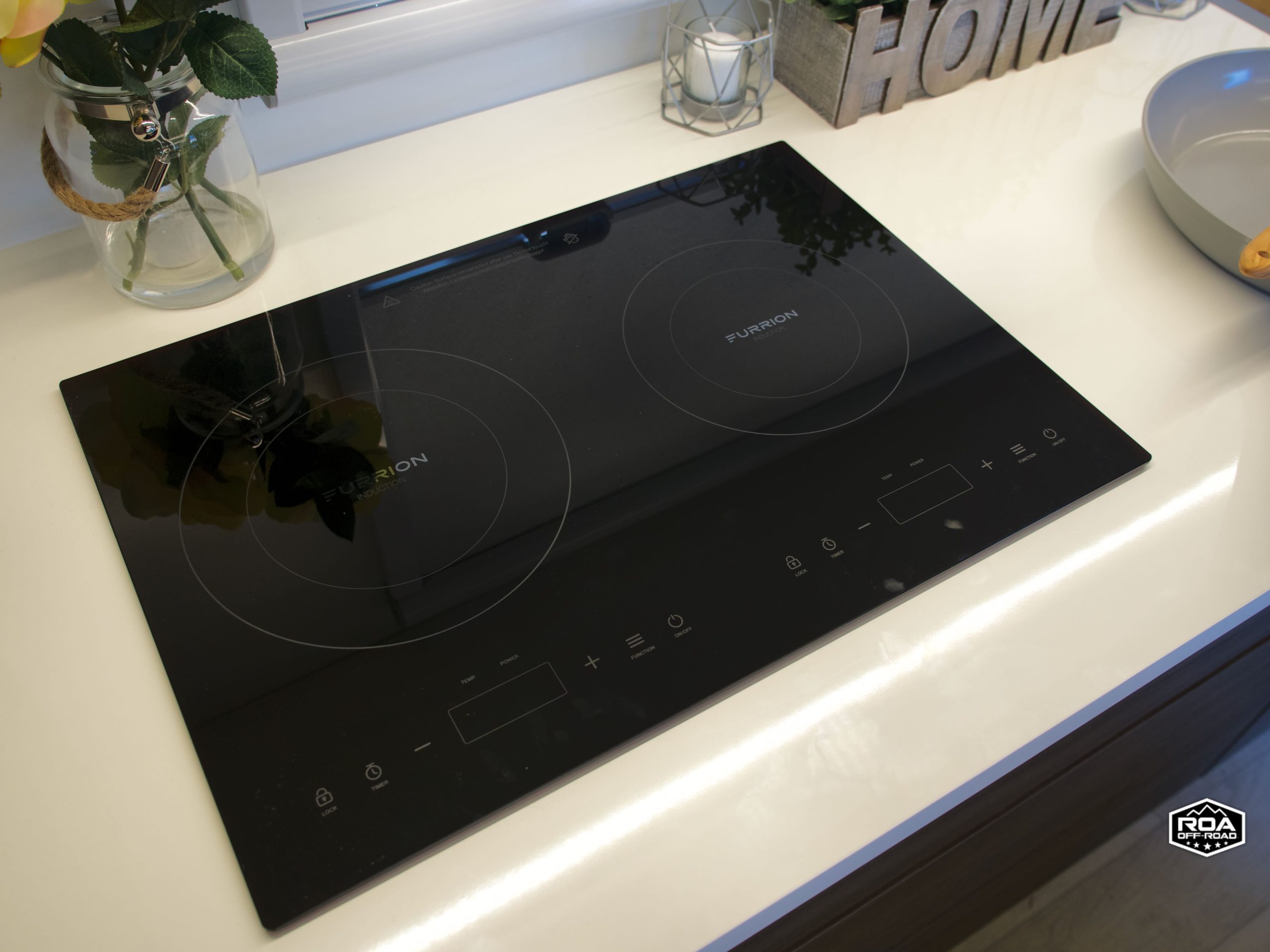

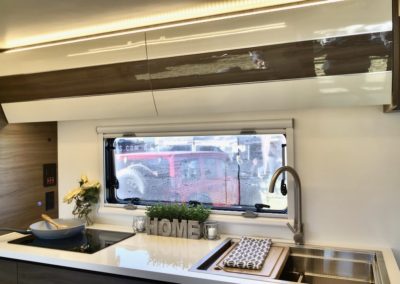

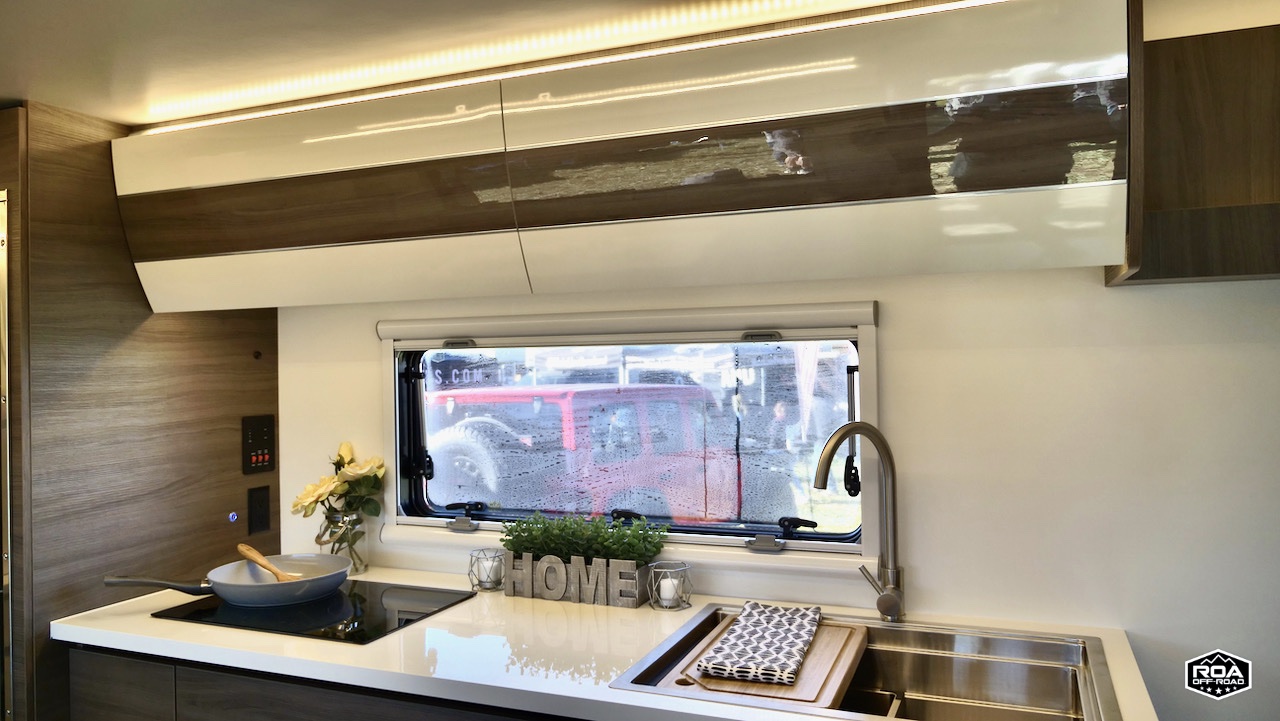

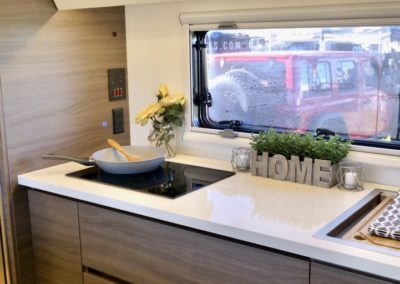

Furrion 21" Double Induction Cooktop
6,500Btu Dometic RTX 12V Air Conditioner
MaxxFan

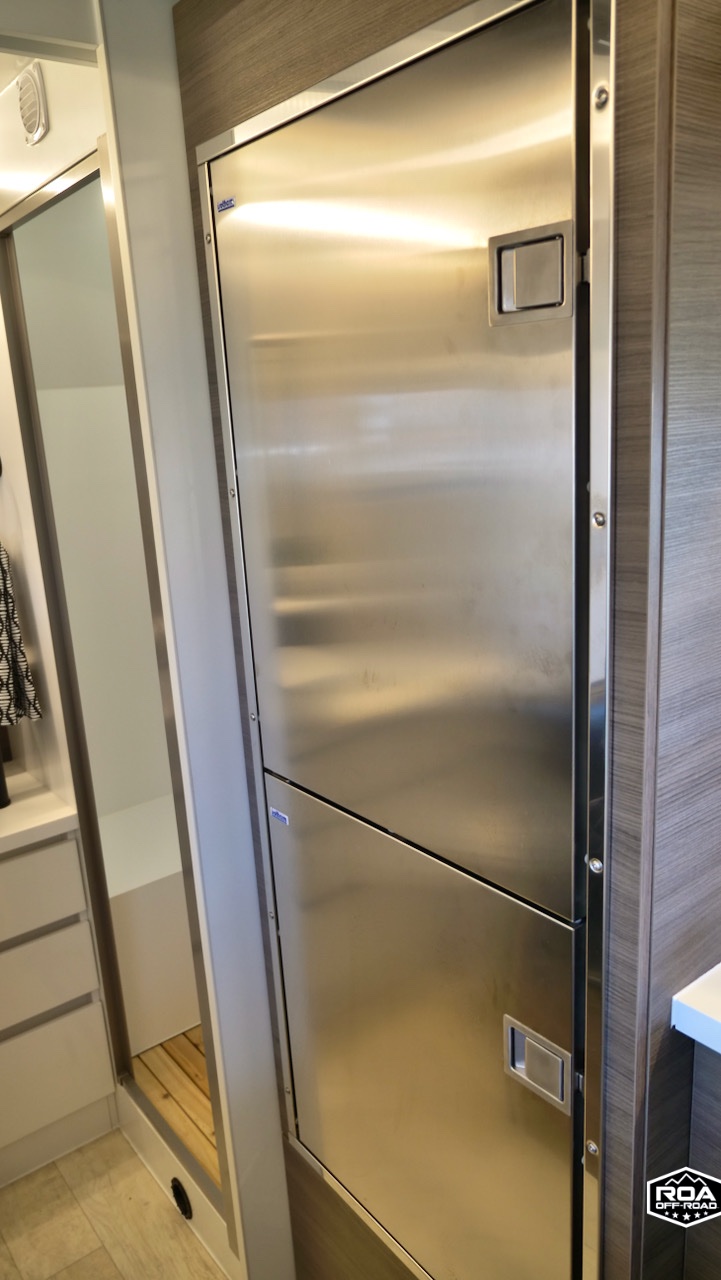

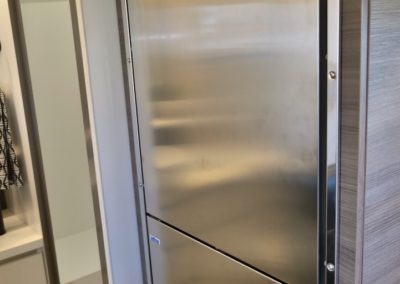

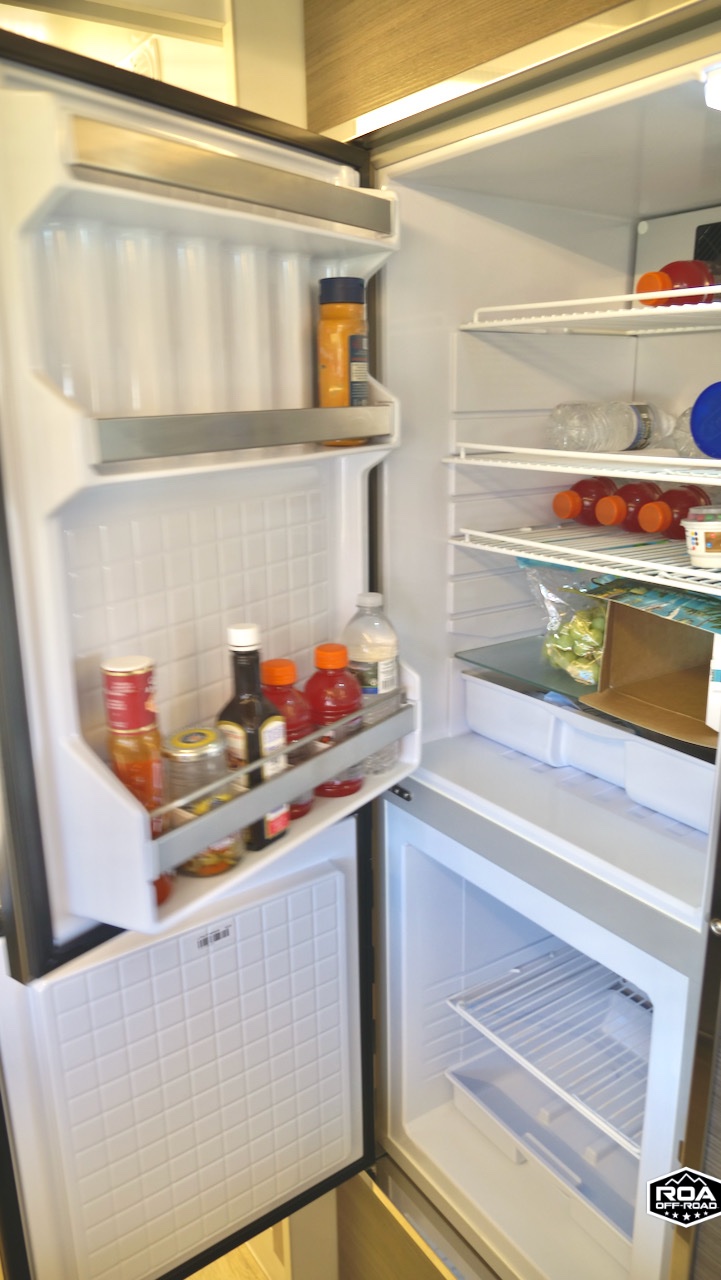

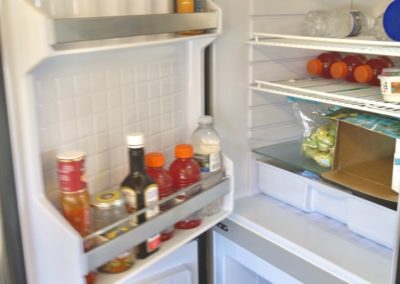

IsoTherm CR195 12V Fridge/Freezer

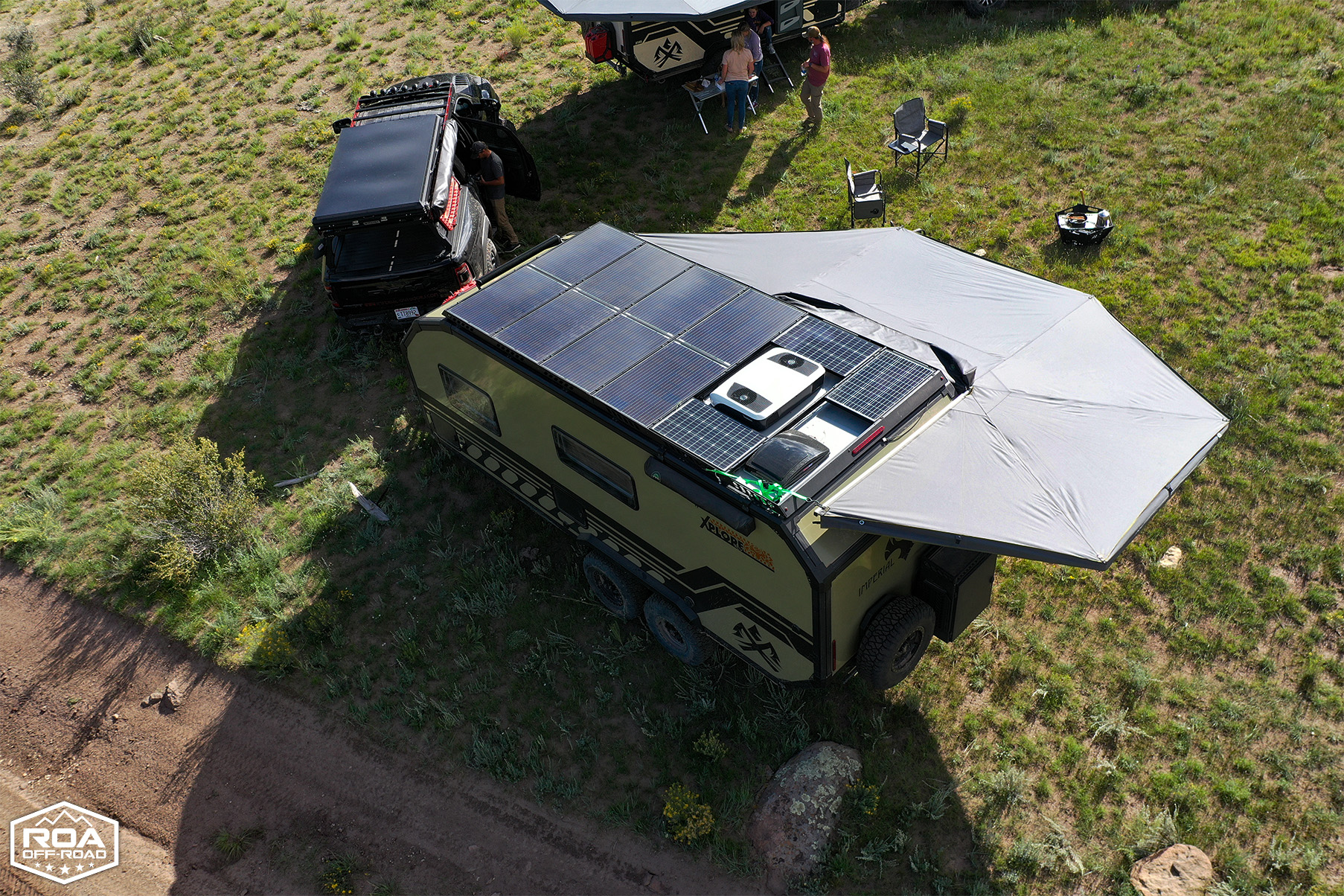

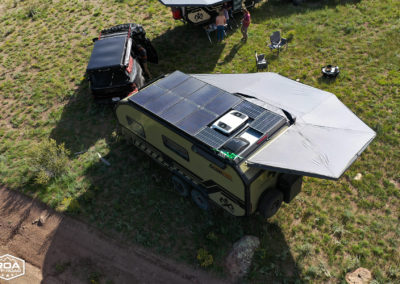

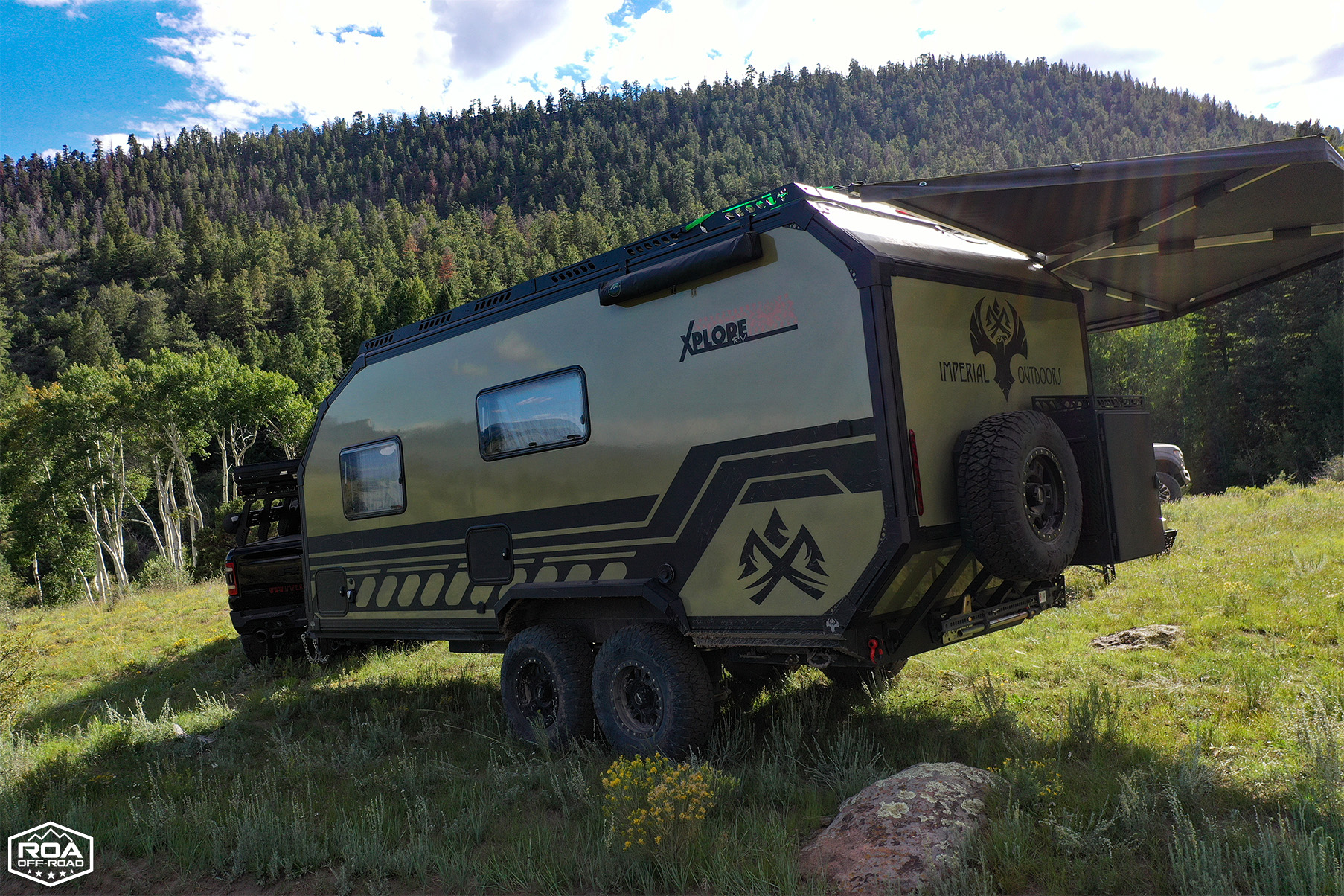

OVS 270 Degree Wrap Around Awning
Laveo Dry Flush Toilet
Truma Combi Comfort Plus Dual Water Heater and Furnace (up to 14,300 BTU)
2 x 20lb Propane Bottles
4 x 12V/80W Thermostat Regulated Tank Heaters
Electrical
Expion 360Ah Batteries (optionable to 1080Ah Total (stage 3 Power)GoPower Solar Charge Controller
GoPower 2000W Solar Inverter Charger
GoPower Battery Converter
GoPower Battery Monitor Kit
FEATURES & CHASSIS
Cruisemaster DO-45 Articulating Hitch

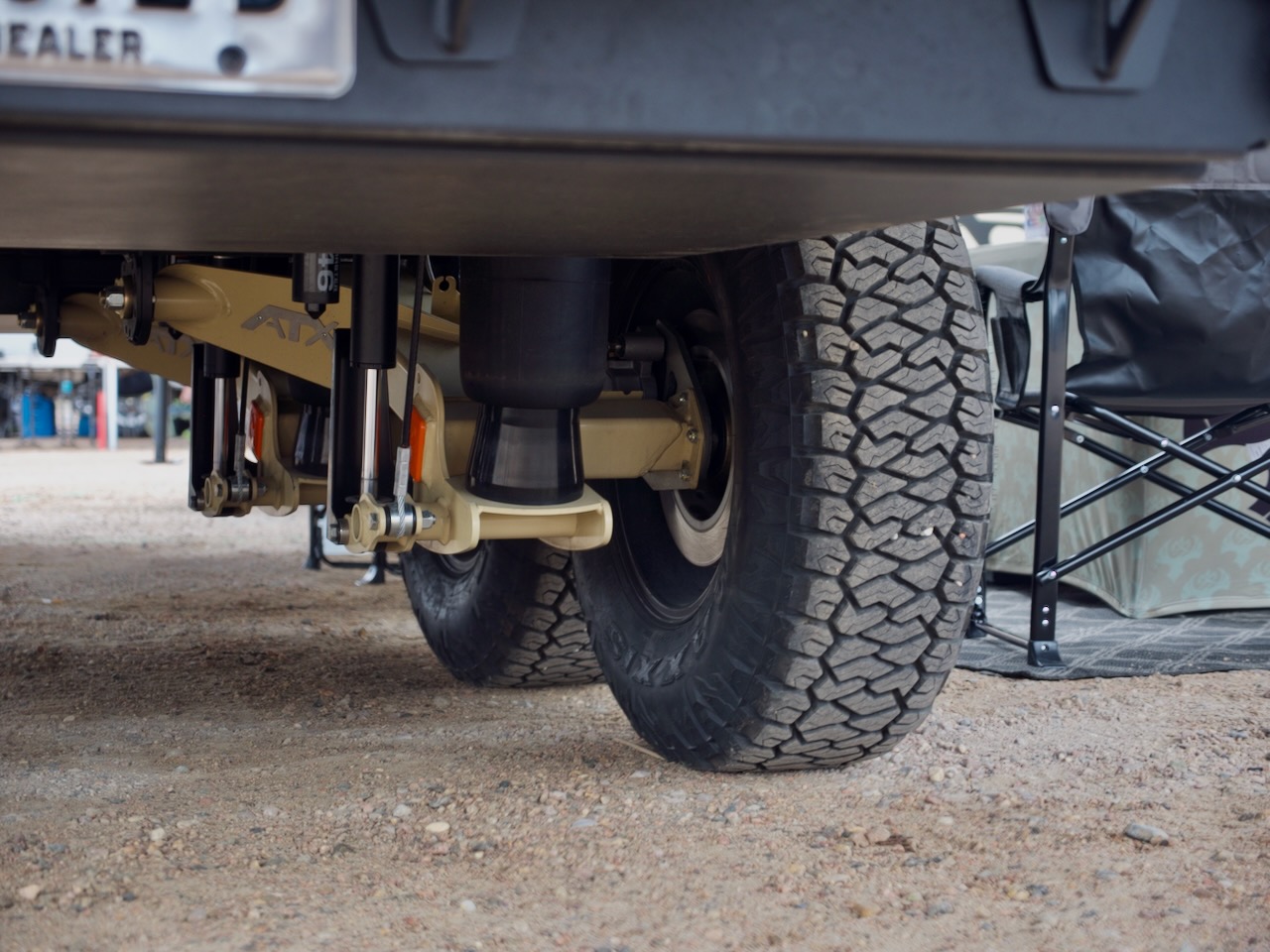

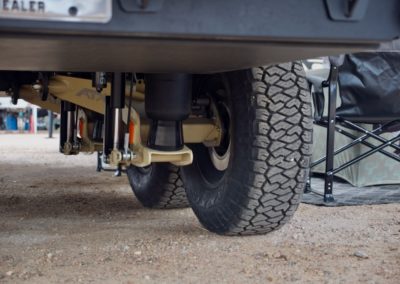

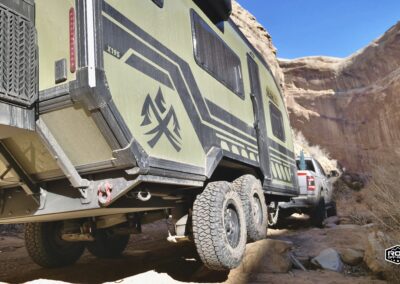

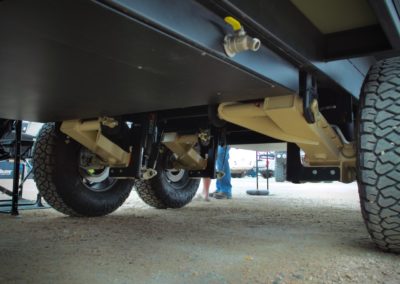

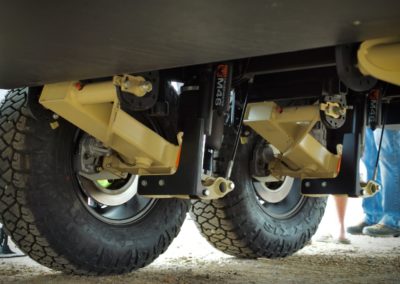

Cruisemaster ATX A-Arm Suspension Equipped with AirbagMan Airbags for up to 6.5" of Vertical Travel.
Hydrastar Hydraulic Brake Actuators for Electric-Over-Hydraulic Braking with Premium disk brakes.
Frame Material 1/4” Closed Tube Steel
Frame Coating Powder Coat w/e-coat Primer
Tire Size 265/75 R16
Ground Clearance up to 24" (at Lowest point)
