Moab Trailblazer

$394,000.00

Submit An Enquiry
Contact A Sales Coach
Contact Us
The Moab Project
Meet Moab Trailblazer

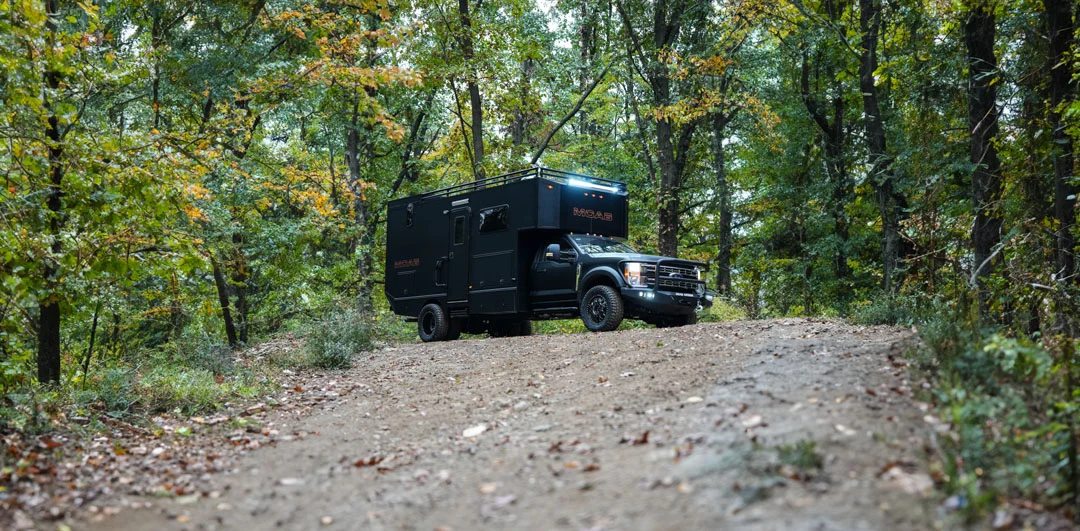

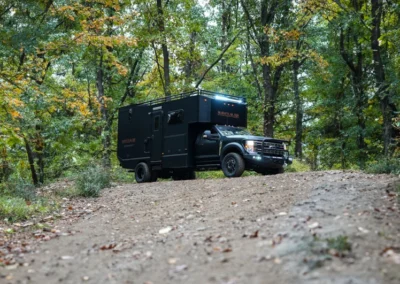

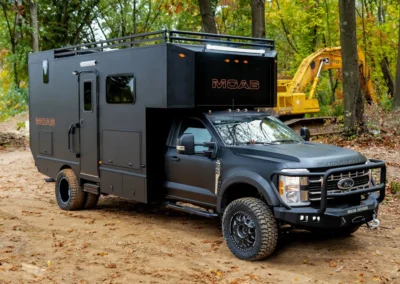

The MOAB Trailblazer is a true extreme off-road, off-grid motorhome that pairs MOAB’s huck-fastened, self-supporting habitat with a Ford F-550 4×4 chassis. Powered by the 6.7L V8 diesel and 10-speed transmission (19,500-lb GVWR), it adds FOX racing shocks/springs with a 3″ lift, 35″ tires on 20″ black-out rims, heavy-duty front and steel rear bumpers, a 15,000-lb front winch, nerf bars, dual fuel tanks, a 350-amp alternator, and full camera coverage to a 7″ display. Expedition autonomy comes from MOAB’s 48-volt electrical system—dual 3,000W inverters (6,000W total), ~17 kWh Lithionics battery storage, 1.5 kW solar, Victron touchscreen with Bluetooth/Wi-Fi—delivering up to ~21 hours of A/C or ~10 hours of full-system runtime with rapid recharge. A 75-gal heated fresh tank, 30-gal heated gray, and 40-gal heated black tank, plus exterior hot/cold shower, round out a package built to roam far and stay longer.
The Moab Project

Exterior

MOAB’s habitat is a welded, huck-fastened box frame with extra-thick fiberglass walls that’s fully self-supporting, no wood to swell and no monocoque required and it can be unbolted from the chassis for major service. Daily usability is dialed in with an articulating entry step, grab rail at the door, a full basement with lockable compartment doors, fully painted body to match the truck, exterior access to all tanks and components, and an exterior 50-amp shore connection with a 20-amp compartment outlet. Visibility and safety are enhanced by a 52″ LED light bar, OEM driving lights, fog lights, upper/lower LED tails and markers, LED reverse and plate lights, and three 12″ perimeter/security LEDs; cameras provide backup and left/right turn views to the in-cab screen. Practical trail gear includes the 15,000-lb front winch with controller, 2″ rear receiver, 7-pin trailer connection, nerf bars, and a factory in-dash stereo system, plus a handy pass-through between the cab and habitat.
The Moab Project

Interior

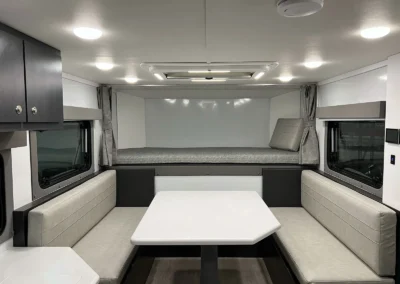

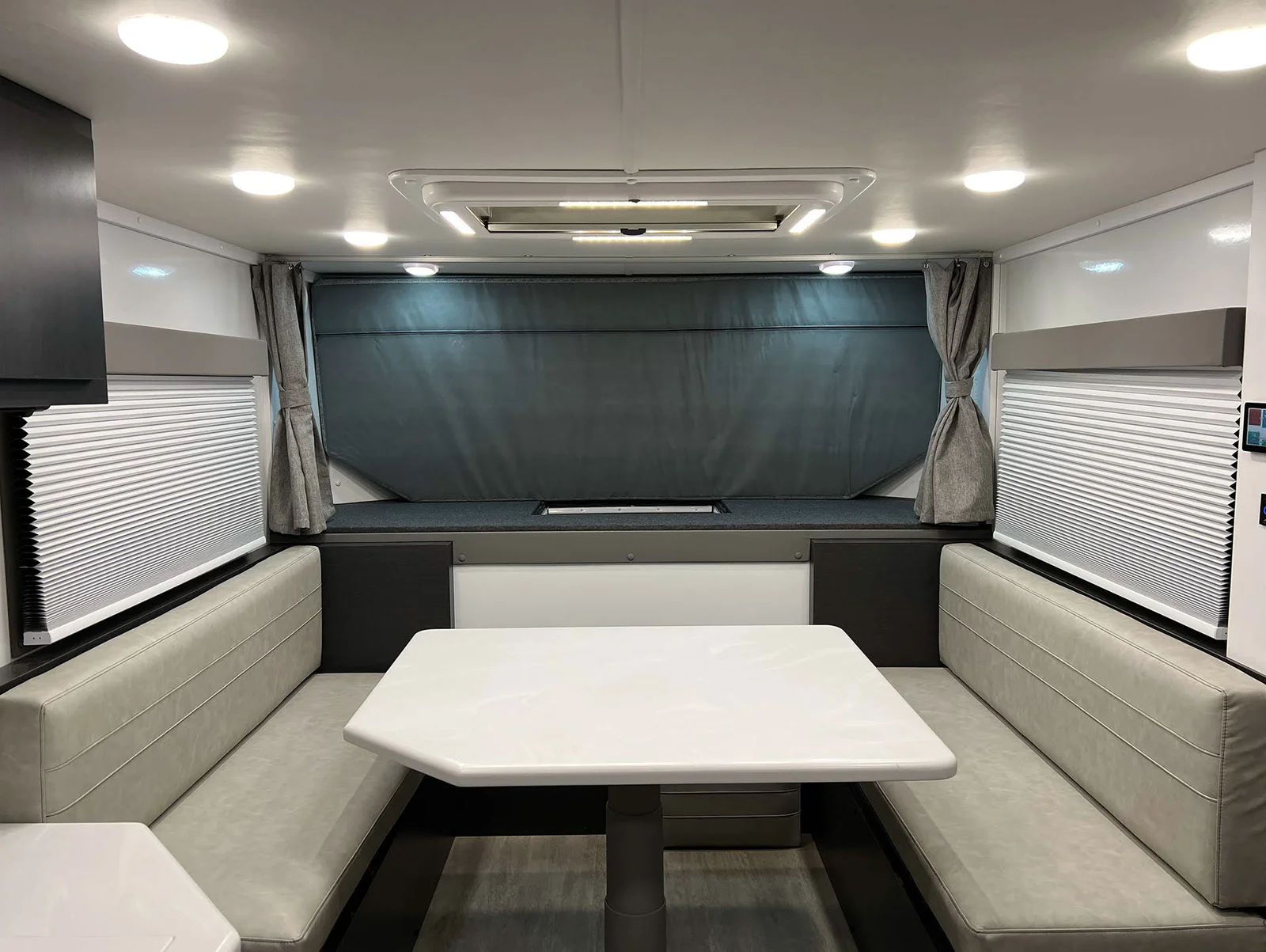

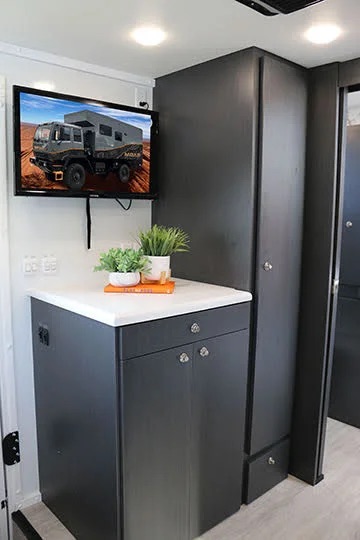

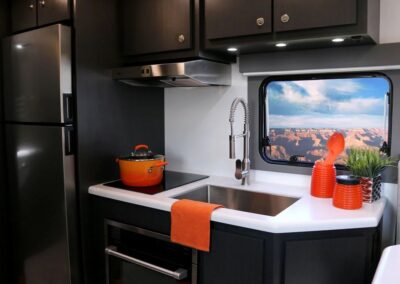

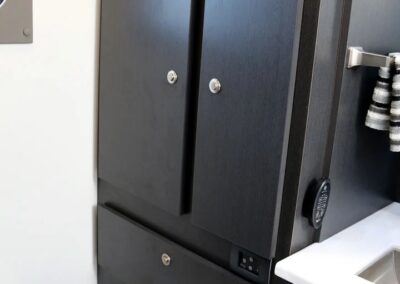

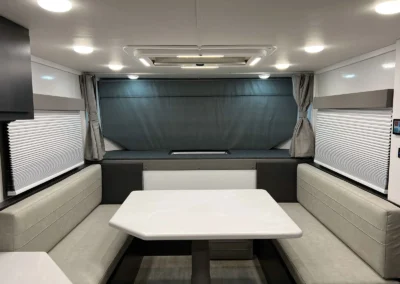

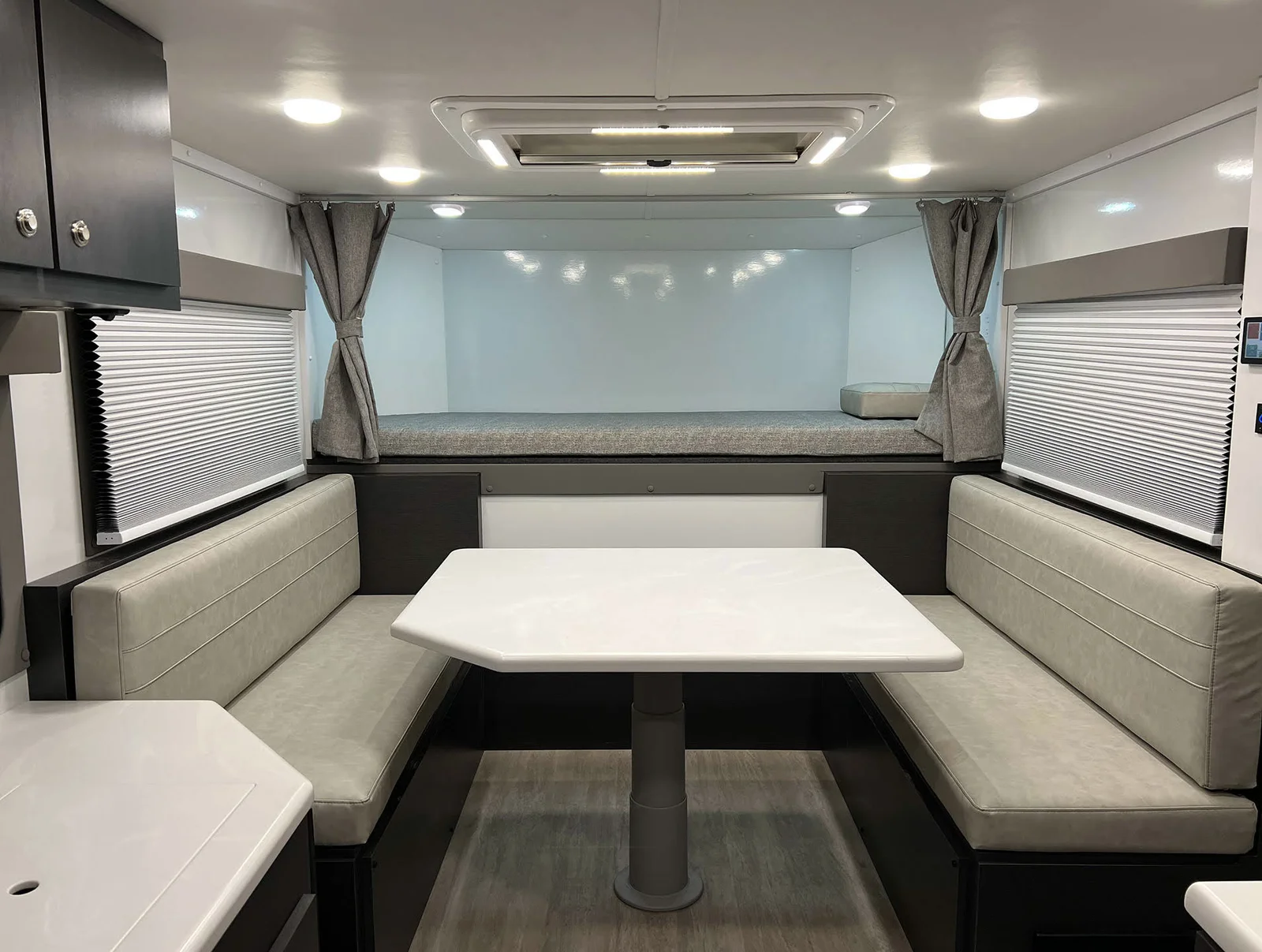

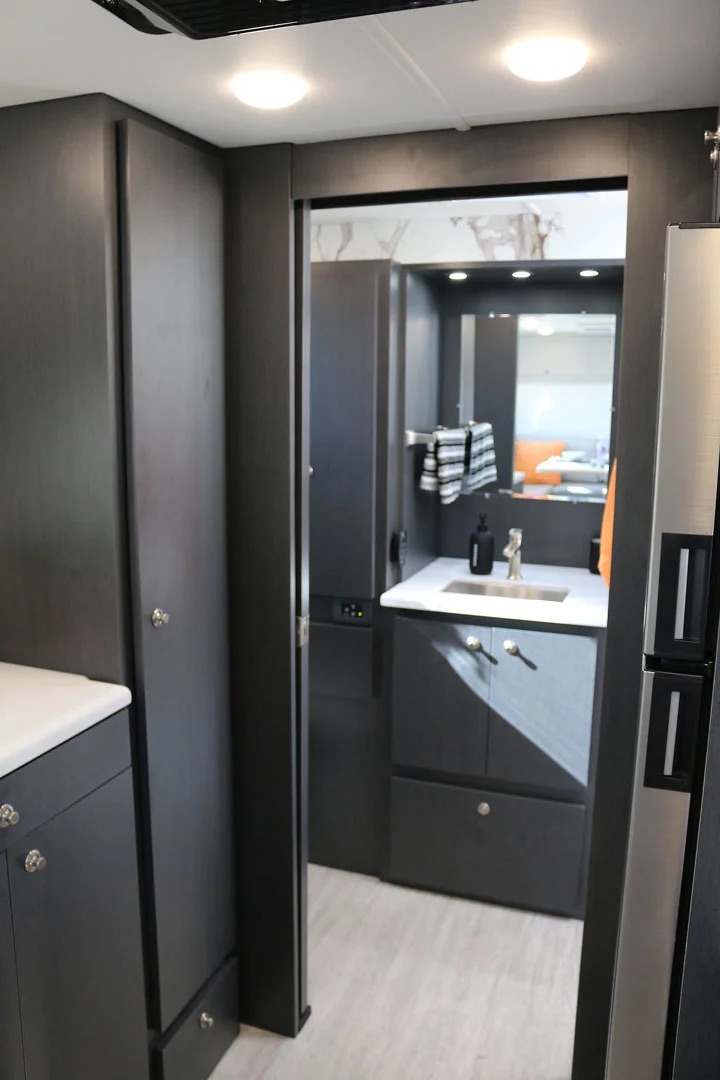

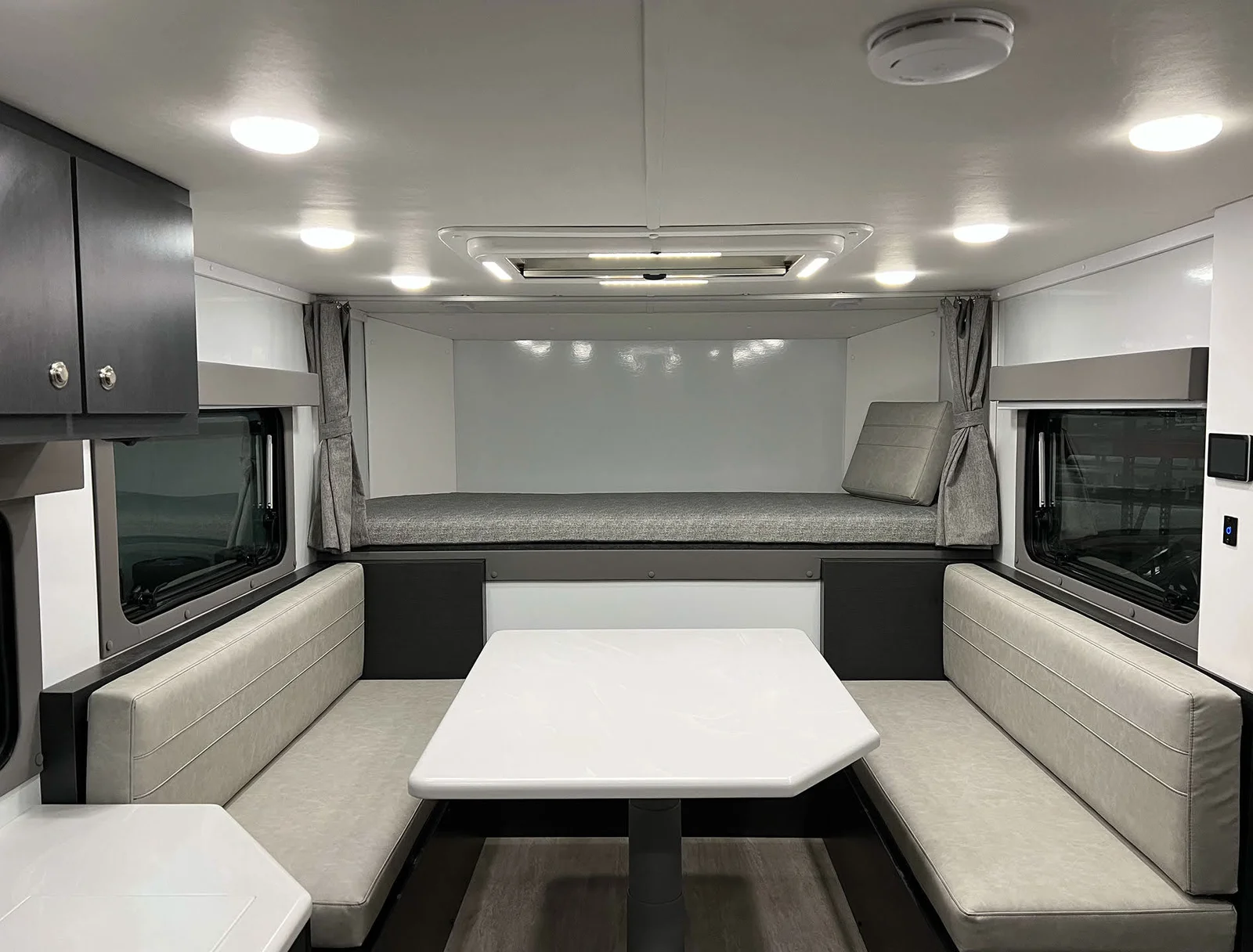

Inside, the Trailblazer blends residential comfort with expedition utility. The six-person dinette converts to a king bed, complemented by a dedicated cab-over bunk with an escape hatch and a privacy curtain. High ceilings with a soft-touch headliner, commercial-grade flooring, solid-surface countertops, soft-close laminate cabinetry, and push-button latches keep things quiet, durable, and organized. The galley is fully equipped with a residential stainless sink, refrigerator/freezer, convection microwave/oven, removable double-burner induction cooktop (use indoors or plug in outside), exhaust hood, under-counter trash stowage, ample overhead/base cabinets, counter outlets, and a wall-mounted Smart TV. A true dry bath adds a walk-in shower with skylight and adjustable wand, residential toilet, sink with premium fixtures, a floor-to-ceiling linen cabinet, and a lower cabinet with pass-through to rear exterior storage. Zoned lighting with independent switches, dual-pane opening windows, a roof hatch with vent/egress, a washer/dryer cabinet with pull-out drawer, a Nomadic Cooling 48V A/C (12,480 BTU), and two thermostat-controlled toe-kick heaters make life off-grid feel effortless.
Meet Moab Trailblazer
The MOAB Trailblazer is a true extreme off-road, off-grid motorhome that pairs MOAB’s huck-fastened, self-supporting habitat with a Ford F-550 4×4 chassis. Powered by the 6.7L V8 diesel and 10-speed transmission (19,500-lb GVWR), it adds FOX racing shocks/springs with a 3″ lift, 35″ tires on 20″ black-out rims, heavy-duty front and steel rear bumpers, a 15,000-lb front winch, nerf bars, dual fuel tanks, a 350-amp alternator, and full camera coverage to a 7″ display. Expedition autonomy comes from MOAB’s 48-volt electrical system—dual 3,000W inverters (6,000W total), ~17 kWh Lithionics battery storage, 1.5 kW solar, Victron touchscreen with Bluetooth/Wi-Fi—delivering up to ~21 hours of A/C or ~10 hours of full-system runtime with rapid recharge. A 75-gal heated fresh tank, 30-gal heated gray, and 40-gal heated black tank, plus exterior hot/cold shower, round out a package built to roam far and stay longer.

Exterior

MOAB’s habitat is a welded, huck-fastened box frame with extra-thick fiberglass walls that’s fully self-supporting, no wood to swell and no monocoque required and it can be unbolted from the chassis for major service. Daily usability is dialed in with an articulating entry step, grab rail at the door, a full basement with lockable compartment doors, fully painted body to match the truck, exterior access to all tanks and components, and an exterior 50-amp shore connection with a 20-amp compartment outlet. Visibility and safety are enhanced by a 52″ LED light bar, OEM driving lights, fog lights, upper/lower LED tails and markers, LED reverse and plate lights, and three 12″ perimeter/security LEDs; cameras provide backup and left/right turn views to the in-cab screen. Practical trail gear includes the 15,000-lb front winch with controller, 2″ rear receiver, 7-pin trailer connection, nerf bars, and a factory in-dash stereo system, plus a handy pass-through between the cab and habitat.

Interior

Inside, the Trailblazer blends residential comfort with expedition utility. The six-person dinette converts to a king bed, complemented by a dedicated cab-over bunk with an escape hatch and a privacy curtain. High ceilings with a soft-touch headliner, commercial-grade flooring, solid-surface countertops, soft-close laminate cabinetry, and push-button latches keep things quiet, durable, and organized. The galley is fully equipped with a residential stainless sink, refrigerator/freezer, convection microwave/oven, removable double-burner induction cooktop (use indoors or plug in outside), exhaust hood, under-counter trash stowage, ample overhead/base cabinets, counter outlets, and a wall-mounted Smart TV. A true dry bath adds a walk-in shower with skylight and adjustable wand, residential toilet, sink with premium fixtures, a floor-to-ceiling linen cabinet, and a lower cabinet with pass-through to rear exterior storage. Zoned lighting with independent switches, dual-pane opening windows, a roof hatch with vent/egress, a washer/dryer cabinet with pull-out drawer, a Nomadic Cooling 48V A/C (12,480 BTU), and two thermostat-controlled toe-kick heaters make life off-grid feel effortless.

Features

F-550 4×4 powertrain & lift

6.7L V8 diesel with 10-speed, 19,500-lb GVWR, FOX racing shocks/springs with 3″ lift, 35″ tires on 20″ rims, heavy-duty bumpers, 15,000-lb front winch, dual fuel tanks, 350-amp alternator.

48V off-grid system

~17 kWh Lithionics battery bank, dual 3,000W inverters (6,000W total), 1.5 kW solar, Victron touchscreen + app; indicative runtime: ~21 hrs A/C or ~10 hrs full-system, fast recharge (<5 hrs).

Robust MOAB habitat

Self-supporting welded box with huck-fastened joints and extra-thick fiberglass (no wood), fully painted, full basement storage, and the habitat can be unbolted from the chassis for major service.

Refined, flexible interior

Six-person dinette converts to a king bed + dedicated cab-over bunk with escape hatch; solid-surface galley with removable induction cooktop and convection microwave; true dry bath; washer/dryer cabinet.

Gallery

Exterior
Interior
Off-Road
The Moab Project
The Moab Project
The Moab Project
The Moab Project
The Moab Project
The Moab Project
The Moab Project
The Moab Project

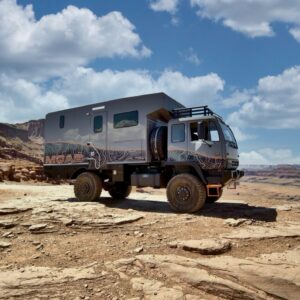

Moab Juggernaut
Moab Juggernaut
Moab Juggernaut
Moab Juggernaut
Moab Juggernaut
Moab Juggernaut
The Moab Project

Specifications

Measurements

GVWR: 19,500 lb
Tires/Wheels: 35" tires on 20" black-out rims
Suspension Lift: 3" (FOX shocks & springs)
Hitch: 2" rear receiver; 7-pin trailer connection
Winch Capacity: 15,000 lb (front)
Fresh Water: 75 gal (heated)
Gray Water: 30 gal (heated)
Black Water: 40 gal (heated)

Layout

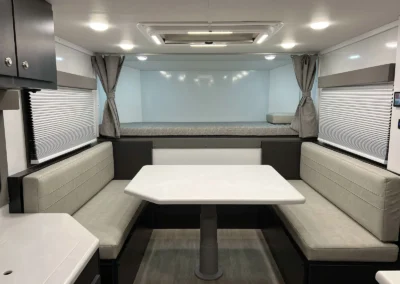

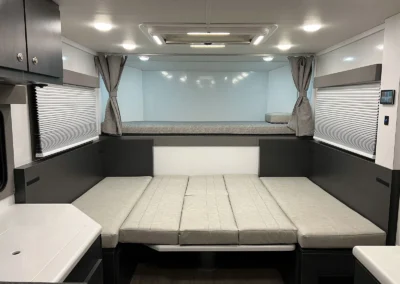

Great room/dinette: Seats 6; converts to king bed

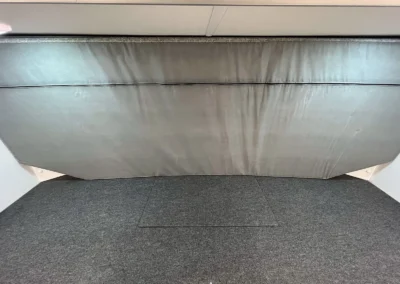

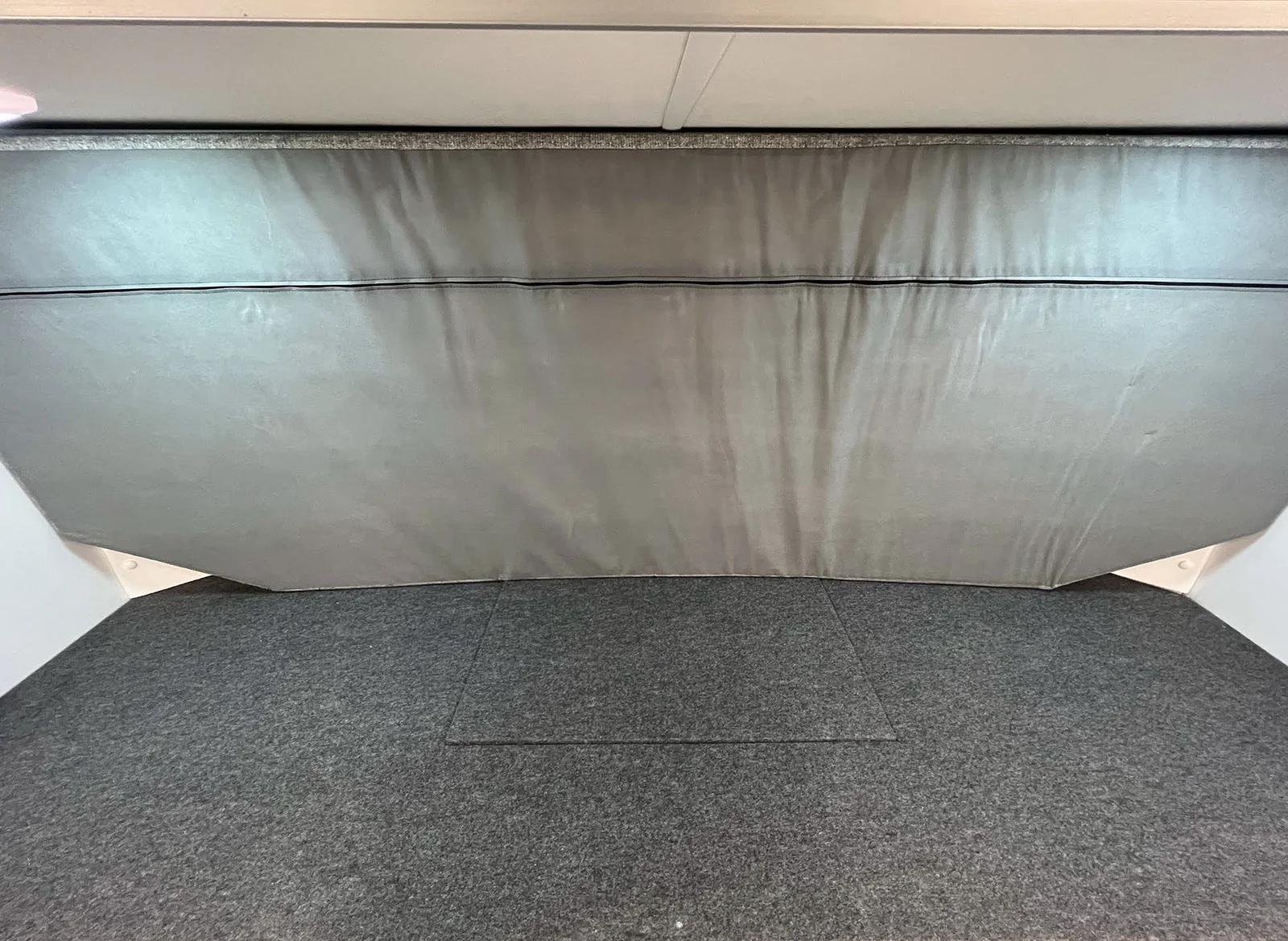

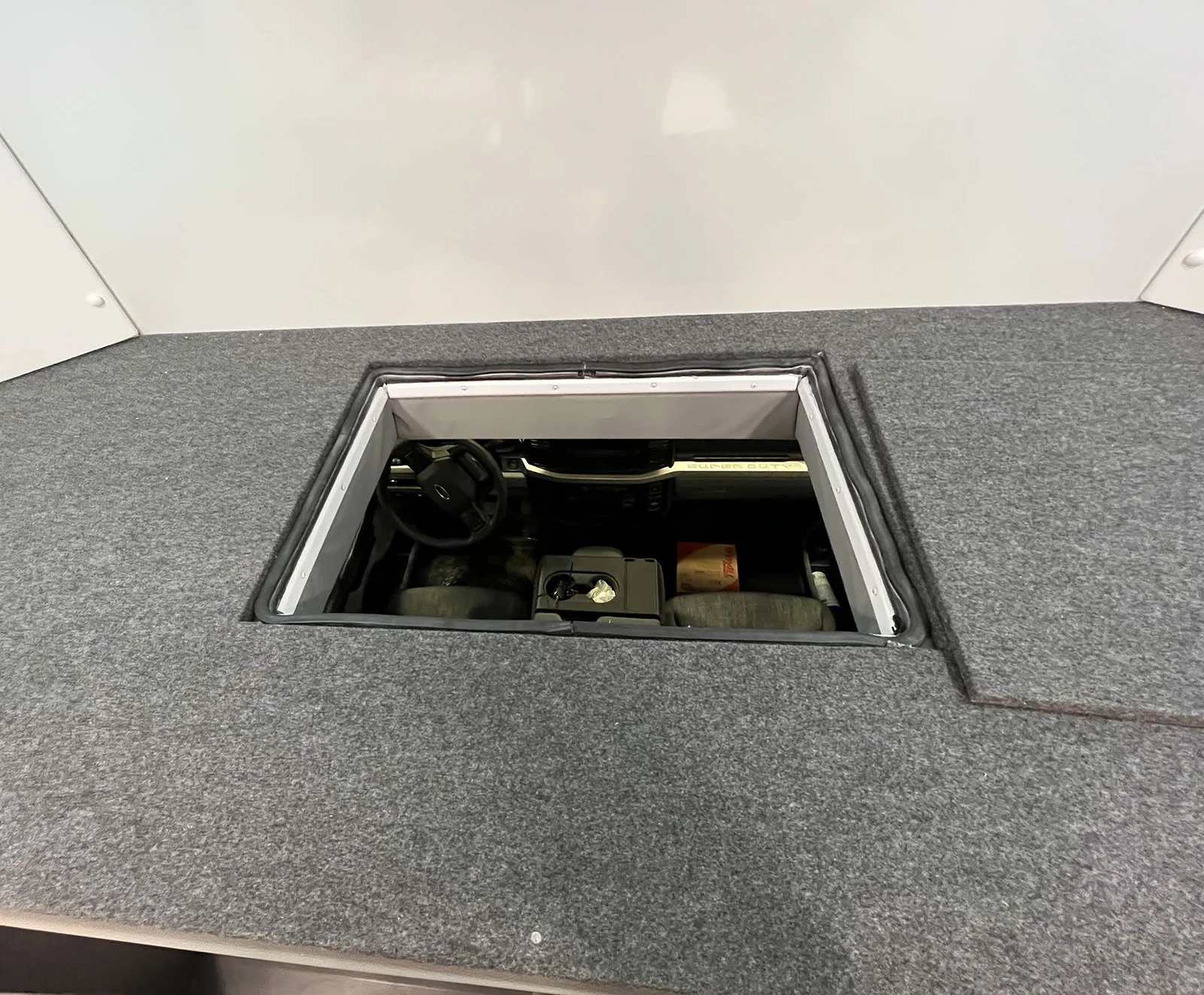

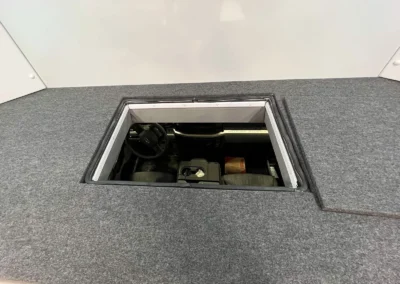

Cab-over bunk: Dedicated bunk with escape hatch + privacy curtain; cab-to-hab pass-through
Storage: Under-dinette, cab-over, closet (shelves + hanging rod), full basement compartments

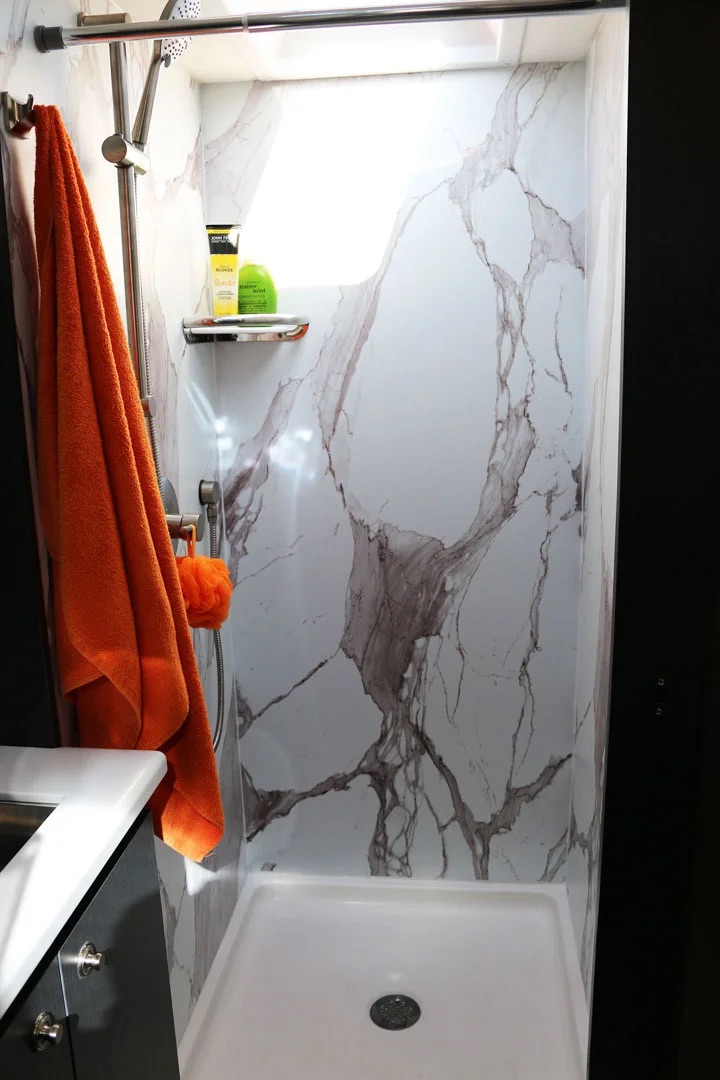

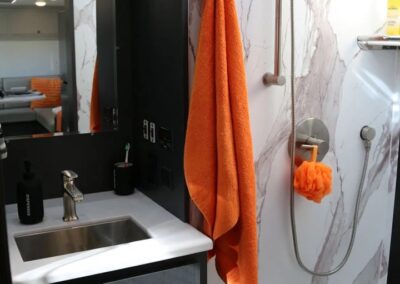

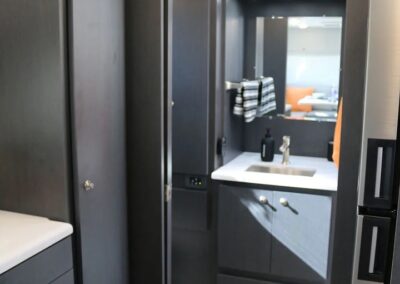

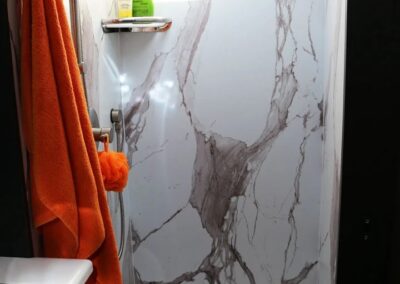

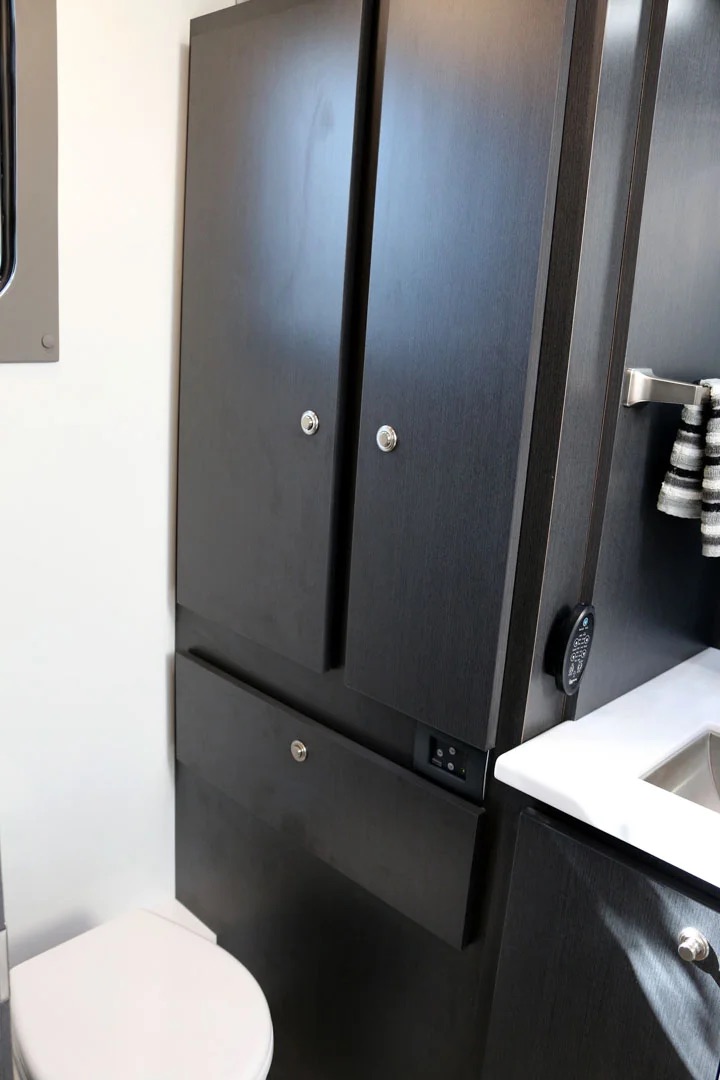

Bath: True dry bath—separate walk-in shower (skylight, adjustable wand), toilet, sink, floor-to-ceiling cabinet, lower cabinet with rear pass-through
Openings: Dual-pane windows (fully open), roof hatch with vent/egress, ceiling skylight above dinette
Finishes: Commercial-grade flooring; solid-surface countertops; soft-close laminate cabinetry with push-button latches

Appliances

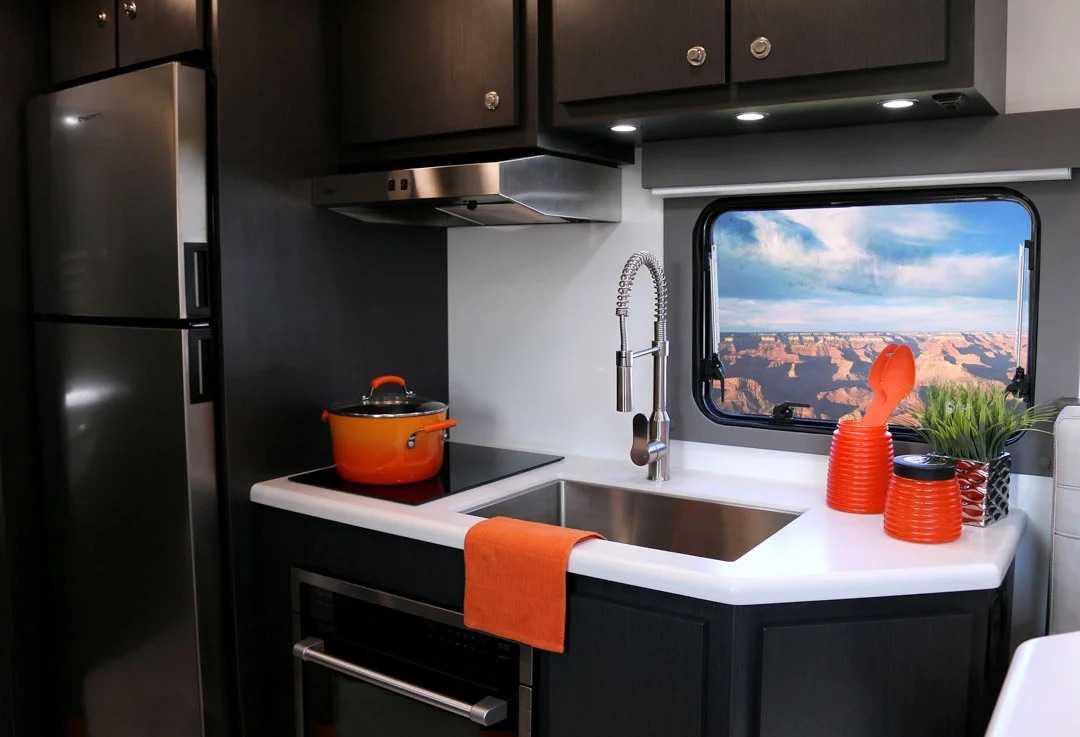

Cooking: Removable double-burner induction cooktop (indoor/outdoor), convection microwave/oven, exhaust hood
Refrigeration: Refrigerator/freezer
HVAC: Nomadic Cooling 3000 (48V) A/C, 12,480 BTU; two thermostat-controlled toe-kick heaters
Hot Water: Water heater
Ventilation: Variable-speed bath fan (rain cover)
Entertainment/Power Points: Wall-mounted Smart TV; interior 120V outlets; 20A AC outlet in compartment
Laundry (prep): Washer/dryer cabinet with pull-out drawer

FEATURES & CHASSIS

Chassis/Drivetrain: Ford F-550 4×4; 6.7L V8 diesel; 10-speed automatic; remote start; engine block heater; dual fuel tanks; 350A alternator
Running Gear: FOX shocks & springs (3" lift); heavy-duty front & steel rear bumpers; nerf bars
Recovery/Towing: 15,000-lb front winch (controller); 2" receiver; 7-pin trailer connection
Driver Aids: Backup/left/right cameras to 7" screen; factory in-dash stereo
Habitat Construction: RS-designed self-supporting welded box; huck-fastened joints; extra-thick fiberglass walls (no wood); fully painted; habitat unbolts from chassis; exterior articulating step + grab rail; full basement with compartment doors; exterior hot/cold shower
Lighting: 52" LED light bar; OEM driving & fog lights; LED tails/markers/reverse/plate; (3) 12" perimeter/security LEDs
Off-Grid Electrical (48V): 50A service; 6,000W inverter power (dual 3,000W); ~17 kWh Lithionics (2×8,440 Wh); 1.5 kW Merlin flexible solar; Victron touchscreen + Bluetooth/Wi-Fi app; indicative runtime ~21 hr A/C or ~10 hr full-system; recharge <5 hr (≈~3 hr with strong solar assist) Safety & Accessories: CO/smoke detector; fire extinguisher; roadside kit; fresh/waste hoses; 50A shore cord
